| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_132T01_9000000686_05426cztM0_level2.evt | modeM0/AS1G05_132T01_9000000686_05426cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,928,960 | 74,701,440 |
| Size | 423.4 MB | 71.2 MB |
| Events in quadrant A | 2,958,356 | 464,639 |
| Events in quadrant B | 3,111,330 | 473,950 |
| Events in quadrant C | 2,711,909 | 467,070 |
| Events in quadrant D | 4,249,099 | 431,060 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12935 | 2 |
| B | 0 | 13227 | 1 |
| C | 0 | 12383 | 1 |
| D | 0 | 16800 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6082 | 92 | 1.512660% |
| B | 6082 | 38 | 0.624794% |
| C | 6082 | 18 | 0.295955% |
| D | 6082 | 230 | 3.781651% |

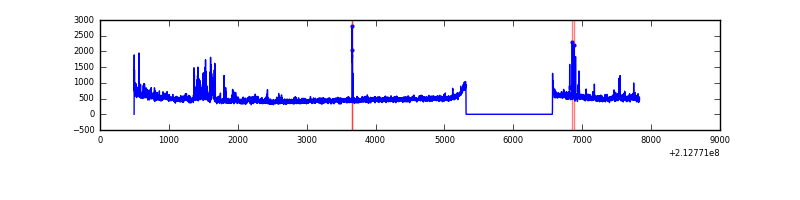

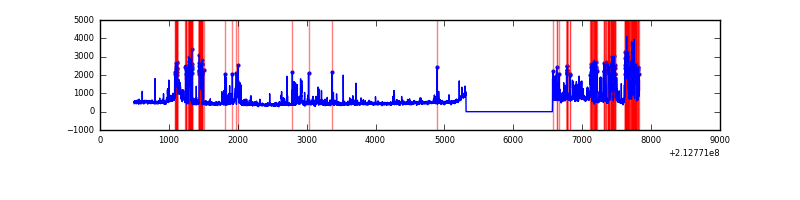

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7336 | 6082 | 38 | 38 | 0.52% | 0.62% |  |
| B | 7337 | 6083 | 4 | 4 | 0.05% | 0.07% |  |
| C | 7336 | 6082 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7336 | 6082 | 265 | 265 | 3.61% | 4.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 167568 | 1120.61 | 720 | 705 | 148.9 |
| A | 15 | 174 | 14015 | 89.39 | 720 | 705 | 148.9 |
| A | 0 | 226 | 7336 | 44.53 | 720 | 705 | 148.9 |
| B | 0 | 219 | 163497 | 1167.65 | 733 | 719 | 139.4 |
| B | 4 | 48 | 47223 | 333.58 | 733 | 719 | 139.4 |
| B | 15 | 204 | 35317 | 248.18 | 733 | 719 | 139.4 |
| C | 14 | 67 | 5806 | 31.98 | 692 | 696 | 159.8 |
| C | 13 | 61 | 5630 | 30.88 | 692 | 696 | 159.8 |
| C | 12 | 4 | 3730 | 18.99 | 692 | 696 | 159.8 |
| D | 2 | 33 | 456994 | 2710.17 | 683 | 661 | 168.4 |
| D | 12 | 233 | 408088 | 2419.72 | 683 | 661 | 168.4 |
| D | 7 | 203 | 325732 | 1930.6 | 683 | 661 | 168.4 |

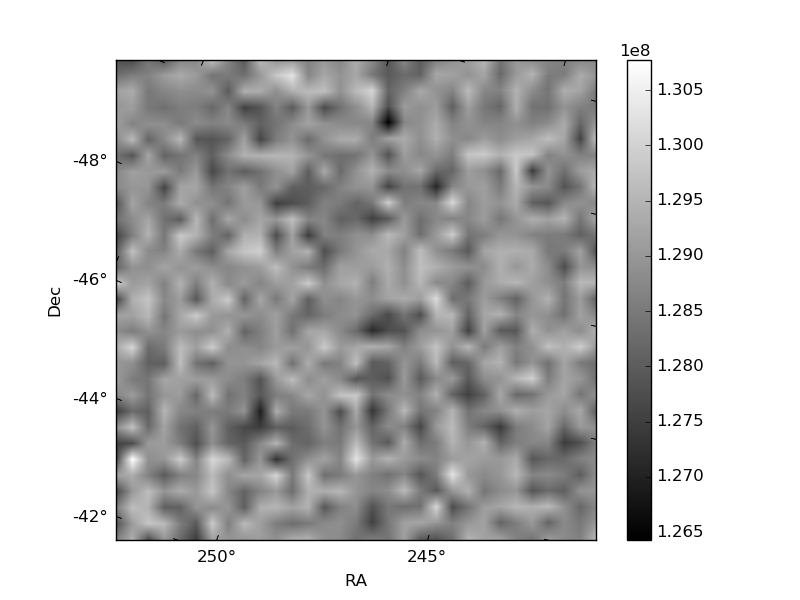

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

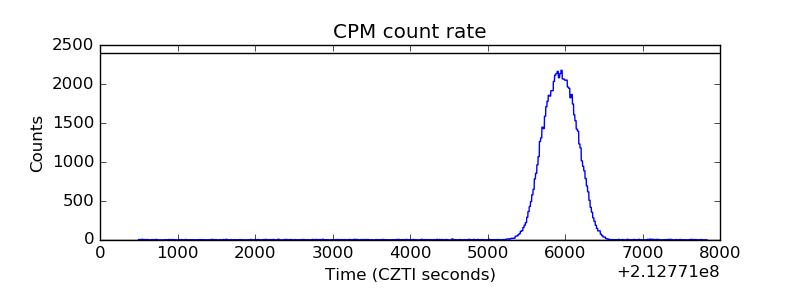

| _CPM_Rate |  |

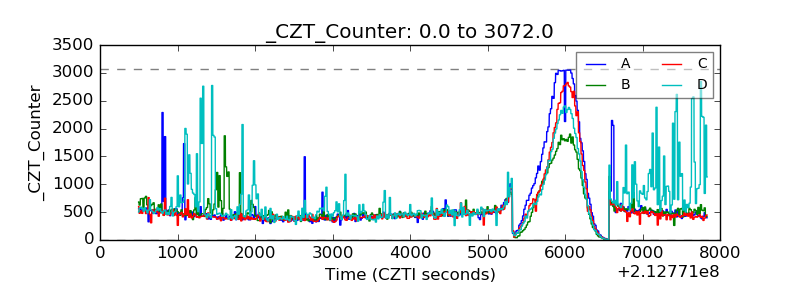

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

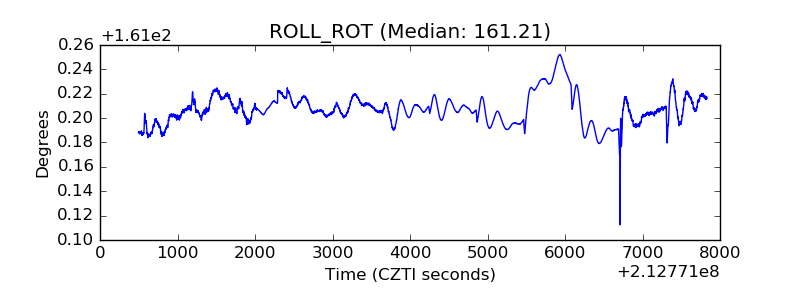

| _ROLL_ROT |  |

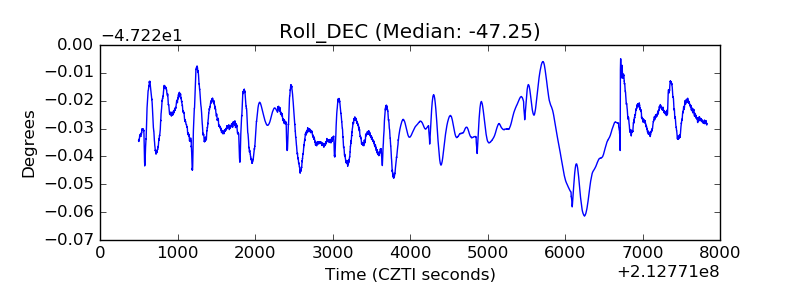

| _Roll_DEC |  |

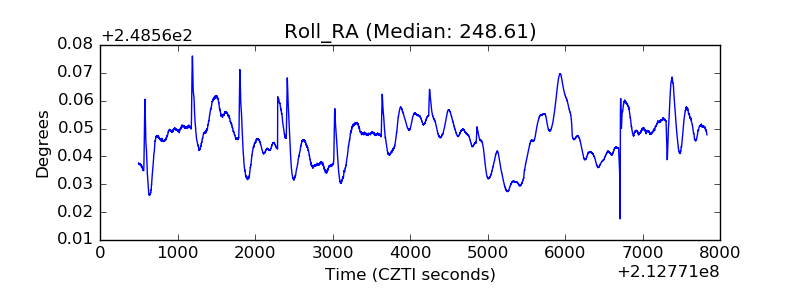

| _Roll_RA |  |
| Veto Counter |  |
