| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_204T01_9000000688_05457cztM0_level2.evt | modeM0/AS1G05_204T01_9000000688_05457cztM0_level2_quad_clean.evt |
| Size (bytes) | 144,512,640 | 30,061,440 |
| Size | 137.8 MB | 28.7 MB |
| Events in quadrant A | 829,836 | 201,773 |
| Events in quadrant B | 1,372,188 | 202,468 |
| Events in quadrant C | 948,647 | 199,755 |
| Events in quadrant D | 1,115,403 | 188,473 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3415 | 1 |
| B | 0 | 5234 | 1 |
| C | 0 | 3789 | 1 |
| D | 0 | 4437 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1593 | 6 | 0.376648% |
| B | 1593 | 34 | 2.134338% |
| C | 1593 | 35 | 2.197112% |
| D | 1593 | 30 | 1.883239% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1593 | 1593 | 2 | 2 | 0.13% | 0.13% |  |
| B | 1593 | 1593 | 13 | 13 | 0.82% | 0.82% |  |
| C | 1593 | 1593 | 21 | 21 | 1.32% | 1.32% |  |
| D | 1593 | 1593 | 14 | 14 | 0.88% | 0.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 11123 | 248.05 | 211 | 206 | 44.0 |
| A | 12 | 194 | 2214 | 45.63 | 211 | 206 | 44.0 |
| A | 0 | 226 | 2151 | 44.19 | 211 | 206 | 44.0 |
| B | 15 | 204 | 463719 | 11196.25 | 212 | 208 | 41.4 |
| B | 11 | 51 | 41121 | 988.27 | 212 | 208 | 41.4 |
| B | 0 | 219 | 30689 | 736.28 | 212 | 208 | 41.4 |
| C | 9 | 247 | 118388 | 2421.65 | 208 | 210 | 48.8 |
| C | 14 | 67 | 14639 | 295.67 | 208 | 210 | 48.8 |
| C | 13 | 61 | 1753 | 31.62 | 208 | 210 | 48.8 |
| D | 2 | 33 | 156838 | 2994.28 | 208 | 200 | 52.3 |
| D | 8 | 195 | 53028 | 1009.86 | 208 | 200 | 52.3 |
| D | 12 | 110 | 49491 | 942.24 | 208 | 200 | 52.3 |

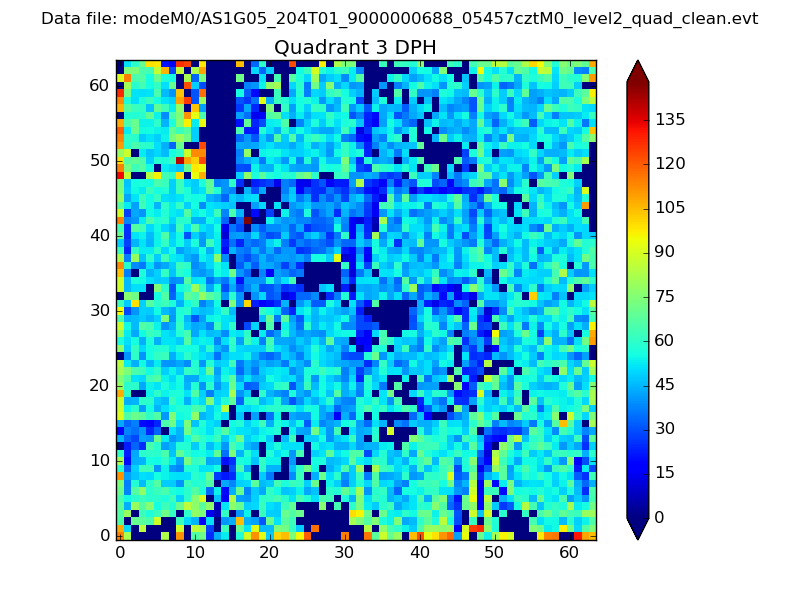

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

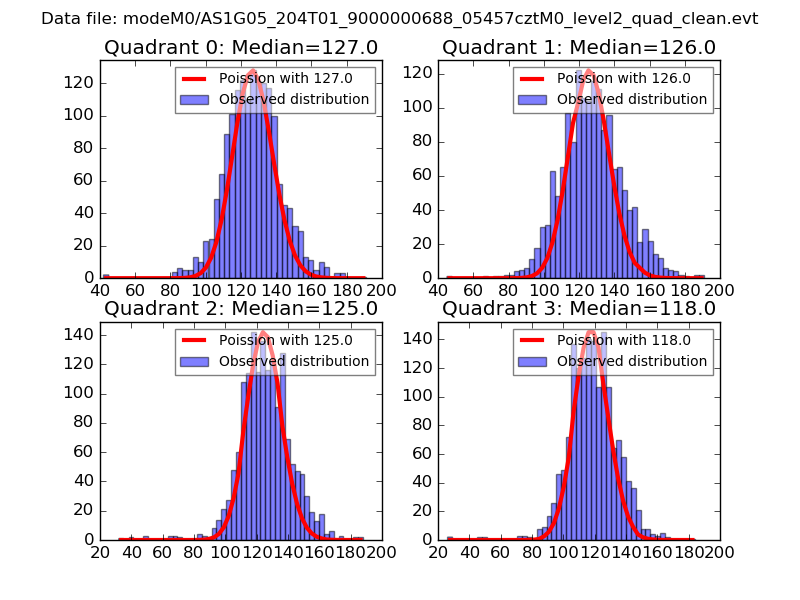

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

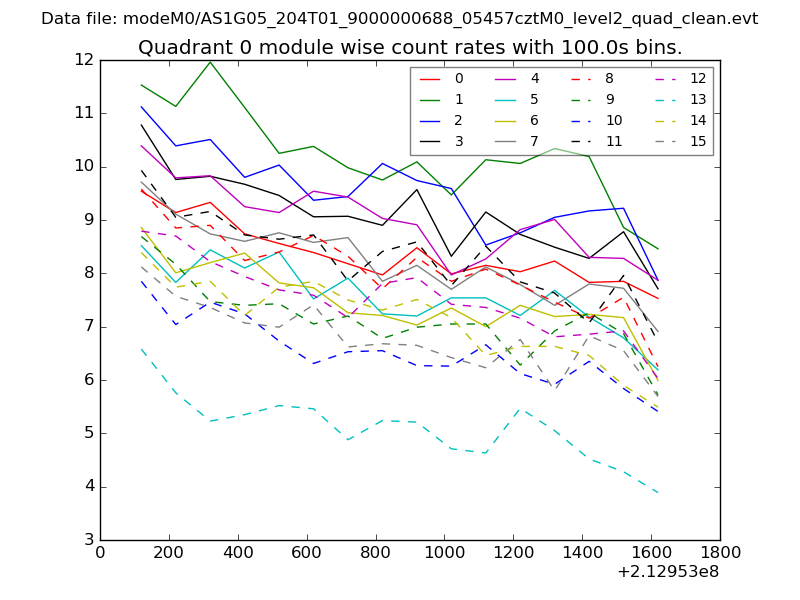

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

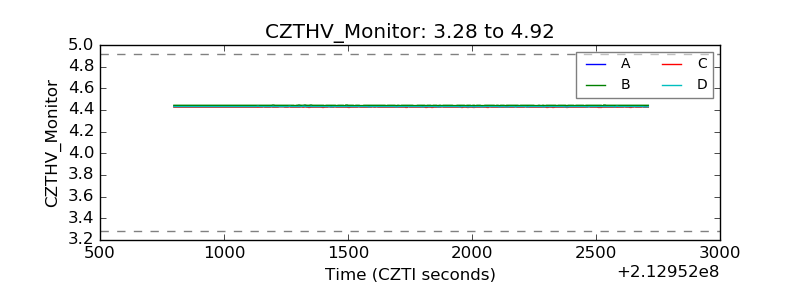

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

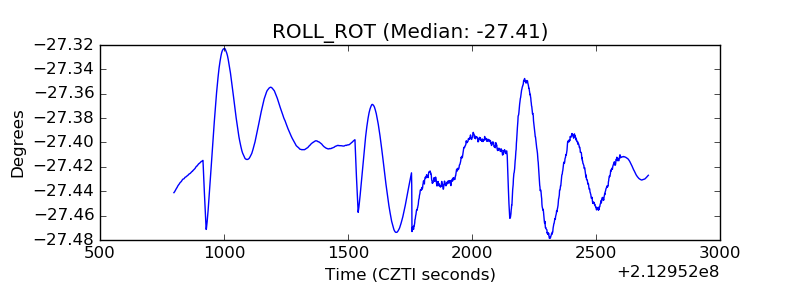

| _ROLL_ROT |  |

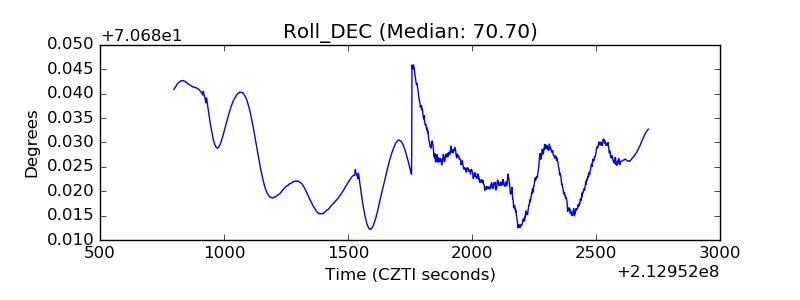

| _Roll_DEC |  |
