| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_087T03_9000000696_05460cztM0_level2.evt | modeM0/AS1G06_087T03_9000000696_05460cztM0_level2_quad_clean.evt |
| Size (bytes) | 258,154,560 | 47,943,360 |
| Size | 246.2 MB | 45.7 MB |
| Events in quadrant A | 1,572,234 | 314,336 |
| Events in quadrant B | 1,761,996 | 317,388 |
| Events in quadrant C | 2,143,288 | 295,716 |
| Events in quadrant D | 2,127,097 | 301,959 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6808 | 2 |
| B | 0 | 7366 | 1 |
| C | 0 | 8572 | 1 |
| D | 0 | 8460 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3123 | 52 | 1.665066% |
| B | 3123 | 42 | 1.344861% |
| C | 3123 | 297 | 9.510086% |
| D | 3123 | 76 | 2.433557% |

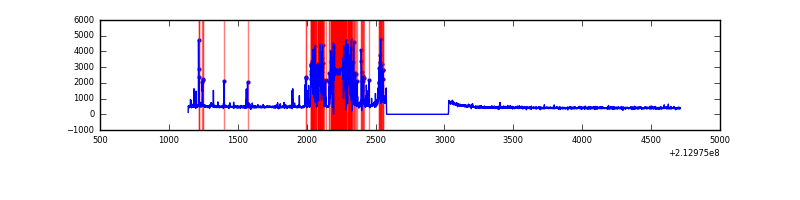

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3573 | 3124 | 11 | 11 | 0.31% | 0.35% |  |
| B | 3573 | 3124 | 11 | 11 | 0.31% | 0.35% |  |
| C | 3573 | 3124 | 228 | 228 | 6.38% | 7.30% |  |
| D | 3573 | 3124 | 62 | 62 | 1.74% | 1.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 117122 | 1492.43 | 373 | 364 | 78.2 |
| A | 15 | 174 | 14907 | 185.89 | 373 | 364 | 78.2 |
| A | 12 | 194 | 3742 | 43.18 | 373 | 364 | 78.2 |
| B | 15 | 204 | 110998 | 1470.22 | 378 | 368 | 75.2 |
| B | 11 | 51 | 74621 | 986.79 | 378 | 368 | 75.2 |
| B | 4 | 48 | 36330 | 477.92 | 378 | 368 | 75.2 |
| C | 1 | 241 | 801593 | 9995.85 | 339 | 341 | 80.2 |
| C | 14 | 67 | 6232 | 73.49 | 339 | 341 | 80.2 |
| C | 8 | 128 | 5401 | 63.12 | 339 | 341 | 80.2 |
| D | 2 | 33 | 335299 | 3736.24 | 359 | 346 | 89.6 |
| D | 2 | 136 | 88930 | 988.11 | 359 | 346 | 89.6 |
| D | 2 | 152 | 84727 | 941.23 | 359 | 346 | 89.6 |

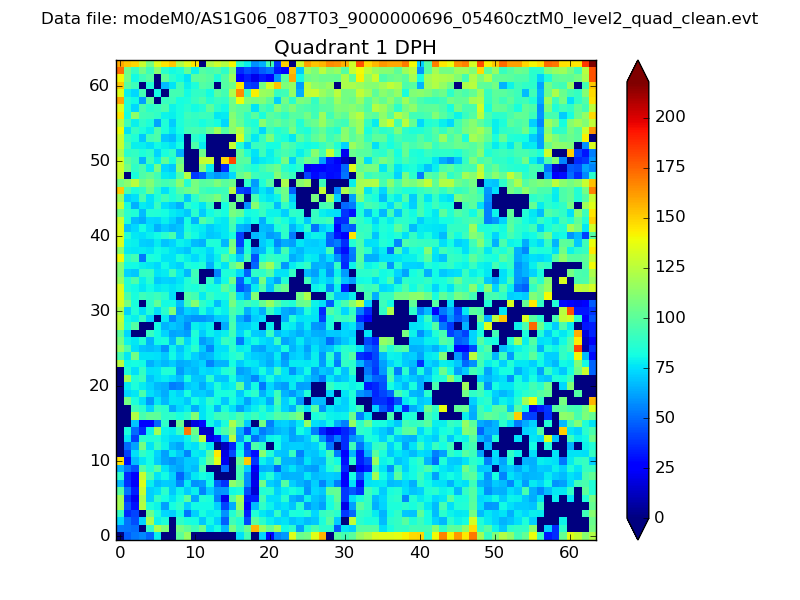

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

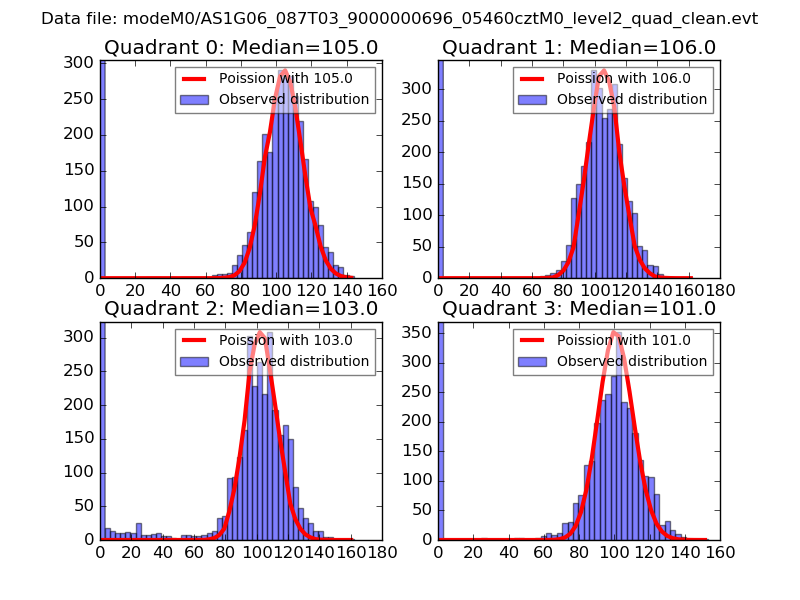

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

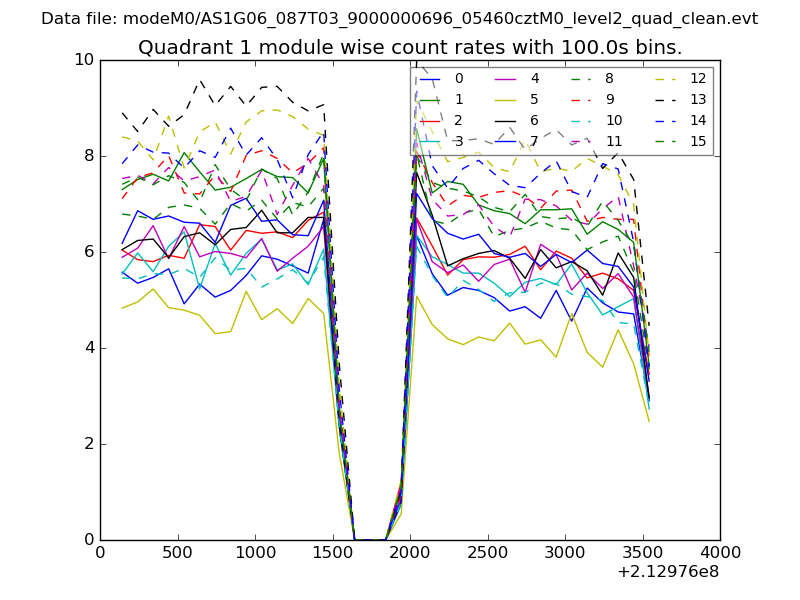

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

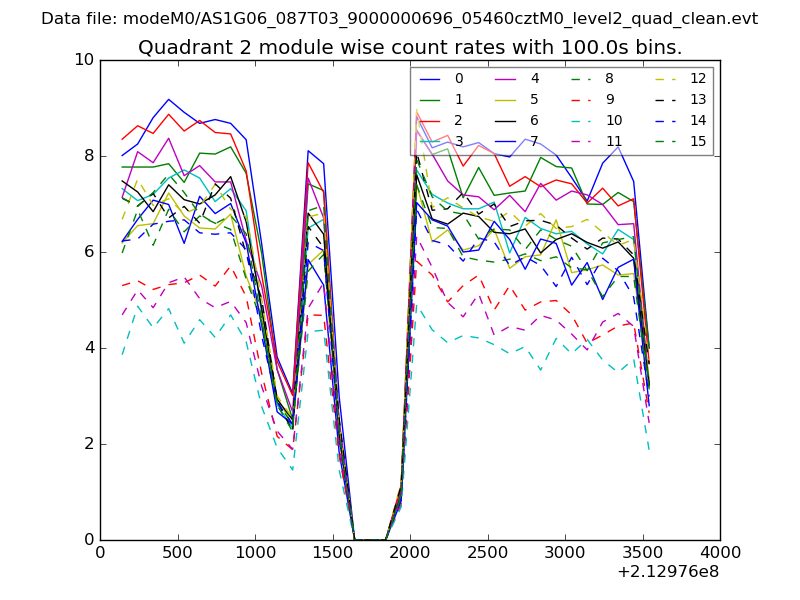

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

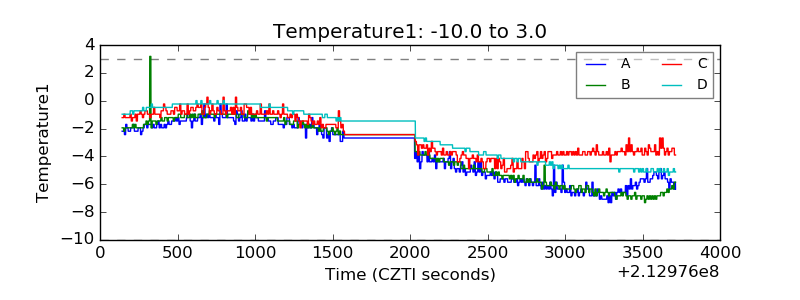

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

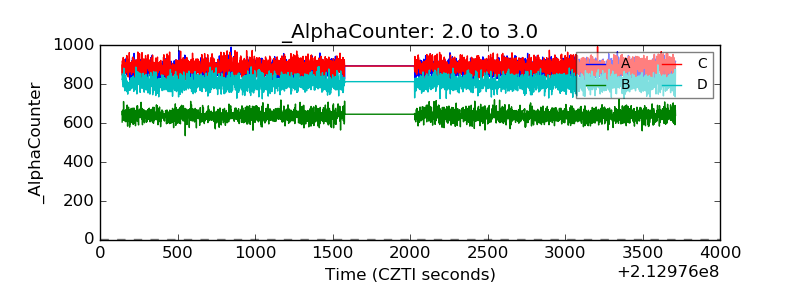

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

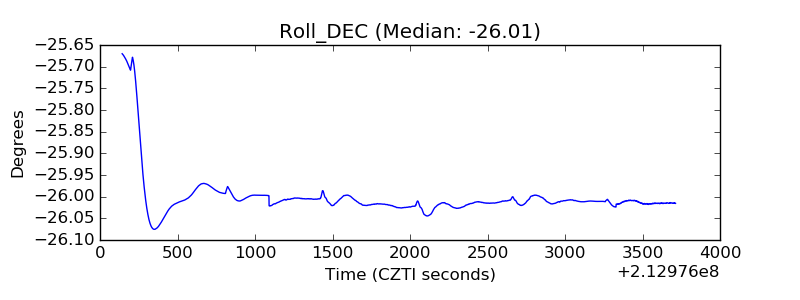

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
