| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_087T03_9000000696_05465cztM0_level2.evt | modeM0/AS1G06_087T03_9000000696_05465cztM0_level2_quad_clean.evt |
| Size (bytes) | 760,930,560 | 104,091,840 |
| Size | 725.7 MB | 99.3 MB |
| Events in quadrant A | 4,599,588 | 616,041 |
| Events in quadrant B | 5,294,020 | 619,545 |
| Events in quadrant C | 4,737,144 | 621,992 |
| Events in quadrant D | 7,710,185 | 574,434 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 212 | 4 |
| B | 0 | 212 | 2 |
| C | 0 | 212 | 2 |
| D | 0 | 212 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21574 | 285 |
| B | 0 | 22977 | 300 |
| C | 0 | 21840 | 298 |
| D | 0 | 30553 | 372 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10395 | 107 | 1.029341% |
| B | 10392 | 174 | 1.674365% |
| C | 10389 | 119 | 1.145442% |
| D | 10386 | 772 | 7.433083% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10922 | 10463 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10922 | 10458 | 27 | 27 | 0.25% | 0.26% |  |
| C | 10922 | 10450 | 6 | 6 | 0.05% | 0.06% |  |
| D | 10922 | 10461 | 625 | 625 | 5.72% | 5.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 247 | 20556 | 79.85 | 1183 | 1157 | 242.9 |
| A | 13 | 6 | 17281 | 66.37 | 1183 | 1157 | 242.9 |
| A | 0 | 226 | 13055 | 48.98 | 1183 | 1157 | 242.9 |
| B | 15 | 204 | 376581 | 1612.57 | 1197 | 1167 | 232.8 |
| B | 10 | 16 | 80782 | 341.98 | 1197 | 1167 | 232.8 |
| B | 4 | 48 | 69453 | 293.32 | 1197 | 1167 | 232.8 |
| C | 1 | 241 | 210874 | 777.2 | 1154 | 1162 | 269.8 |
| C | 0 | 10 | 15951 | 54.81 | 1154 | 1162 | 269.8 |
| C | 13 | 61 | 9286 | 30.11 | 1154 | 1162 | 269.8 |
| D | 2 | 33 | 2003100 | 7228.73 | 1126 | 1088 | 277.0 |
| D | 4 | 95 | 441156 | 1588.97 | 1126 | 1088 | 277.0 |
| D | 11 | 192 | 286897 | 1031.98 | 1126 | 1088 | 277.0 |

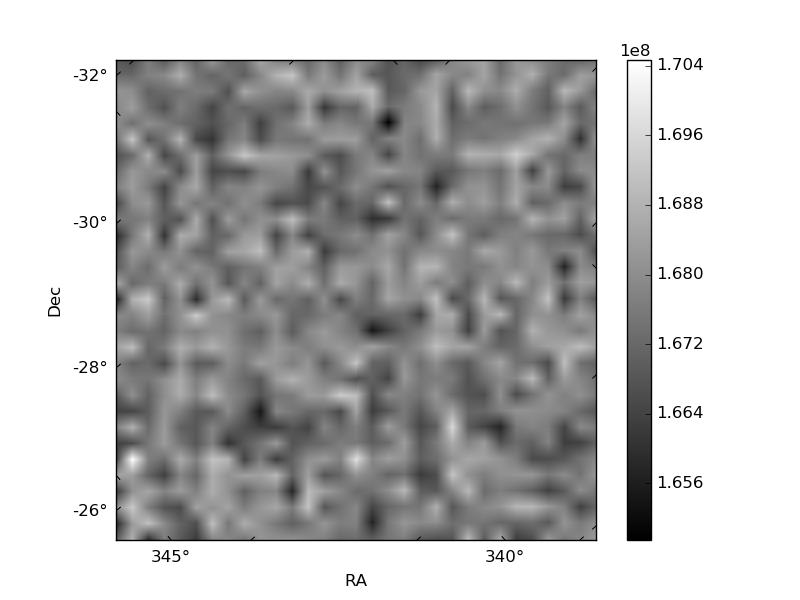

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

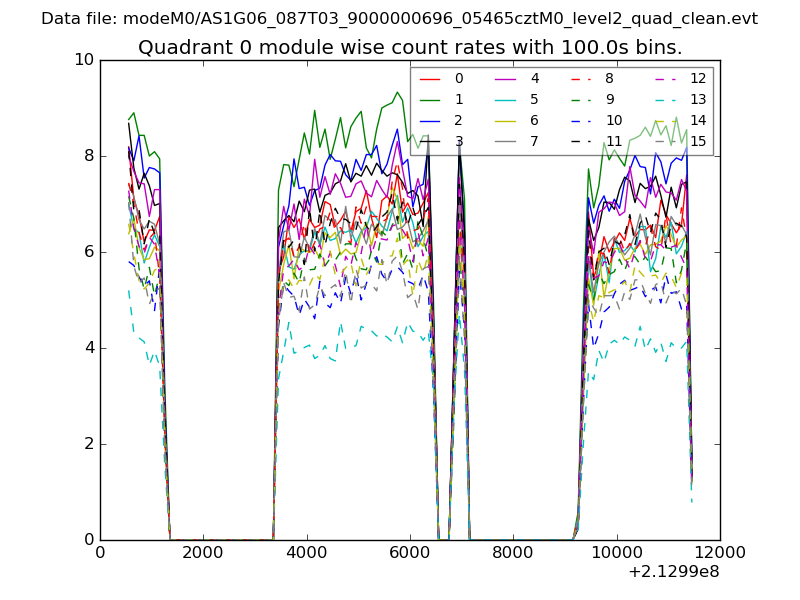

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

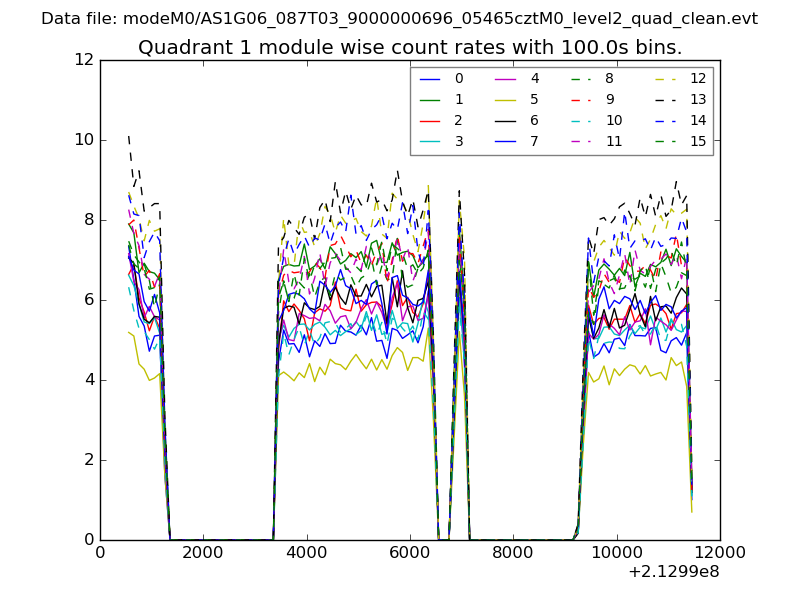

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

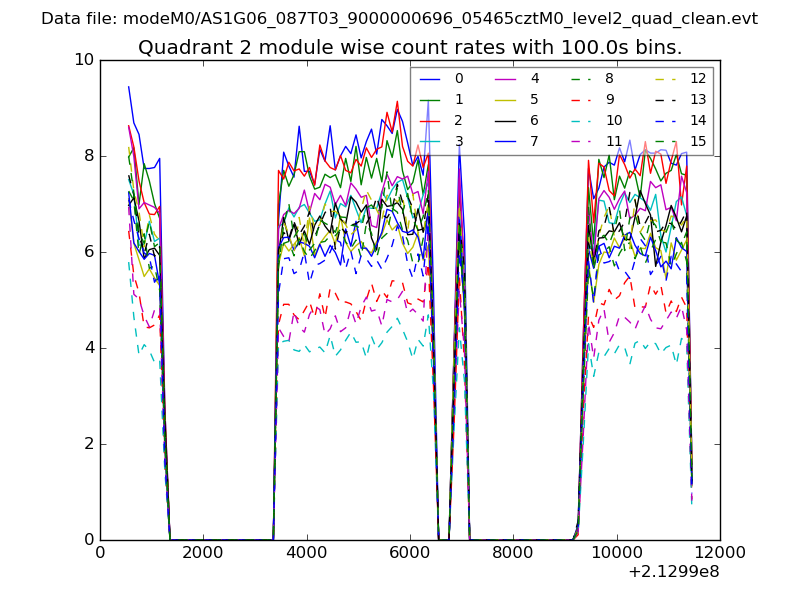

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

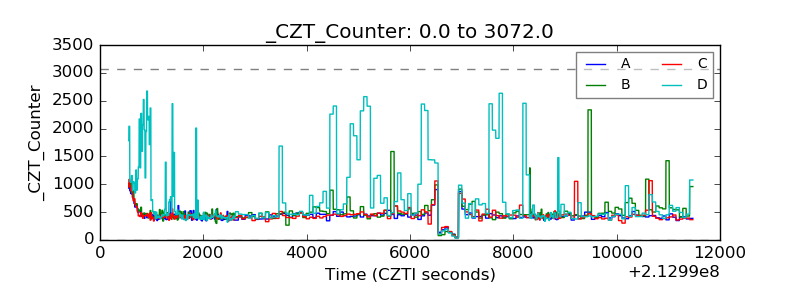

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

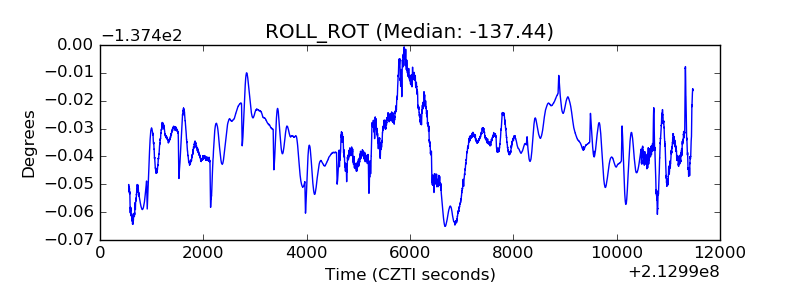

| _ROLL_ROT |  |
| _Roll_DEC |  |

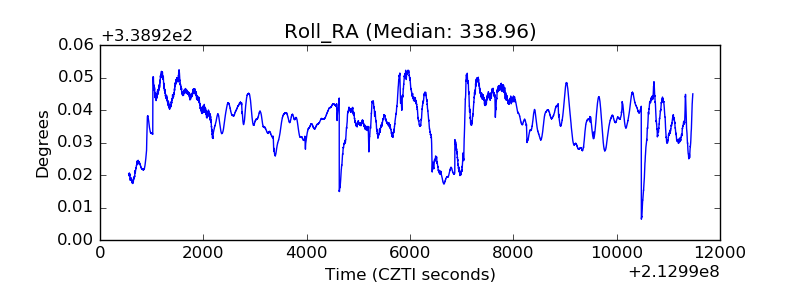

| _Roll_RA |  |
| Veto Counter |  |
