| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_138T01_9000000698_05475cztM0_level2.evt | modeM0/AS1T01_138T01_9000000698_05475cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,304,320 | 71,714,880 |
| Size | 486.7 MB | 68.4 MB |
| Events in quadrant A | 3,419,745 | 416,173 |
| Events in quadrant B | 3,840,260 | 416,992 |
| Events in quadrant C | 3,314,938 | 419,305 |
| Events in quadrant D | 4,369,021 | 395,561 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15650 | 3 |
| B | 0 | 16482 | 2 |
| C | 0 | 15523 | 2 |
| D | 0 | 18159 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7521 | 68 | 0.904135% |
| B | 7521 | 103 | 1.369499% |
| C | 7521 | 56 | 0.744582% |
| D | 7521 | 219 | 2.911847% |

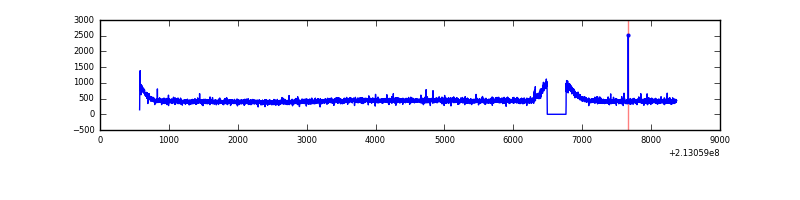

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7796 | 7522 | 11 | 11 | 0.14% | 0.15% |  |
| B | 7796 | 7522 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7796 | 7522 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7796 | 7522 | 142 | 142 | 1.82% | 1.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 83075 | 456.69 | 863 | 843 | 180.1 |
| A | 13 | 6 | 9396 | 47.5 | 863 | 843 | 180.1 |
| A | 12 | 194 | 8551 | 42.81 | 863 | 843 | 180.1 |
| B | 15 | 204 | 335800 | 1944.79 | 879 | 857 | 172.2 |
| B | 4 | 81 | 35604 | 201.75 | 879 | 857 | 172.2 |
| B | 4 | 48 | 22111 | 123.41 | 879 | 857 | 172.2 |
| C | 9 | 247 | 9815 | 45.56 | 843 | 846 | 196.9 |
| C | 13 | 61 | 6988 | 31.2 | 843 | 846 | 196.9 |
| C | 8 | 128 | 4944 | 20.82 | 843 | 846 | 196.9 |
| D | 2 | 33 | 438224 | 2123.87 | 831 | 804 | 206.0 |
| D | 8 | 195 | 210793 | 1019.59 | 831 | 804 | 206.0 |
| D | 2 | 63 | 175049 | 846.04 | 831 | 804 | 206.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

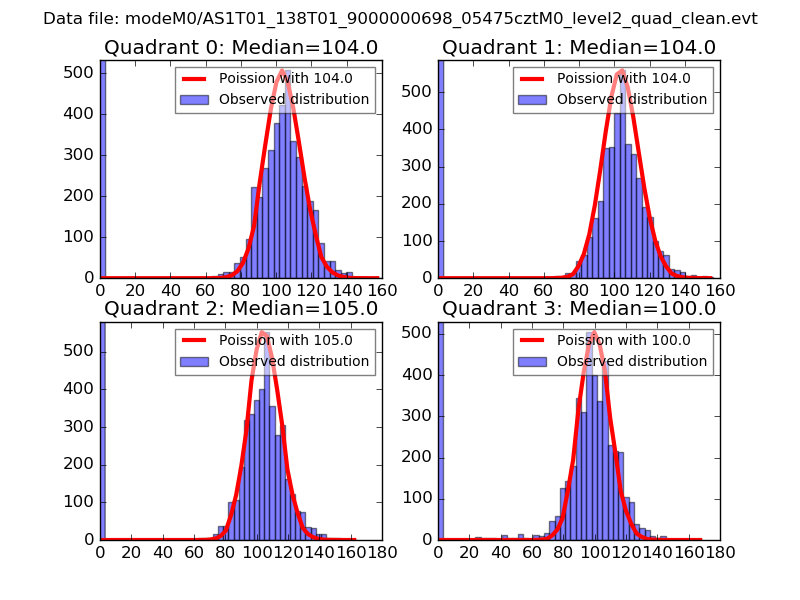

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

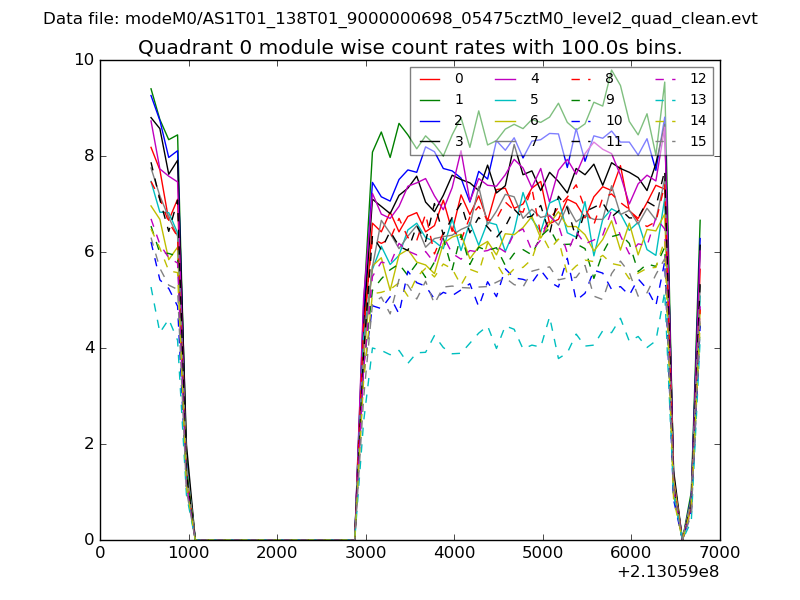

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

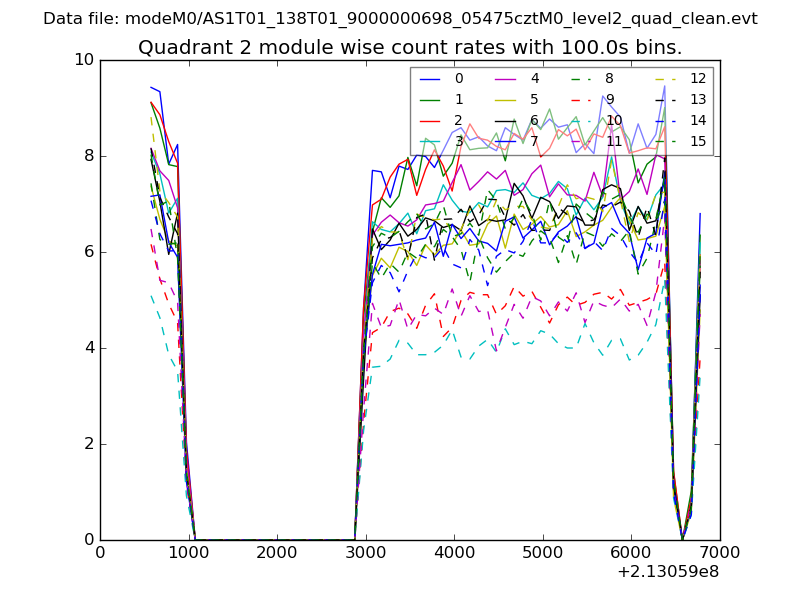

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

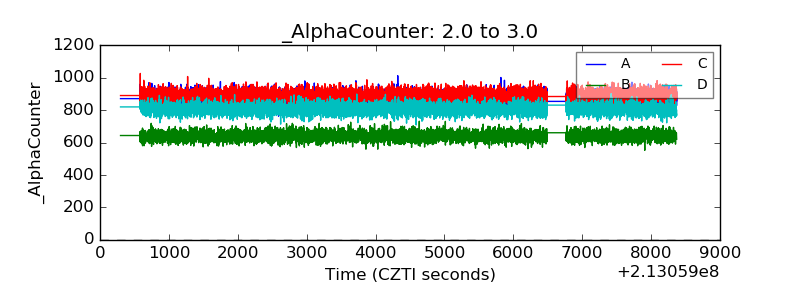

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

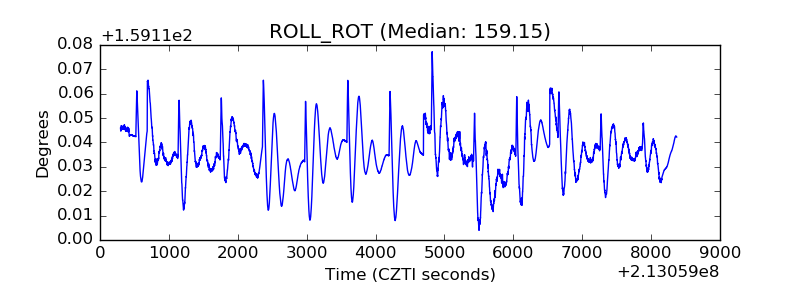

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

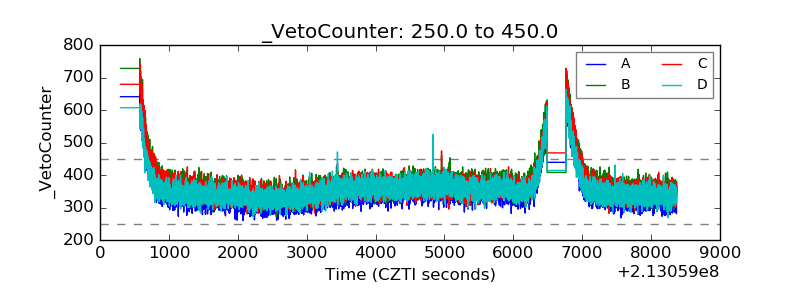

| Veto Counter |  |
