| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_063T01_9000000702_05491cztM0_level2.evt | modeM0/AS1A02_063T01_9000000702_05491cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,165,760 | 84,294,720 |
| Size | 482.7 MB | 80.4 MB |
| Events in quadrant A | 3,428,787 | 508,948 |
| Events in quadrant B | 3,895,916 | 516,046 |
| Events in quadrant C | 3,497,341 | 510,879 |
| Events in quadrant D | 3,983,046 | 480,181 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16068 | 147 |
| B | 0 | 16990 | 144 |
| C | 0 | 16194 | 102 |
| D | 0 | 17772 | 177 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 4 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7710 | 91 | 1.180285% |
| B | 7713 | 148 | 1.918838% |
| C | 7734 | 55 | 0.711146% |
| D | 7708 | 132 | 1.712506% |

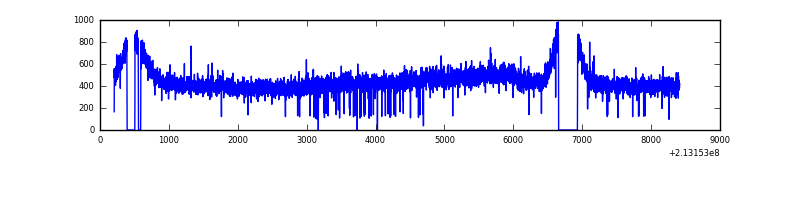

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8208 | 7783 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8208 | 7782 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8208 | 7783 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8208 | 7781 | 48 | 48 | 0.58% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 9810 | 48.69 | 887 | 865 | 183.7 |
| A | 12 | 194 | 8478 | 41.44 | 887 | 865 | 183.7 |
| A | 0 | 226 | 8469 | 41.39 | 887 | 865 | 183.7 |
| B | 15 | 204 | 271047 | 1547.78 | 905 | 880 | 174.6 |
| B | 11 | 51 | 36364 | 203.29 | 905 | 880 | 174.6 |
| B | 5 | 250 | 20698 | 113.54 | 905 | 880 | 174.6 |
| C | 9 | 247 | 49665 | 238.21 | 878 | 881 | 204.8 |
| C | 1 | 16 | 16396 | 75.76 | 878 | 881 | 204.8 |
| C | 13 | 61 | 7124 | 30.48 | 878 | 881 | 204.8 |
| D | 2 | 152 | 281148 | 1316.35 | 860 | 832 | 213.0 |
| D | 2 | 33 | 149041 | 695.98 | 860 | 832 | 213.0 |
| D | 2 | 136 | 94152 | 438.22 | 860 | 832 | 213.0 |

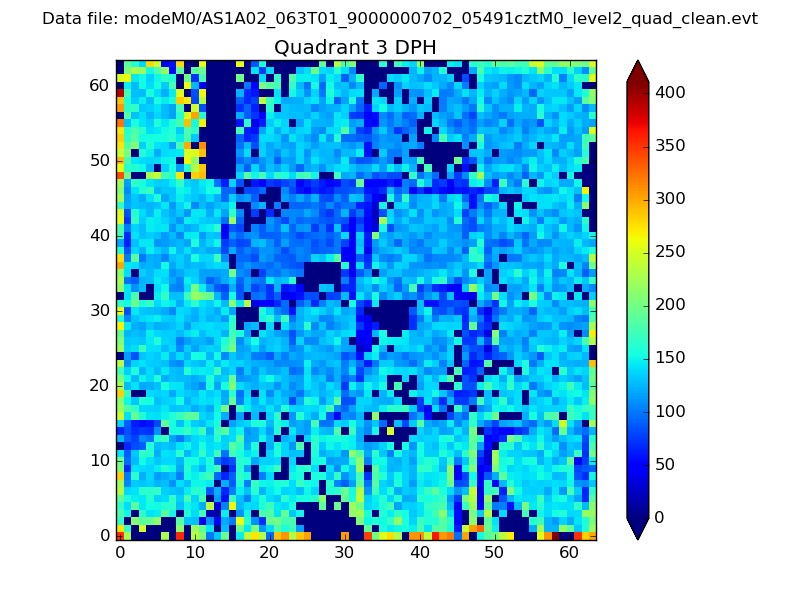

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

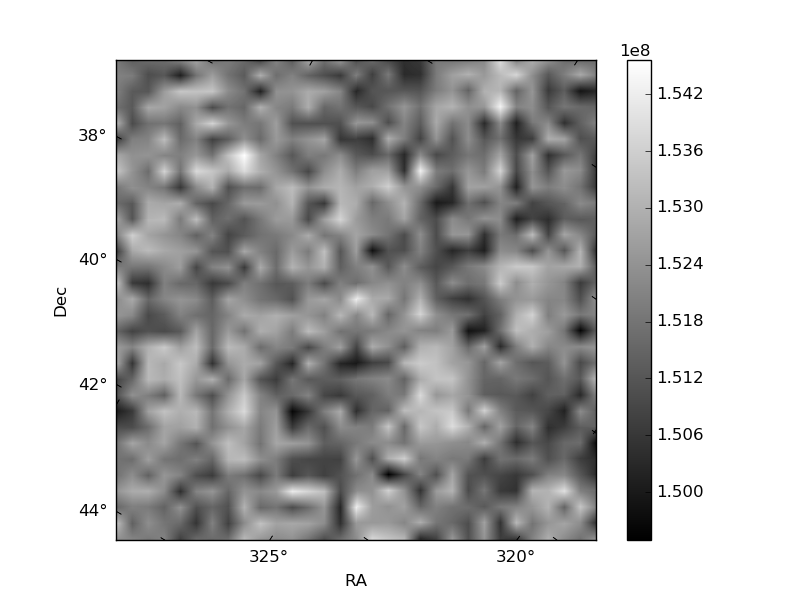

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

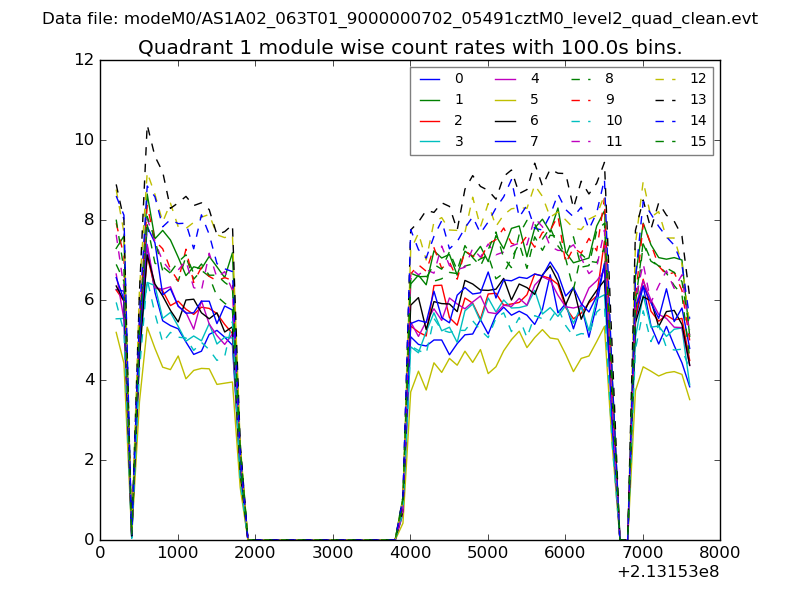

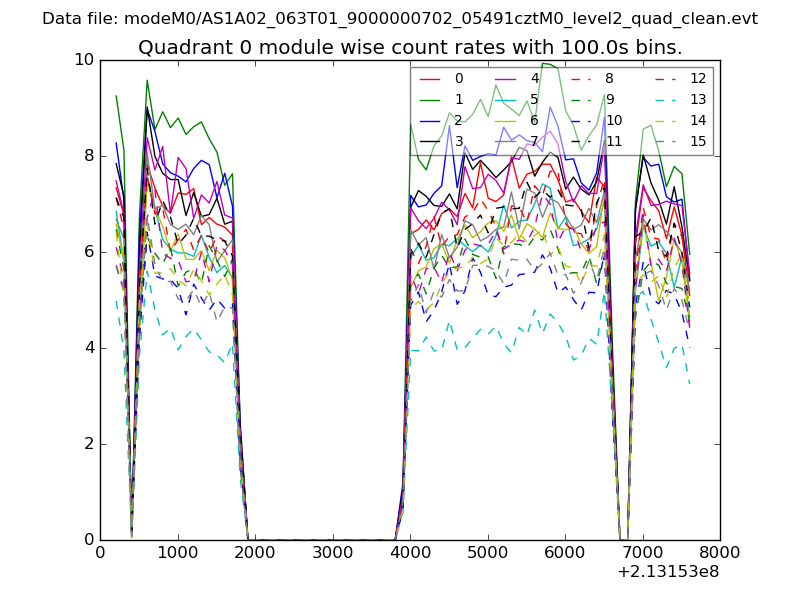

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

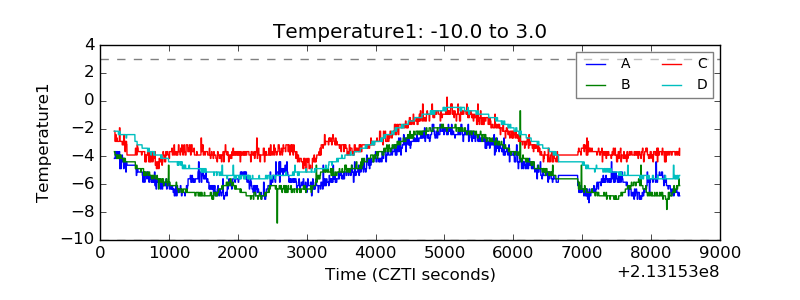

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

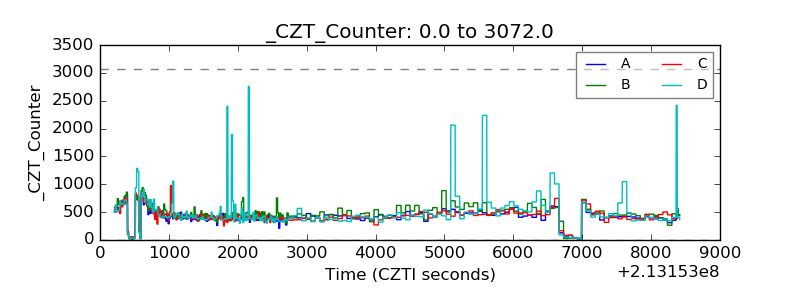

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

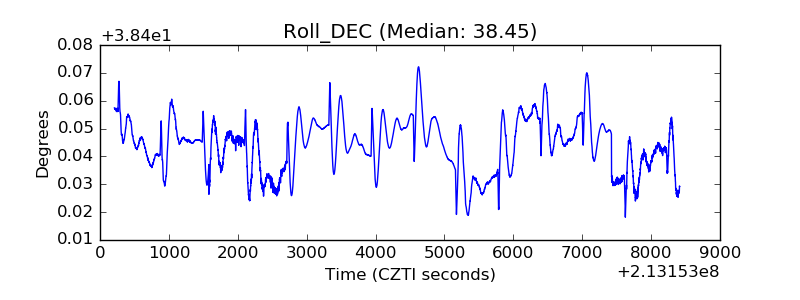

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
