| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_063T01_9000000702_05497cztM0_level2.evt | modeM0/AS1A02_063T01_9000000702_05497cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,373,440 | 78,192,000 |
| Size | 486.7 MB | 74.6 MB |
| Events in quadrant A | 3,047,752 | 493,953 |
| Events in quadrant B | 3,671,914 | 495,227 |
| Events in quadrant C | 4,746,456 | 463,313 |
| Events in quadrant D | 3,543,943 | 456,410 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13511 | 2 |
| B | 0 | 15211 | 1 |
| C | 0 | 18366 | 1 |
| D | 0 | 14847 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6583 | 71 | 1.078536% |
| B | 6583 | 86 | 1.306395% |
| C | 6583 | 583 | 8.856145% |
| D | 6583 | 126 | 1.914021% |

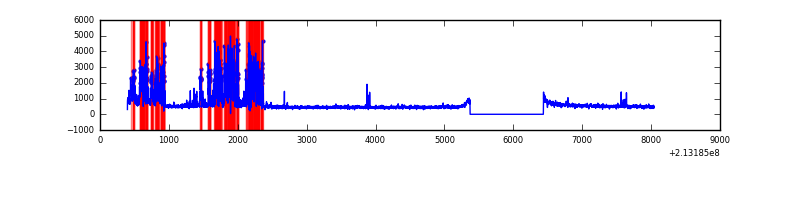

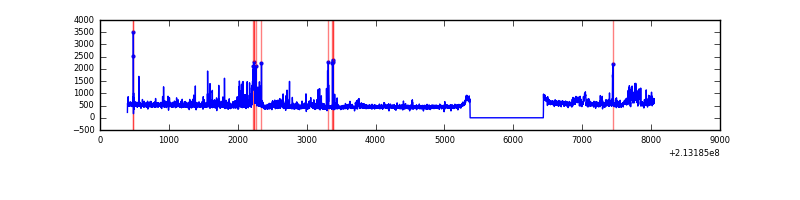

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7648 | 6584 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7648 | 6584 | 12 | 12 | 0.16% | 0.18% |  |
| C | 7648 | 6584 | 411 | 411 | 5.37% | 6.24% |  |
| D | 7648 | 6583 | 57 | 57 | 0.75% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 7891 | 44.69 | 791 | 774 | 159.2 |
| A | 0 | 226 | 7742 | 43.76 | 791 | 774 | 159.2 |
| A | 13 | 6 | 5629 | 30.49 | 791 | 774 | 159.2 |
| B | 15 | 204 | 181524 | 1198.2 | 790 | 771 | 150.9 |
| B | 15 | 255 | 163198 | 1076.72 | 790 | 771 | 150.9 |
| B | 0 | 187 | 90708 | 596.19 | 790 | 771 | 150.9 |
| C | 9 | 247 | 1623769 | 9556.33 | 734 | 741 | 169.8 |
| C | 1 | 16 | 209700 | 1230.34 | 734 | 741 | 169.8 |
| C | 1 | 241 | 42630 | 246.64 | 734 | 741 | 169.8 |
| D | 2 | 152 | 234847 | 1243.49 | 758 | 733 | 188.3 |
| D | 2 | 33 | 174812 | 924.62 | 758 | 733 | 188.3 |
| D | 8 | 195 | 98976 | 521.82 | 758 | 733 | 188.3 |

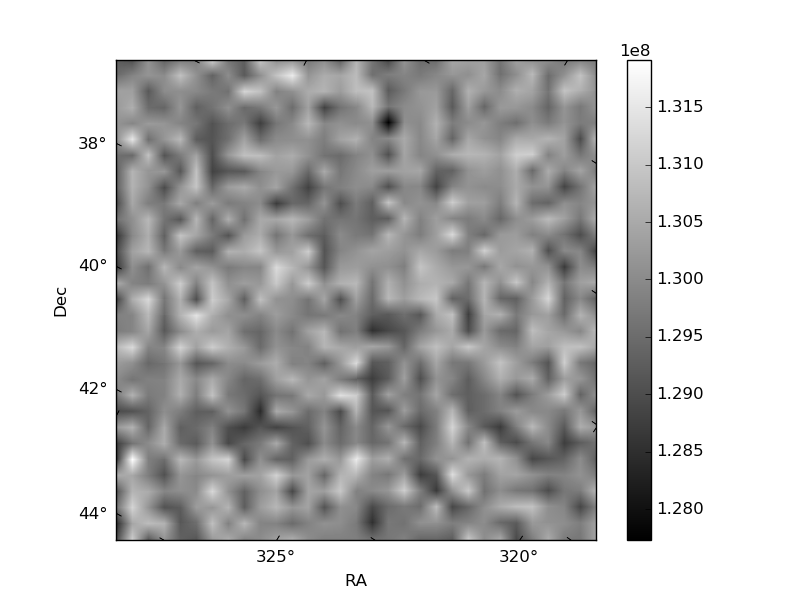

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

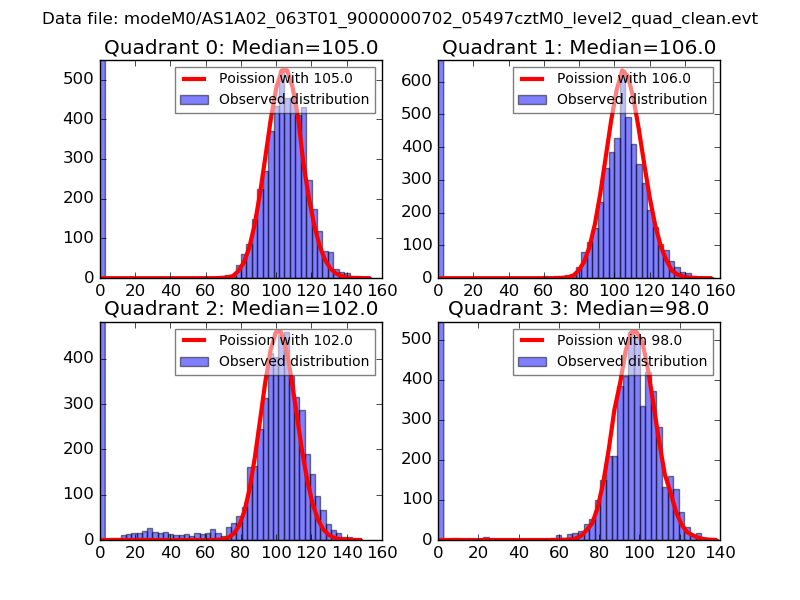

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

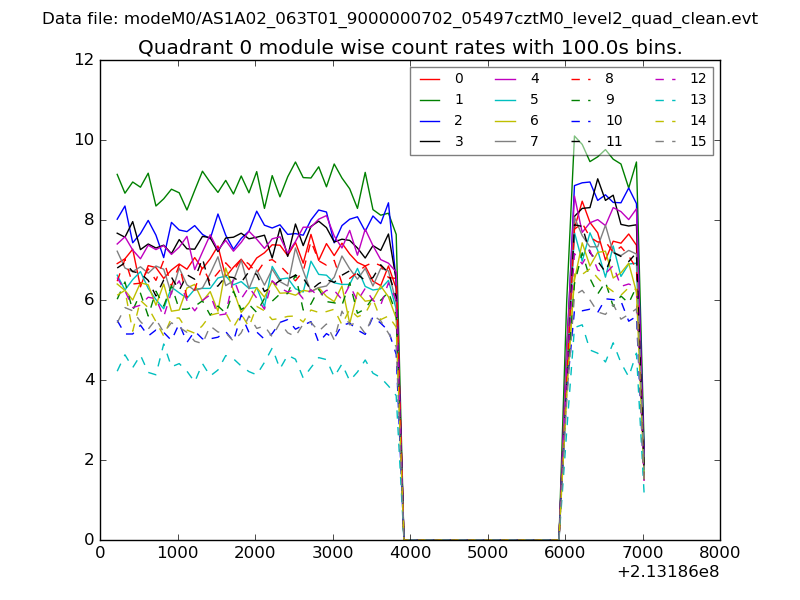

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

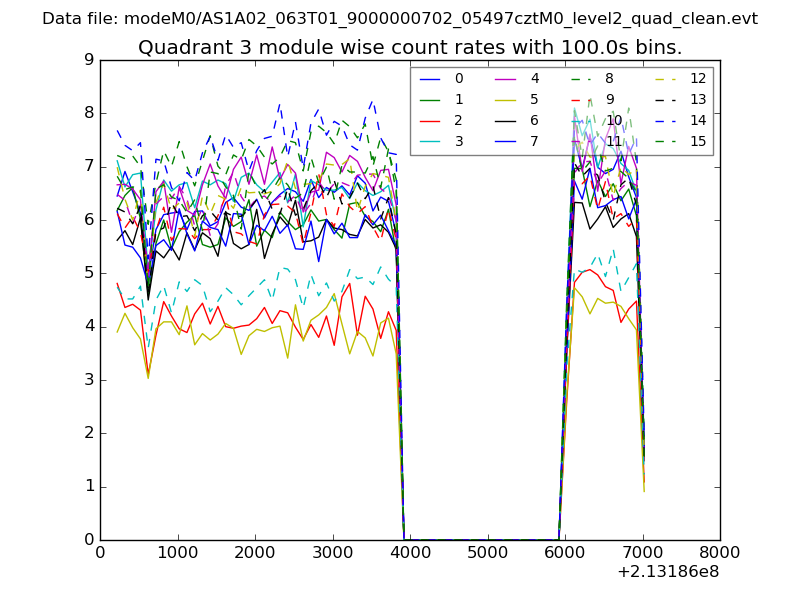

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

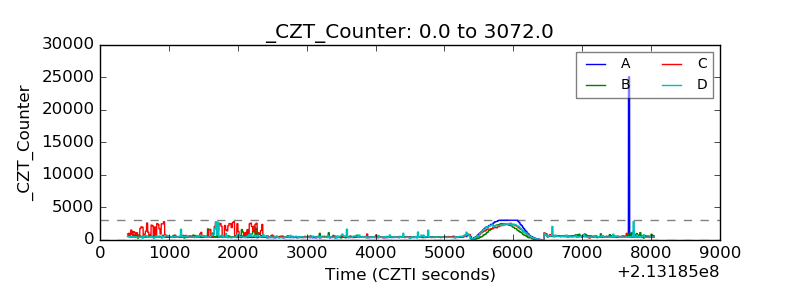

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

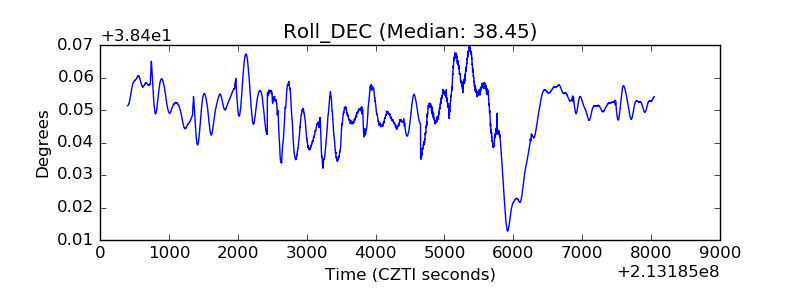

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
