| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_162T01_9000000704_05499cztM0_level2.evt | modeM0/AS1A02_162T01_9000000704_05499cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,363,200 | 76,489,920 |
| Size | 467.6 MB | 72.9 MB |
| Events in quadrant A | 3,420,113 | 474,878 |
| Events in quadrant B | 3,430,426 | 482,652 |
| Events in quadrant C | 4,323,323 | 473,359 |
| Events in quadrant D | 3,258,166 | 454,634 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14389 | 2 |
| B | 0 | 14271 | 1 |
| C | 0 | 17141 | 1 |
| D | 0 | 13976 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6165 | 217 | 3.519870% |
| B | 6165 | 66 | 1.070560% |
| C | 6165 | 449 | 7.283049% |
| D | 6165 | 78 | 1.265207% |

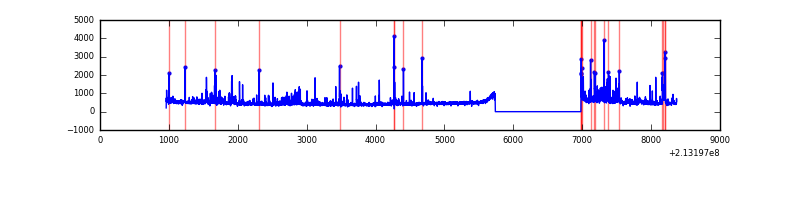

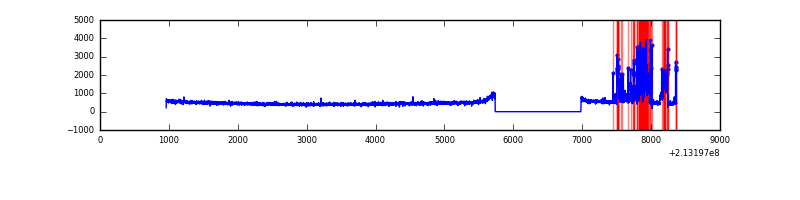

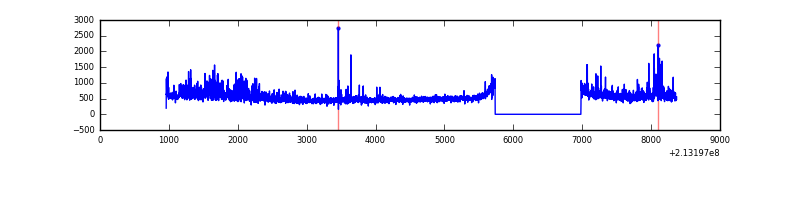

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7410 | 6166 | 124 | 124 | 1.67% | 2.01% |  |
| B | 7410 | 6166 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7410 | 6166 | 316 | 316 | 4.26% | 5.12% |  |
| D | 7410 | 6166 | 23 | 23 | 0.31% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 577340 | 3845.31 | 736 | 723 | 150.0 |
| A | 0 | 226 | 7488 | 45.11 | 736 | 723 | 150.0 |
| A | 12 | 194 | 7403 | 44.55 | 736 | 723 | 150.0 |
| B | 15 | 204 | 393284 | 2739.59 | 748 | 732 | 143.3 |
| B | 0 | 219 | 50515 | 347.43 | 748 | 732 | 143.3 |
| B | 4 | 48 | 48465 | 333.13 | 748 | 732 | 143.3 |
| C | 9 | 247 | 1149760 | 7227.48 | 689 | 694 | 159.0 |
| C | 1 | 16 | 359257 | 2255.32 | 689 | 694 | 159.0 |
| C | 1 | 241 | 115934 | 724.84 | 689 | 694 | 159.0 |
| D | 2 | 63 | 167503 | 964.95 | 709 | 687 | 172.9 |
| D | 2 | 136 | 126956 | 730.41 | 709 | 687 | 172.9 |
| D | 2 | 152 | 97746 | 561.44 | 709 | 687 | 172.9 |

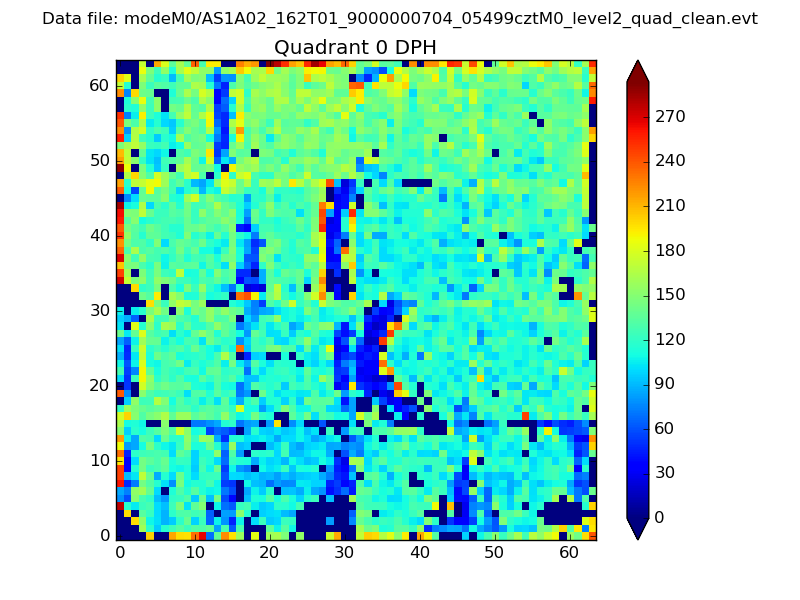

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

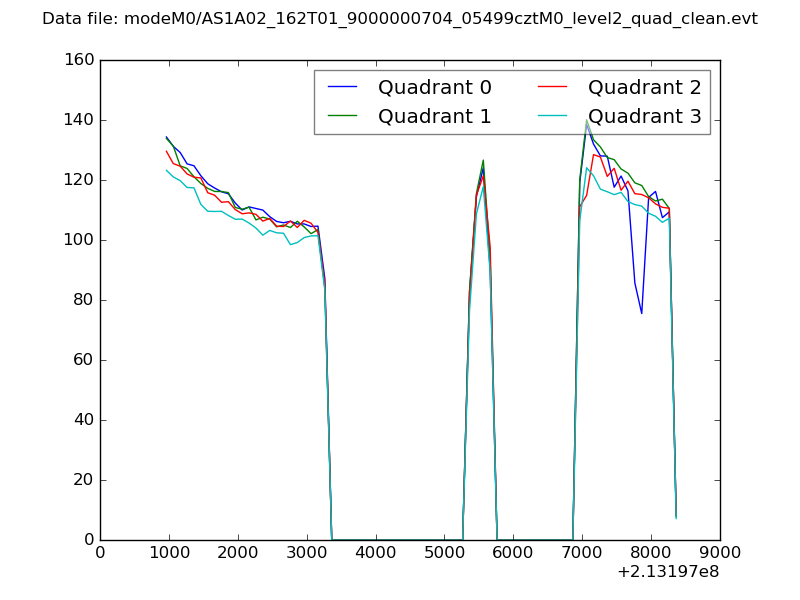

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

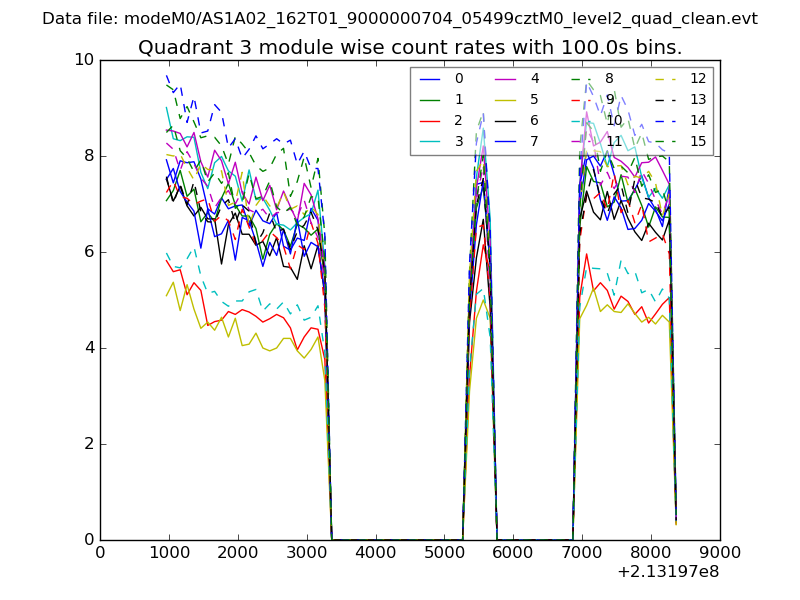

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

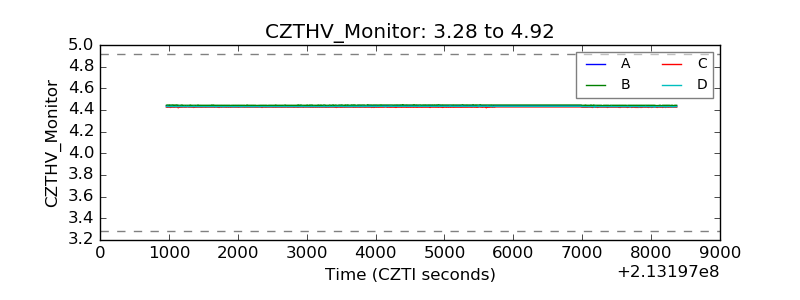

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

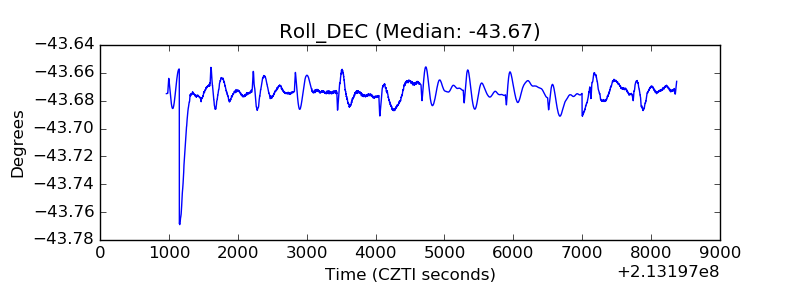

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
