| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_162T01_9000000704_05501cztM0_level2.evt | modeM0/AS1A02_162T01_9000000704_05501cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,996,160 | 76,190,400 |
| Size | 503.5 MB | 72.7 MB |
| Events in quadrant A | 2,881,625 | 483,345 |
| Events in quadrant B | 3,427,750 | 486,143 |
| Events in quadrant C | 3,688,142 | 462,846 |
| Events in quadrant D | 5,565,748 | 434,746 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13006 | 3 |
| B | 0 | 14422 | 2 |
| C | 0 | 15439 | 2 |
| D | 0 | 21019 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6300 | 36 | 0.571429% |
| B | 6300 | 90 | 1.428571% |
| C | 6300 | 271 | 4.301587% |
| D | 6300 | 422 | 6.698413% |

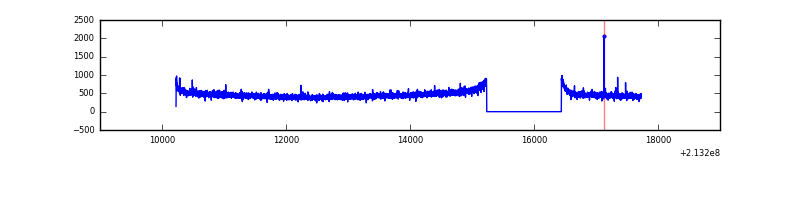

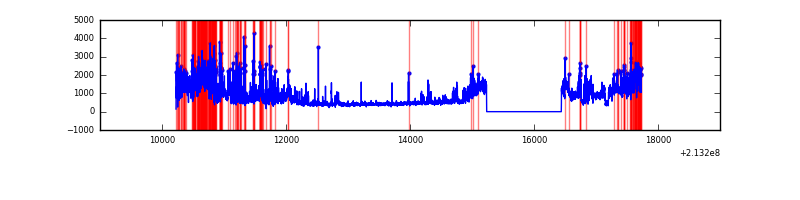

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7505 | 6301 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7505 | 6301 | 19 | 19 | 0.25% | 0.30% |  |
| C | 7505 | 6301 | 205 | 205 | 2.73% | 3.25% |  |
| D | 7505 | 6301 | 297 | 297 | 3.96% | 4.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 8161 | 48.15 | 745 | 729 | 154.3 |
| A | 0 | 226 | 7449 | 43.54 | 745 | 729 | 154.3 |
| A | 12 | 194 | 7431 | 43.42 | 745 | 729 | 154.3 |
| B | 15 | 255 | 222440 | 1519.8 | 756 | 739 | 145.9 |
| B | 15 | 204 | 100805 | 685.97 | 756 | 739 | 145.9 |
| B | 4 | 48 | 52646 | 355.83 | 756 | 739 | 145.9 |
| C | 9 | 247 | 868938 | 5356.66 | 700 | 704 | 162.1 |
| C | 1 | 16 | 52374 | 318.78 | 700 | 704 | 162.1 |
| C | 1 | 241 | 10943 | 63.17 | 700 | 704 | 162.1 |
| D | 2 | 63 | 2234023 | 12912.02 | 699 | 677 | 173.0 |
| D | 2 | 136 | 346264 | 1998.0 | 699 | 677 | 173.0 |
| D | 8 | 195 | 90051 | 516.71 | 699 | 677 | 173.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

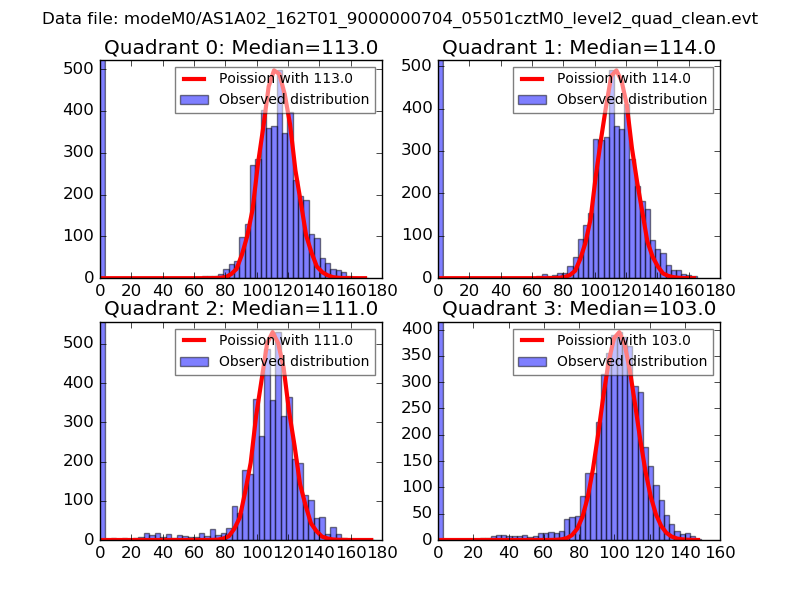

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

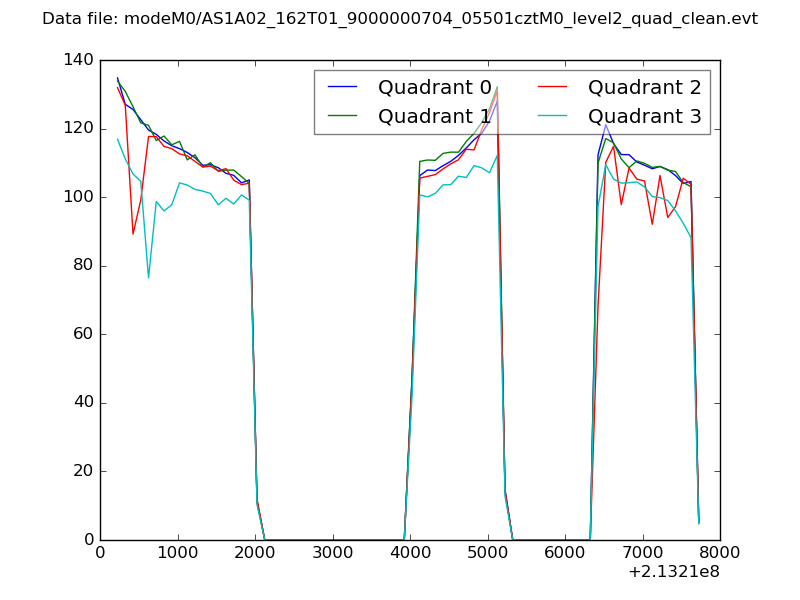

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

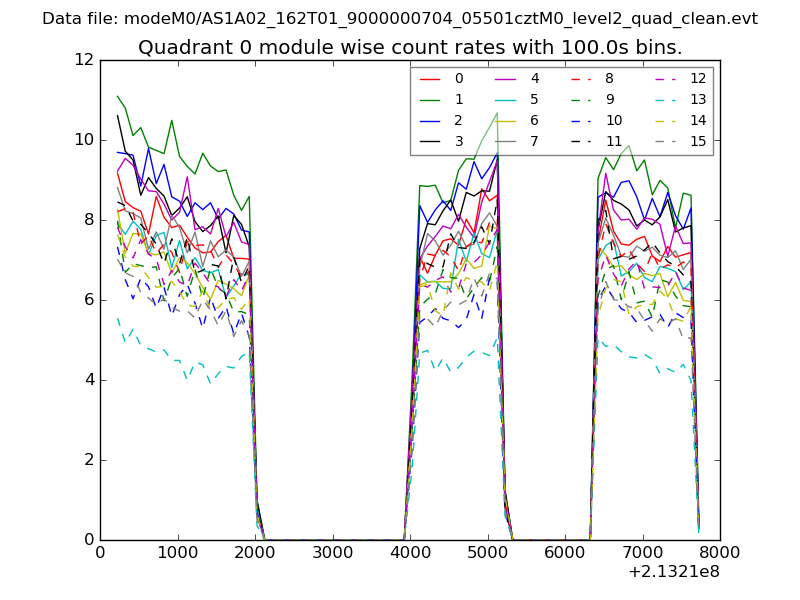

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

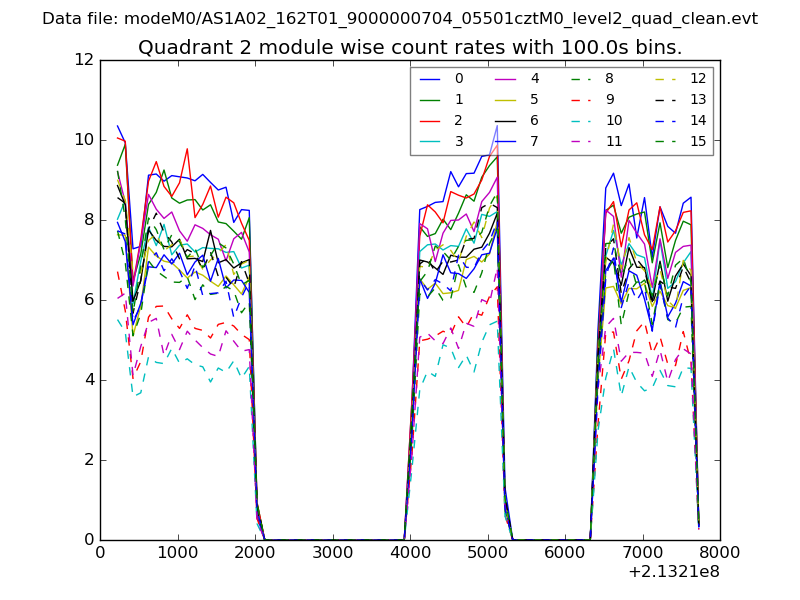

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

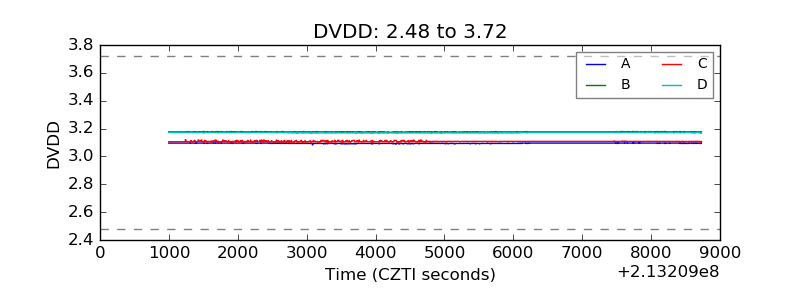

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

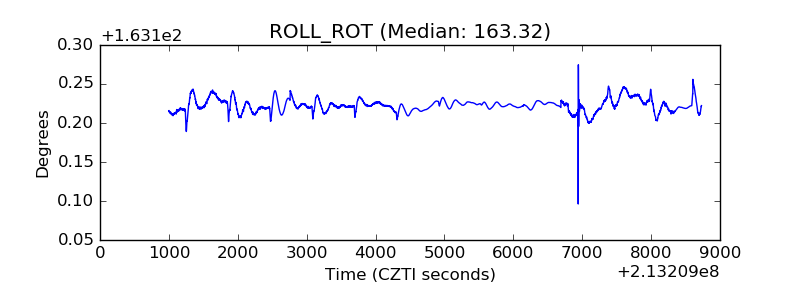

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
