| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_162T01_9000000704_05516cztM0_level2.evt | modeM0/AS1A02_162T01_9000000704_05516cztM0_level2_quad_clean.evt |
| Size (bytes) | 361,687,680 | 56,675,520 |
| Size | 344.9 MB | 54.0 MB |
| Events in quadrant A | 2,323,578 | 344,782 |
| Events in quadrant B | 2,801,985 | 343,032 |
| Events in quadrant C | 2,911,386 | 342,366 |
| Events in quadrant D | 2,567,310 | 326,069 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10557 | 2 |
| B | 0 | 11825 | 2 |
| C | 0 | 12080 | 2 |
| D | 0 | 11168 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5126 | 26 | 0.507218% |
| B | 5126 | 107 | 2.087398% |
| C | 5126 | 91 | 1.775263% |
| D | 5126 | 16 | 0.312134% |

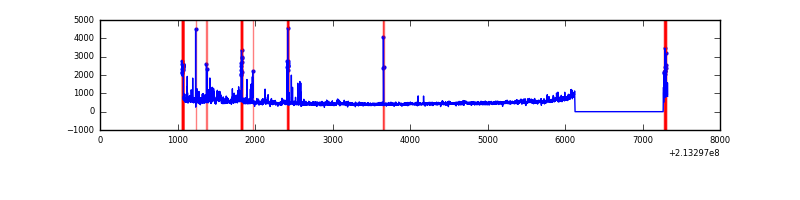

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6266 | 5127 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6266 | 5127 | 53 | 53 | 0.85% | 1.03% |  |
| C | 6266 | 5127 | 65 | 65 | 1.04% | 1.27% |  |
| D | 6266 | 5127 | 7 | 7 | 0.11% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 8852 | 66.98 | 597 | 584 | 123.4 |
| A | 0 | 50 | 7197 | 53.57 | 597 | 584 | 123.4 |
| A | 13 | 6 | 6769 | 50.11 | 597 | 584 | 123.4 |
| B | 10 | 16 | 141553 | 1230.81 | 600 | 586 | 114.5 |
| B | 15 | 204 | 113522 | 986.07 | 600 | 586 | 114.5 |
| B | 15 | 255 | 59498 | 514.37 | 600 | 586 | 114.5 |
| C | 9 | 247 | 563370 | 4226.86 | 575 | 578 | 133.1 |
| C | 1 | 16 | 87373 | 651.88 | 575 | 578 | 133.1 |
| C | 9 | 16 | 12472 | 89.33 | 575 | 578 | 133.1 |
| D | 2 | 152 | 139658 | 983.03 | 574 | 557 | 141.5 |
| D | 8 | 195 | 77947 | 546.91 | 574 | 557 | 141.5 |
| D | 13 | 105 | 50464 | 352.69 | 574 | 557 | 141.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

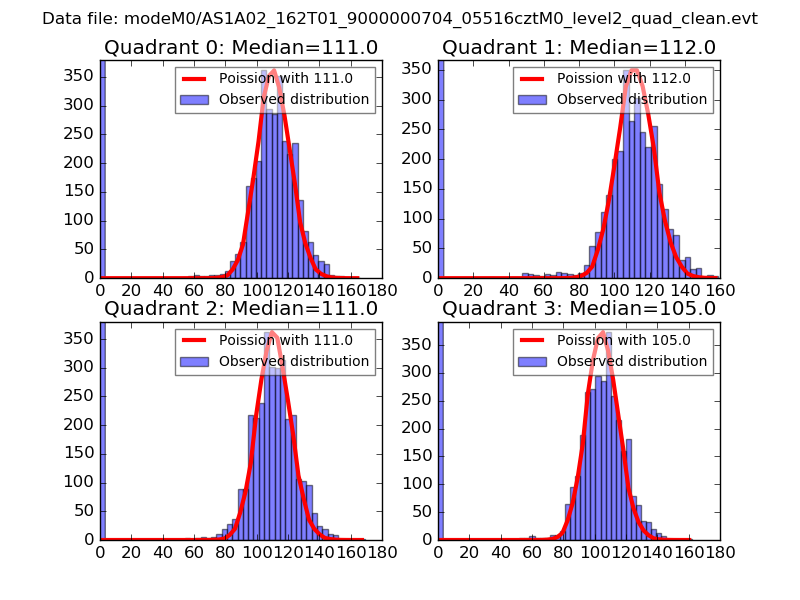

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

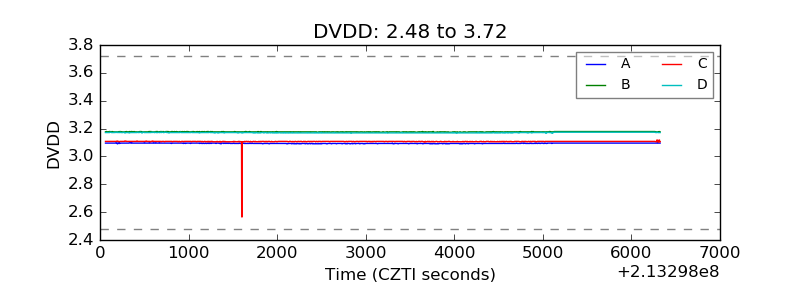

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

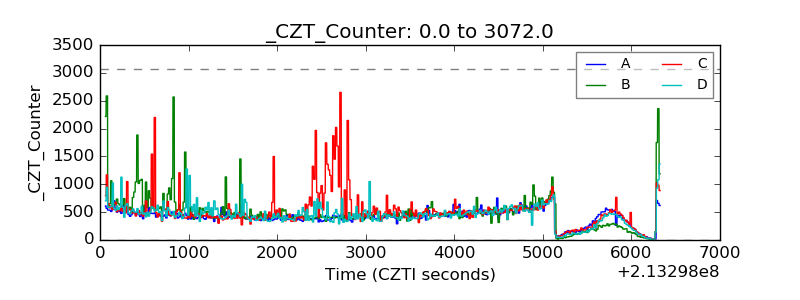

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

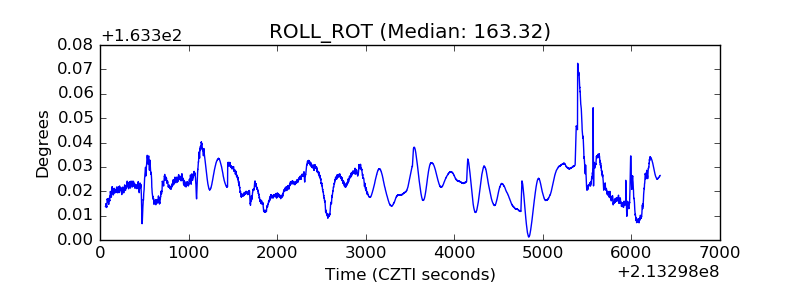

| _ROLL_ROT |  |

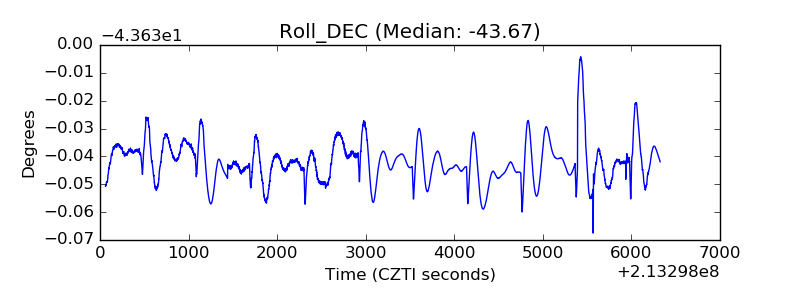

| _Roll_DEC |  |
| _Roll_RA |  |

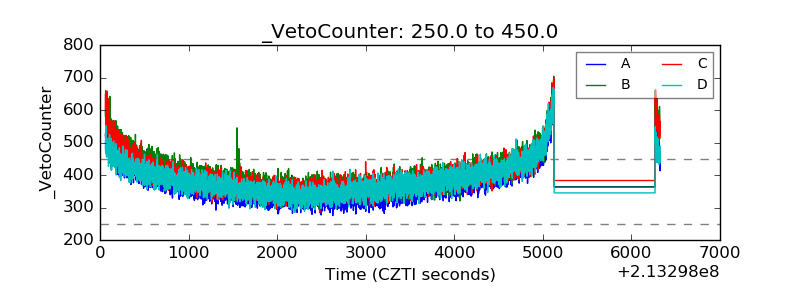

| Veto Counter |  |
