| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_168T23_9000000706_05520cztM0_level2.evt | modeM0/AS1G06_168T23_9000000706_05520cztM0_level2_quad_clean.evt |
| Size (bytes) | 638,000,640 | 77,633,280 |
| Size | 608.4 MB | 74.0 MB |
| Events in quadrant A | 4,025,300 | 458,159 |
| Events in quadrant B | 6,440,952 | 429,997 |
| Events in quadrant C | 4,064,146 | 446,689 |
| Events in quadrant D | 4,228,378 | 438,300 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17856 | 17 |
| B | 0 | 24805 | 8 |
| C | 0 | 17837 | 6 |
| D | 0 | 18590 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8312 | 267 | 3.212223% |
| B | 8313 | 705 | 8.480693% |
| C | 8313 | 142 | 1.708168% |
| D | 8313 | 162 | 1.948755% |

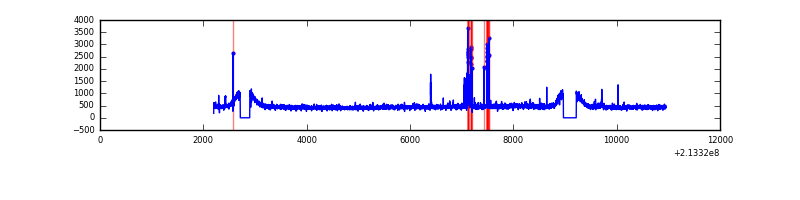

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8750 | 8317 | 29 | 29 | 0.33% | 0.35% |  |
| B | 8750 | 8317 | 247 | 247 | 2.82% | 2.97% |  |
| C | 8750 | 8317 | 2 | 2 | 0.02% | 0.02% |  |
| D | 8750 | 8317 | 15 | 15 | 0.17% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 133014 | 634.98 | 1001 | 975 | 207.9 |
| A | 7 | 16 | 18691 | 85.2 | 1001 | 975 | 207.9 |
| A | 13 | 6 | 10473 | 45.68 | 1001 | 975 | 207.9 |
| B | 15 | 255 | 1698346 | 8772.56 | 982 | 958 | 193.5 |
| B | 15 | 204 | 523405 | 2700.15 | 982 | 958 | 193.5 |
| B | 10 | 16 | 171307 | 880.41 | 982 | 958 | 193.5 |
| C | 9 | 247 | 155613 | 671.9 | 976 | 979 | 230.1 |
| C | 1 | 241 | 37582 | 159.04 | 976 | 979 | 230.1 |
| C | 8 | 208 | 27097 | 113.48 | 976 | 979 | 230.1 |
| D | 11 | 192 | 126680 | 517.95 | 974 | 942 | 242.8 |
| D | 2 | 152 | 118098 | 482.6 | 974 | 942 | 242.8 |
| D | 2 | 63 | 96255 | 392.62 | 974 | 942 | 242.8 |

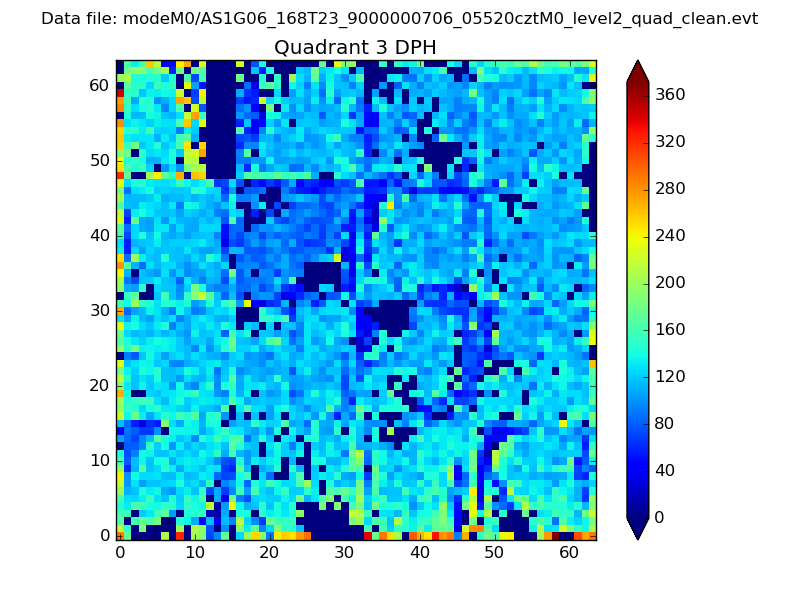

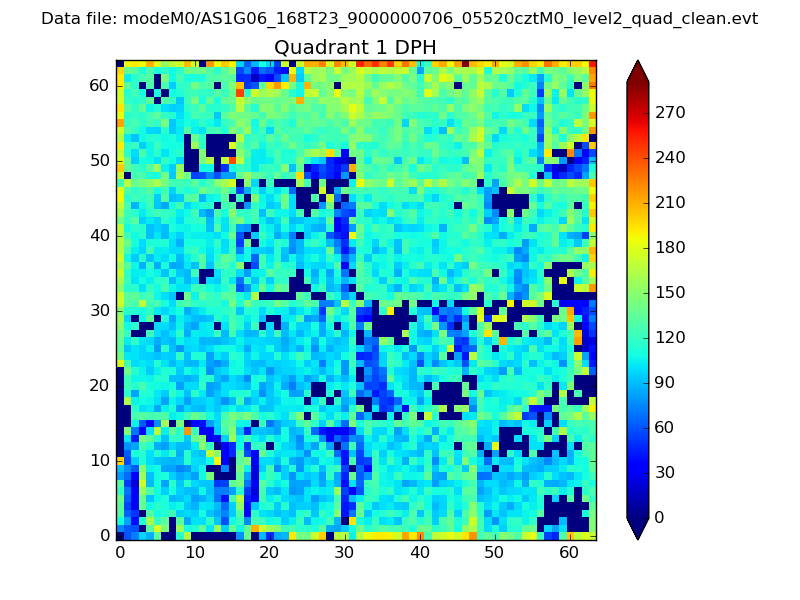

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

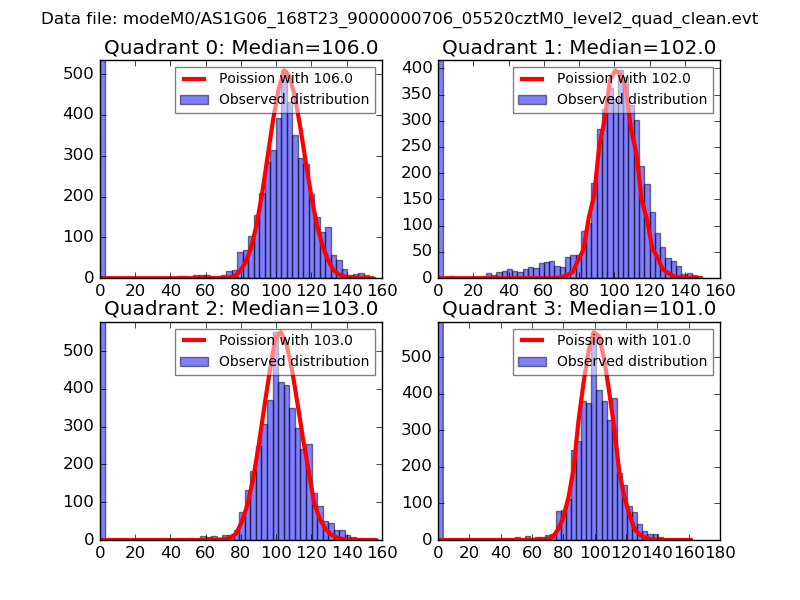

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

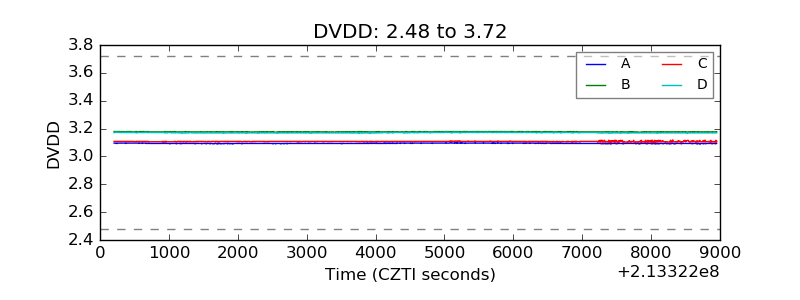

| D_VDD |  |

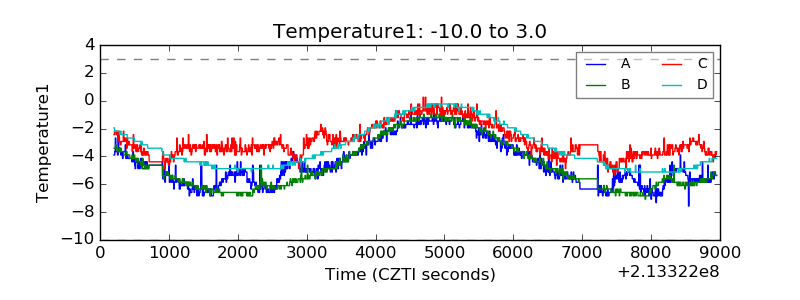

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

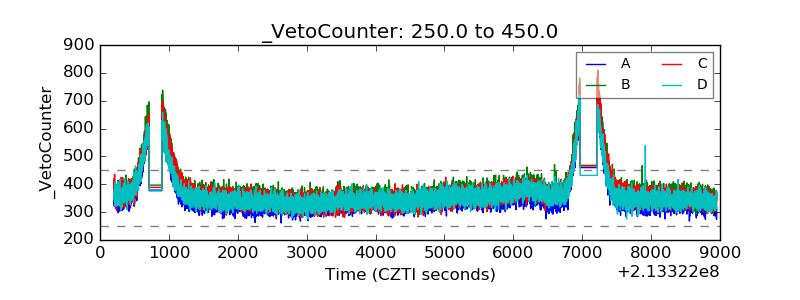

| Veto Counter |  |
