| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_199T01_9000000708_05526cztM0_level2.evt | modeM0/AS1A02_199T01_9000000708_05526cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,616,000 | 90,665,280 |
| Size | 425.9 MB | 86.5 MB |
| Events in quadrant A | 2,945,661 | 594,608 |
| Events in quadrant B | 3,832,976 | 584,894 |
| Events in quadrant C | 2,997,825 | 565,358 |
| Events in quadrant D | 3,308,364 | 548,248 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13200 | 5 |
| B | 0 | 15556 | 2 |
| C | 0 | 13556 | 2 |
| D | 0 | 14348 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6477 | 58 | 0.895476% |
| B | 6478 | 230 | 3.550479% |
| C | 6478 | 58 | 0.895338% |
| D | 6478 | 72 | 1.111454% |

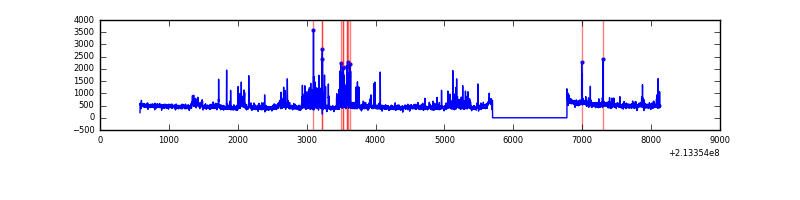

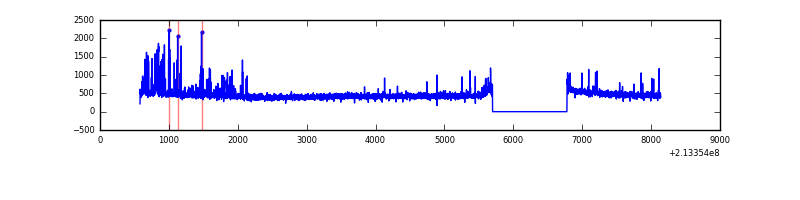

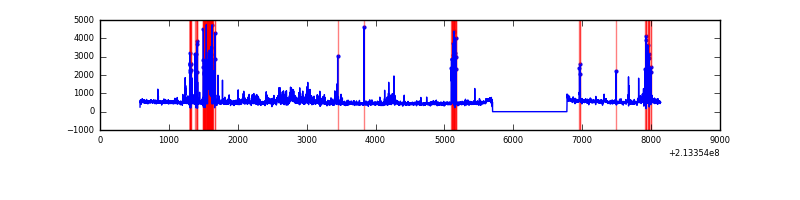

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

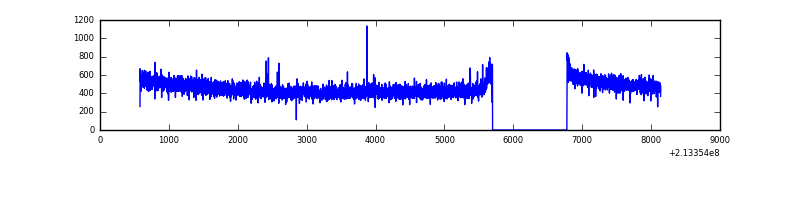

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7558 | 6479 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7558 | 6479 | 127 | 127 | 1.68% | 1.96% |  |
| C | 7558 | 6479 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7558 | 6479 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 7635 | 44.61 | 761 | 743 | 154.5 |
| A | 0 | 226 | 7528 | 43.92 | 761 | 743 | 154.5 |
| A | 13 | 14 | 4544 | 24.6 | 761 | 743 | 154.5 |
| B | 15 | 204 | 369067 | 2570.72 | 752 | 736 | 143.3 |
| B | 10 | 16 | 366303 | 2551.43 | 752 | 736 | 143.3 |
| B | 4 | 48 | 81854 | 566.15 | 752 | 736 | 143.3 |
| C | 1 | 241 | 140979 | 839.05 | 724 | 726 | 167.2 |
| C | 1 | 16 | 13033 | 73.63 | 724 | 726 | 167.2 |
| C | 13 | 250 | 10379 | 57.75 | 724 | 726 | 167.2 |
| D | 2 | 136 | 255286 | 1427.57 | 731 | 707 | 178.3 |
| D | 2 | 152 | 93887 | 522.51 | 731 | 707 | 178.3 |
| D | 2 | 63 | 75461 | 419.19 | 731 | 707 | 178.3 |

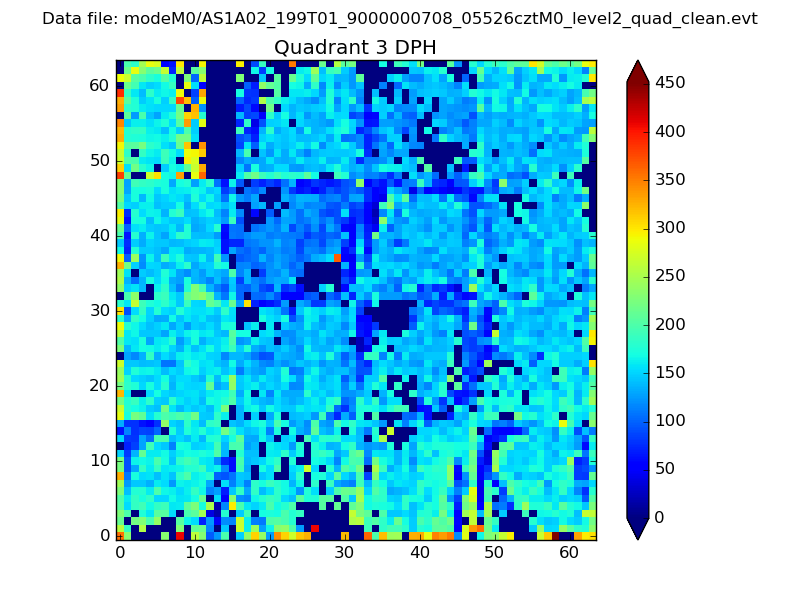

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

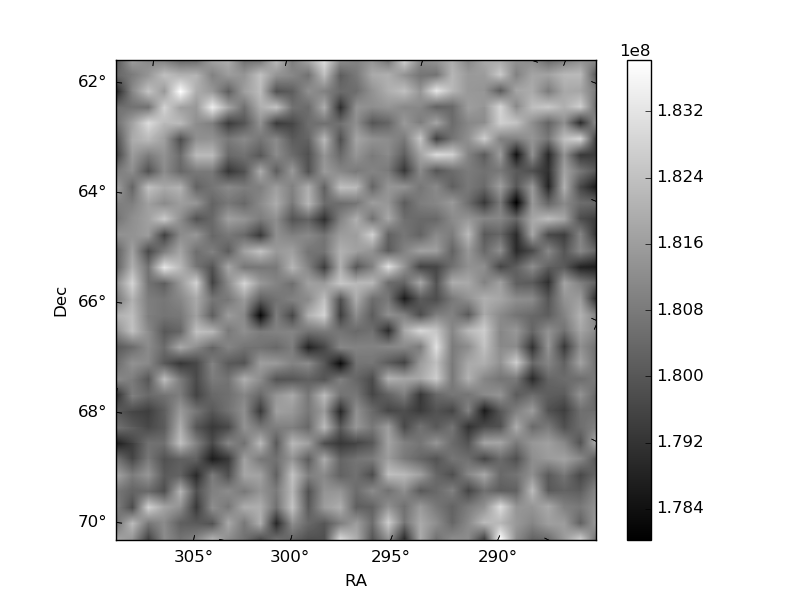

| Plot type | Count rate plots | Images |
|---|---|---|

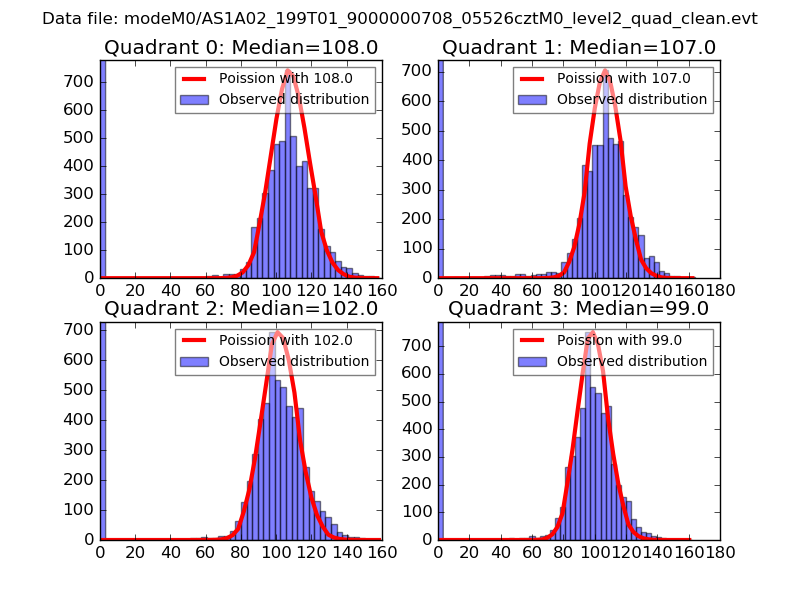

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

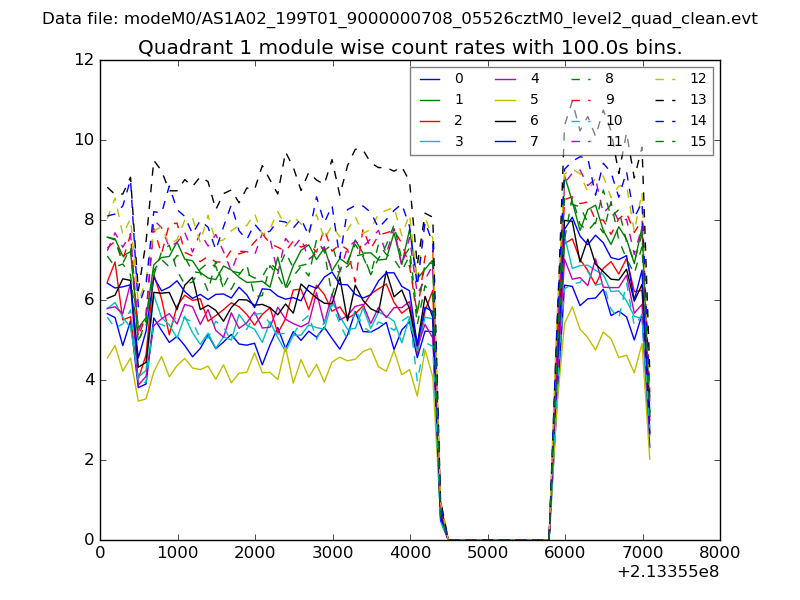

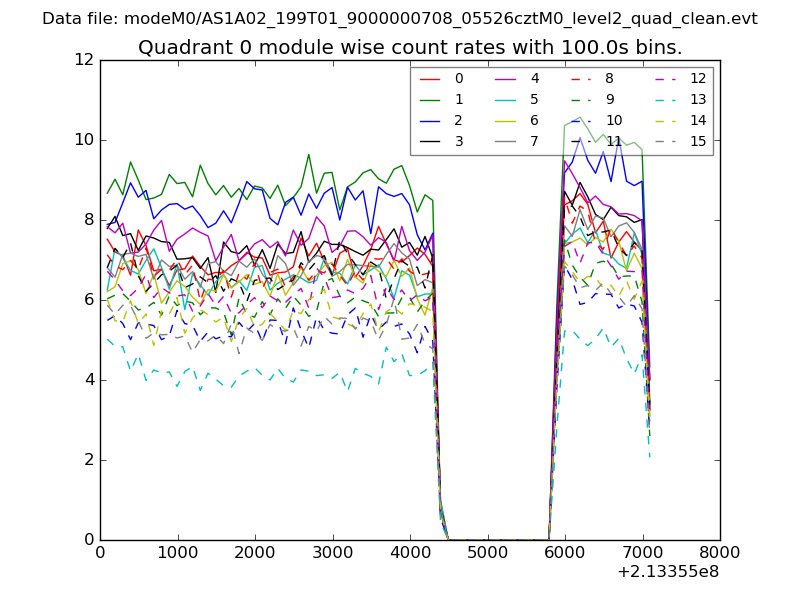

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

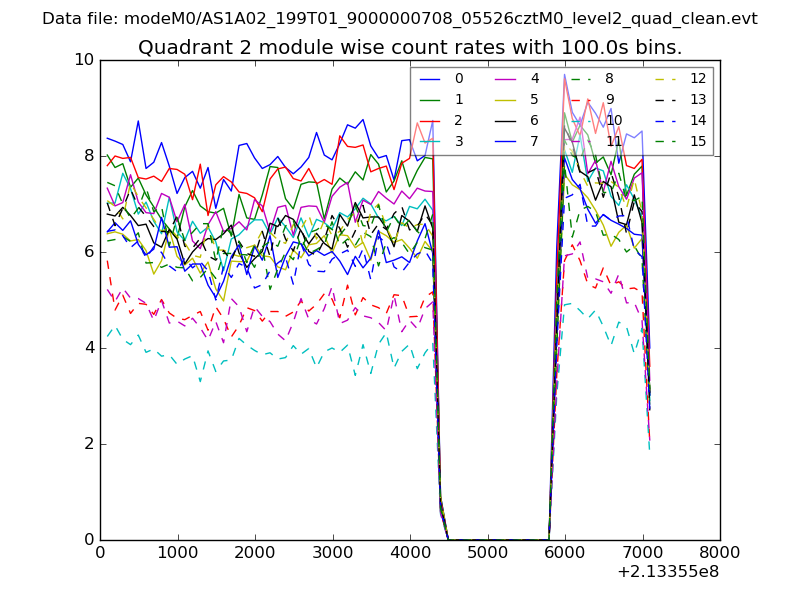

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

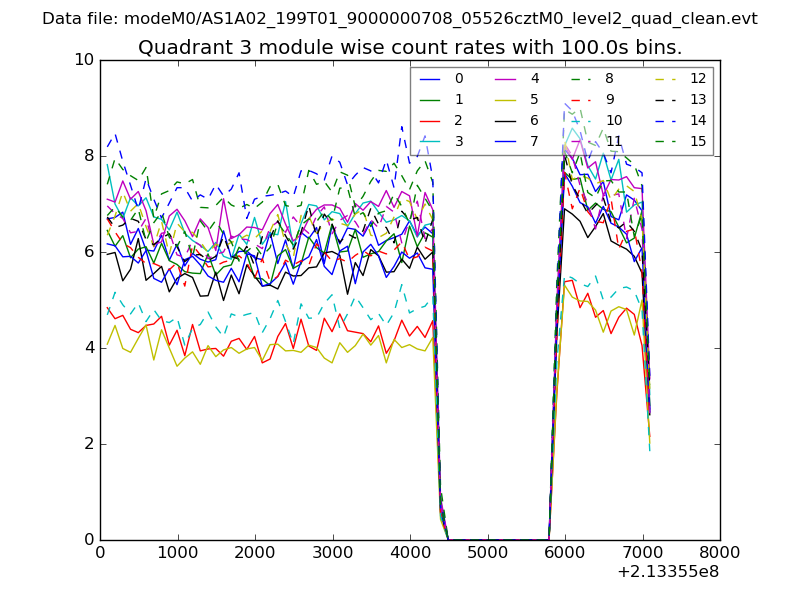

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

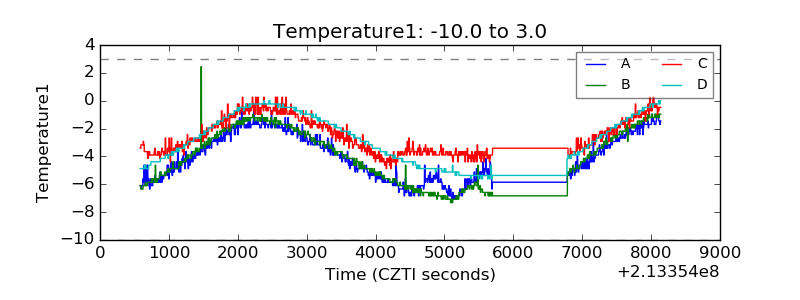

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

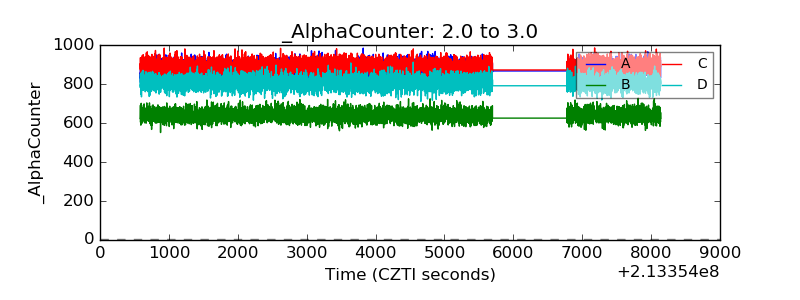

| Alpha Counter |  |

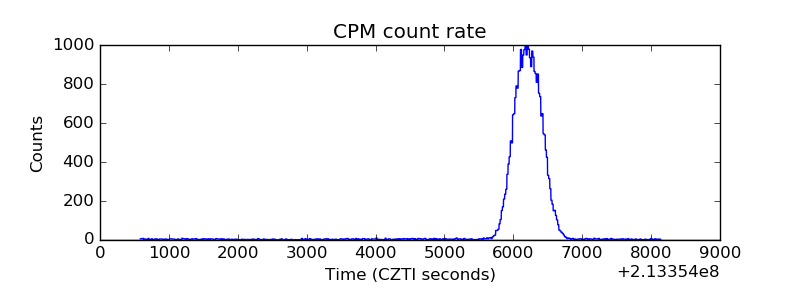

| _CPM_Rate |  |

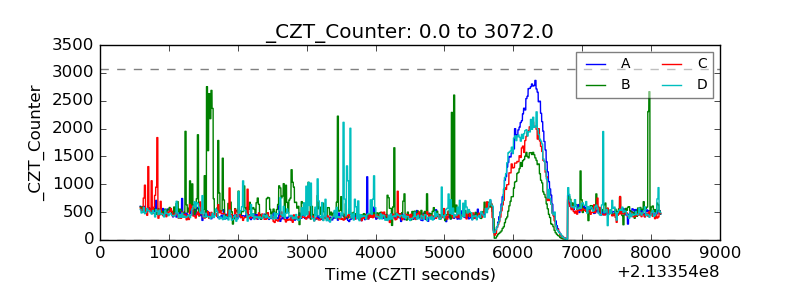

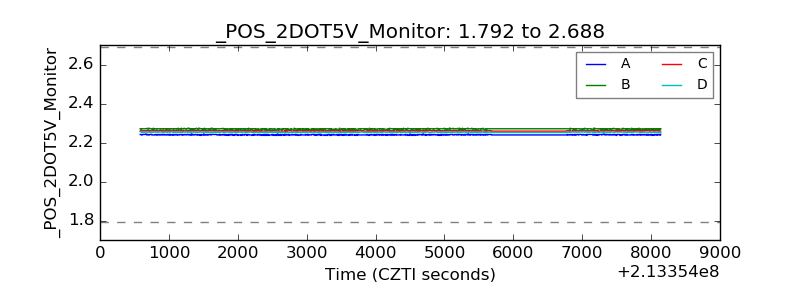

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

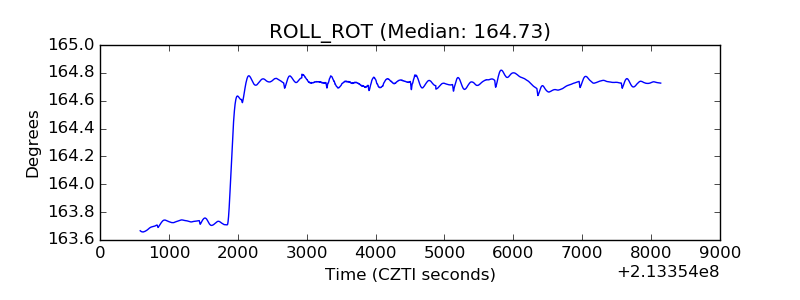

| _ROLL_ROT |  |

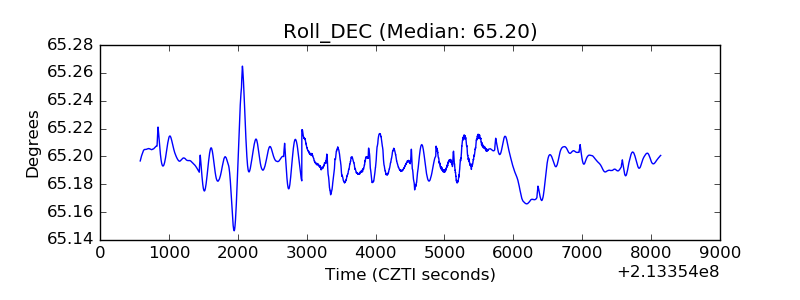

| _Roll_DEC |  |

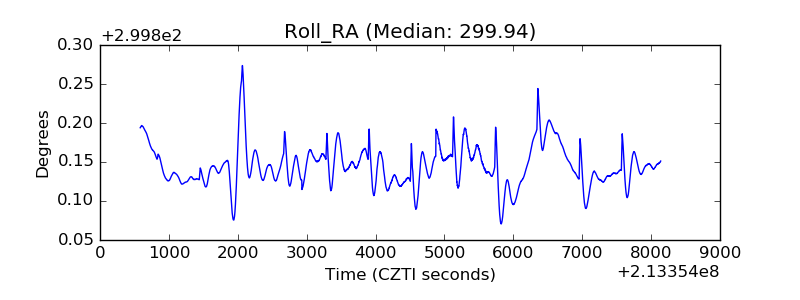

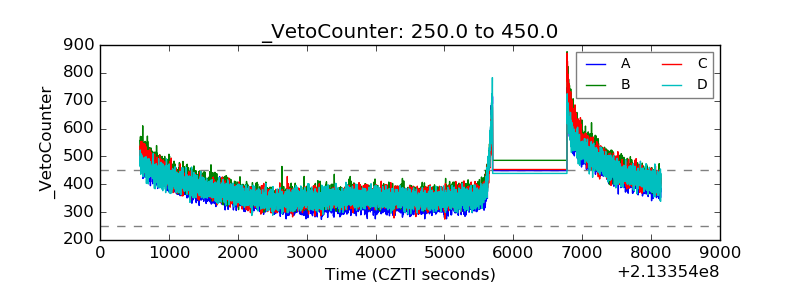

| _Roll_RA |  |
| Veto Counter |  |
