| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_084T01_9000000710_05534cztM0_level2.evt | modeM0/AS1G06_084T01_9000000710_05534cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,784,000 | 94,423,680 |
| Size | 523.4 MB | 90.0 MB |
| Events in quadrant A | 3,693,054 | 576,663 |
| Events in quadrant B | 4,535,237 | 570,388 |
| Events in quadrant C | 3,765,586 | 590,010 |
| Events in quadrant D | 4,074,347 | 557,846 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17119 | 259 |
| B | 0 | 19443 | 429 |
| C | 0 | 17265 | 220 |
| D | 0 | 18370 | 438 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 4 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 2 |
| D | 0 | 170 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8130 | 74 | 0.910209% |
| B | 8101 | 225 | 2.777435% |
| C | 8151 | 41 | 0.503006% |
| D | 8114 | 153 | 1.885630% |

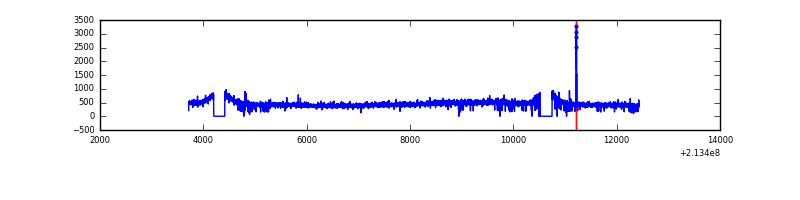

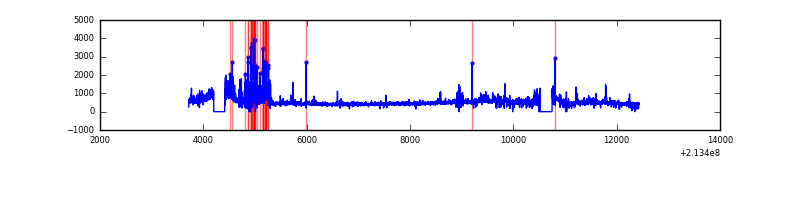

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8714 | 8251 | 4 | 4 | 0.05% | 0.05% |  |
| B | 8714 | 8247 | 42 | 42 | 0.48% | 0.51% |  |
| C | 8714 | 8254 | 9 | 9 | 0.10% | 0.11% |  |
| D | 8714 | 8244 | 129 | 129 | 1.48% | 1.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 23940 | 117.14 | 951 | 927 | 196.4 |
| A | 12 | 194 | 9473 | 43.5 | 951 | 927 | 196.4 |
| A | 0 | 226 | 9420 | 43.23 | 951 | 927 | 196.4 |
| B | 10 | 246 | 407411 | 2195.48 | 954 | 928 | 185.1 |
| B | 15 | 204 | 326029 | 1755.92 | 954 | 928 | 185.1 |
| B | 4 | 48 | 41181 | 217.41 | 954 | 928 | 185.1 |
| C | 1 | 16 | 98958 | 452.45 | 929 | 933 | 216.7 |
| C | 1 | 241 | 33221 | 149.03 | 929 | 933 | 216.7 |
| C | 13 | 61 | 7611 | 30.82 | 929 | 933 | 216.7 |
| D | 2 | 14 | 317113 | 1402.63 | 913 | 885 | 225.5 |
| D | 12 | 233 | 69389 | 303.85 | 913 | 885 | 225.5 |
| D | 8 | 195 | 68722 | 300.89 | 913 | 885 | 225.5 |

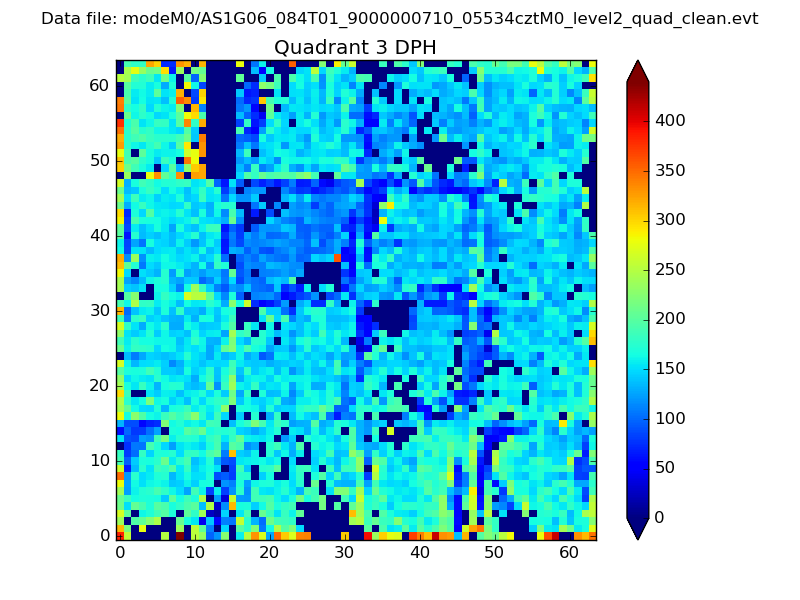

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

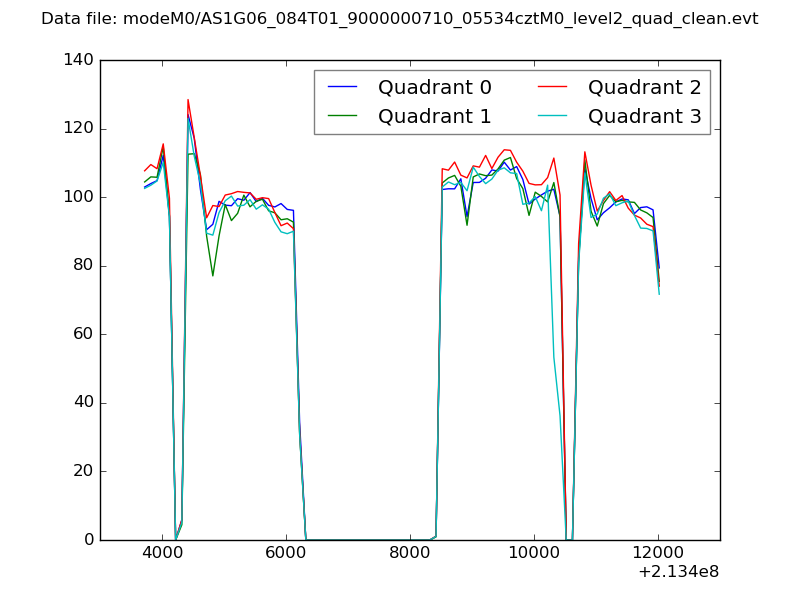

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

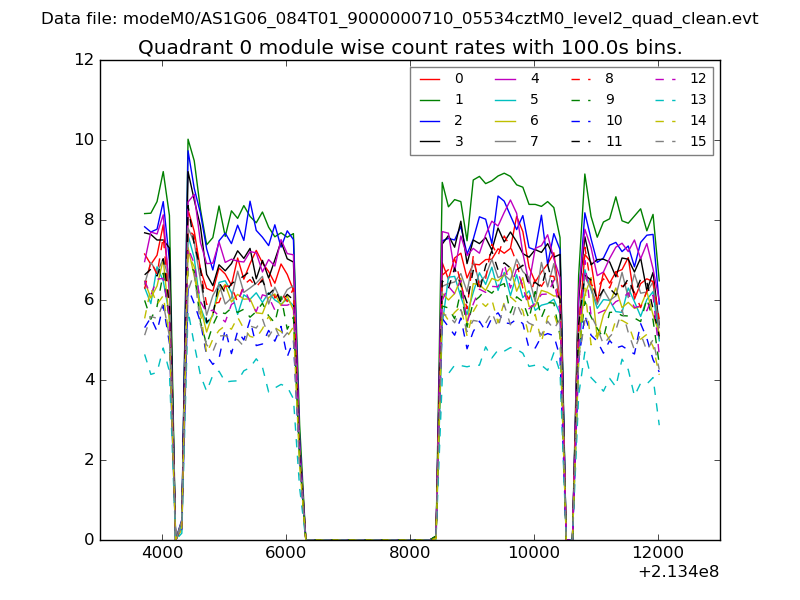

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

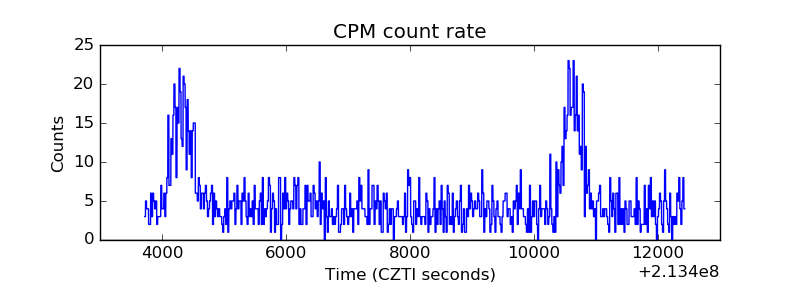

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

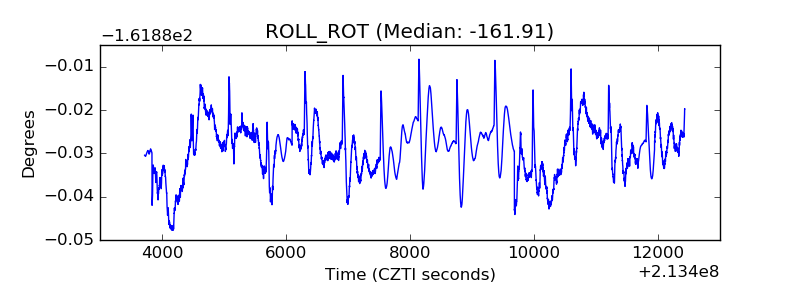

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
