| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_084T01_9000000710_05540cztM0_level2.evt | modeM0/AS1G06_084T01_9000000710_05540cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,893,440 | 65,744,640 |
| Size | 437.6 MB | 62.7 MB |
| Events in quadrant A | 3,169,178 | 376,011 |
| Events in quadrant B | 3,528,805 | 380,846 |
| Events in quadrant C | 3,393,007 | 388,981 |
| Events in quadrant D | 3,350,903 | 377,546 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13962 | 124 |
| B | 0 | 14663 | 100 |
| C | 0 | 14488 | 97 |
| D | 0 | 14668 | 109 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 1 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 2 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 2 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6689 | 97 | 1.450142% |
| B | 6706 | 103 | 1.535938% |
| C | 6707 | 110 | 1.640078% |
| D | 6712 | 105 | 1.564362% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7771 | 6749 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7771 | 6749 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7771 | 6749 | 12 | 12 | 0.15% | 0.18% |  |
| D | 7771 | 6748 | 24 | 24 | 0.31% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 49933 | 297.3 | 810 | 790 | 165.3 |
| A | 12 | 194 | 8002 | 43.63 | 810 | 790 | 165.3 |
| A | 0 | 226 | 7642 | 41.45 | 810 | 790 | 165.3 |
| B | 15 | 204 | 276617 | 1727.65 | 822 | 803 | 159.6 |
| B | 11 | 51 | 21227 | 127.93 | 822 | 803 | 159.6 |
| B | 0 | 219 | 21225 | 127.92 | 822 | 803 | 159.6 |
| C | 9 | 16 | 106951 | 574.81 | 794 | 797 | 184.7 |
| C | 1 | 16 | 86981 | 466.68 | 794 | 797 | 184.7 |
| C | 1 | 241 | 57593 | 307.55 | 794 | 797 | 184.7 |
| D | 2 | 152 | 134882 | 692.01 | 794 | 773 | 193.8 |
| D | 2 | 33 | 77531 | 396.08 | 794 | 773 | 193.8 |
| D | 2 | 136 | 55742 | 283.64 | 794 | 773 | 193.8 |

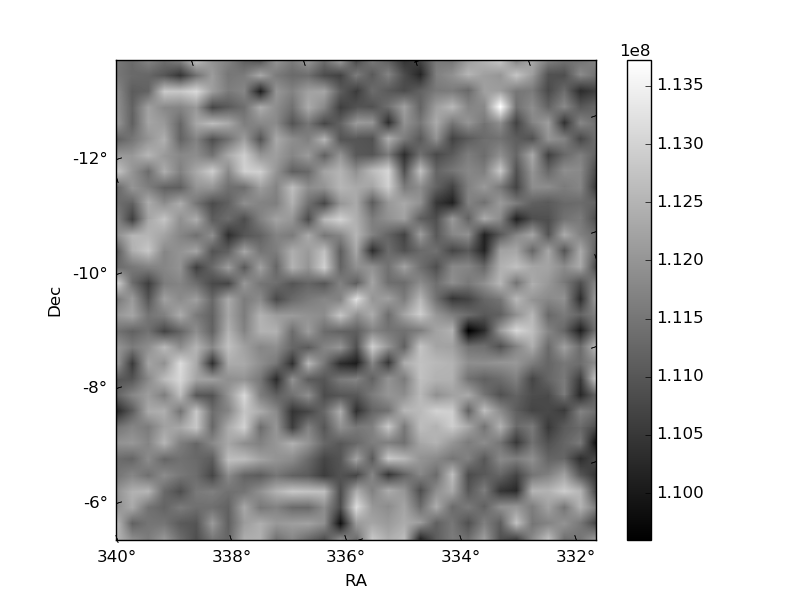

Histogram calculated using DETX and DETY for each event in the final _common_clean file

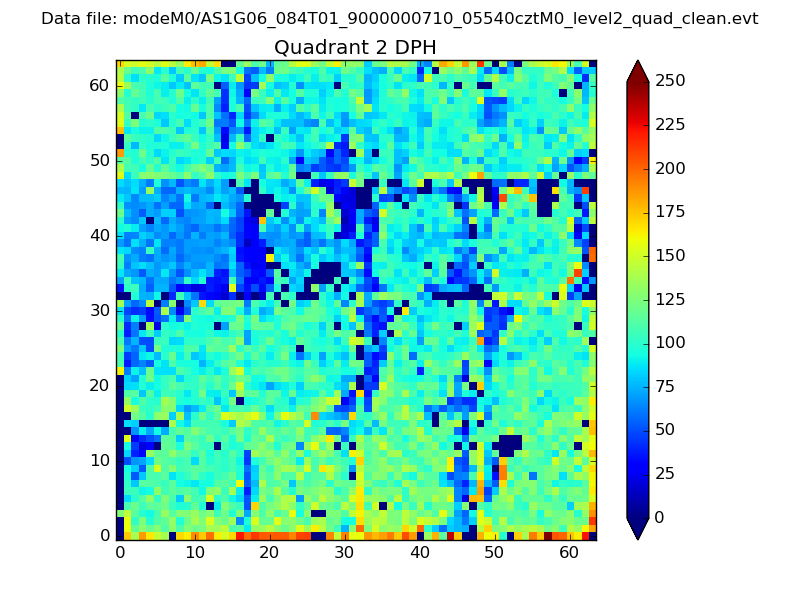

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

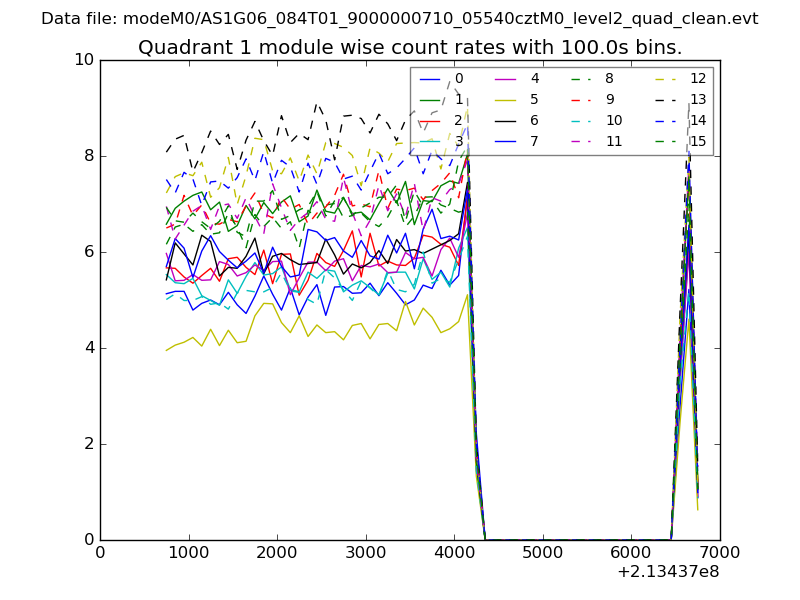

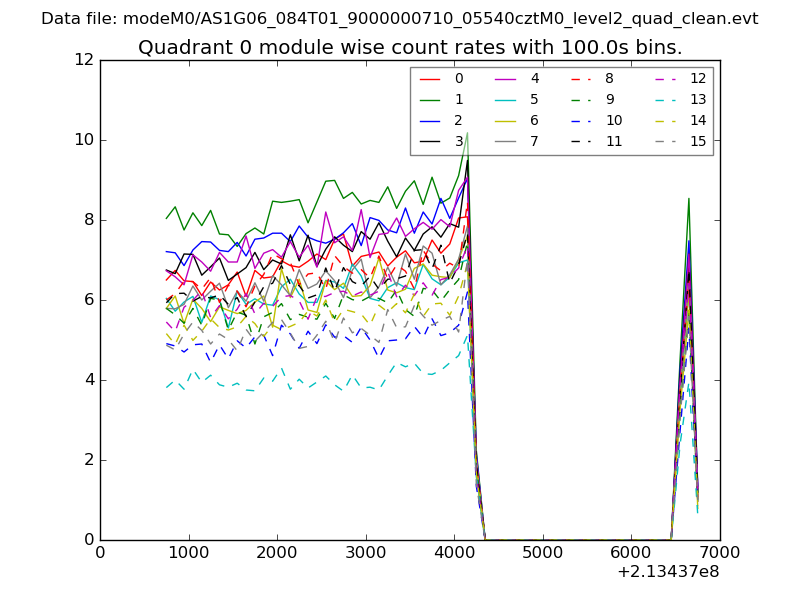

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

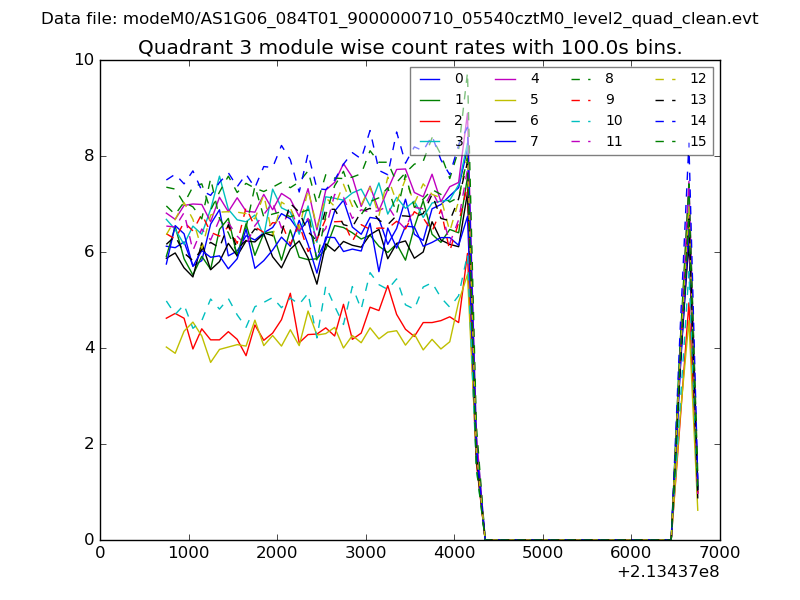

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

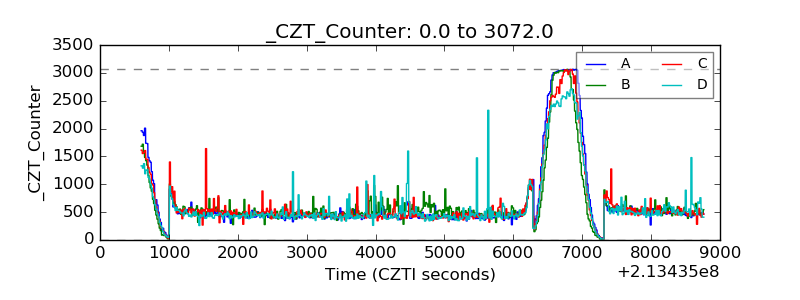

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

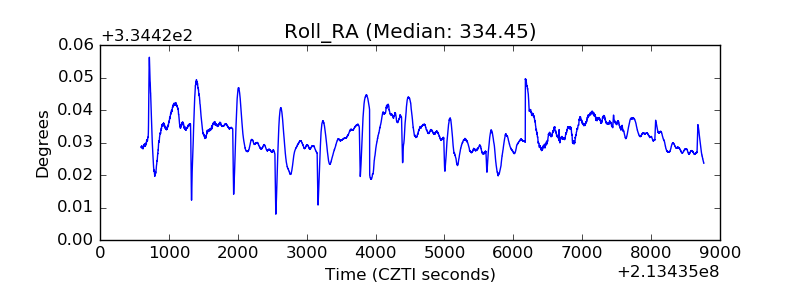

| _Roll_RA |  |

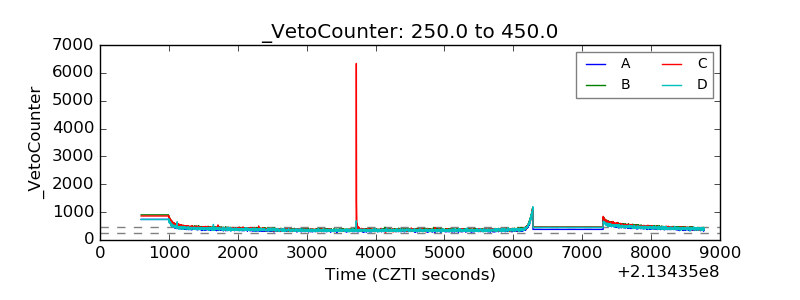

| Veto Counter |  |
