| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_084T01_9000000710_05543cztM0_level2.evt | modeM0/AS1G06_084T01_9000000710_05543cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,073,280 | 89,426,880 |
| Size | 435.9 MB | 85.3 MB |
| Events in quadrant A | 3,015,846 | 572,047 |
| Events in quadrant B | 3,714,611 | 576,349 |
| Events in quadrant C | 3,378,796 | 574,147 |
| Events in quadrant D | 3,316,045 | 556,740 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12851 | 2 |
| B | 0 | 15077 | 1 |
| C | 0 | 14009 | 1 |
| D | 0 | 13917 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6147 | 76 | 1.236375% |
| B | 6147 | 85 | 1.382788% |
| C | 6147 | 112 | 1.822027% |
| D | 6147 | 91 | 1.480397% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7422 | 6148 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7422 | 6148 | 11 | 11 | 0.15% | 0.18% |  |
| C | 7422 | 6148 | 109 | 109 | 1.47% | 1.77% |  |
| D | 7422 | 6148 | 34 | 34 | 0.46% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 7738 | 43.36 | 783 | 766 | 160.8 |
| A | 0 | 226 | 7710 | 43.18 | 783 | 766 | 160.8 |
| A | 0 | 50 | 4638 | 24.08 | 783 | 766 | 160.8 |
| B | 15 | 204 | 529874 | 3548.46 | 782 | 765 | 149.1 |
| B | 4 | 48 | 54682 | 361.59 | 782 | 765 | 149.1 |
| B | 11 | 51 | 43776 | 288.45 | 782 | 765 | 149.1 |
| C | 1 | 241 | 431133 | 2498.83 | 747 | 754 | 172.2 |
| C | 1 | 16 | 20499 | 114.64 | 747 | 754 | 172.2 |
| C | 9 | 16 | 9404 | 50.22 | 747 | 754 | 172.2 |
| D | 2 | 33 | 166055 | 899.54 | 758 | 737 | 183.8 |
| D | 2 | 152 | 130892 | 708.21 | 758 | 737 | 183.8 |
| D | 2 | 136 | 56121 | 301.36 | 758 | 737 | 183.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

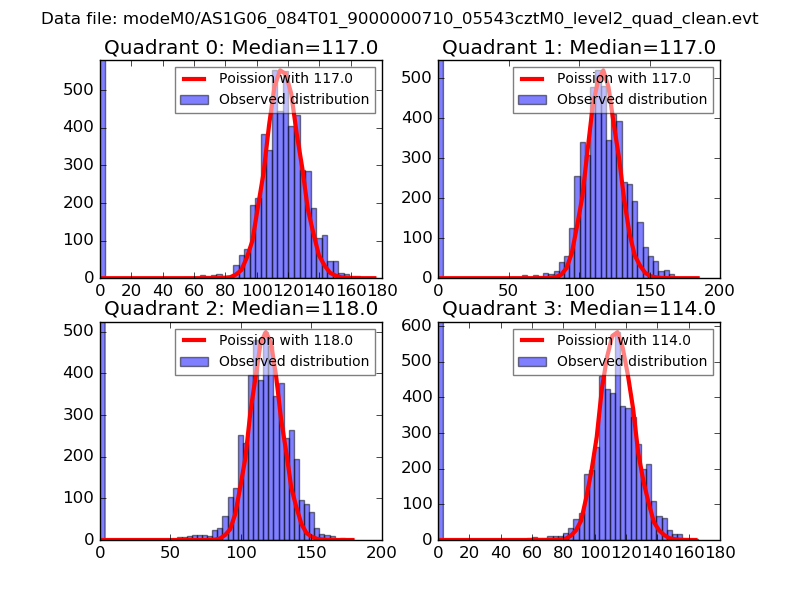

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

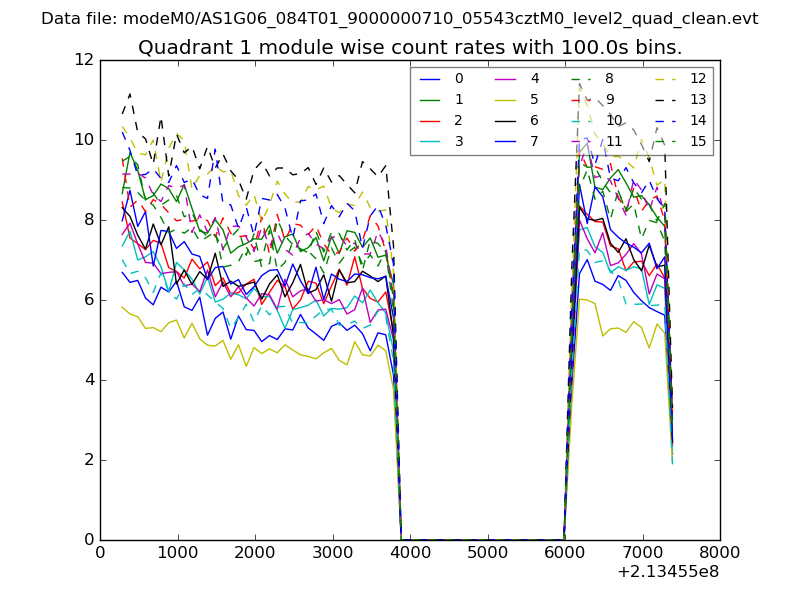

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

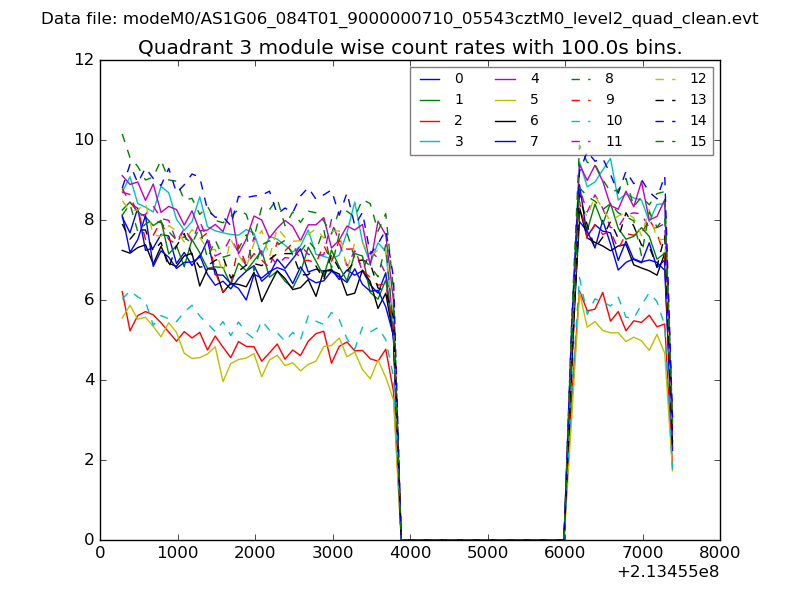

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

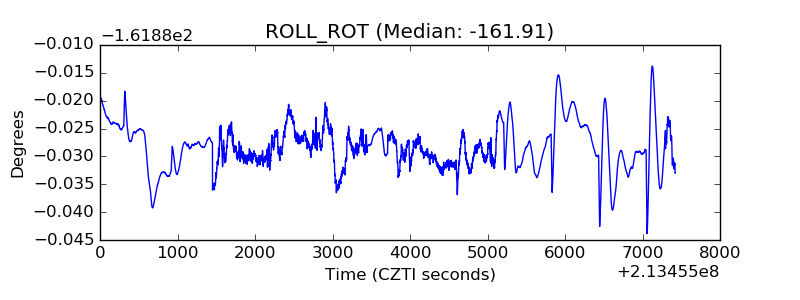

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
