| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_084T01_9000000710_05544cztM0_level2.evt | modeM0/AS1G06_084T01_9000000710_05544cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,180,160 | 89,398,080 |
| Size | 448.4 MB | 85.3 MB |
| Events in quadrant A | 3,115,923 | 570,039 |
| Events in quadrant B | 3,799,722 | 572,645 |
| Events in quadrant C | 3,110,940 | 572,970 |
| Events in quadrant D | 3,779,398 | 546,444 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13417 | 6 |
| B | 0 | 15546 | 2 |
| C | 0 | 13500 | 2 |
| D | 0 | 15515 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6376 | 118 | 1.850690% |
| B | 6377 | 200 | 3.136271% |
| C | 6377 | 100 | 1.568135% |
| D | 6377 | 279 | 4.375098% |

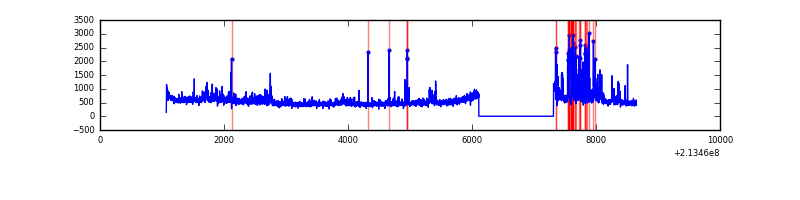

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 6378 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7582 | 6378 | 45 | 45 | 0.59% | 0.71% |  |
| C | 7582 | 6378 | 14 | 14 | 0.18% | 0.22% |  |
| D | 7582 | 6378 | 141 | 141 | 1.86% | 2.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 13957 | 80.21 | 806 | 790 | 164.2 |
| A | 12 | 194 | 8049 | 44.22 | 806 | 790 | 164.2 |
| A | 0 | 226 | 7995 | 43.89 | 806 | 790 | 164.2 |
| B | 10 | 246 | 307305 | 1995.31 | 805 | 789 | 153.6 |
| B | 15 | 204 | 283752 | 1841.99 | 805 | 789 | 153.6 |
| B | 11 | 51 | 36263 | 230.92 | 805 | 789 | 153.6 |
| C | 9 | 16 | 72055 | 399.93 | 769 | 774 | 178.2 |
| C | 1 | 16 | 32057 | 175.52 | 769 | 774 | 178.2 |
| C | 13 | 61 | 6220 | 30.56 | 769 | 774 | 178.2 |
| D | 2 | 63 | 350186 | 1836.81 | 768 | 745 | 190.2 |
| D | 2 | 152 | 248078 | 1300.09 | 768 | 745 | 190.2 |
| D | 2 | 33 | 107310 | 560.15 | 768 | 745 | 190.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

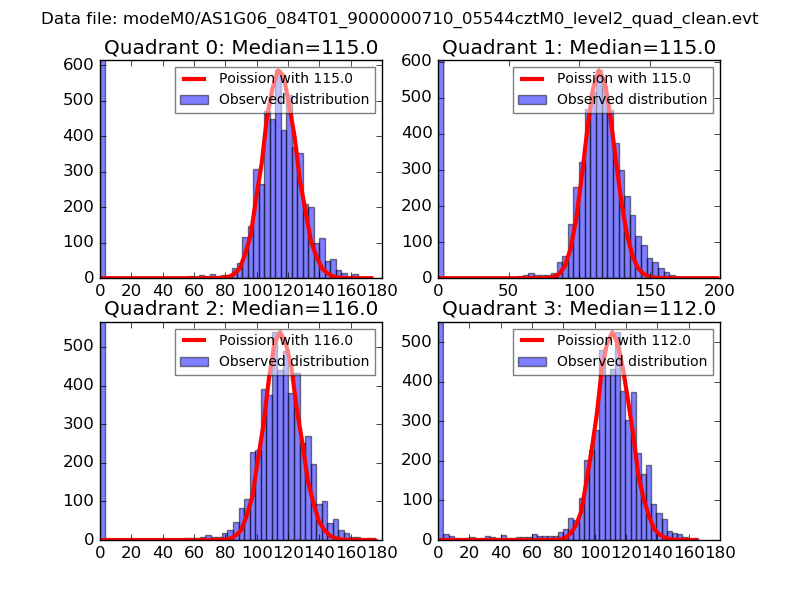

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

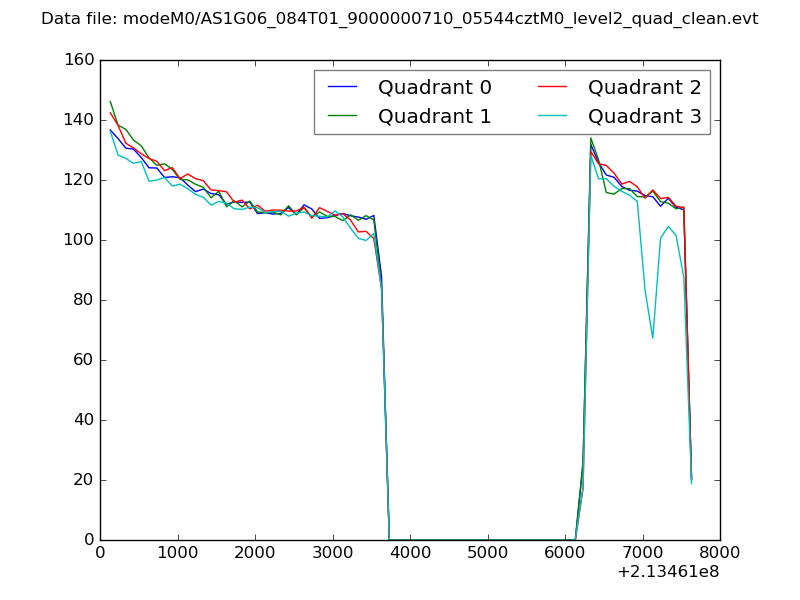

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

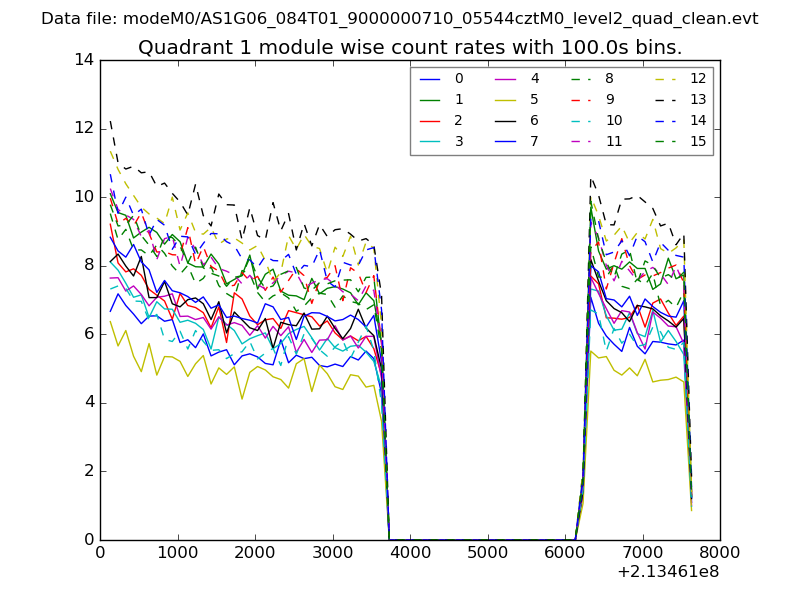

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

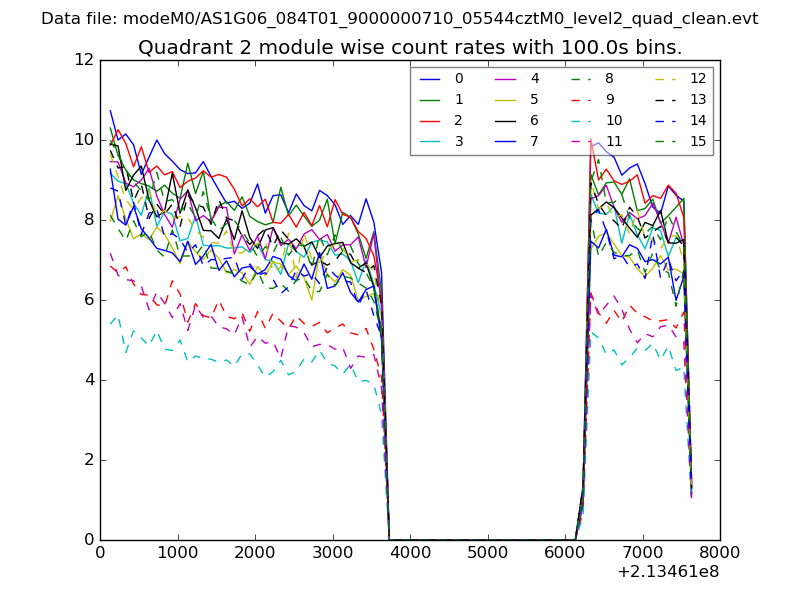

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

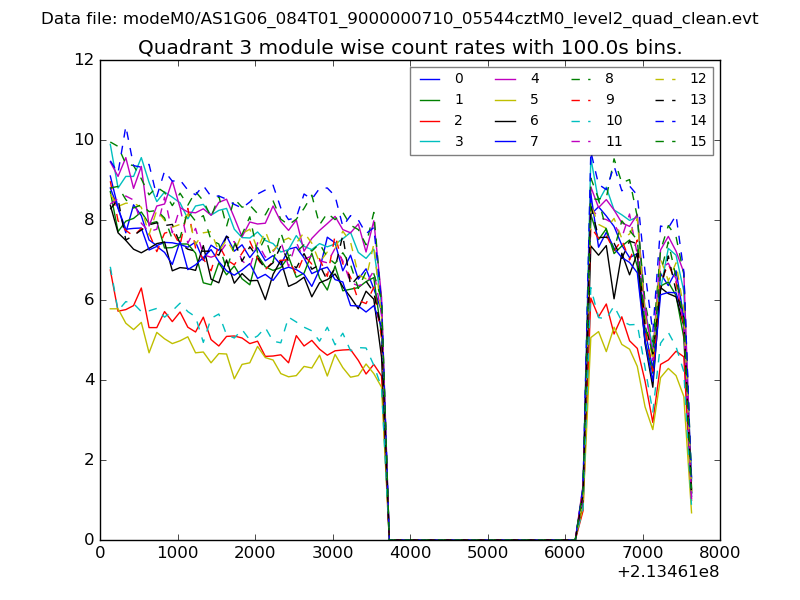

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

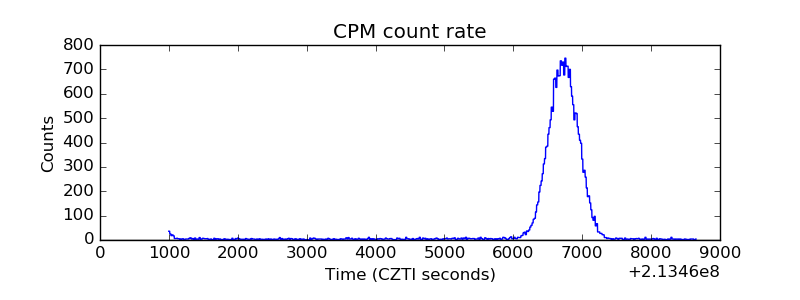

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

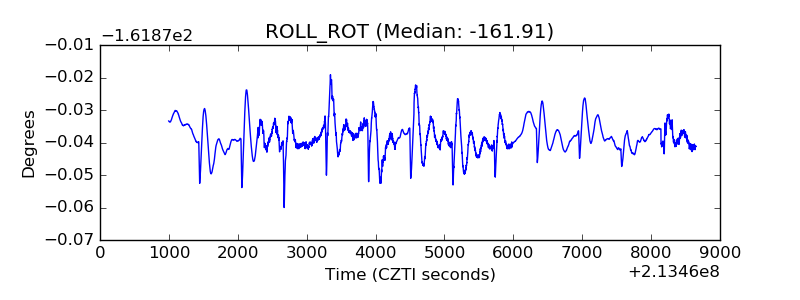

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
