| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_086T01_9000000714_05561cztM0_level2.evt | modeM0/AS1A02_086T01_9000000714_05561cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,126,720 | 65,658,240 |
| Size | 429.3 MB | 62.6 MB |
| Events in quadrant A | 3,109,366 | 399,920 |
| Events in quadrant B | 3,899,643 | 398,454 |
| Events in quadrant C | 2,665,398 | 403,749 |
| Events in quadrant D | 3,566,910 | 383,629 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13267 | 1 |
| B | 0 | 15464 | 1 |
| C | 0 | 12079 | 1 |
| D | 0 | 14634 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5747 | 169 | 2.940665% |
| B | 5747 | 254 | 4.419697% |
| C | 5747 | 33 | 0.574213% |
| D | 5747 | 197 | 3.427875% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

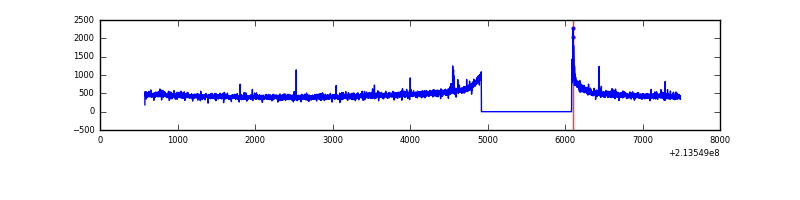

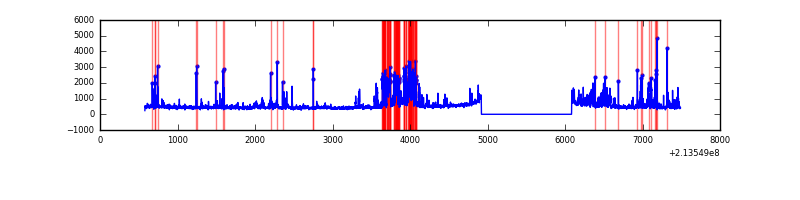

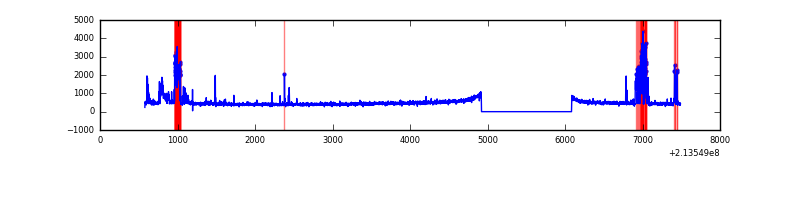

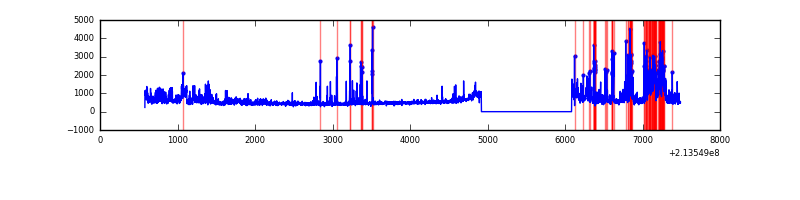

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6912 | 5748 | 96 | 96 | 1.39% | 1.67% |  |
| B | 6912 | 5748 | 131 | 131 | 1.90% | 2.28% |  |
| C | 6912 | 5748 | 2 | 2 | 0.03% | 0.03% |  |
| D | 6912 | 5748 | 134 | 134 | 1.94% | 2.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 472843 | 3393.58 | 677 | 663 | 139.1 |
| A | 7 | 16 | 13224 | 90.28 | 677 | 663 | 139.1 |
| A | 0 | 50 | 10763 | 72.59 | 677 | 663 | 139.1 |
| B | 15 | 204 | 474721 | 3618.33 | 683 | 667 | 131.0 |
| B | 10 | 16 | 374546 | 2853.72 | 683 | 667 | 131.0 |
| B | 0 | 219 | 290634 | 2213.24 | 683 | 667 | 131.0 |
| C | 1 | 16 | 70668 | 456.19 | 656 | 661 | 153.5 |
| C | 9 | 16 | 27671 | 176.01 | 656 | 661 | 153.5 |
| C | 13 | 61 | 5527 | 31.71 | 656 | 661 | 153.5 |
| D | 2 | 63 | 459500 | 2876.29 | 648 | 626 | 159.5 |
| D | 2 | 136 | 211337 | 1320.76 | 648 | 626 | 159.5 |
| D | 2 | 152 | 152316 | 950.81 | 648 | 626 | 159.5 |

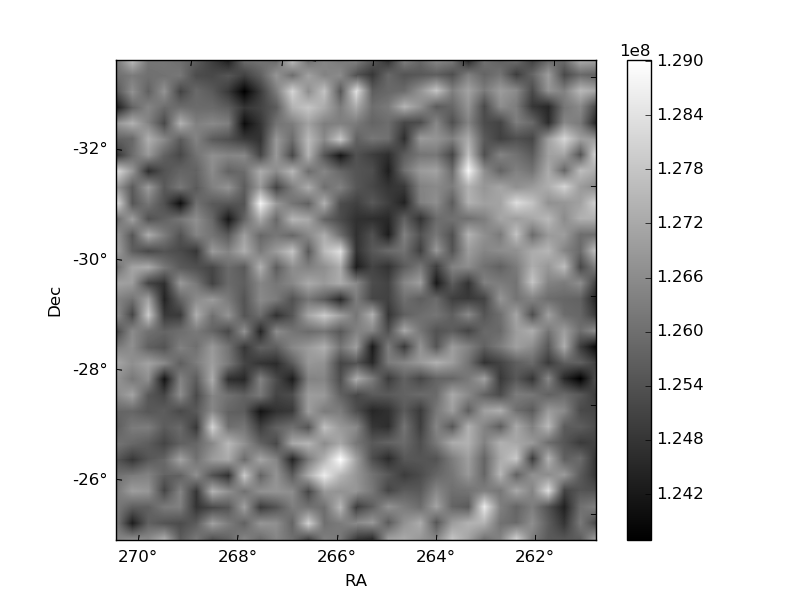

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

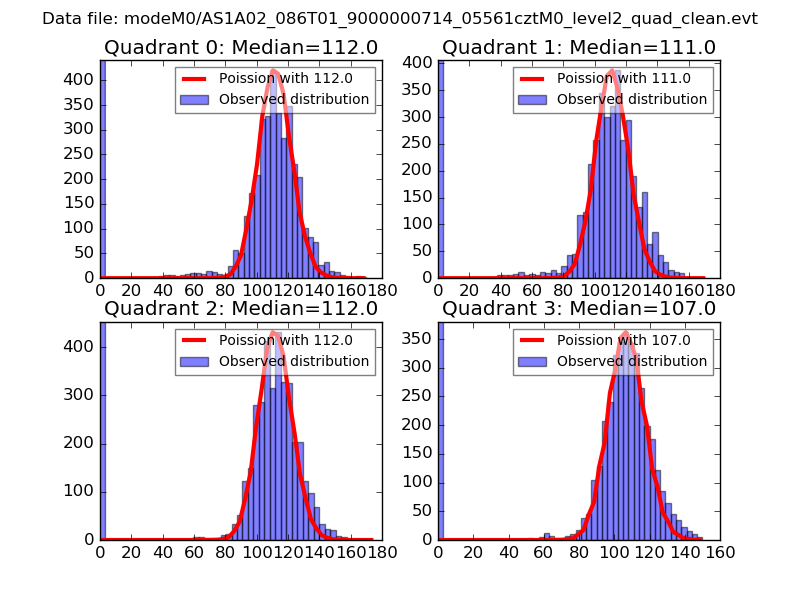

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

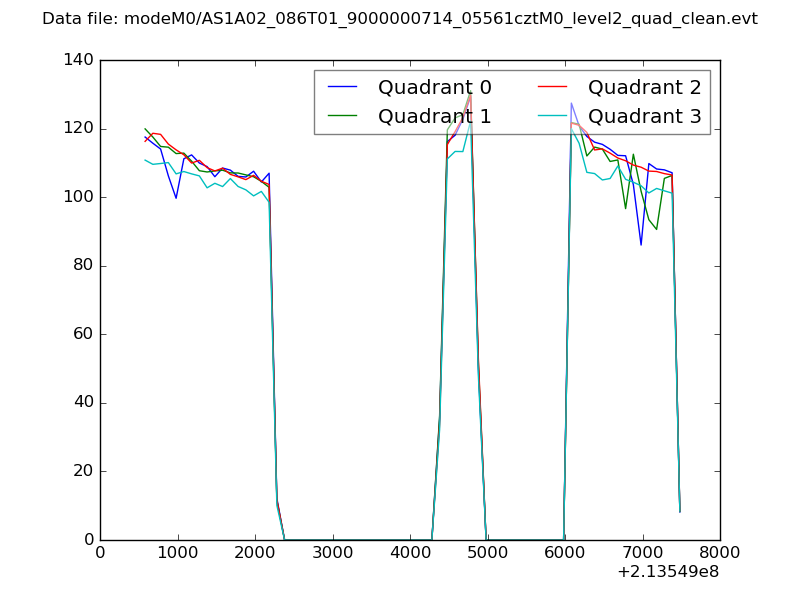

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

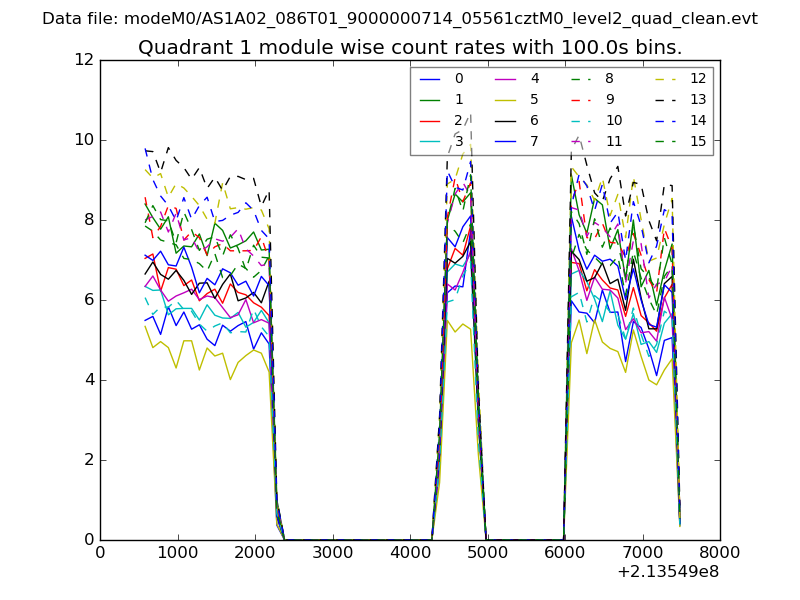

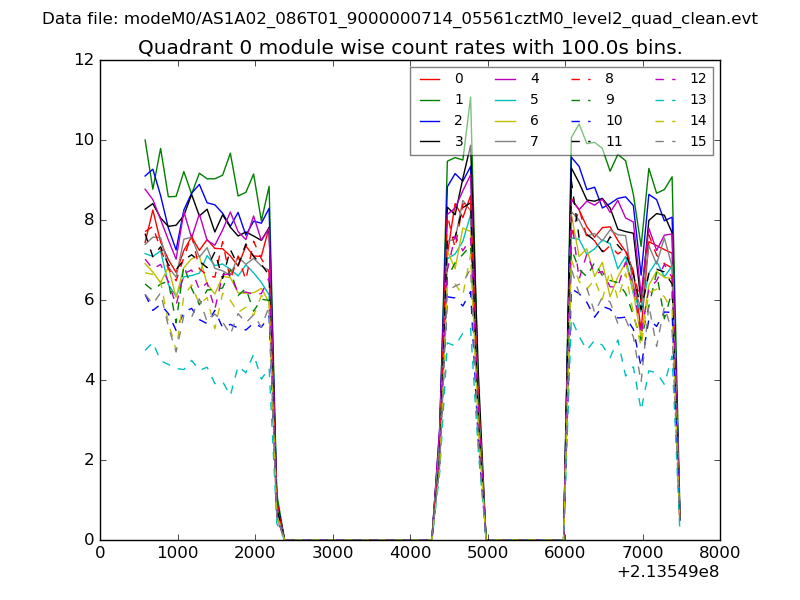

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

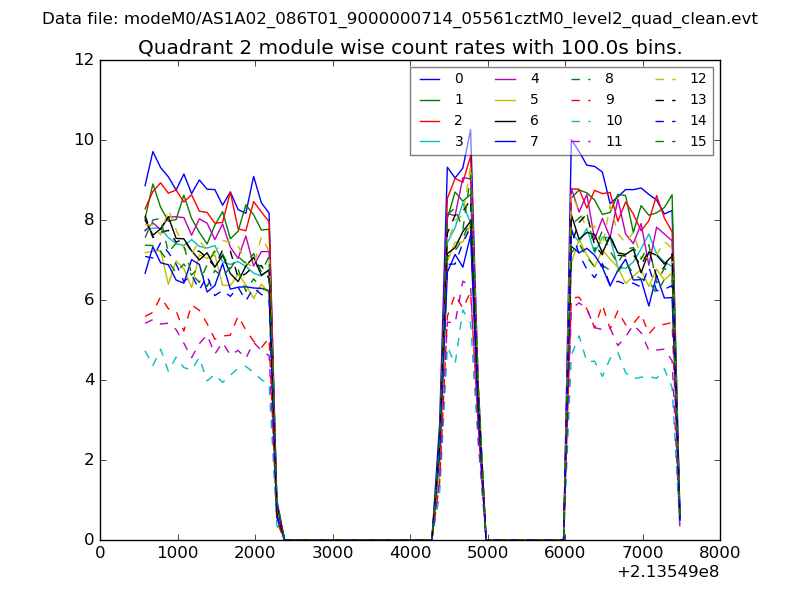

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

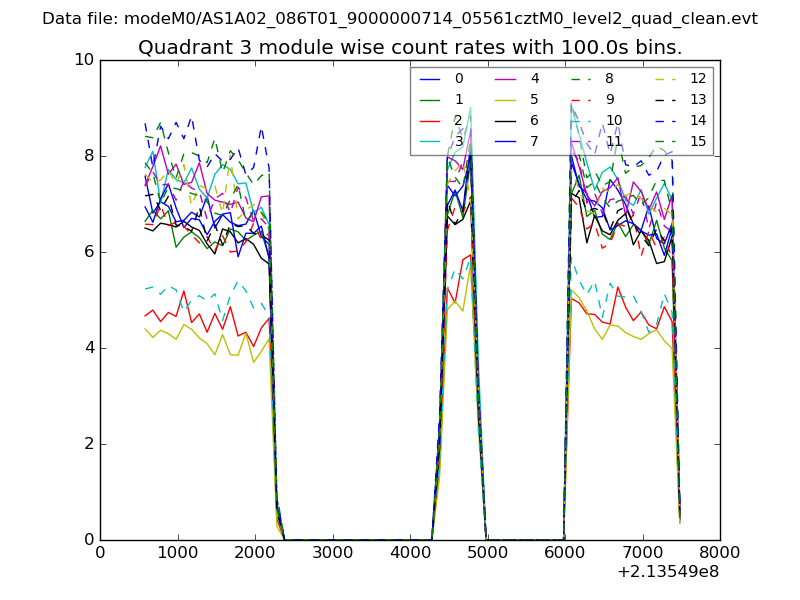

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

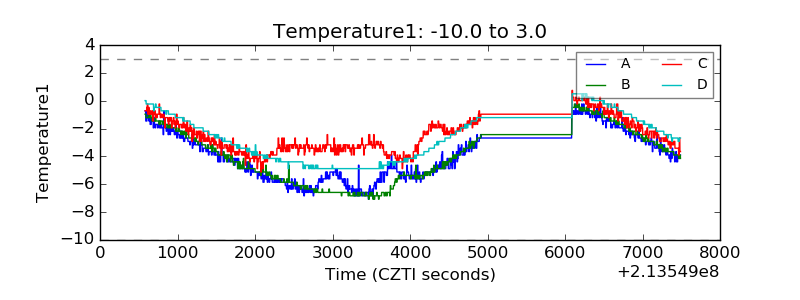

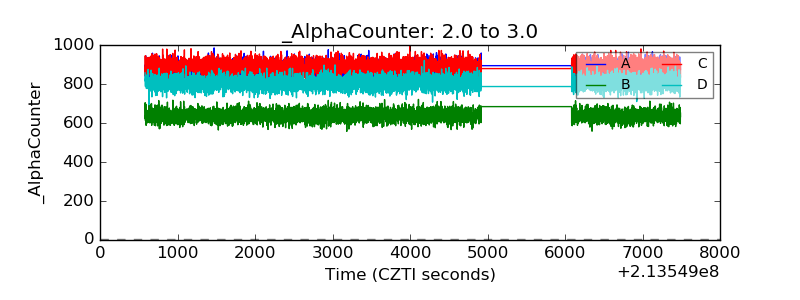

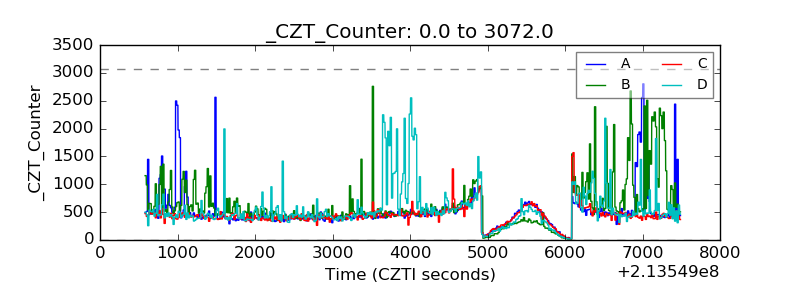

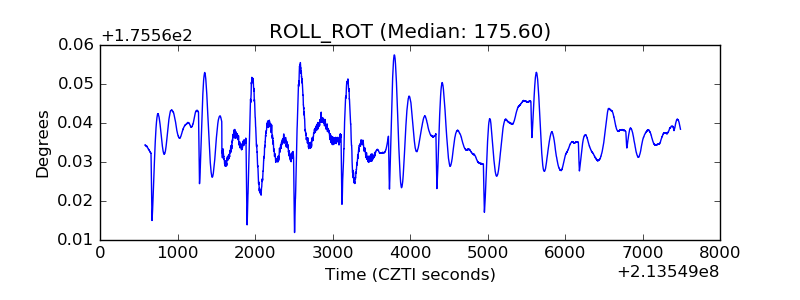

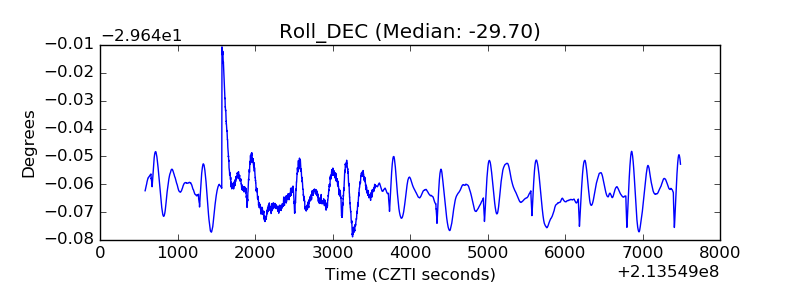

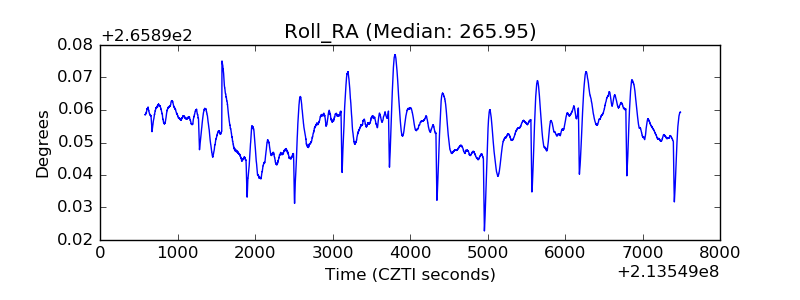

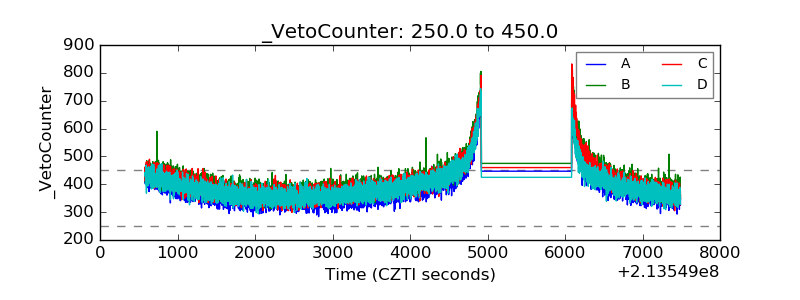

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
