| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_081T01_9000000720_05575cztM0_level2.evt | modeM0/AS1A02_081T01_9000000720_05575cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,826,240 | 85,273,920 |
| Size | 477.6 MB | 81.3 MB |
| Events in quadrant A | 3,126,898 | 543,817 |
| Events in quadrant B | 4,296,823 | 539,450 |
| Events in quadrant C | 3,600,869 | 517,101 |
| Events in quadrant D | 3,671,641 | 498,103 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14305 | 3 |
| B | 0 | 17374 | 2 |
| C | 0 | 15723 | 2 |
| D | 0 | 15963 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6937 | 37 | 0.533372% |
| B | 6937 | 243 | 3.502955% |
| C | 6937 | 143 | 2.061410% |
| D | 6937 | 148 | 2.133487% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7702 | 6938 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7702 | 6938 | 115 | 115 | 1.49% | 1.66% |  |
| C | 7702 | 6938 | 50 | 50 | 0.65% | 0.72% |  |
| D | 7702 | 6938 | 73 | 73 | 0.95% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 8770 | 48.36 | 807 | 789 | 165.0 |
| A | 0 | 50 | 8607 | 47.38 | 807 | 789 | 165.0 |
| A | 0 | 226 | 7884 | 42.99 | 807 | 789 | 165.0 |
| B | 10 | 16 | 431839 | 2795.77 | 804 | 786 | 154.2 |
| B | 15 | 204 | 353357 | 2286.74 | 804 | 786 | 154.2 |
| B | 0 | 219 | 142628 | 919.97 | 804 | 786 | 154.2 |
| C | 9 | 16 | 542155 | 2984.2 | 781 | 782 | 181.4 |
| C | 12 | 4 | 7663 | 37.93 | 781 | 782 | 181.4 |
| C | 13 | 61 | 6211 | 29.93 | 781 | 782 | 181.4 |
| D | 2 | 152 | 217547 | 1138.3 | 781 | 755 | 190.5 |
| D | 2 | 63 | 184438 | 964.46 | 781 | 755 | 190.5 |
| D | 10 | 15 | 104179 | 543.04 | 781 | 755 | 190.5 |

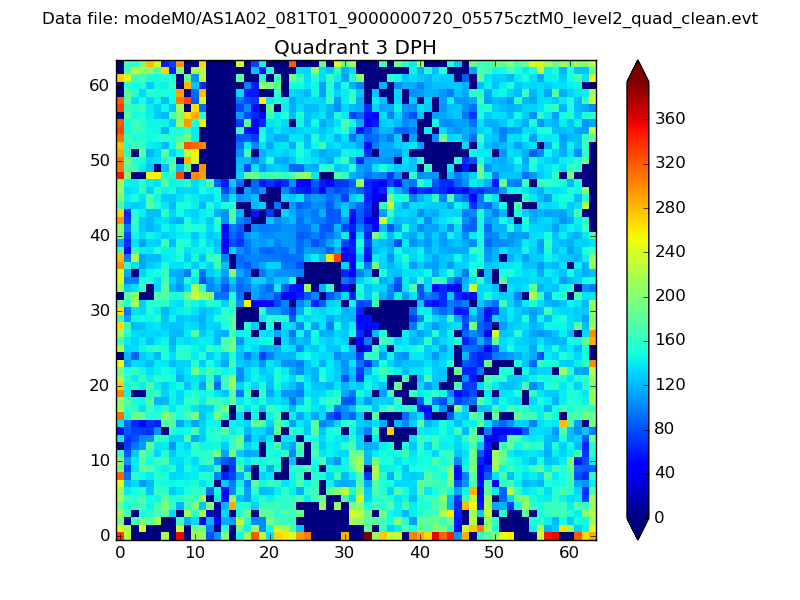

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

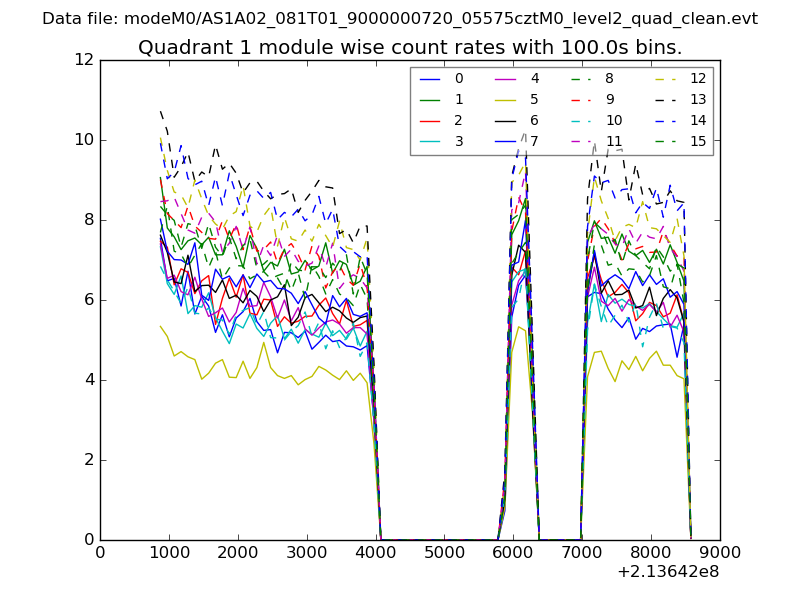

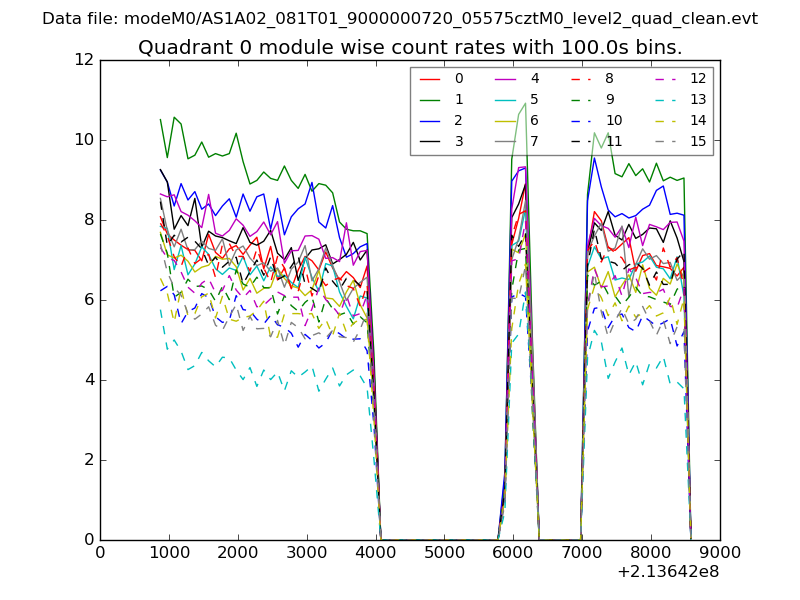

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

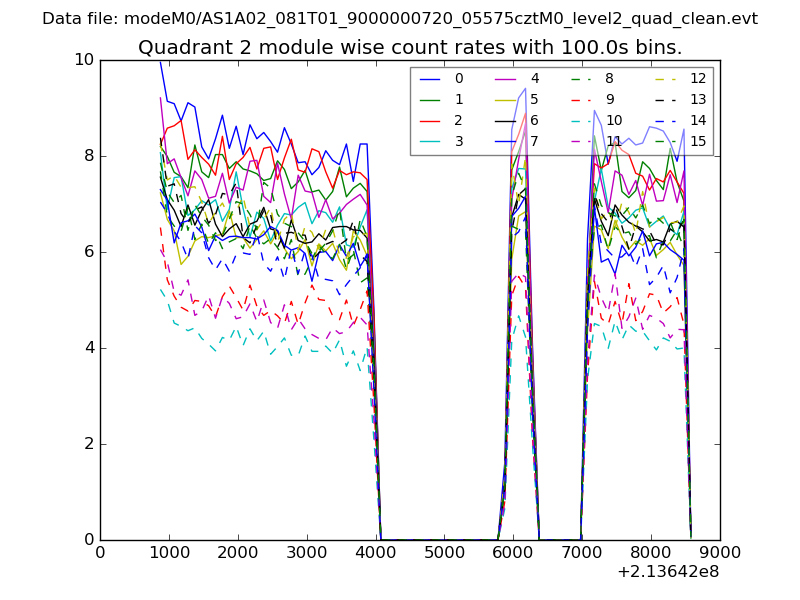

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

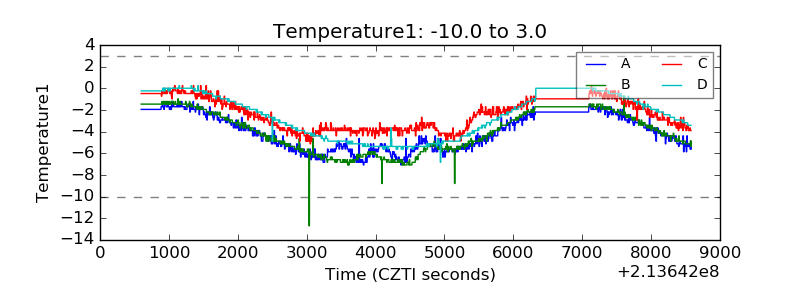

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

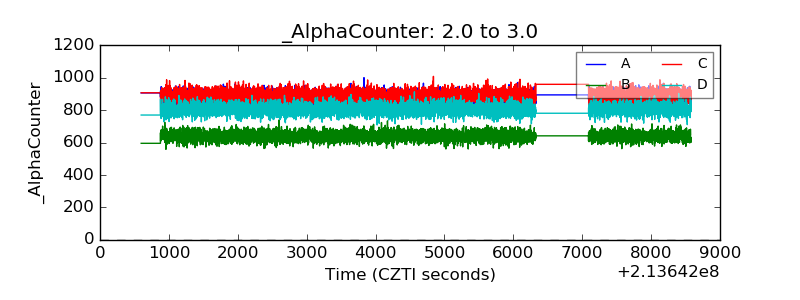

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

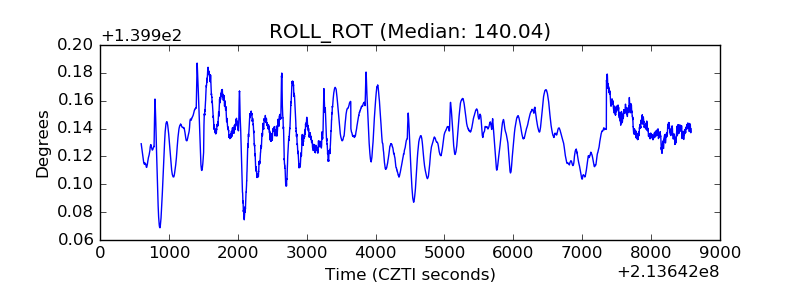

| _ROLL_ROT |  |

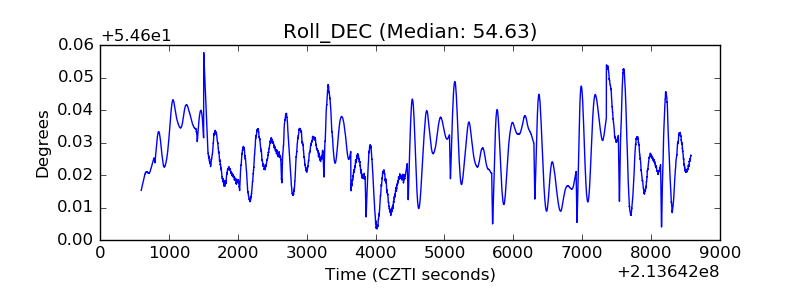

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
