| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_081T01_9000000720_05576cztM0_level2.evt | modeM0/AS1A02_081T01_9000000720_05576cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,863,680 | 88,836,480 |
| Size | 494.8 MB | 84.7 MB |
| Events in quadrant A | 3,296,551 | 565,480 |
| Events in quadrant B | 4,138,725 | 560,658 |
| Events in quadrant C | 4,173,457 | 539,798 |
| Events in quadrant D | 3,615,049 | 521,437 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14969 | 3 |
| B | 0 | 17199 | 2 |
| C | 0 | 17571 | 2 |
| D | 0 | 15682 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7214 | 34 | 0.471306% |
| B | 7214 | 144 | 1.996119% |
| C | 7214 | 272 | 3.770446% |
| D | 7214 | 40 | 0.554477% |

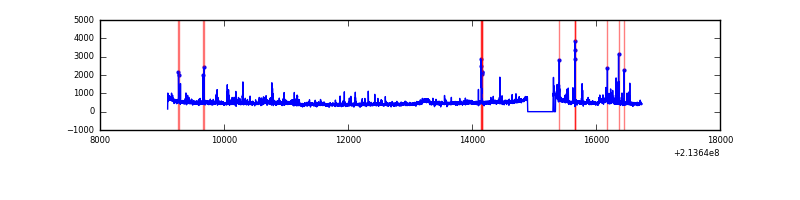

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7649 | 7216 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7649 | 7216 | 36 | 36 | 0.47% | 0.50% |  |
| C | 7649 | 7216 | 194 | 194 | 2.54% | 2.69% |  |
| D | 7649 | 7216 | 16 | 16 | 0.21% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 74504 | 431.5 | 833 | 815 | 170.8 |
| A | 13 | 14 | 10599 | 57.29 | 833 | 815 | 170.8 |
| A | 12 | 194 | 8342 | 44.08 | 833 | 815 | 170.8 |
| B | 10 | 16 | 271958 | 1682.99 | 838 | 816 | 161.1 |
| B | 0 | 219 | 247511 | 1531.25 | 838 | 816 | 161.1 |
| B | 15 | 204 | 104789 | 645.36 | 838 | 816 | 161.1 |
| C | 9 | 16 | 1030804 | 5502.9 | 801 | 803 | 187.2 |
| C | 12 | 4 | 9685 | 47.45 | 801 | 803 | 187.2 |
| C | 13 | 61 | 6463 | 30.24 | 801 | 803 | 187.2 |
| D | 8 | 195 | 132104 | 663.11 | 809 | 784 | 198.0 |
| D | 11 | 241 | 118284 | 593.32 | 809 | 784 | 198.0 |
| D | 2 | 33 | 103323 | 517.78 | 809 | 784 | 198.0 |

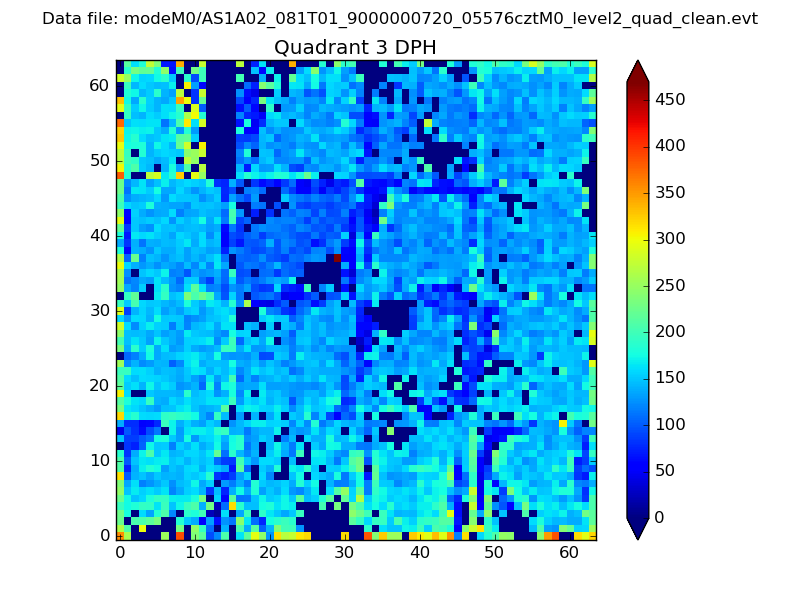

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

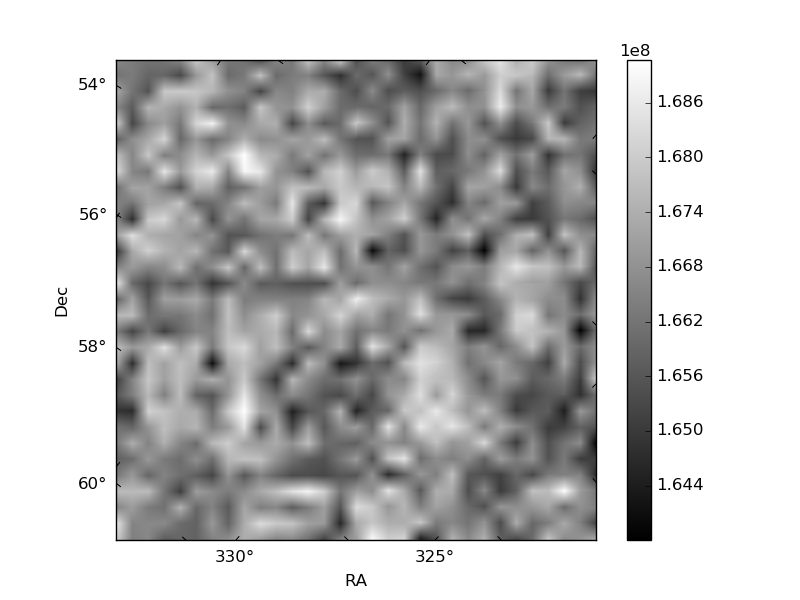

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

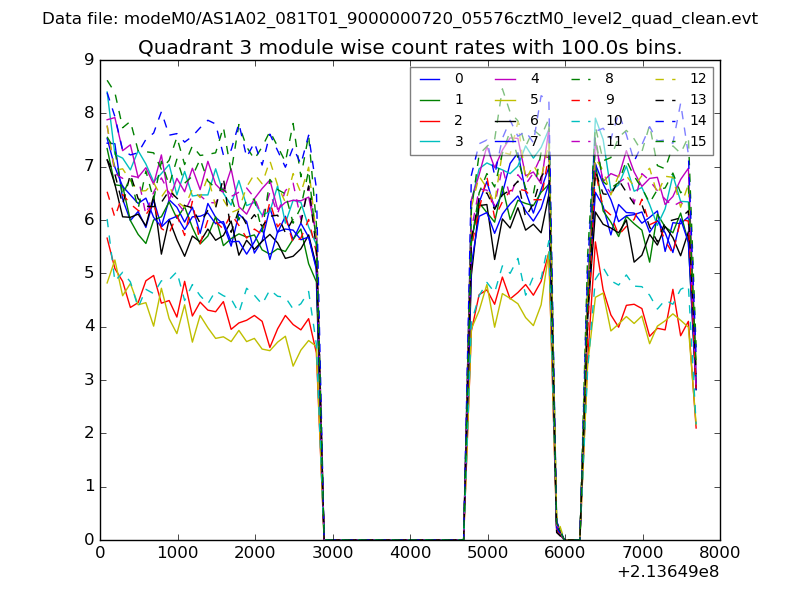

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

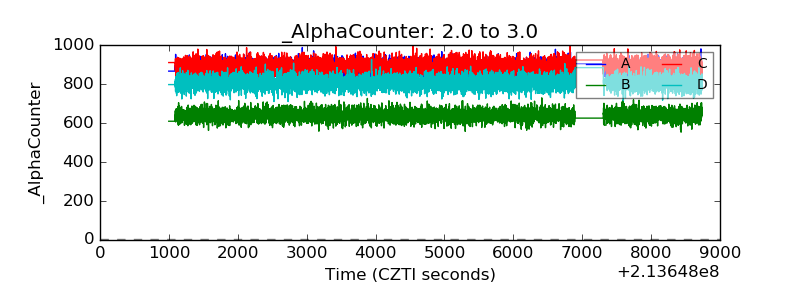

| Alpha Counter |  |
| _CPM_Rate |  |

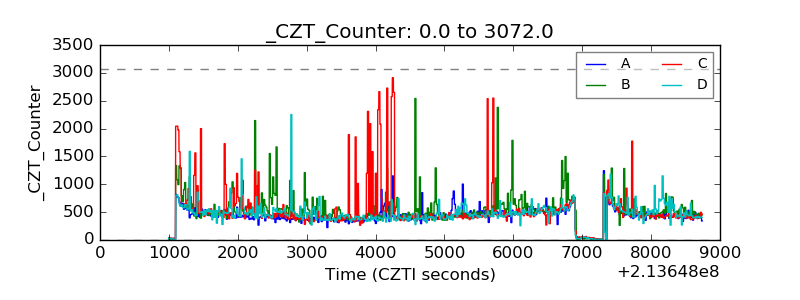

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

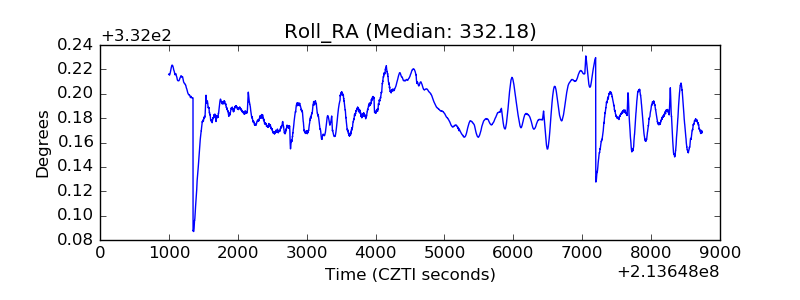

| _Roll_RA |  |

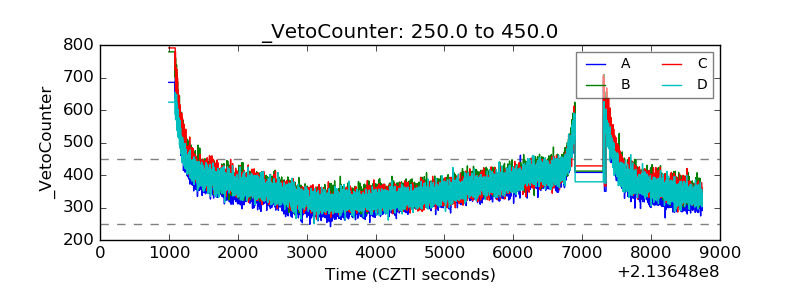

| Veto Counter |  |
