| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_081T01_9000000720_05586cztM0_level2.evt | modeM0/AS1A02_081T01_9000000720_05586cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,920,960 | 92,520,000 |
| Size | 439.6 MB | 88.2 MB |
| Events in quadrant A | 3,286,832 | 606,576 |
| Events in quadrant B | 3,584,163 | 605,378 |
| Events in quadrant C | 3,179,436 | 576,533 |
| Events in quadrant D | 3,458,984 | 552,106 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13975 | 3 |
| B | 0 | 14786 | 2 |
| C | 0 | 13743 | 2 |
| D | 0 | 14600 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6615 | 128 | 1.934996% |
| B | 6615 | 132 | 1.995465% |
| C | 6615 | 94 | 1.421013% |
| D | 6615 | 113 | 1.708239% |

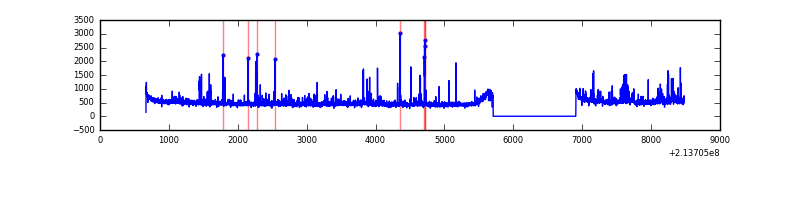

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7815 | 6615 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7815 | 6616 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7815 | 6616 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7815 | 6616 | 8 | 8 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 14086 | 78.02 | 846 | 830 | 169.9 |
| A | 0 | 226 | 8913 | 47.58 | 846 | 830 | 169.9 |
| A | 12 | 194 | 8326 | 44.12 | 846 | 830 | 169.9 |
| B | 15 | 204 | 133549 | 832.2 | 841 | 823 | 159.5 |
| B | 0 | 214 | 46092 | 283.84 | 841 | 823 | 159.5 |
| B | 10 | 245 | 41574 | 255.51 | 841 | 823 | 159.5 |
| C | 9 | 16 | 22033 | 114.57 | 805 | 810 | 185.2 |
| C | 12 | 4 | 7713 | 37.27 | 805 | 810 | 185.2 |
| C | 13 | 61 | 6675 | 31.66 | 805 | 810 | 185.2 |
| D | 2 | 152 | 97328 | 488.46 | 812 | 786 | 197.6 |
| D | 8 | 195 | 71252 | 356.53 | 812 | 786 | 197.6 |
| D | 2 | 136 | 71098 | 355.75 | 812 | 786 | 197.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

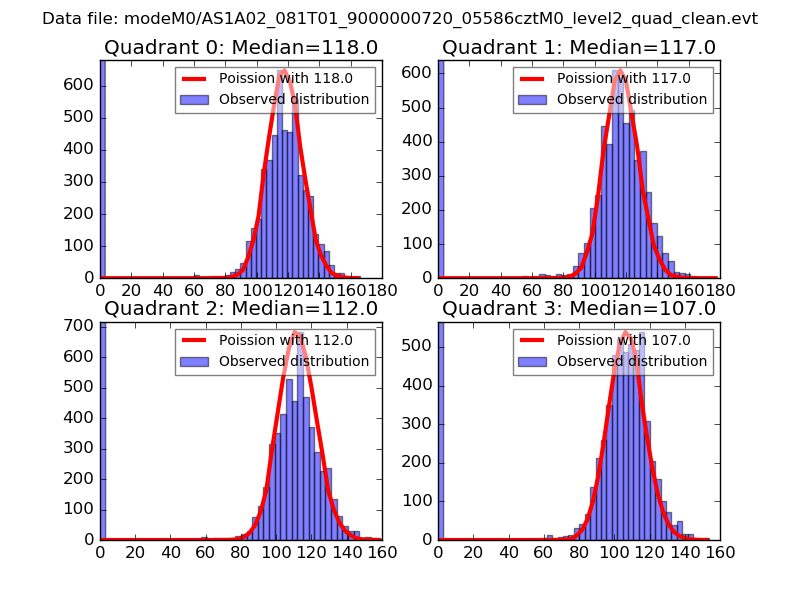

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

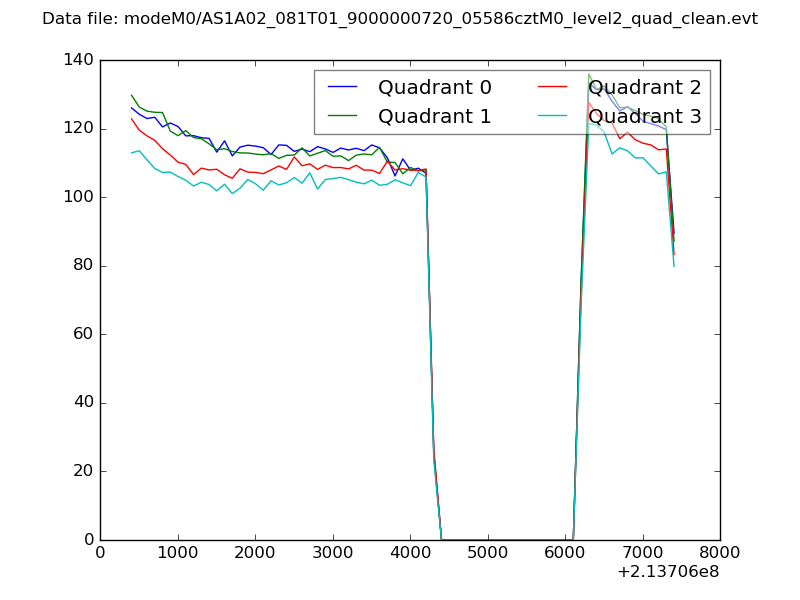

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

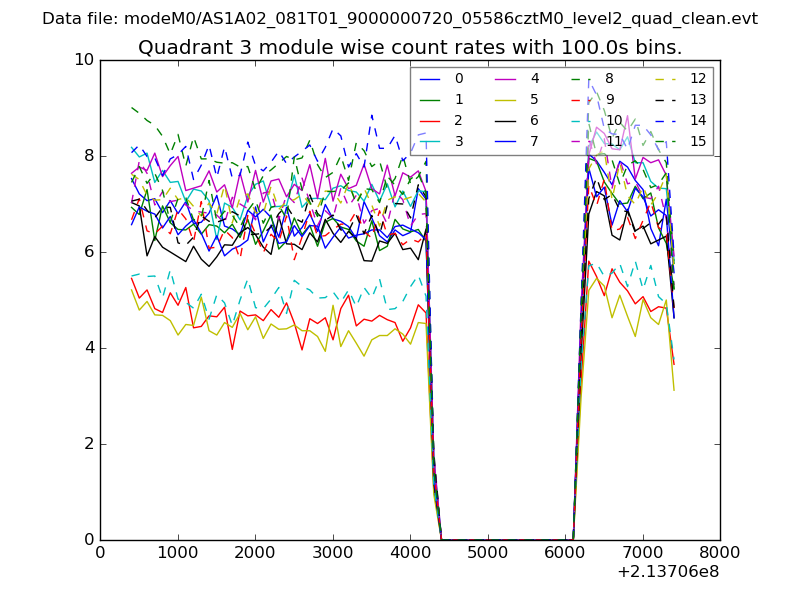

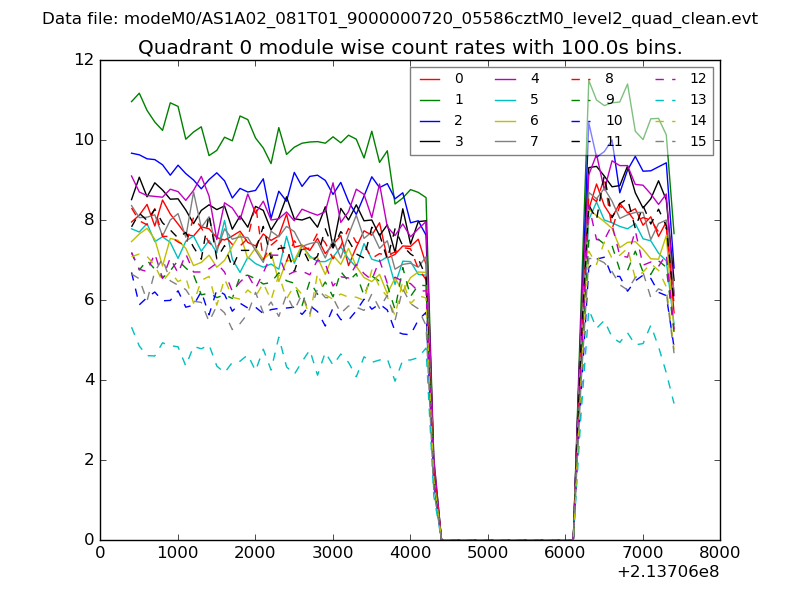

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

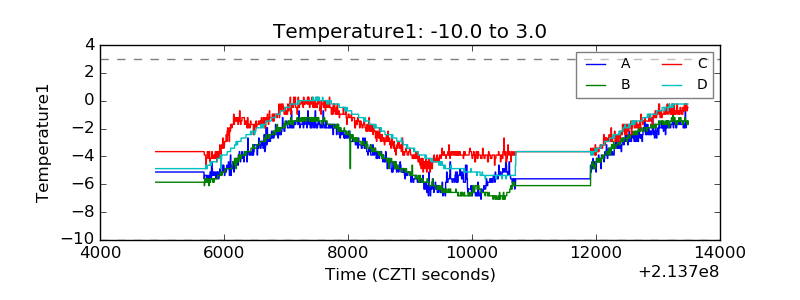

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

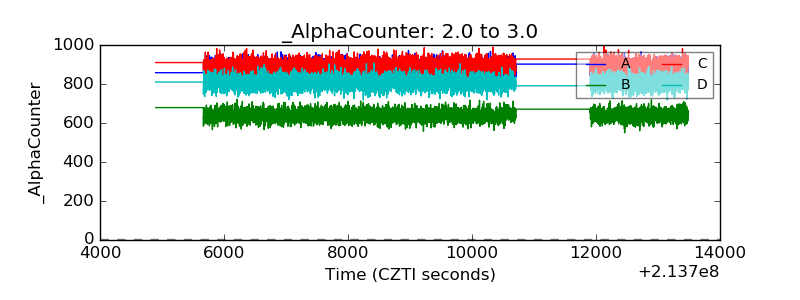

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

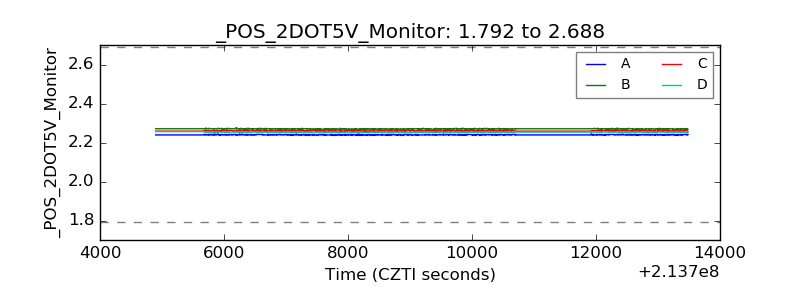

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
