| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_028T01_9000000724_05600cztM0_level2.evt | modeM0/AS1A02_028T01_9000000724_05600cztM0_level2_quad_clean.evt |
| Size (bytes) | 585,817,920 | 66,568,320 |
| Size | 558.7 MB | 63.5 MB |
| Events in quadrant A | 3,320,152 | 401,726 |
| Events in quadrant B | 4,046,704 | 403,496 |
| Events in quadrant C | 3,214,974 | 392,304 |
| Events in quadrant D | 6,715,116 | 359,311 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13876 | 3 |
| B | 0 | 16299 | 2 |
| C | 0 | 13728 | 2 |
| D | 0 | 24507 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6578 | 109 | 1.657039% |
| B | 6578 | 122 | 1.854667% |
| C | 6578 | 84 | 1.276984% |
| D | 6578 | 229 | 3.481301% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7768 | 6578 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7768 | 6578 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7768 | 6578 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7768 | 6578 | 69 | 69 | 0.89% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 27588 | 156.24 | 854 | 837 | 171.2 |
| A | 0 | 226 | 8506 | 44.79 | 854 | 837 | 171.2 |
| A | 12 | 194 | 8287 | 43.51 | 854 | 837 | 171.2 |
| B | 8 | 3 | 579827 | 3590.35 | 851 | 835 | 161.3 |
| B | 15 | 204 | 165209 | 1019.29 | 851 | 835 | 161.3 |
| B | 12 | 111 | 15320 | 89.82 | 851 | 835 | 161.3 |
| C | 1 | 16 | 21417 | 109.02 | 818 | 823 | 188.9 |
| C | 13 | 61 | 6509 | 30.1 | 818 | 823 | 188.9 |
| C | 3 | 202 | 2079 | 6.65 | 818 | 823 | 188.9 |
| D | 2 | 63 | 3381223 | 17182.95 | 810 | 785 | 196.7 |
| D | 11 | 241 | 88438 | 445.54 | 810 | 785 | 196.7 |
| D | 2 | 136 | 76020 | 382.42 | 810 | 785 | 196.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

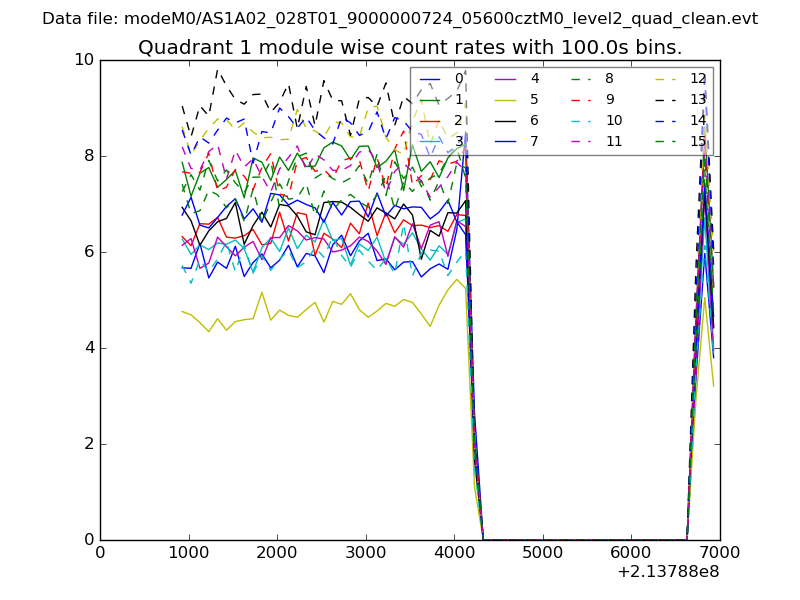

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

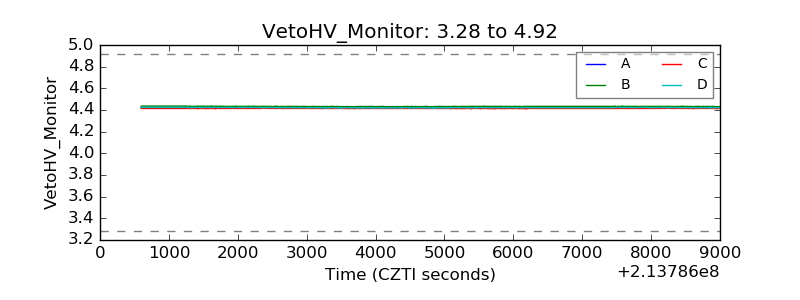

| Veto HV Monitor |  |
| Veto LLD |  |

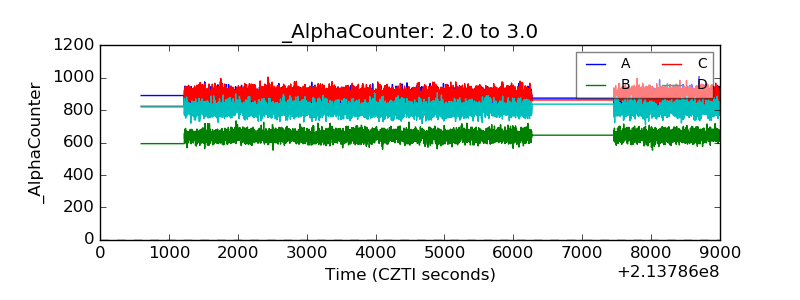

| Alpha Counter |  |

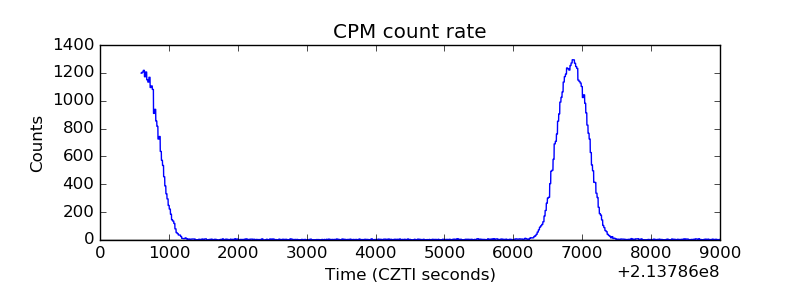

| _CPM_Rate |  |
| CZT Counter |  |

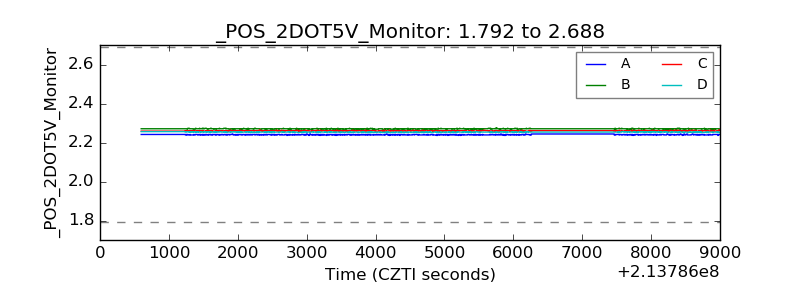

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

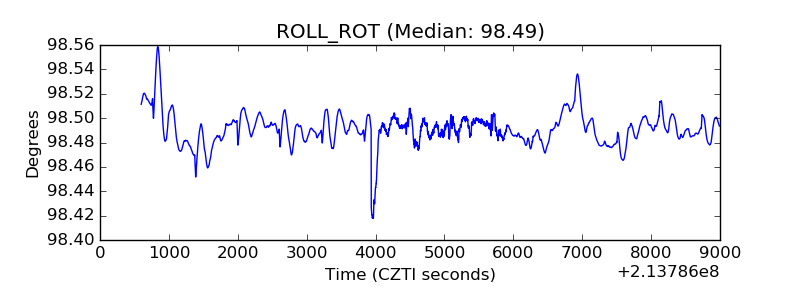

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
