| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_028T01_9000000724_05601cztM0_level2.evt | modeM0/AS1A02_028T01_9000000724_05601cztM0_level2_quad_clean.evt |
| Size (bytes) | 577,370,880 | 83,021,760 |
| Size | 550.6 MB | 79.2 MB |
| Events in quadrant A | 3,475,080 | 525,940 |
| Events in quadrant B | 3,716,437 | 526,760 |
| Events in quadrant C | 3,396,302 | 515,088 |
| Events in quadrant D | 6,439,290 | 473,869 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14487 | 3 |
| B | 0 | 15243 | 2 |
| C | 0 | 14337 | 2 |
| D | 0 | 23843 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6778 | 211 | 3.113013% |
| B | 6778 | 203 | 2.994984% |
| C | 6778 | 166 | 2.449100% |
| D | 6778 | 317 | 4.676896% |

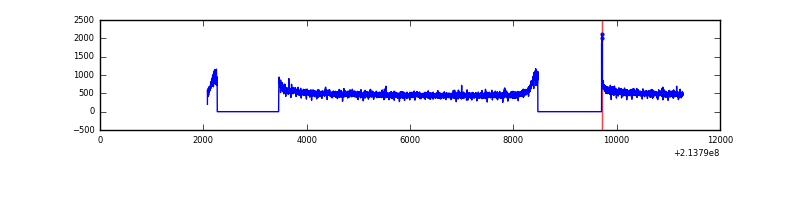

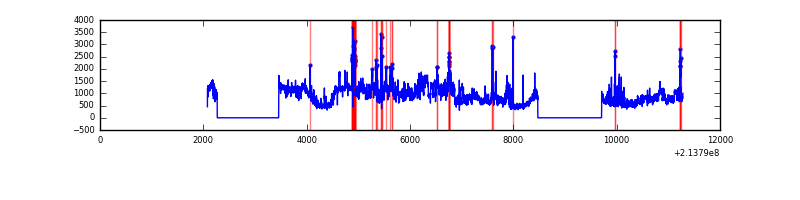

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9203 | 6778 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9203 | 6779 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9203 | 6779 | 2 | 2 | 0.02% | 0.03% |  |
| D | 9203 | 6779 | 72 | 72 | 0.78% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 21733 | 115.02 | 897 | 878 | 181.3 |
| A | 0 | 226 | 8945 | 44.49 | 897 | 878 | 181.3 |
| A | 12 | 194 | 8870 | 44.08 | 897 | 878 | 181.3 |
| B | 15 | 204 | 235622 | 1384.45 | 894 | 874 | 169.6 |
| B | 12 | 111 | 16093 | 89.76 | 894 | 874 | 169.6 |
| B | 11 | 111 | 12647 | 69.43 | 894 | 874 | 169.6 |
| C | 1 | 16 | 16622 | 79.21 | 862 | 866 | 198.9 |
| C | 12 | 4 | 12419 | 58.08 | 862 | 866 | 198.9 |
| C | 13 | 61 | 7115 | 31.41 | 862 | 866 | 198.9 |
| D | 2 | 63 | 2920632 | 13990.72 | 859 | 832 | 208.7 |
| D | 2 | 136 | 120869 | 575.18 | 859 | 832 | 208.7 |
| D | 7 | 55 | 27487 | 127.72 | 859 | 832 | 208.7 |

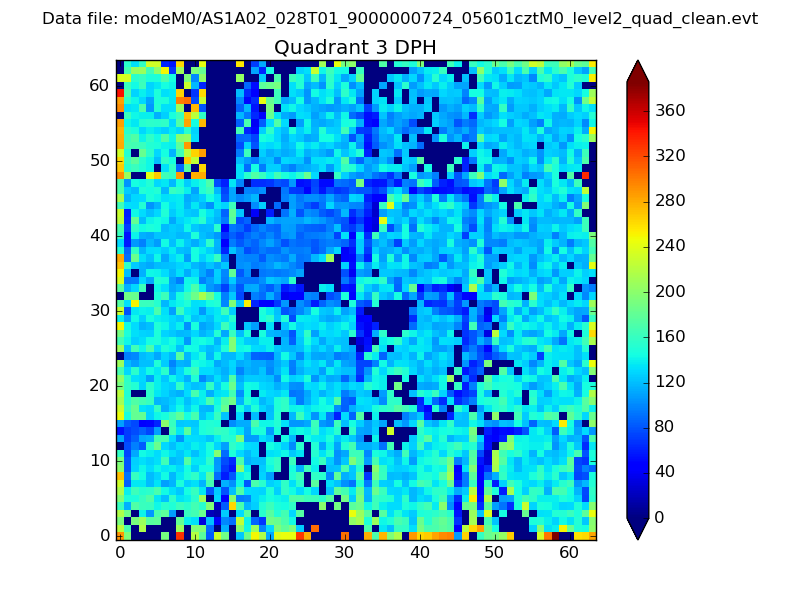

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

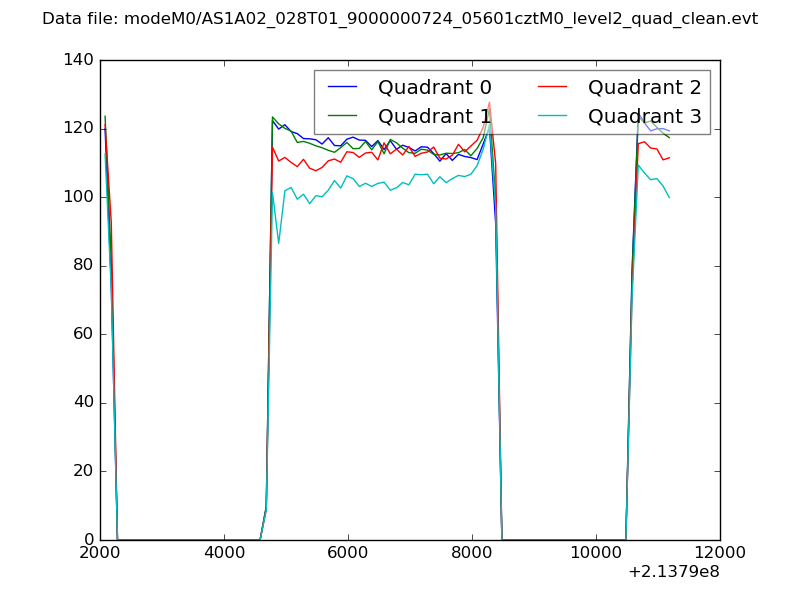

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

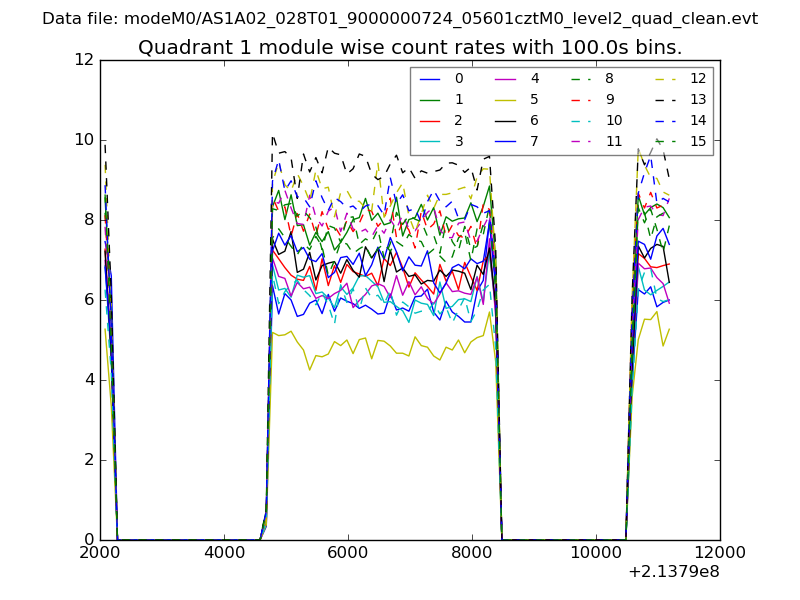

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

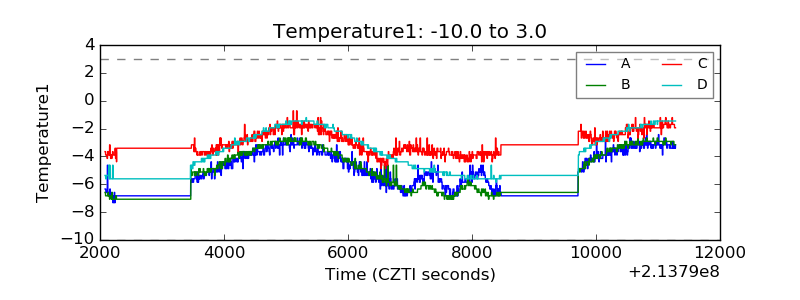

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

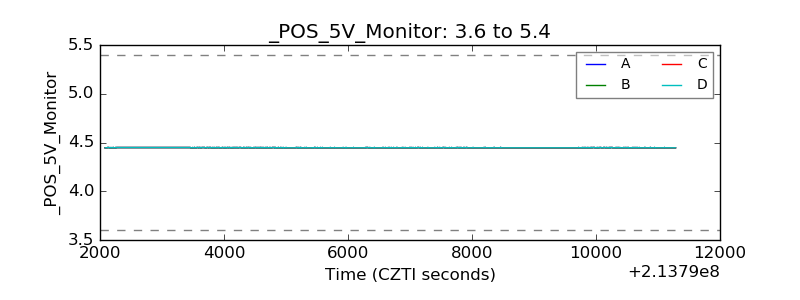

| +5 Volts monitor |  |

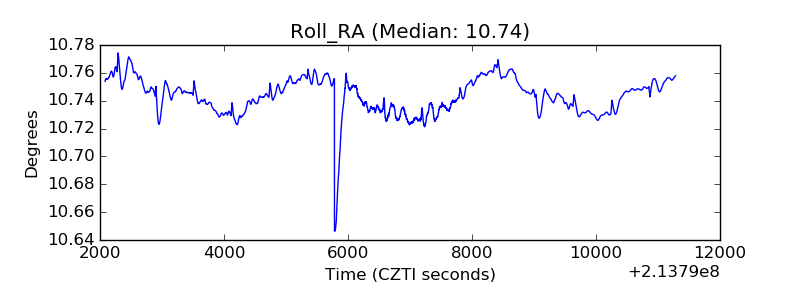

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
