| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_028T01_9000000724_05602cztM0_level2.evt | modeM0/AS1A02_028T01_9000000724_05602cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,414,400 | 83,090,880 |
| Size | 468.6 MB | 79.2 MB |
| Events in quadrant A | 3,158,217 | 529,414 |
| Events in quadrant B | 3,503,900 | 531,723 |
| Events in quadrant C | 3,116,135 | 519,661 |
| Events in quadrant D | 4,669,062 | 487,900 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13395 | 2 |
| B | 0 | 14419 | 1 |
| C | 0 | 13287 | 1 |
| D | 0 | 18199 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6421 | 137 | 2.133624% |
| B | 6421 | 144 | 2.242641% |
| C | 6421 | 117 | 1.822146% |
| D | 6421 | 136 | 2.118050% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7566 | 6422 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7566 | 6422 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7566 | 6422 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7566 | 6422 | 10 | 10 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 18939 | 110.19 | 816 | 797 | 164.6 |
| A | 0 | 226 | 8074 | 44.2 | 816 | 797 | 164.6 |
| A | 12 | 194 | 8035 | 43.96 | 816 | 797 | 164.6 |
| B | 15 | 204 | 305572 | 1957.64 | 815 | 797 | 155.7 |
| B | 0 | 219 | 16010 | 97.72 | 815 | 797 | 155.7 |
| B | 12 | 111 | 14364 | 87.14 | 815 | 797 | 155.7 |
| C | 1 | 16 | 26814 | 142.96 | 791 | 794 | 182.0 |
| C | 13 | 61 | 6335 | 30.44 | 791 | 794 | 182.0 |
| C | 8 | 79 | 2727 | 10.62 | 791 | 794 | 182.0 |
| D | 2 | 63 | 1448887 | 7576.36 | 791 | 766 | 191.1 |
| D | 2 | 136 | 142648 | 742.31 | 791 | 766 | 191.1 |
| D | 10 | 15 | 38250 | 196.11 | 791 | 766 | 191.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

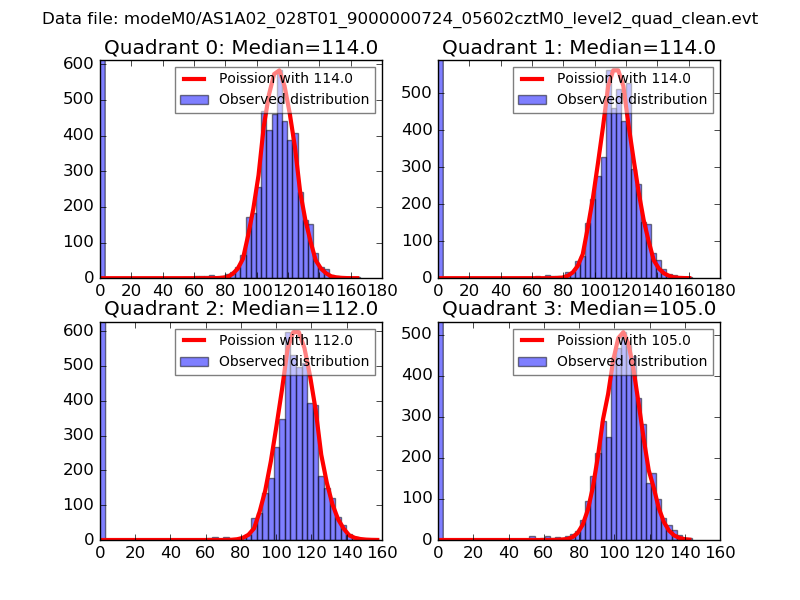

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

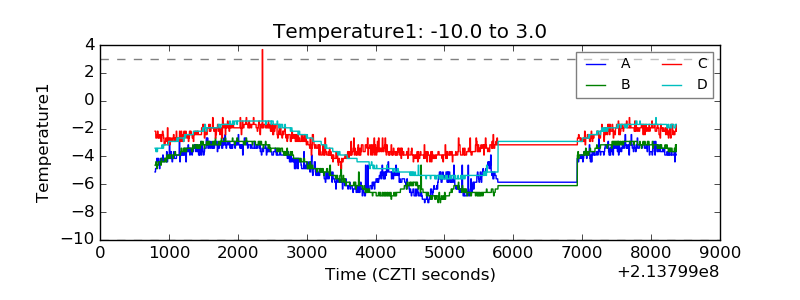

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

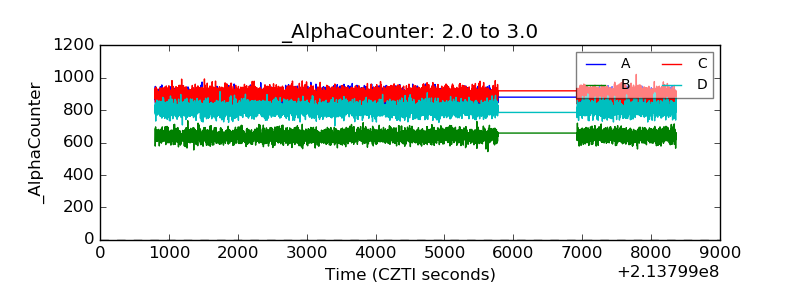

| Alpha Counter |  |
| _CPM_Rate |  |

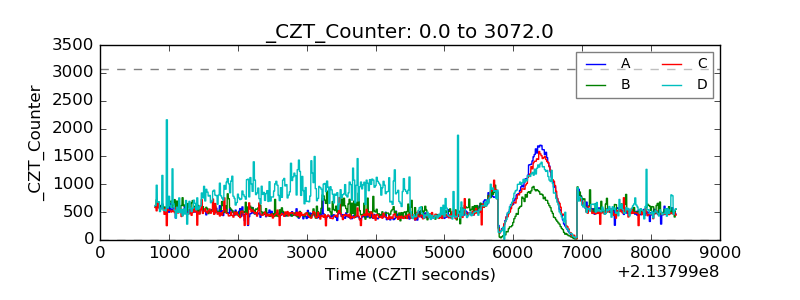

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

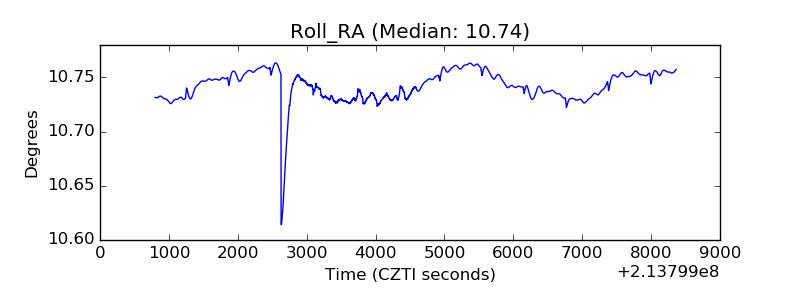

| _Roll_RA |  |
| Veto Counter |  |
