| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_032T02_9000000730_05640cztM0_level2.evt | modeM0/AS1G06_032T02_9000000730_05640cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,543,072,320 | 236,347,200 |
| Size | 1.4 GB | 225.4 MB |
| Events in quadrant A | 10,839,740 | 1,406,113 |
| Events in quadrant B | 11,587,248 | 1,406,291 |
| Events in quadrant C | 10,968,316 | 1,419,966 |
| Events in quadrant D | 11,781,323 | 1,342,159 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 466 | 0 |
| B | 0 | 466 | 0 |
| C | 0 | 466 | 0 |
| D | 0 | 466 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48246 | 4 |
| B | 0 | 49442 | 3 |
| C | 0 | 48649 | 3 |
| D | 0 | 51471 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23012 | 415 | 1.803407% |
| B | 23012 | 241 | 1.047280% |
| C | 23012 | 180 | 0.782201% |
| D | 23012 | 496 | 2.155397% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26252 | 23015 | 132 | 132 | 0.50% | 0.57% |  |
| B | 26252 | 23016 | 29 | 29 | 0.11% | 0.13% |  |
| C | 26252 | 23016 | 6 | 6 | 0.02% | 0.03% |  |
| D | 26252 | 23015 | 329 | 329 | 1.25% | 1.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 510511 | 928.19 | 2665 | 2605 | 547.2 |
| A | 0 | 50 | 41788 | 71.61 | 2665 | 2605 | 547.2 |
| A | 12 | 194 | 26154 | 43.04 | 2665 | 2605 | 547.2 |
| B | 15 | 204 | 522909 | 1014.06 | 2699 | 2637 | 513.1 |
| B | 0 | 214 | 266038 | 513.39 | 2699 | 2637 | 513.1 |
| B | 11 | 51 | 188304 | 361.88 | 2699 | 2637 | 513.1 |
| C | 1 | 16 | 816833 | 1363.48 | 2588 | 2605 | 597.2 |
| C | 13 | 61 | 21122 | 31.01 | 2588 | 2605 | 597.2 |
| C | 8 | 222 | 14543 | 19.99 | 2588 | 2605 | 597.2 |
| D | 12 | 79 | 1015558 | 1605.53 | 2577 | 2499 | 631.0 |
| D | 2 | 152 | 189694 | 296.67 | 2577 | 2499 | 631.0 |
| D | 8 | 195 | 134197 | 208.72 | 2577 | 2499 | 631.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

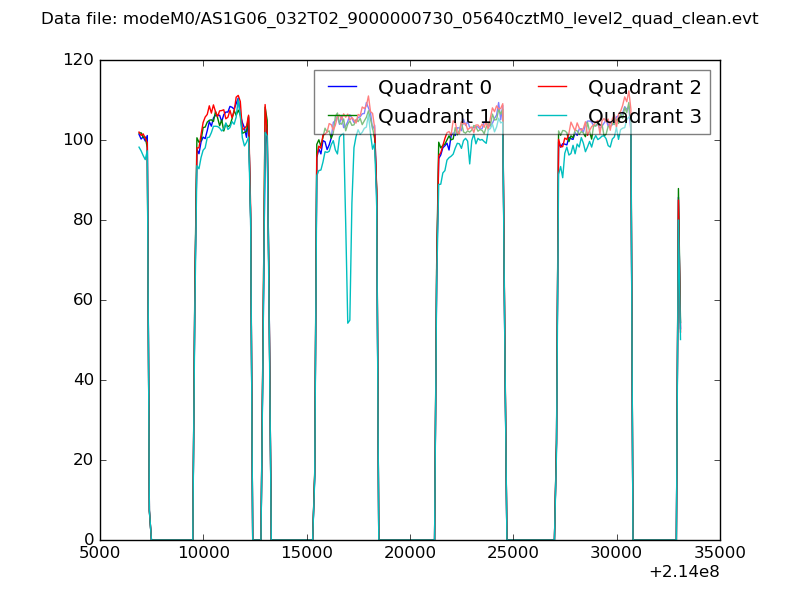

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

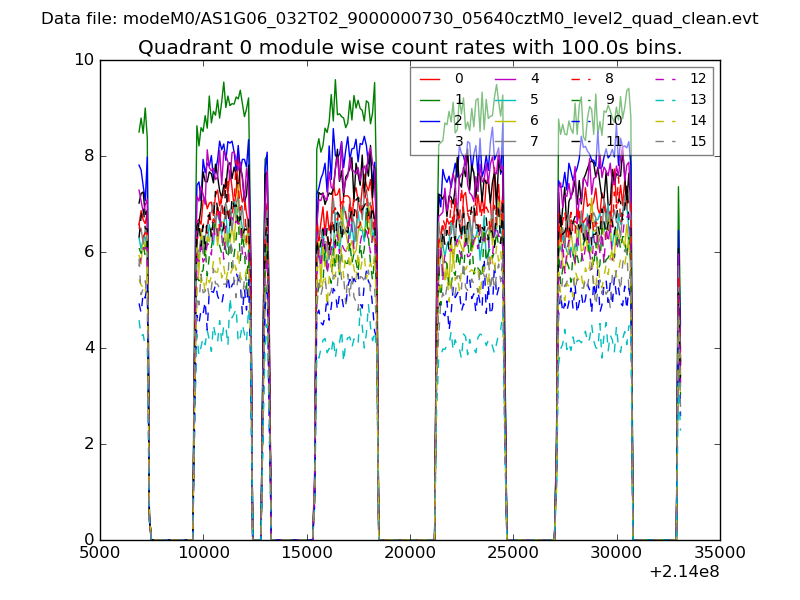

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

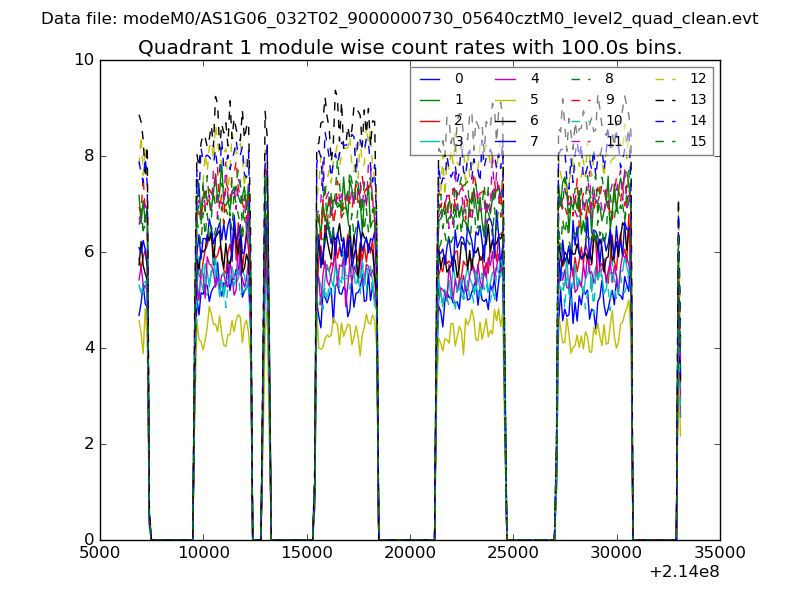

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

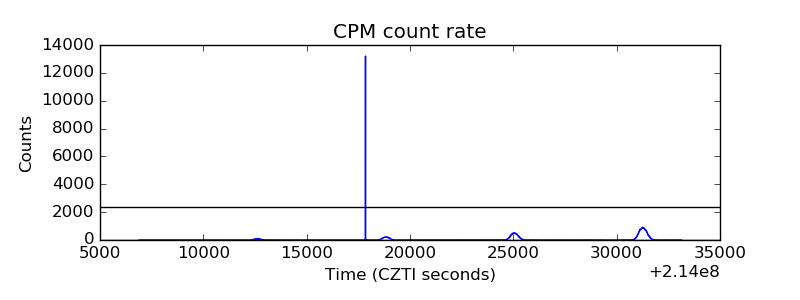

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

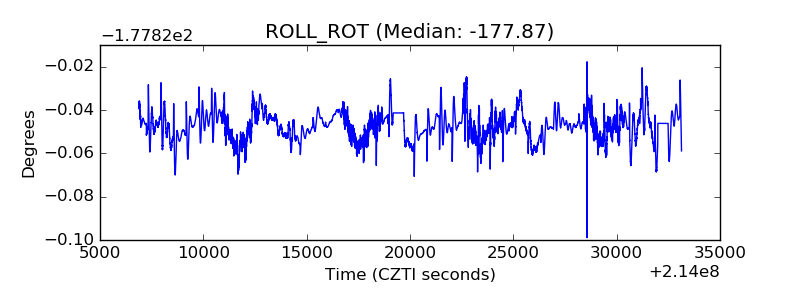

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
