| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_032T02_9000000730_05648cztM0_level2.evt | modeM0/AS1G06_032T02_9000000730_05648cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,128,640 | 88,951,680 |
| Size | 529.4 MB | 84.8 MB |
| Events in quadrant A | 3,485,927 | 556,824 |
| Events in quadrant B | 5,145,162 | 540,184 |
| Events in quadrant C | 3,753,736 | 554,086 |
| Events in quadrant D | 3,926,114 | 528,140 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15490 | 3 |
| B | 0 | 20227 | 2 |
| C | 0 | 16108 | 2 |
| D | 0 | 16798 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7390 | 66 | 0.893099% |
| B | 7390 | 410 | 5.548038% |
| C | 7390 | 48 | 0.649526% |
| D | 7390 | 104 | 1.407307% |

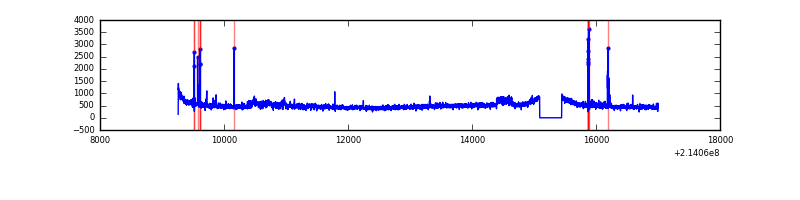

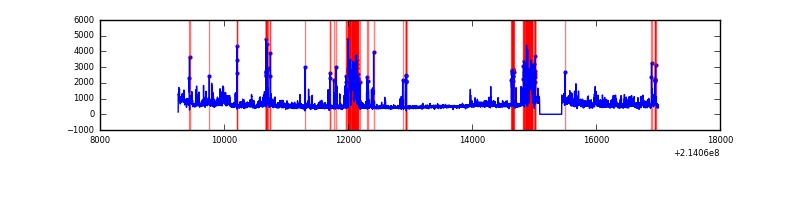

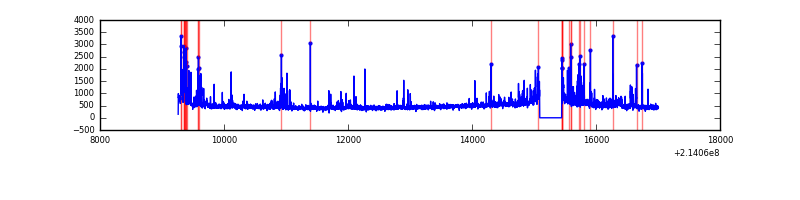

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7745 | 7391 | 11 | 11 | 0.14% | 0.15% |  |
| B | 7745 | 7391 | 227 | 227 | 2.93% | 3.07% |  |
| C | 7745 | 7391 | 14 | 14 | 0.18% | 0.19% |  |
| D | 7745 | 7391 | 31 | 31 | 0.40% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 58817 | 314.92 | 882 | 862 | 184.0 |
| A | 8 | 15 | 14970 | 76.66 | 882 | 862 | 184.0 |
| A | 13 | 6 | 13889 | 70.79 | 882 | 862 | 184.0 |
| B | 10 | 16 | 782175 | 4661.59 | 869 | 848 | 167.6 |
| B | 15 | 204 | 524123 | 3121.99 | 869 | 848 | 167.6 |
| B | 11 | 51 | 177640 | 1054.79 | 869 | 848 | 167.6 |
| C | 1 | 16 | 351517 | 1760.45 | 851 | 856 | 199.2 |
| C | 5 | 250 | 59064 | 292.23 | 851 | 856 | 199.2 |
| C | 5 | 233 | 8149 | 36.61 | 851 | 856 | 199.2 |
| D | 12 | 233 | 199164 | 928.55 | 850 | 821 | 213.6 |
| D | 8 | 195 | 160061 | 745.49 | 850 | 821 | 213.6 |
| D | 2 | 152 | 103194 | 479.27 | 850 | 821 | 213.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

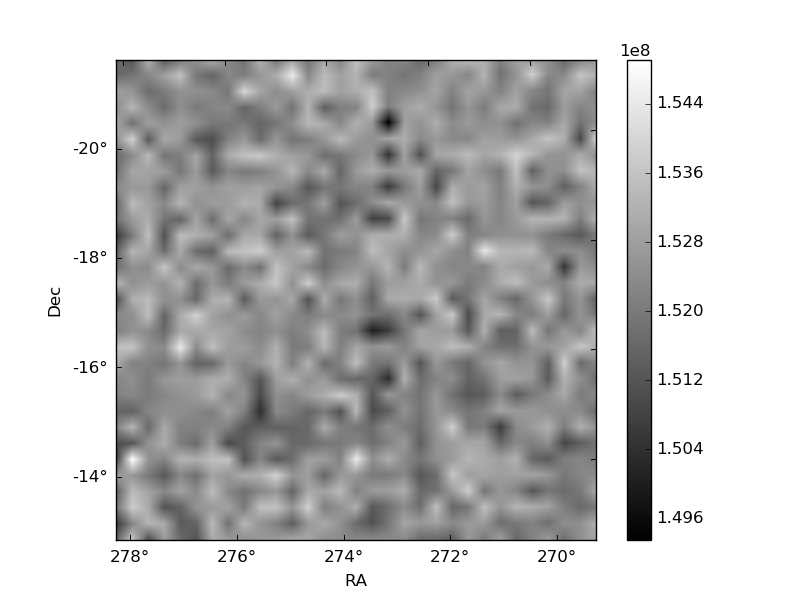

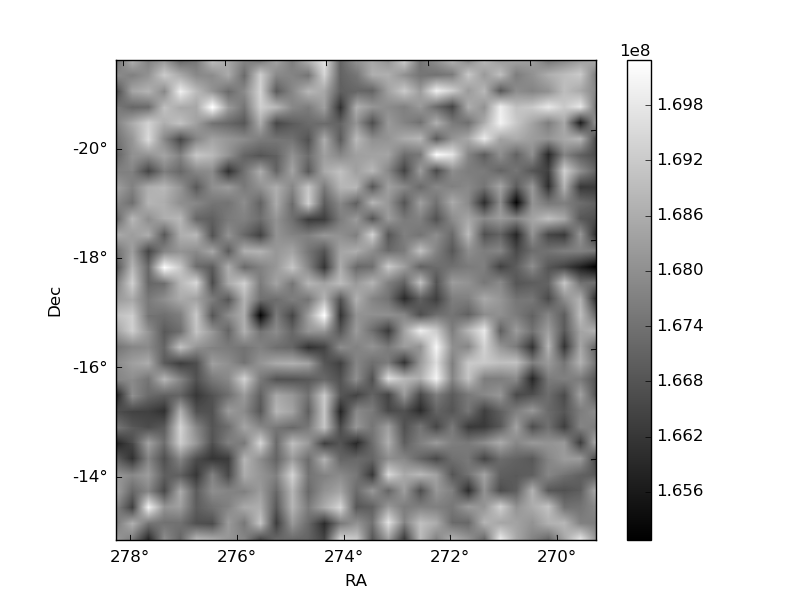

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

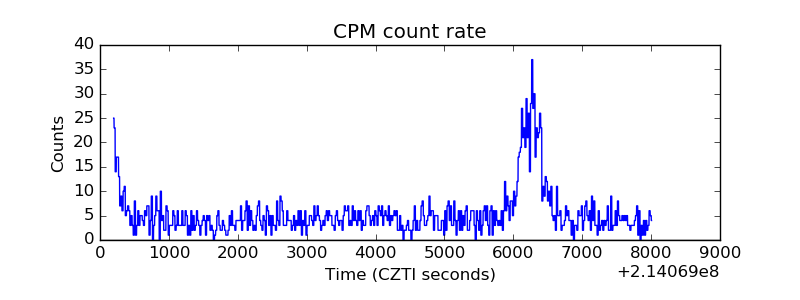

| _CPM_Rate |  |

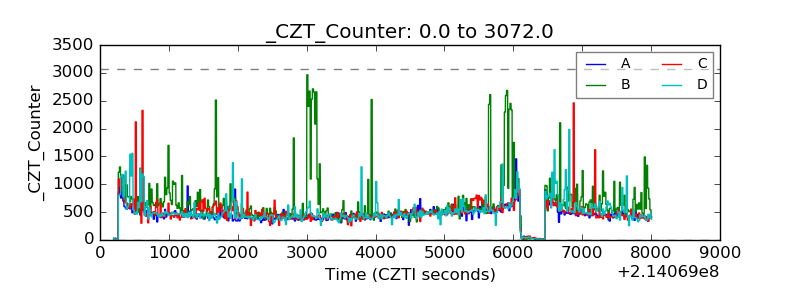

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

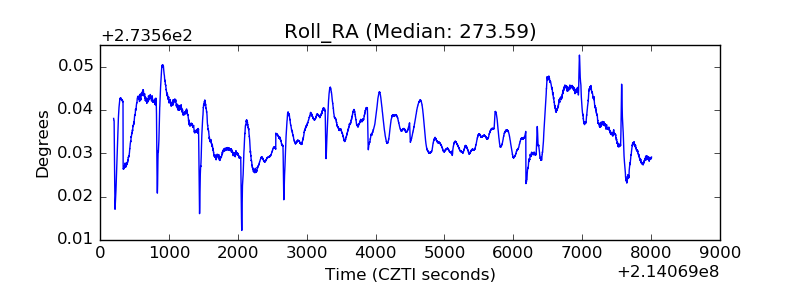

| _Roll_RA |  |
| Veto Counter |  |
