| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_132T01_9000000728_05620cztM0_level2.evt | modeM0/AS1G06_132T01_9000000728_05620cztM0_level2_quad_clean.evt |
| Size (bytes) | 218,485,440 | 36,593,280 |
| Size | 208.4 MB | 34.9 MB |
| Events in quadrant A | 1,541,957 | 222,421 |
| Events in quadrant B | 1,701,332 | 205,099 |
| Events in quadrant C | 1,533,731 | 220,204 |
| Events in quadrant D | 1,600,026 | 212,975 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15591 | 8530 |
| B | 0 | 17384 | 10025 |
| C | 0 | 15577 | 8472 |
| D | 0 | 16246 | 8987 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 3 |
| B | 0 | 8 | 2 |
| C | 0 | 8 | 4 |
| D | 0 | 9 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 80 |
| B | 0 | 153 | 79 |
| C | 0 | 154 | 80 |
| D | 0 | 154 | 86 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3483 | 12 | 0.344531% |
| B | 3345 | 24 | 0.717489% |
| C | 3509 | 2 | 0.056996% |
| D | 3479 | 3 | 0.086232% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7888 | 4885 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7827 | 4697 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7824 | 4849 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7848 | 4801 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 4745 | 52.01 | 398 | 389 | 83.8 |
| A | 12 | 194 | 3950 | 42.51 | 398 | 389 | 83.8 |
| A | 0 | 226 | 3842 | 41.23 | 398 | 389 | 83.8 |
| B | 15 | 204 | 164172 | 2179.9 | 383 | 372 | 75.1 |
| B | 11 | 51 | 31375 | 412.6 | 383 | 372 | 75.1 |
| B | 12 | 111 | 6869 | 86.46 | 383 | 372 | 75.1 |
| C | 1 | 16 | 11860 | 126.15 | 388 | 389 | 90.9 |
| C | 10 | 22 | 3925 | 38.89 | 388 | 389 | 90.9 |
| C | 13 | 61 | 3176 | 30.65 | 388 | 389 | 90.9 |
| D | 2 | 136 | 50634 | 522.99 | 386 | 374 | 96.1 |
| D | 10 | 15 | 35319 | 363.63 | 386 | 374 | 96.1 |
| D | 2 | 152 | 25717 | 263.71 | 386 | 374 | 96.1 |

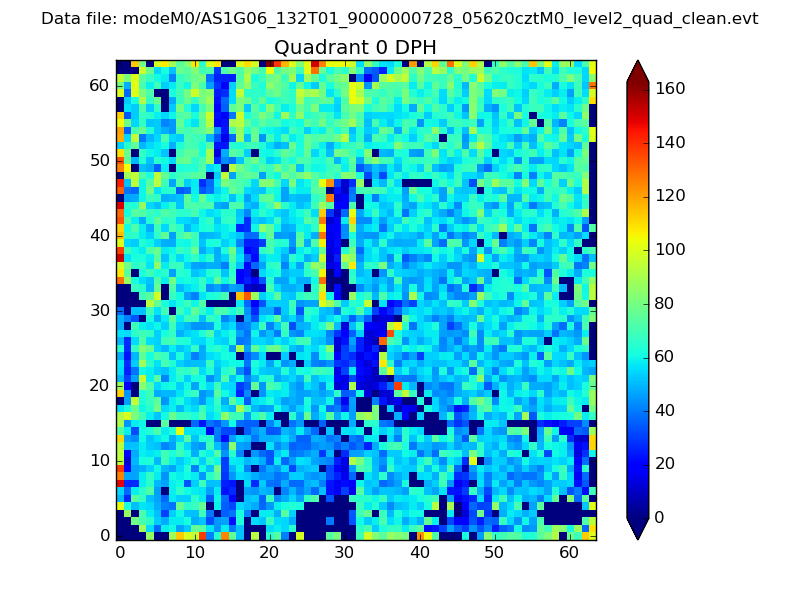

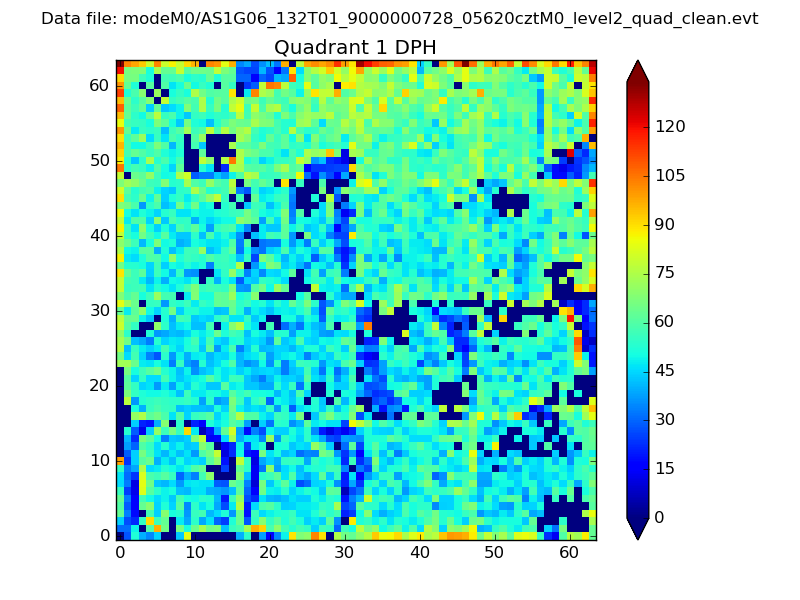

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

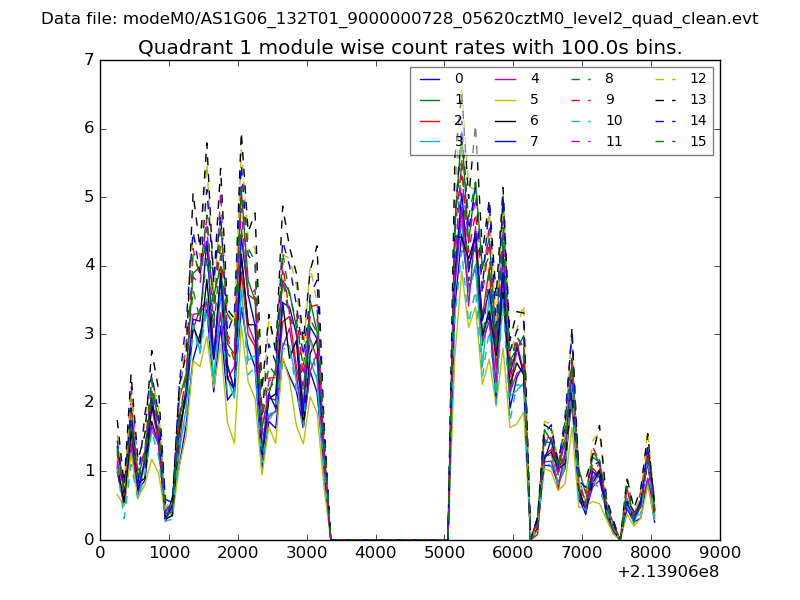

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

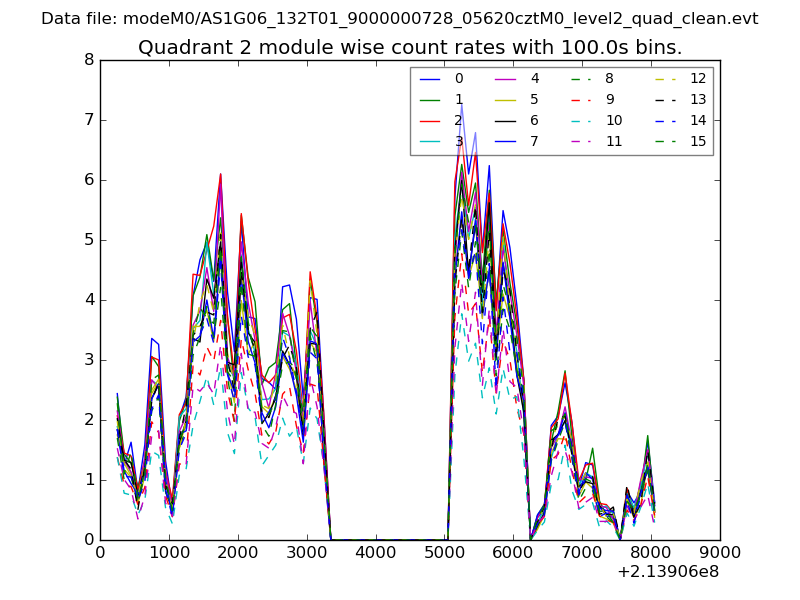

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

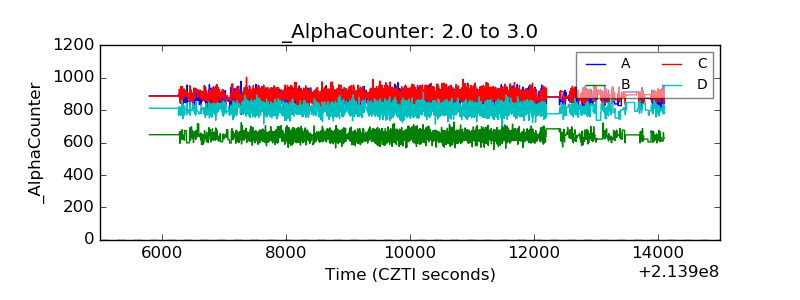

| Alpha Counter |  |
| _CPM_Rate |  |

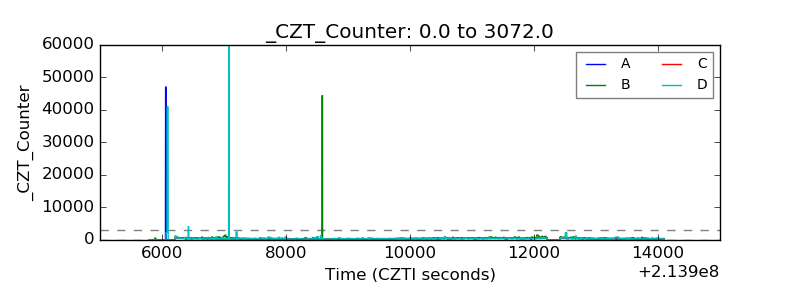

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
