| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_132T01_9000000728_05625cztM0_level2.evt | modeM0/AS1G06_132T01_9000000728_05625cztM0_level2_quad_clean.evt |
| Size (bytes) | 352,765,440 | 66,936,960 |
| Size | 336.4 MB | 63.8 MB |
| Events in quadrant A | 2,443,370 | 417,786 |
| Events in quadrant B | 2,823,015 | 410,513 |
| Events in quadrant C | 2,402,467 | 408,778 |
| Events in quadrant D | 2,630,838 | 396,956 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12642 | 1109 |
| B | 0 | 13469 | 1342 |
| C | 0 | 12605 | 1187 |
| D | 0 | 13349 | 1376 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 2 |
| B | 0 | 124 | 12 |
| C | 0 | 124 | 14 |
| D | 0 | 124 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5657 | 14 | 0.247481% |
| B | 5580 | 46 | 0.824373% |
| C | 5607 | 9 | 0.160514% |
| D | 5591 | 22 | 0.393490% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6730 | 6106 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6730 | 6093 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6730 | 6100 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6730 | 6083 | 13 | 13 | 0.19% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6277 | 43.86 | 630 | 615 | 129.1 |
| A | 12 | 194 | 6152 | 42.89 | 630 | 615 | 129.1 |
| A | 14 | 31 | 4839 | 32.72 | 630 | 615 | 129.1 |
| B | 15 | 204 | 215468 | 1778.91 | 631 | 617 | 120.8 |
| B | 0 | 219 | 77521 | 636.75 | 631 | 617 | 120.8 |
| B | 11 | 51 | 42793 | 349.21 | 631 | 617 | 120.8 |
| C | 1 | 16 | 25139 | 174.91 | 604 | 605 | 140.3 |
| C | 8 | 128 | 10081 | 67.56 | 604 | 605 | 140.3 |
| C | 8 | 112 | 5014 | 31.43 | 604 | 605 | 140.3 |
| D | 2 | 136 | 108367 | 732.01 | 599 | 580 | 147.2 |
| D | 10 | 15 | 104510 | 705.82 | 599 | 580 | 147.2 |
| D | 12 | 233 | 63396 | 426.6 | 599 | 580 | 147.2 |

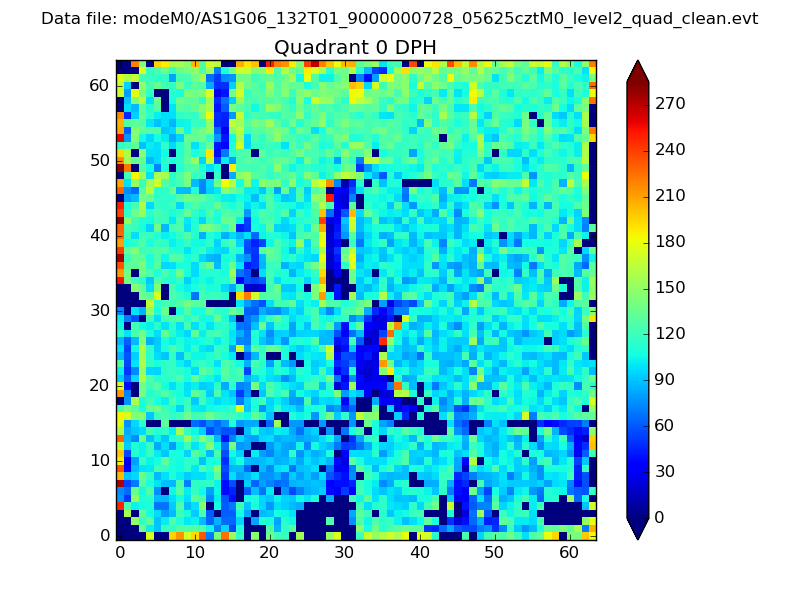

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

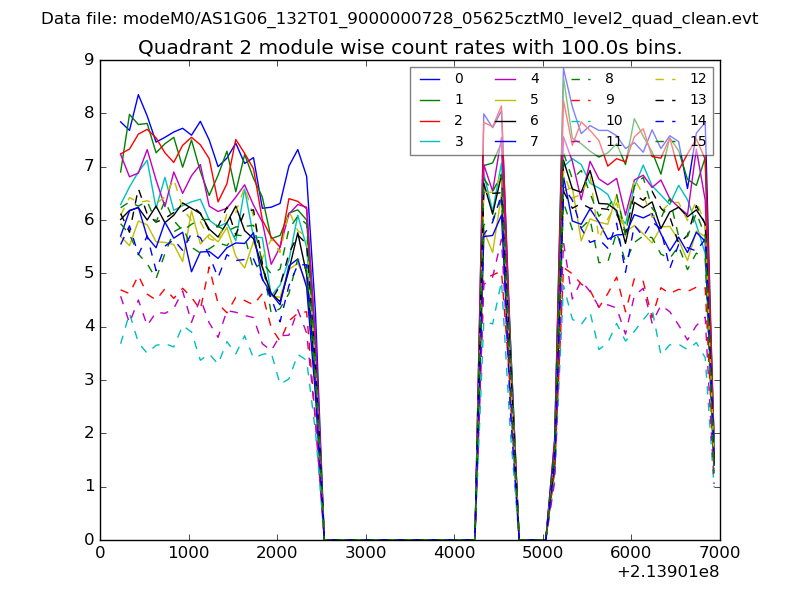

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

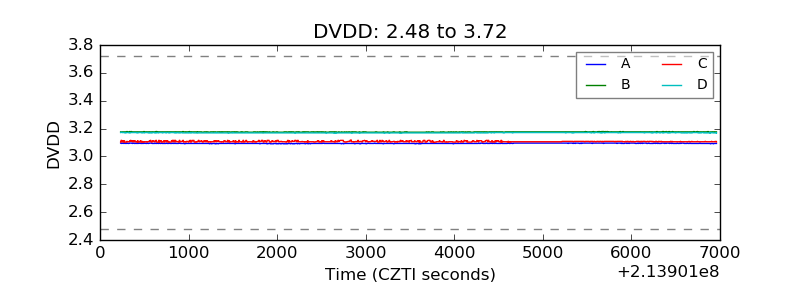

| D_VDD |  |

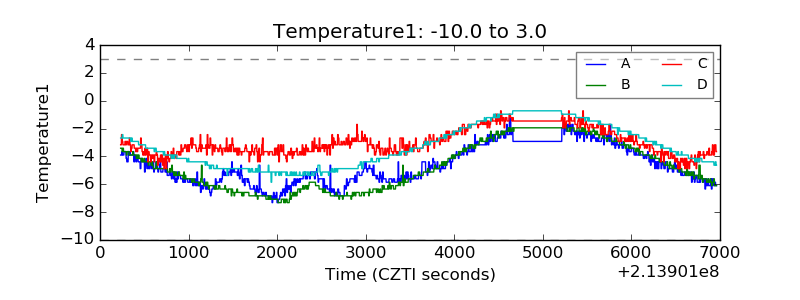

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

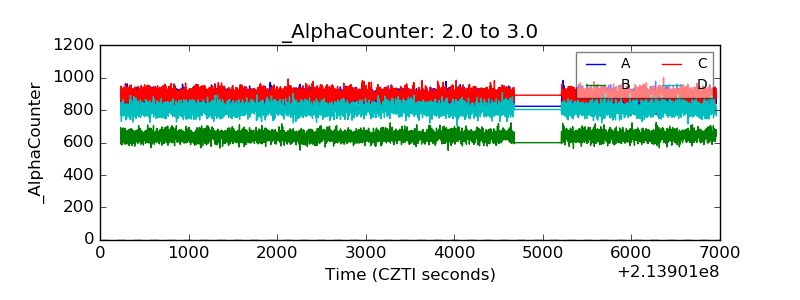

| Alpha Counter |  |

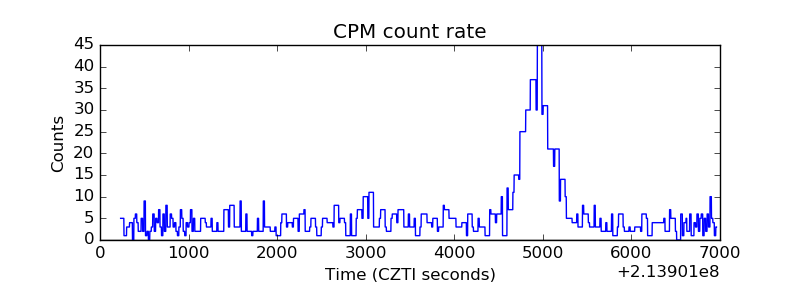

| _CPM_Rate |  |

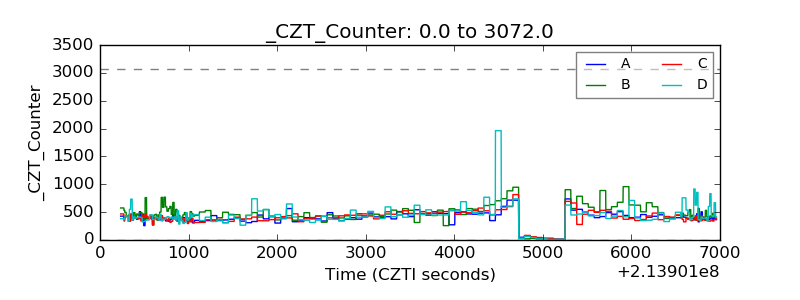

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

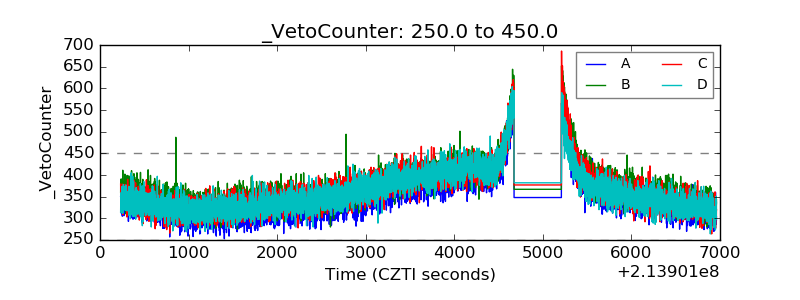

| Veto Counter |  |
