| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_115T01_9000000734_05687cztM0_level2.evt | modeM0/AS1G06_115T01_9000000734_05687cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,908,480 | 67,285,440 |
| Size | 428.1 MB | 64.2 MB |
| Events in quadrant A | 3,131,054 | 397,363 |
| Events in quadrant B | 3,380,768 | 400,931 |
| Events in quadrant C | 3,276,968 | 406,379 |
| Events in quadrant D | 3,376,698 | 391,093 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13270 | 3 |
| B | 0 | 13879 | 2 |
| C | 0 | 13960 | 2 |
| D | 0 | 14119 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6326 | 91 | 1.438508% |
| B | 6326 | 111 | 1.754663% |
| C | 6326 | 76 | 1.201391% |
| D | 6326 | 120 | 1.896933% |

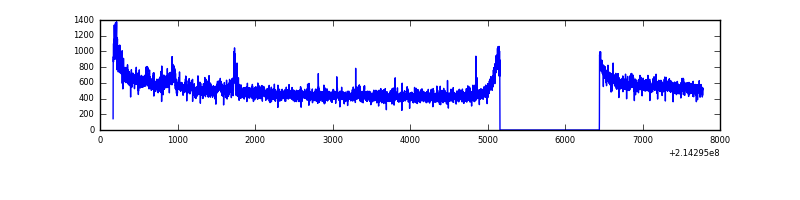

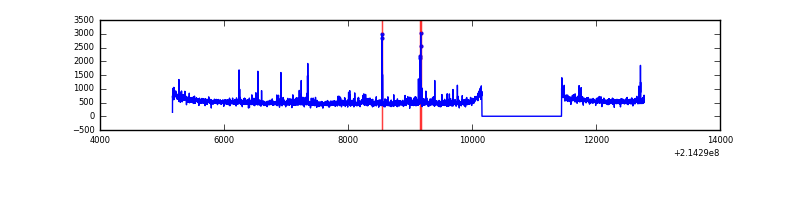

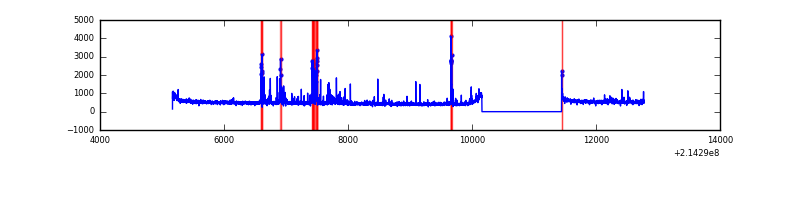

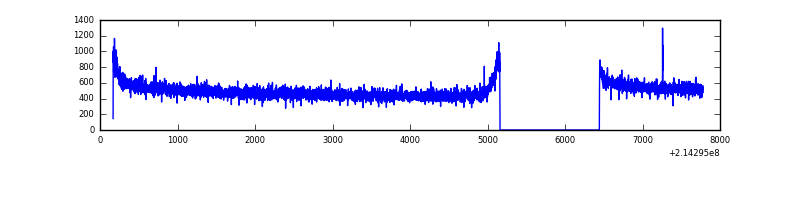

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7611 | 6327 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7611 | 6327 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7611 | 6327 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7611 | 6327 | 39 | 39 | 0.51% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 8100 | 45.42 | 810 | 793 | 160.9 |
| A | 0 | 226 | 7934 | 44.38 | 810 | 793 | 160.9 |
| A | 13 | 251 | 5498 | 29.24 | 810 | 793 | 160.9 |
| B | 15 | 204 | 78909 | 514.69 | 815 | 796 | 151.8 |
| B | 11 | 51 | 75784 | 494.1 | 815 | 796 | 151.8 |
| B | 4 | 81 | 26081 | 166.6 | 815 | 796 | 151.8 |
| C | 1 | 16 | 186733 | 1041.18 | 792 | 795 | 178.6 |
| C | 13 | 61 | 6410 | 31.44 | 792 | 795 | 178.6 |
| C | 3 | 202 | 2038 | 6.96 | 792 | 795 | 178.6 |
| D | 2 | 152 | 210926 | 1093.75 | 792 | 769 | 192.1 |
| D | 2 | 136 | 86575 | 446.57 | 792 | 769 | 192.1 |
| D | 2 | 14 | 45702 | 233.85 | 792 | 769 | 192.1 |

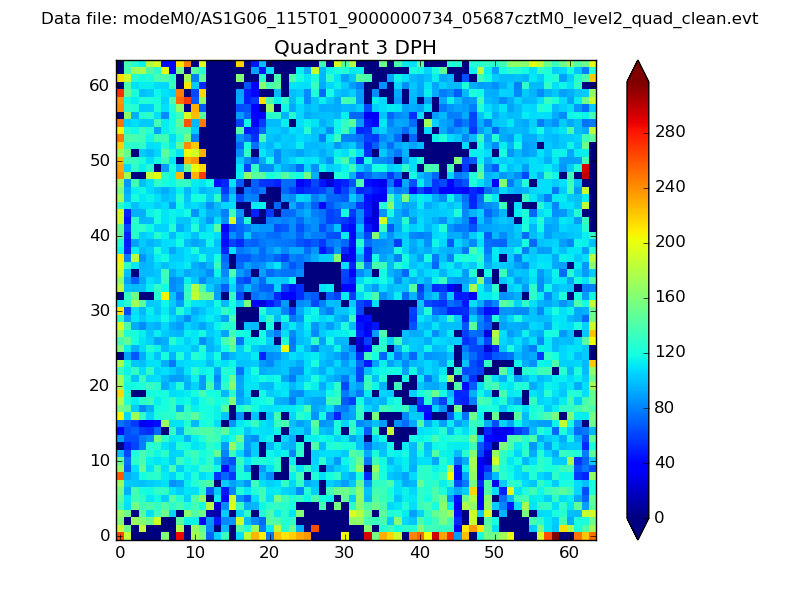

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

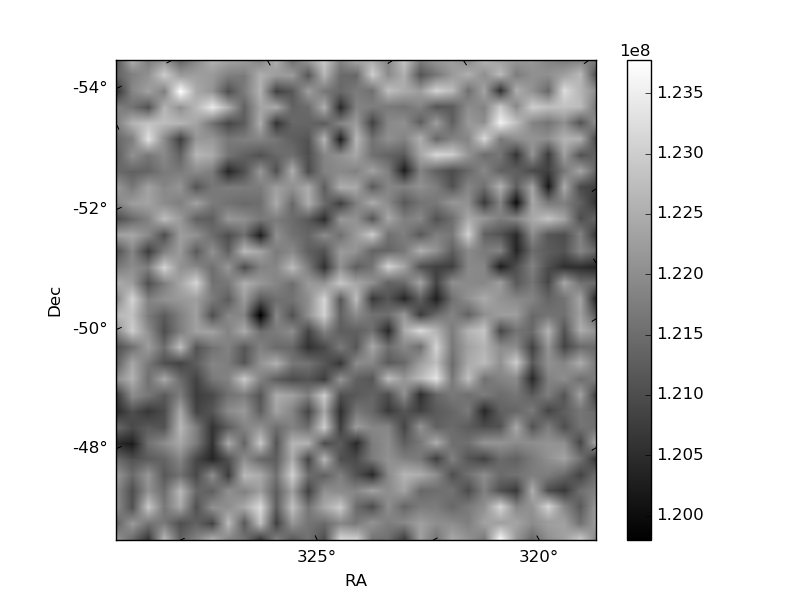

| Plot type | Count rate plots | Images |
|---|---|---|

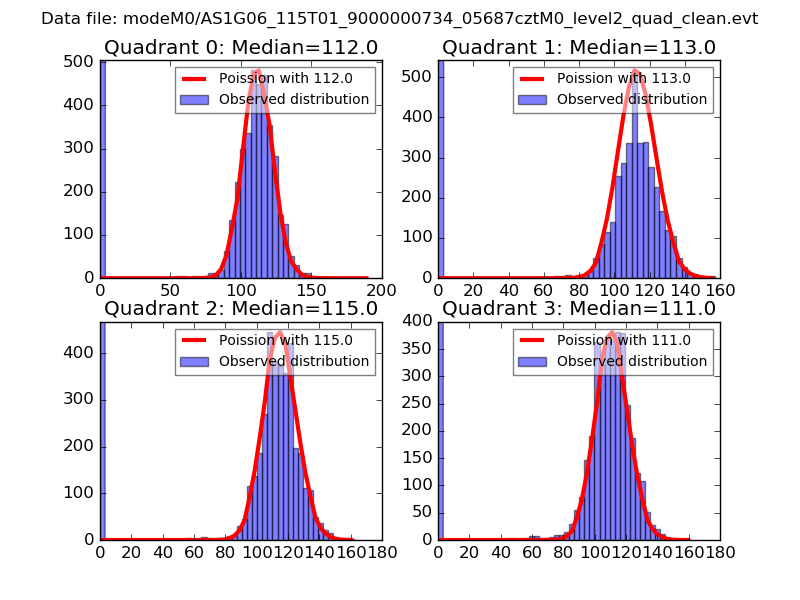

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

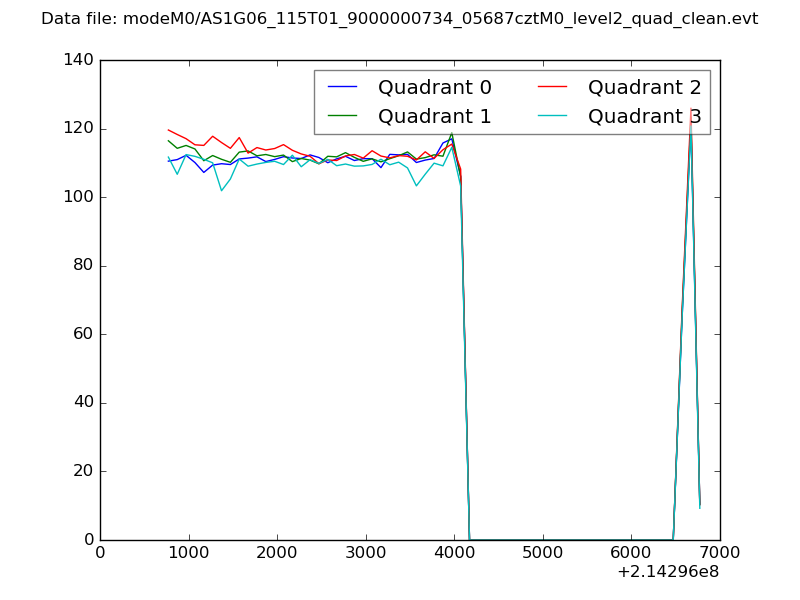

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

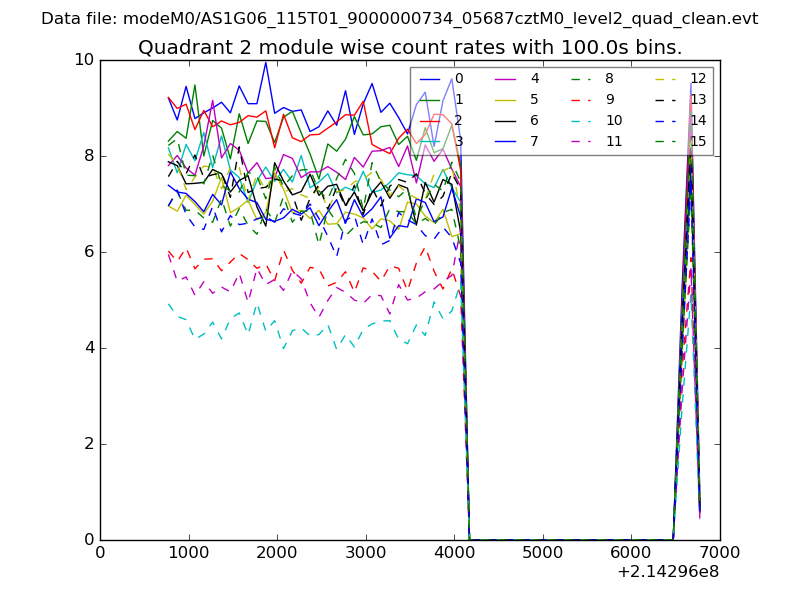

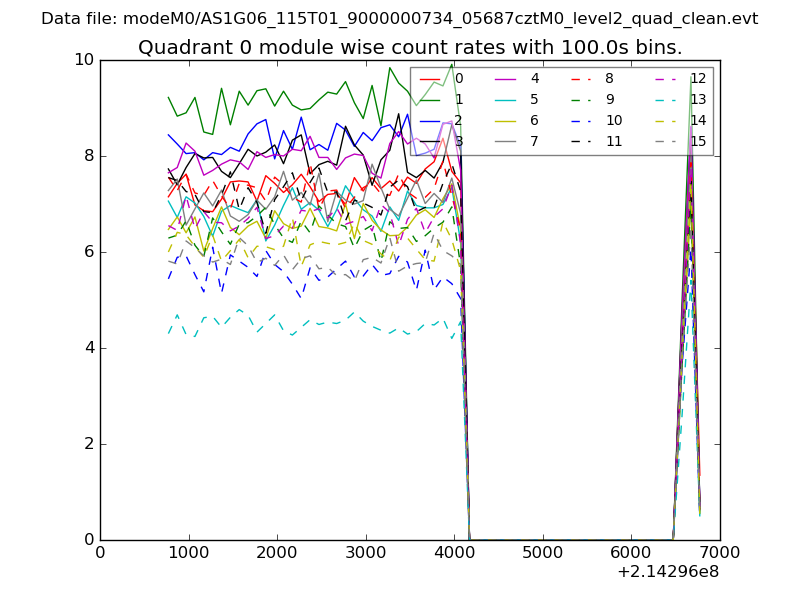

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

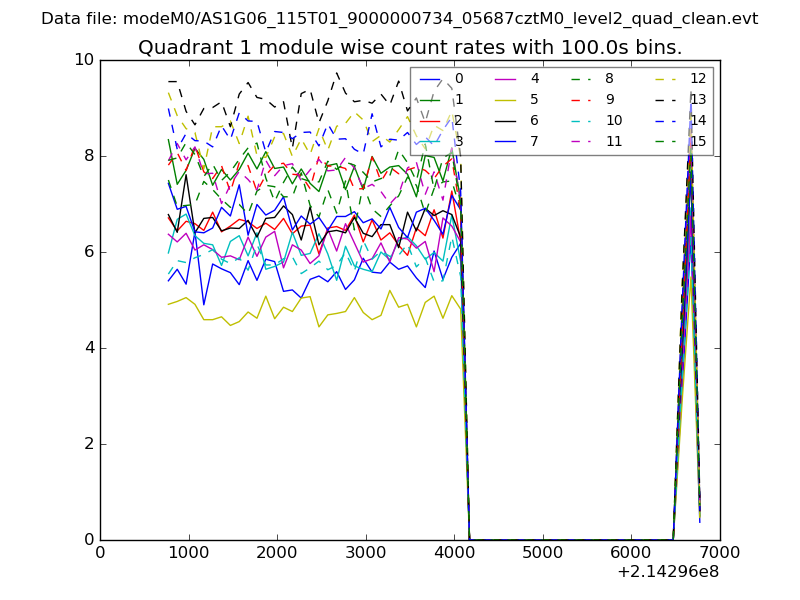

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

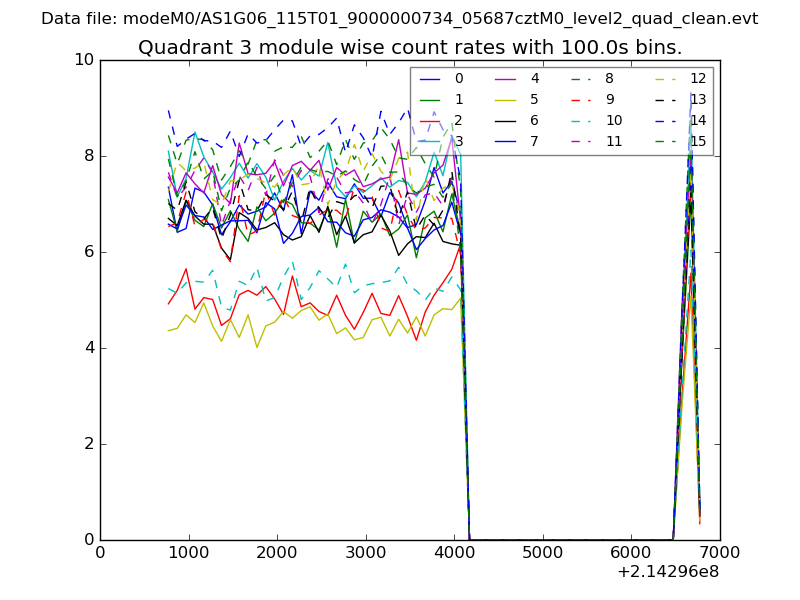

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

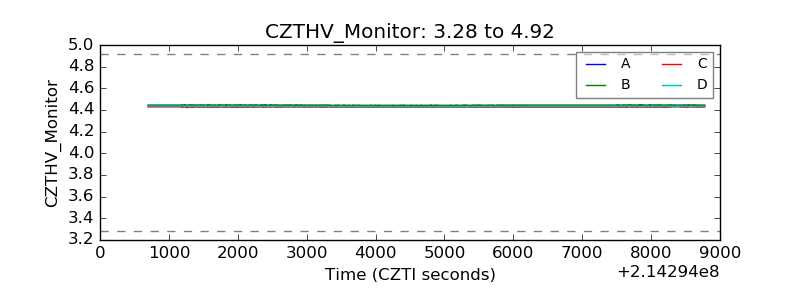

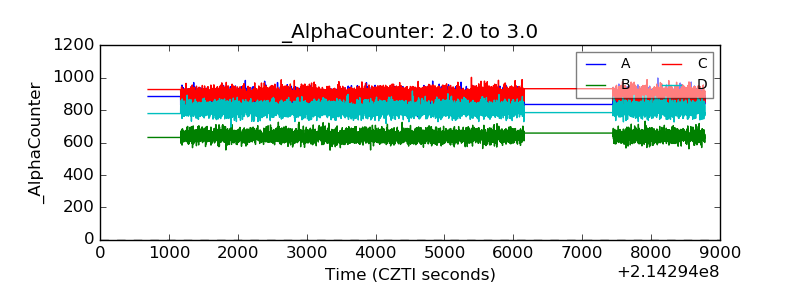

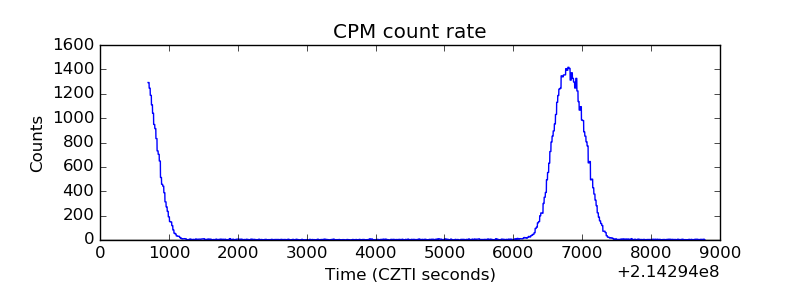

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

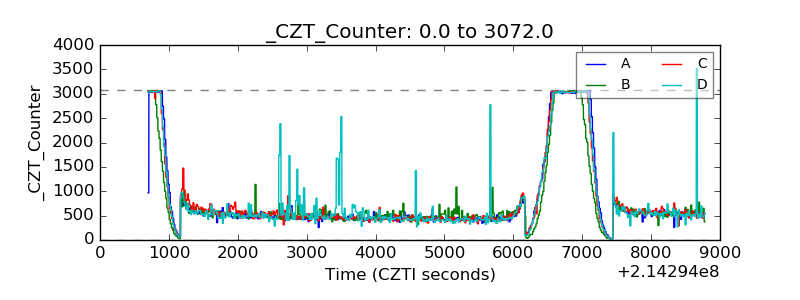

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

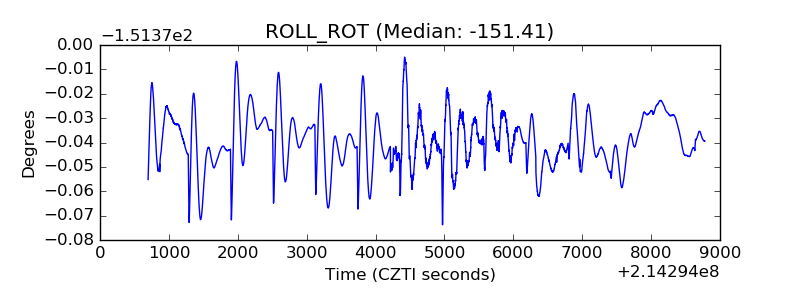

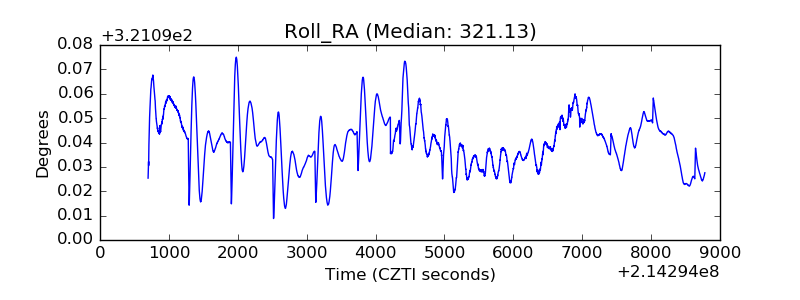

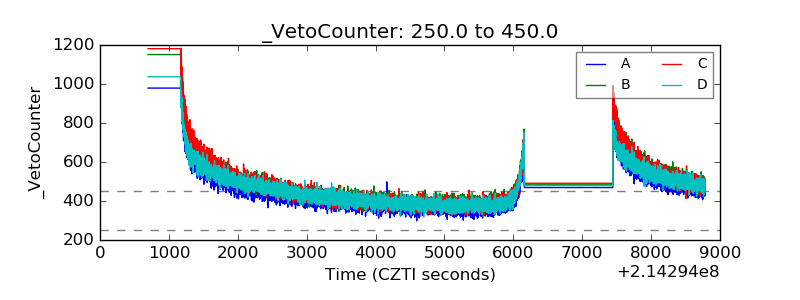

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
