| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_150T01_9000000738_05731cztM0_level2.evt | modeM0/AS1A02_150T01_9000000738_05731cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,160,320 | 55,342,080 |
| Size | 426.4 MB | 52.8 MB |
| Events in quadrant A | 3,104,136 | 309,744 |
| Events in quadrant B | 3,686,162 | 315,890 |
| Events in quadrant C | 3,064,974 | 316,879 |
| Events in quadrant D | 3,271,536 | 305,667 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12893 | 3 |
| B | 0 | 15019 | 2 |
| C | 0 | 12824 | 2 |
| D | 0 | 13412 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6118 | 39 | 0.637463% |
| B | 6118 | 61 | 0.997058% |
| C | 6118 | 48 | 0.784570% |
| D | 6118 | 60 | 0.980713% |

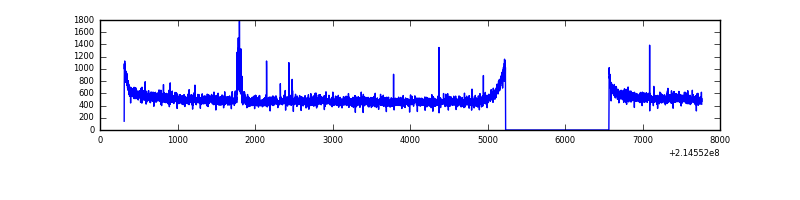

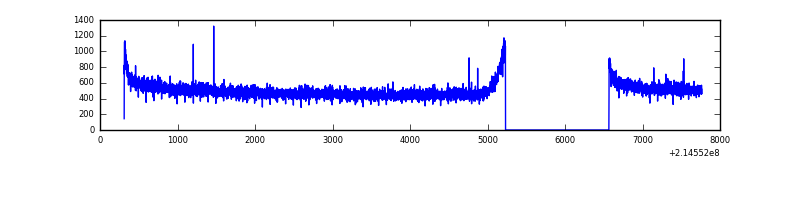

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7453 | 6119 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7453 | 6119 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7453 | 6119 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7453 | 6119 | 8 | 8 | 0.11% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 42751 | 262.3 | 794 | 779 | 160.0 |
| A | 12 | 194 | 7611 | 42.69 | 794 | 779 | 160.0 |
| A | 0 | 226 | 7513 | 42.08 | 794 | 779 | 160.0 |
| B | 5 | 172 | 444681 | 2913.88 | 809 | 792 | 152.3 |
| B | 15 | 204 | 64778 | 420.03 | 809 | 792 | 152.3 |
| B | 11 | 51 | 21670 | 137.05 | 809 | 792 | 152.3 |
| C | 13 | 61 | 6331 | 30.73 | 783 | 790 | 180.3 |
| C | 8 | 222 | 4712 | 21.75 | 783 | 790 | 180.3 |
| C | 1 | 16 | 3530 | 15.2 | 783 | 790 | 180.3 |
| D | 1 | 20 | 83594 | 438.26 | 775 | 754 | 189.0 |
| D | 12 | 110 | 67837 | 354.9 | 775 | 754 | 189.0 |
| D | 2 | 152 | 41431 | 215.2 | 775 | 754 | 189.0 |

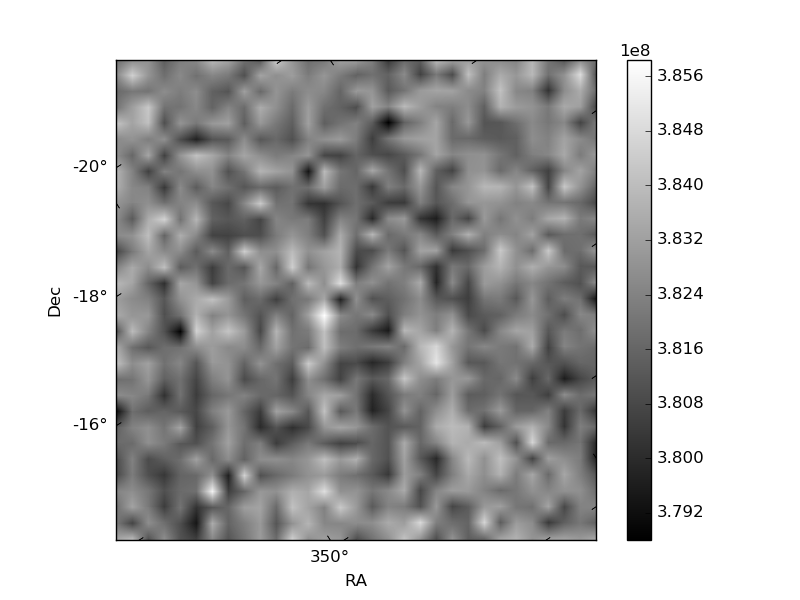

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

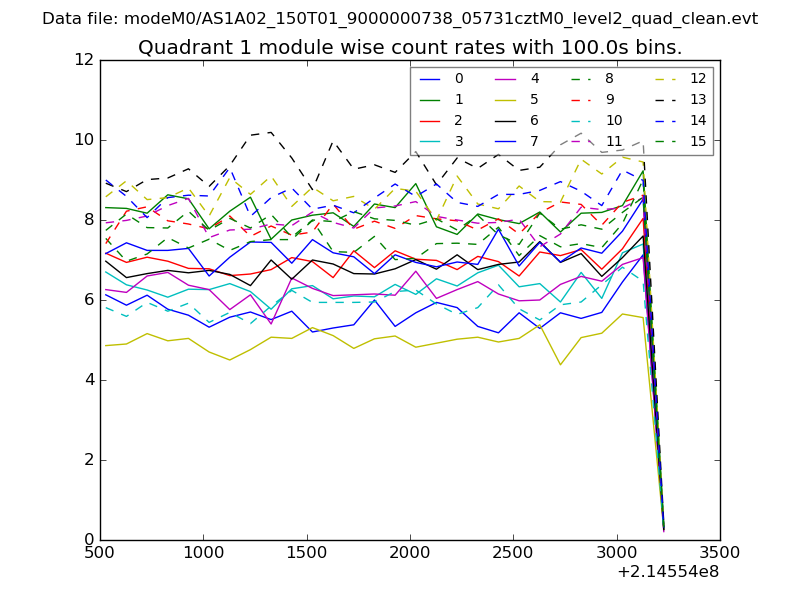

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

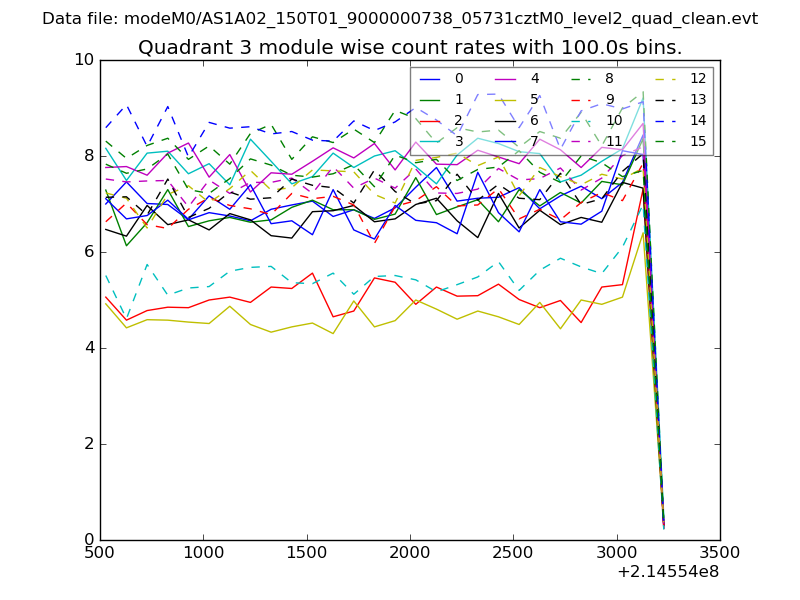

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

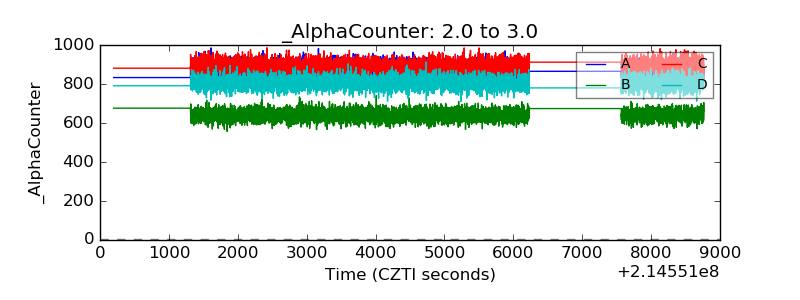

| Alpha Counter |  |

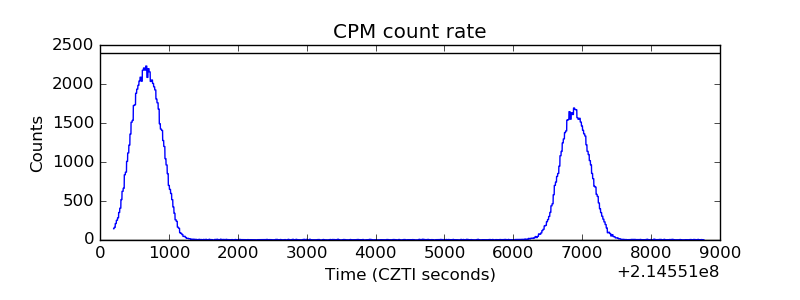

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

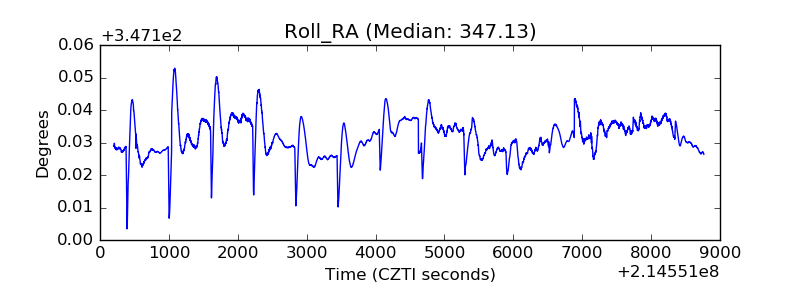

| _Roll_RA |  |
| Veto Counter |  |
