| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_149T01_9000000740_05736cztM0_level2.evt | modeM0/AS1A02_149T01_9000000740_05736cztM0_level2_quad_clean.evt |
| Size (bytes) | 612,829,440 | 94,305,600 |
| Size | 584.4 MB | 89.9 MB |
| Events in quadrant A | 3,883,524 | 572,786 |
| Events in quadrant B | 4,432,610 | 574,681 |
| Events in quadrant C | 3,858,449 | 586,942 |
| Events in quadrant D | 5,828,808 | 551,583 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17245 | 10 |
| B | 0 | 18432 | 2 |
| C | 0 | 17260 | 4 |
| D | 0 | 22699 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8191 | 229 | 2.795751% |
| B | 8194 | 275 | 3.356114% |
| C | 8193 | 126 | 1.537898% |
| D | 8192 | 495 | 6.042480% |

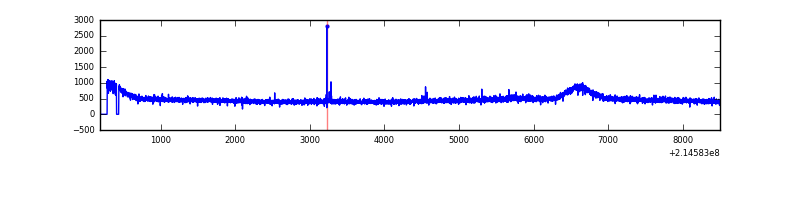

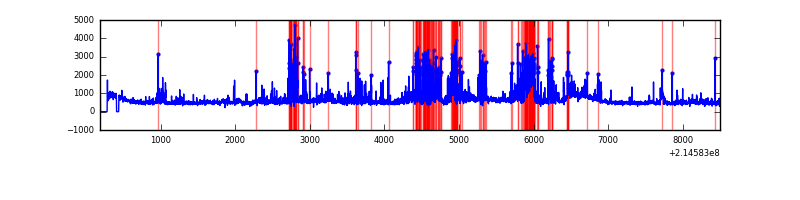

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8314 | 8196 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8314 | 8196 | 10 | 10 | 0.12% | 0.12% |  |
| C | 8314 | 8196 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8314 | 8196 | 243 | 243 | 2.92% | 2.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 10157 | 43.97 | 1008 | 981 | 208.7 |
| A | 0 | 226 | 9775 | 42.14 | 1008 | 981 | 208.7 |
| A | 13 | 254 | 4053 | 14.72 | 1008 | 981 | 208.7 |
| B | 15 | 204 | 225577 | 1138.81 | 1015 | 992 | 197.2 |
| B | 5 | 172 | 79167 | 396.4 | 1015 | 992 | 197.2 |
| B | 4 | 81 | 51250 | 254.84 | 1015 | 992 | 197.2 |
| C | 12 | 4 | 8085 | 30.67 | 984 | 992 | 231.2 |
| C | 13 | 61 | 7838 | 29.6 | 984 | 992 | 231.2 |
| C | 14 | 67 | 6322 | 23.05 | 984 | 992 | 231.2 |
| D | 4 | 95 | 1205876 | 5013.69 | 973 | 942 | 240.3 |
| D | 1 | 20 | 394709 | 1638.45 | 973 | 942 | 240.3 |
| D | 2 | 152 | 132418 | 547.07 | 973 | 942 | 240.3 |

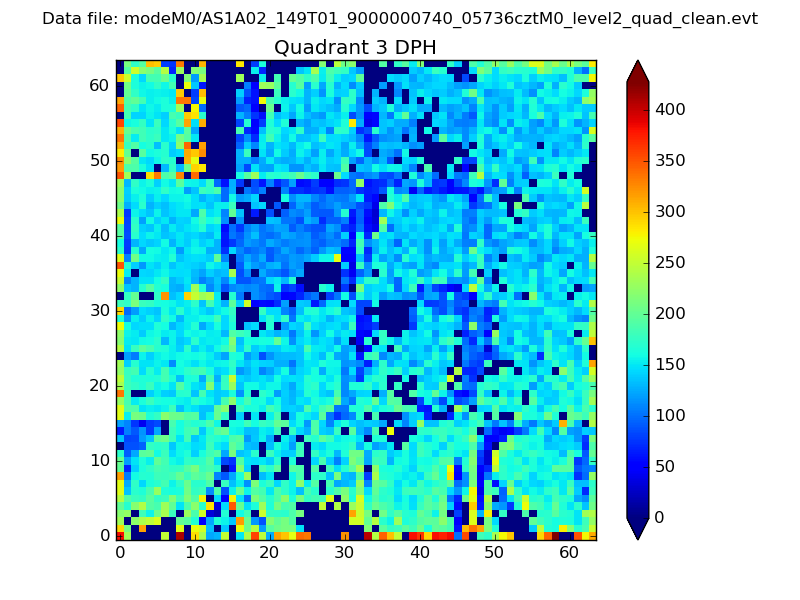

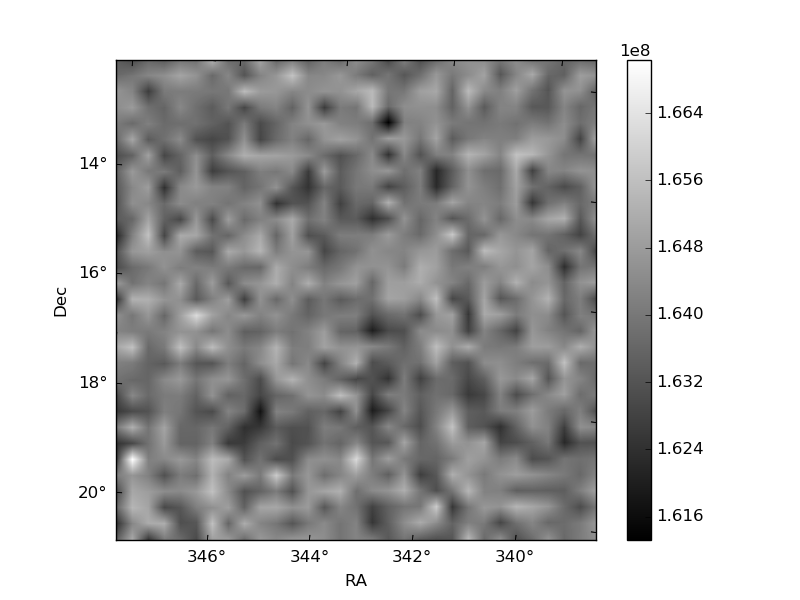

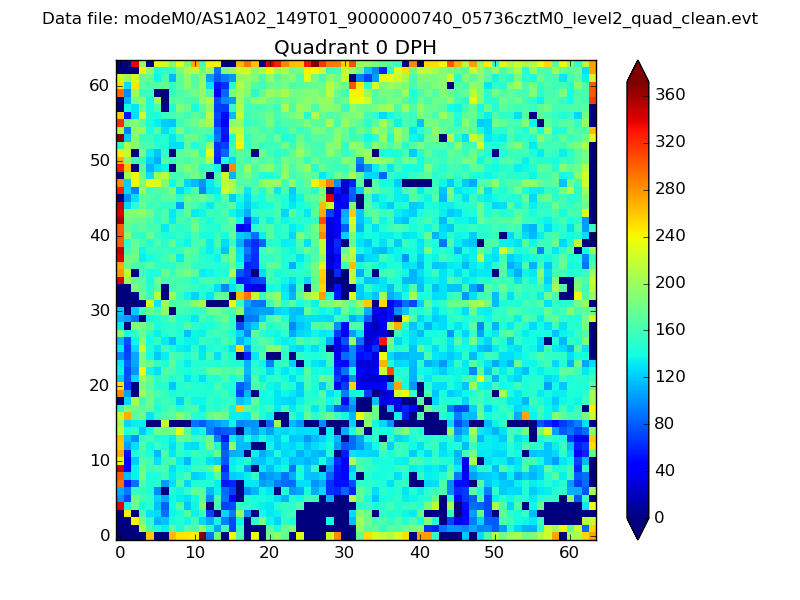

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

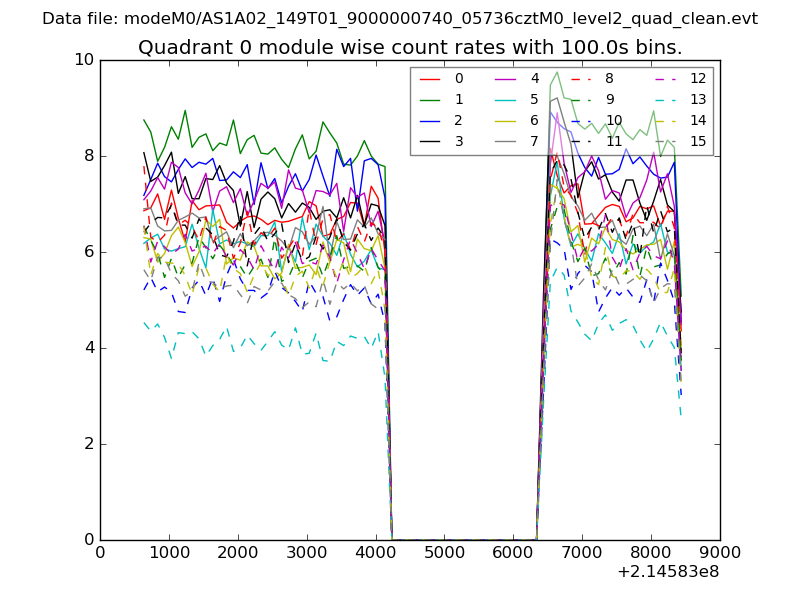

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

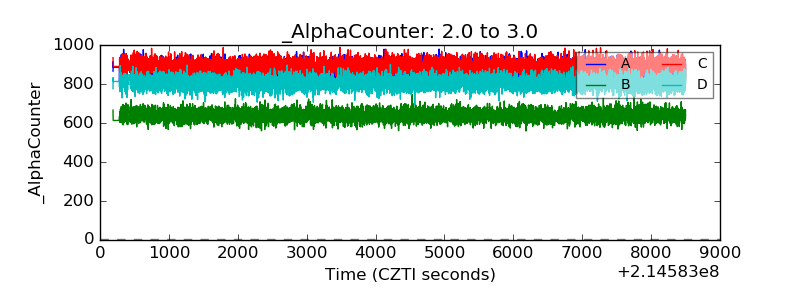

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

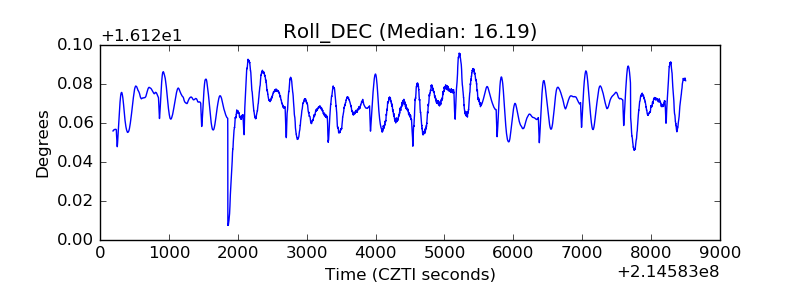

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
