| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_149T01_9000000740_05743cztM0_level2.evt | modeM0/AS1A02_149T01_9000000740_05743cztM0_level2_quad_clean.evt |
| Size (bytes) | 424,728,000 | 65,537,280 |
| Size | 405.1 MB | 62.5 MB |
| Events in quadrant A | 2,972,375 | 386,899 |
| Events in quadrant B | 3,318,589 | 390,813 |
| Events in quadrant C | 2,965,269 | 388,465 |
| Events in quadrant D | 3,165,824 | 365,999 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13238 | 9 |
| B | 0 | 14028 | 17 |
| C | 0 | 13265 | 4 |
| D | 0 | 14015 | 11 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6486 | 16 | 0.246685% |
| B | 6482 | 37 | 0.570811% |
| C | 6488 | 14 | 0.215783% |
| D | 6485 | 80 | 1.233616% |

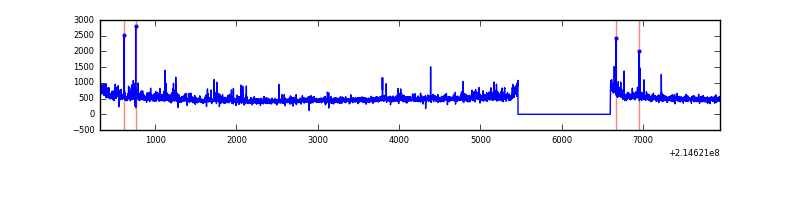

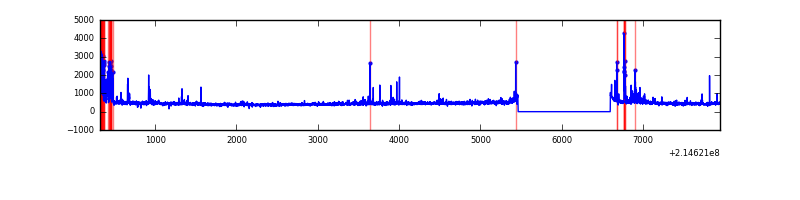

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7624 | 6490 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7624 | 6490 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7624 | 6490 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7624 | 6490 | 43 | 43 | 0.56% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 12319 | 73.36 | 768 | 752 | 157.7 |
| A | 12 | 194 | 7420 | 42.29 | 768 | 752 | 157.7 |
| A | 0 | 226 | 7373 | 41.99 | 768 | 752 | 157.7 |
| B | 15 | 204 | 173623 | 1155.87 | 778 | 760 | 149.6 |
| B | 11 | 51 | 46478 | 305.7 | 778 | 760 | 149.6 |
| B | 4 | 81 | 37414 | 245.09 | 778 | 760 | 149.6 |
| C | 14 | 67 | 24582 | 136.61 | 749 | 755 | 174.4 |
| C | 5 | 250 | 9920 | 52.55 | 749 | 755 | 174.4 |
| C | 13 | 61 | 6034 | 30.27 | 749 | 755 | 174.4 |
| D | 4 | 95 | 155816 | 857.8 | 739 | 719 | 180.8 |
| D | 12 | 233 | 69172 | 378.6 | 739 | 719 | 180.8 |
| D | 11 | 241 | 58907 | 321.82 | 739 | 719 | 180.8 |

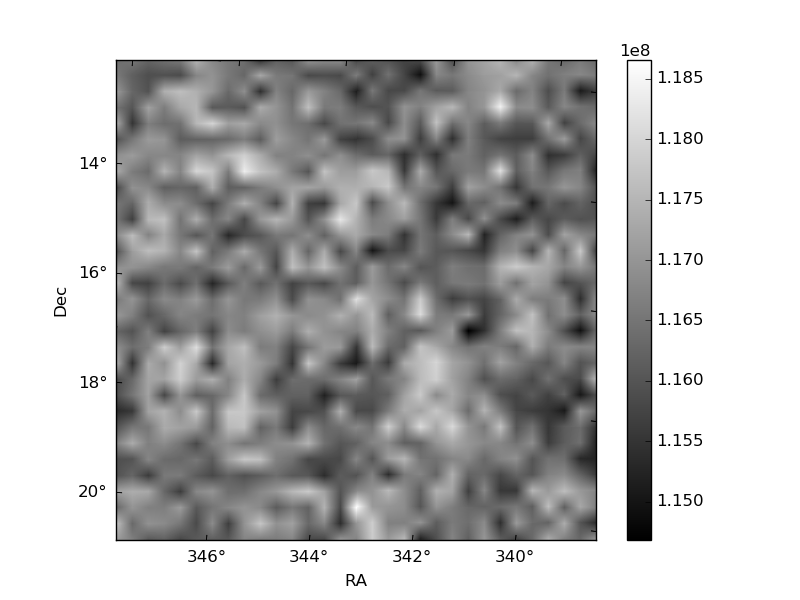

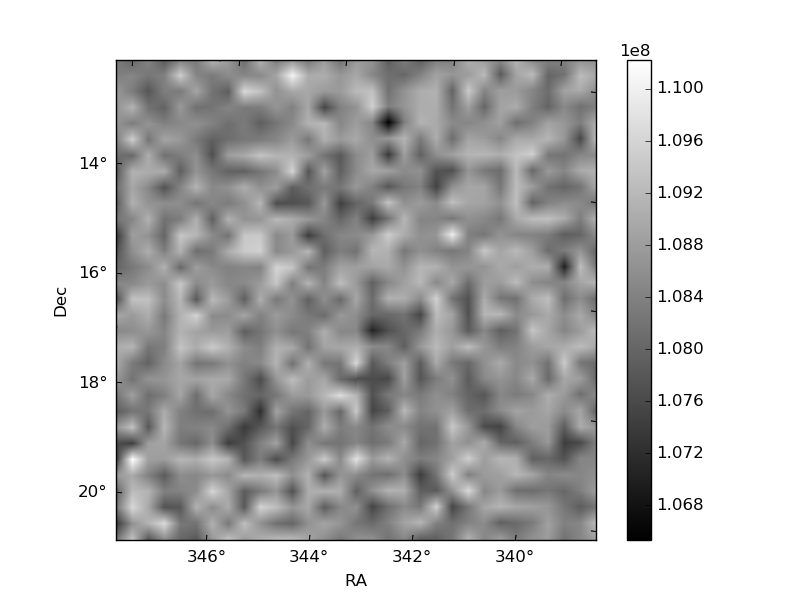

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

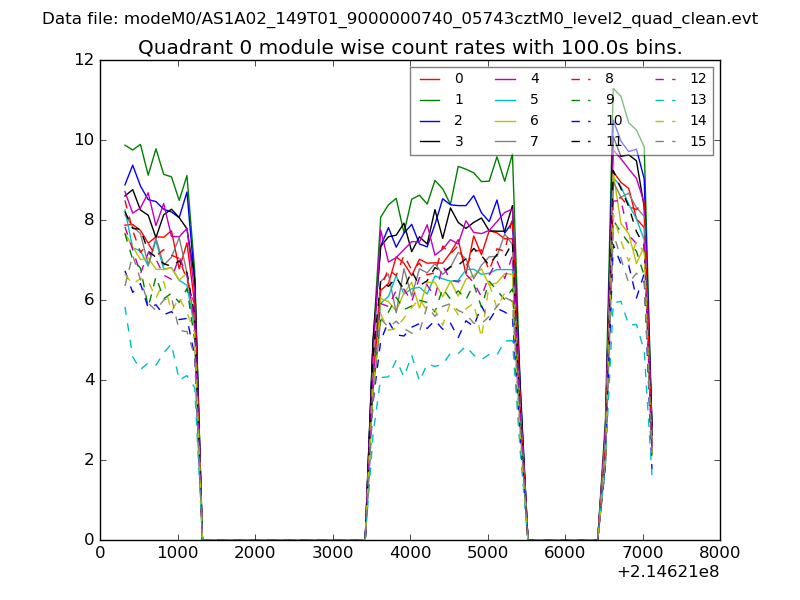

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

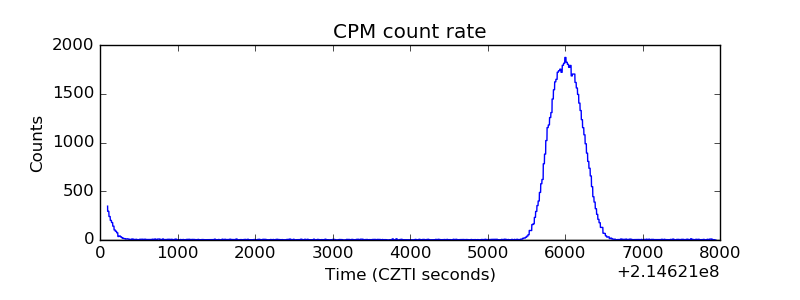

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

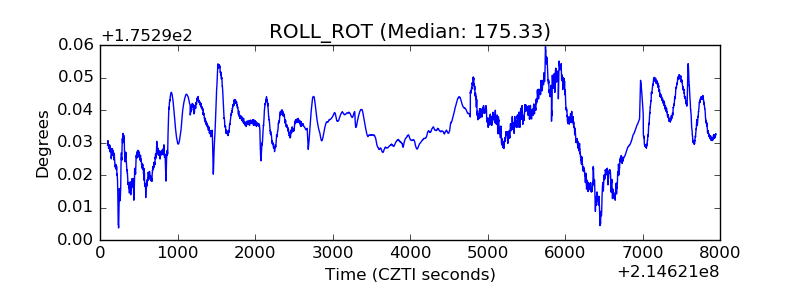

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
