| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_149T01_9000000740_05755cztM0_level2.evt | modeM0/AS1A02_149T01_9000000740_05755cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,144,960 | 83,292,480 |
| Size | 440.7 MB | 79.4 MB |
| Events in quadrant A | 3,223,913 | 508,299 |
| Events in quadrant B | 3,464,827 | 509,536 |
| Events in quadrant C | 3,204,653 | 513,148 |
| Events in quadrant D | 3,614,445 | 491,096 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14600 | 12 |
| B | 0 | 15005 | 10 |
| C | 0 | 14550 | 6 |
| D | 0 | 15615 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7179 | 30 | 0.417885% |
| B | 7179 | 38 | 0.529322% |
| C | 7181 | 20 | 0.278513% |
| D | 7181 | 51 | 0.710207% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8913 | 7185 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8913 | 7185 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8913 | 7185 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8913 | 7185 | 36 | 36 | 0.40% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 13497 | 73.66 | 832 | 812 | 172.2 |
| A | 0 | 226 | 7998 | 41.73 | 832 | 812 | 172.2 |
| A | 12 | 194 | 7936 | 41.37 | 832 | 812 | 172.2 |
| B | 15 | 204 | 96543 | 583.19 | 841 | 820 | 164.1 |
| B | 0 | 219 | 55520 | 333.26 | 841 | 820 | 164.1 |
| B | 0 | 214 | 28779 | 170.34 | 841 | 820 | 164.1 |
| C | 8 | 128 | 15540 | 77.12 | 813 | 818 | 190.9 |
| C | 8 | 112 | 7386 | 34.41 | 813 | 818 | 190.9 |
| C | 13 | 61 | 6614 | 30.36 | 813 | 818 | 190.9 |
| D | 10 | 15 | 154406 | 768.05 | 809 | 783 | 200.0 |
| D | 8 | 195 | 114775 | 569.91 | 809 | 783 | 200.0 |
| D | 11 | 241 | 96850 | 480.29 | 809 | 783 | 200.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

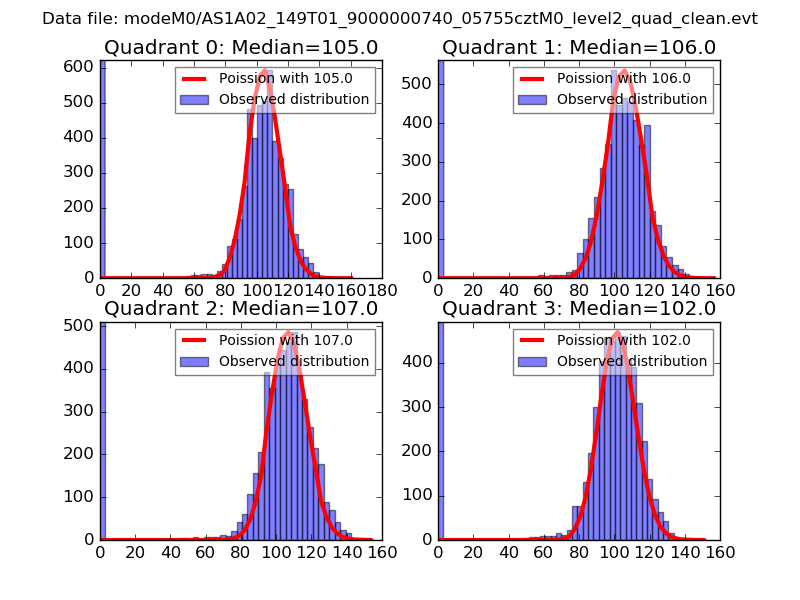

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

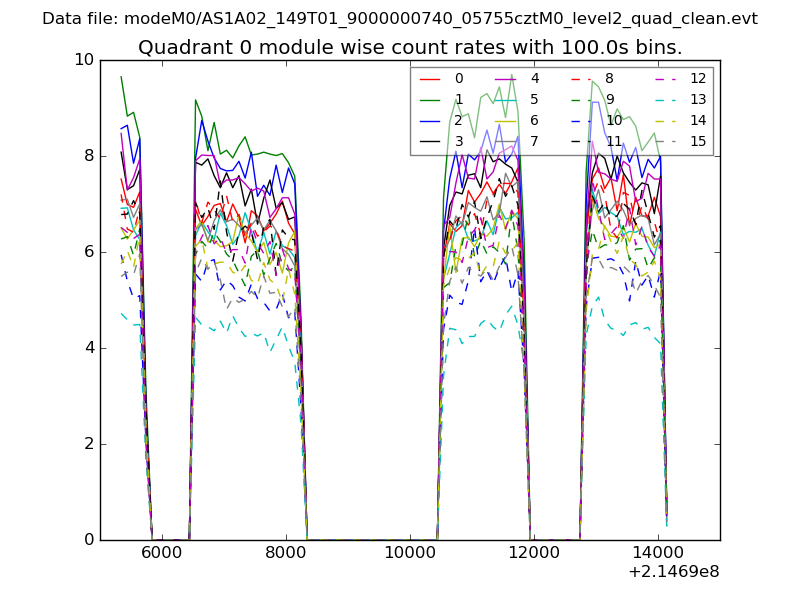

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

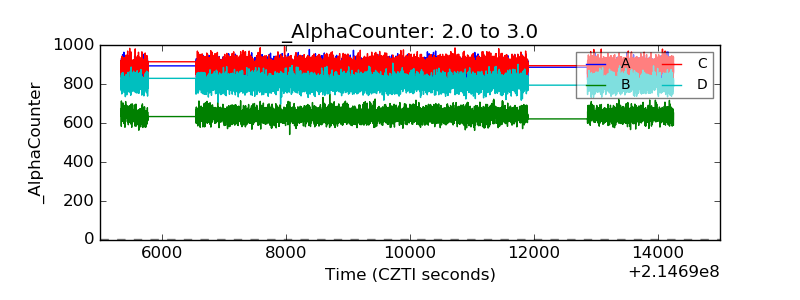

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

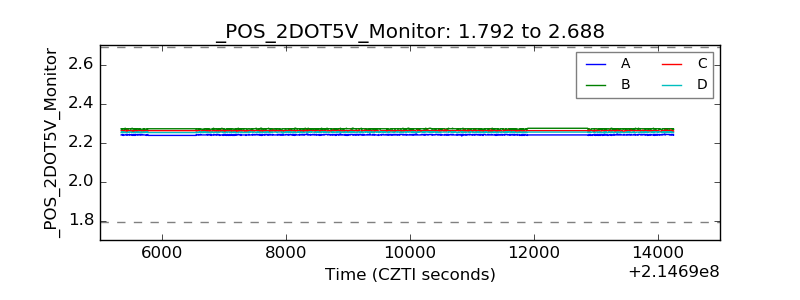

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
