| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_002T01_9000000742_05766cztM0_level2.evt | modeM0/AS1G06_002T01_9000000742_05766cztM0_level2_quad_clean.evt |
| Size (bytes) | 276,840,000 | 53,732,160 |
| Size | 264.0 MB | 51.2 MB |
| Events in quadrant A | 2,006,336 | 329,332 |
| Events in quadrant B | 2,096,003 | 326,175 |
| Events in quadrant C | 1,994,437 | 328,156 |
| Events in quadrant D | 1,969,967 | 317,895 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14889 | 5610 |
| B | 0 | 15007 | 5717 |
| C | 0 | 14866 | 5515 |
| D | 0 | 14961 | 5660 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 147 | 55 |
| B | 0 | 147 | 47 |
| C | 0 | 148 | 34 |
| D | 0 | 148 | 48 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4570 | 22 | 0.481400% |
| B | 4544 | 13 | 0.286092% |
| C | 4610 | 8 | 0.173536% |
| D | 4569 | 7 | 0.153206% |

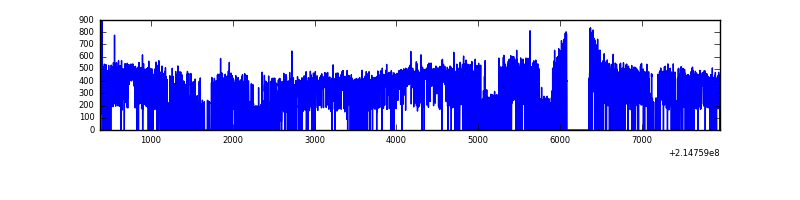

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7580 | 5808 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7581 | 5768 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7582 | 5847 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7581 | 5852 | 1 | 1 | 0.01% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 5207 | 43.81 | 519 | 508 | 107.2 |
| A | 0 | 226 | 5043 | 42.29 | 519 | 508 | 107.2 |
| A | 15 | 236 | 3497 | 27.87 | 519 | 508 | 107.2 |
| B | 15 | 204 | 33556 | 322.75 | 522 | 509 | 102.4 |
| B | 0 | 219 | 25374 | 242.84 | 522 | 509 | 102.4 |
| B | 12 | 111 | 9499 | 87.8 | 522 | 509 | 102.4 |
| C | 8 | 128 | 9251 | 73.99 | 506 | 508 | 118.2 |
| C | 8 | 112 | 4362 | 32.61 | 506 | 508 | 118.2 |
| C | 13 | 61 | 4060 | 30.06 | 506 | 508 | 118.2 |
| D | 11 | 241 | 28144 | 221.27 | 501 | 486 | 125.0 |
| D | 2 | 14 | 19767 | 154.25 | 501 | 486 | 125.0 |
| D | 8 | 195 | 11023 | 84.3 | 501 | 486 | 125.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

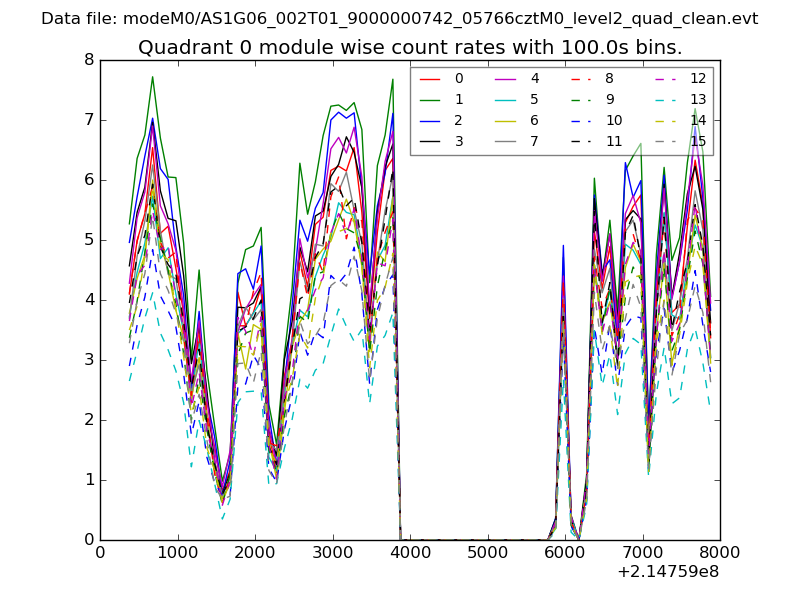

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

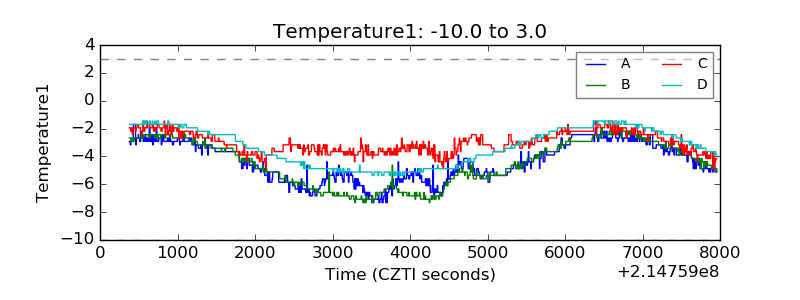

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

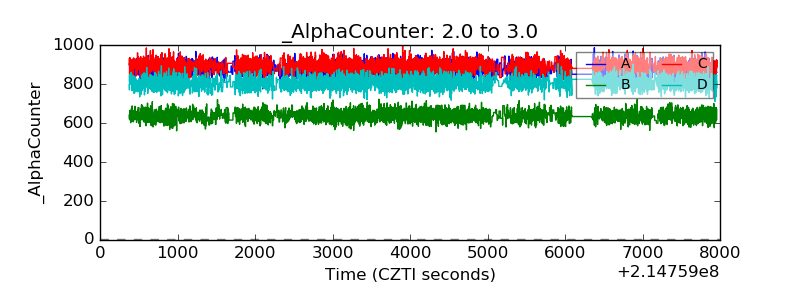

| Alpha Counter |  |

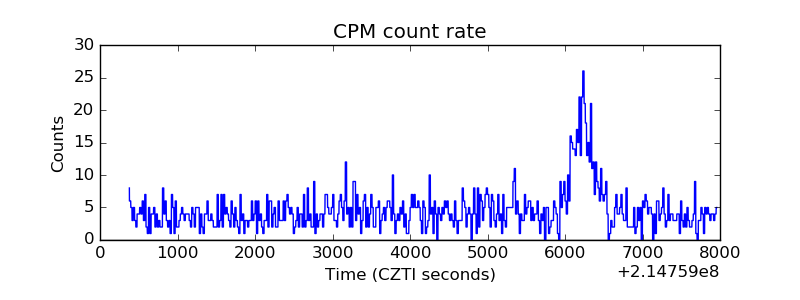

| _CPM_Rate |  |

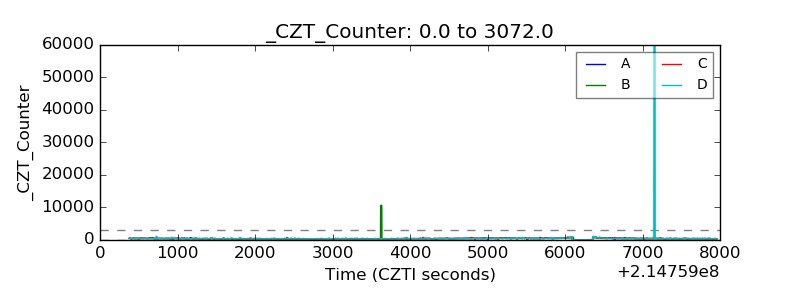

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

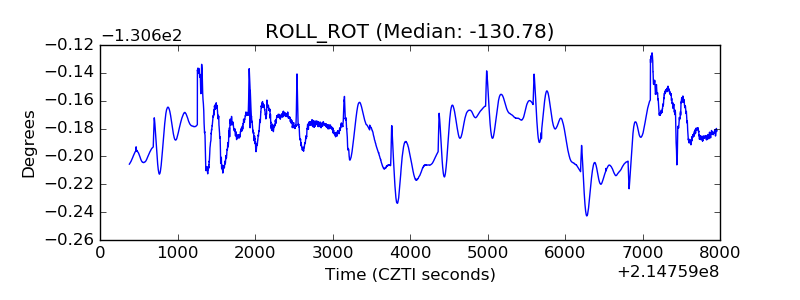

| _ROLL_ROT |  |
| _Roll_DEC |  |

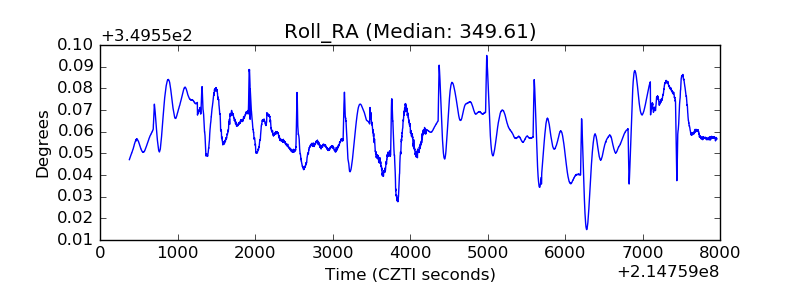

| _Roll_RA |  |
| Veto Counter |  |
