| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_002T01_9000000742_05770cztM0_level2.evt | modeM0/AS1G06_002T01_9000000742_05770cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,003,200 | 86,621,760 |
| Size | 424.4 MB | 82.6 MB |
| Events in quadrant A | 3,174,104 | 537,190 |
| Events in quadrant B | 3,375,974 | 540,773 |
| Events in quadrant C | 3,141,227 | 532,153 |
| Events in quadrant D | 3,298,808 | 514,516 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14477 | 7 |
| B | 0 | 14692 | 2 |
| C | 0 | 14453 | 4 |
| D | 0 | 14761 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7154 | 17 | 0.237629% |
| B | 7156 | 33 | 0.461151% |
| C | 7155 | 22 | 0.307477% |
| D | 7154 | 18 | 0.251607% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

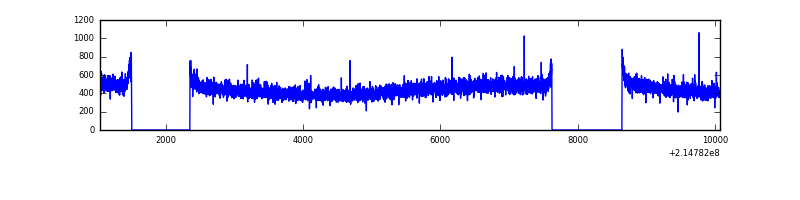

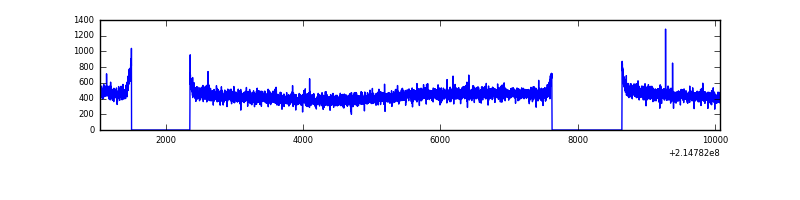

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9026 | 7158 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9026 | 7158 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9026 | 7158 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9026 | 7158 | 9 | 9 | 0.10% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8012 | 42.65 | 824 | 806 | 169.0 |
| A | 12 | 194 | 7853 | 41.71 | 824 | 806 | 169.0 |
| A | 0 | 12 | 3348 | 15.05 | 824 | 806 | 169.0 |
| B | 0 | 219 | 61792 | 379.08 | 837 | 817 | 160.9 |
| B | 15 | 204 | 52287 | 319.99 | 837 | 817 | 160.9 |
| B | 4 | 81 | 16913 | 100.07 | 837 | 817 | 160.9 |
| C | 13 | 61 | 6511 | 30.23 | 804 | 808 | 188.6 |
| C | 3 | 202 | 2019 | 6.42 | 804 | 808 | 188.6 |
| C | 8 | 222 | 1842 | 5.48 | 804 | 808 | 188.6 |
| D | 12 | 221 | 126770 | 644.27 | 798 | 771 | 195.6 |
| D | 6 | 223 | 42289 | 212.29 | 798 | 771 | 195.6 |
| D | 4 | 95 | 40328 | 202.27 | 798 | 771 | 195.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

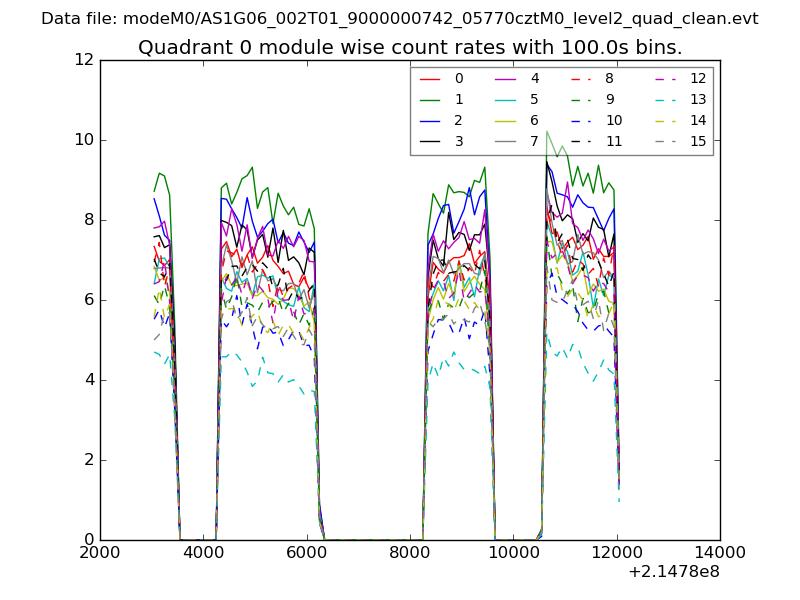

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

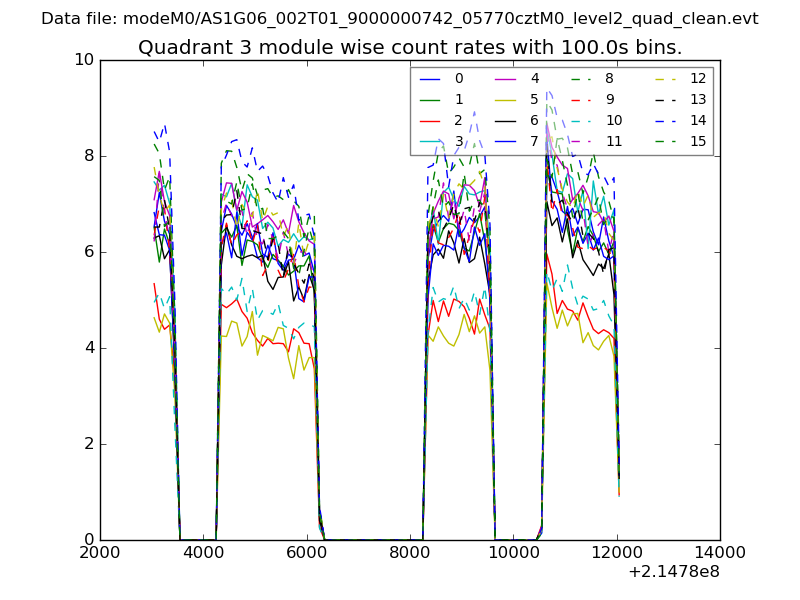

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

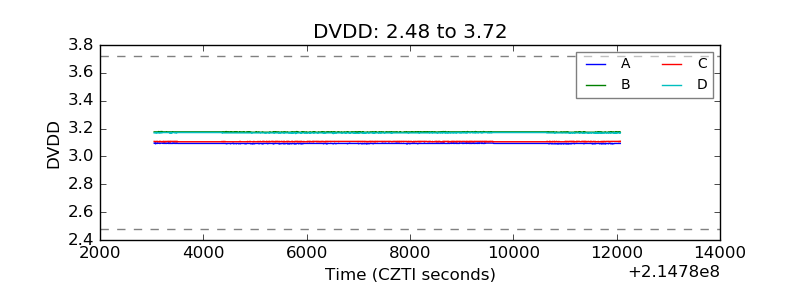

| D_VDD |  |

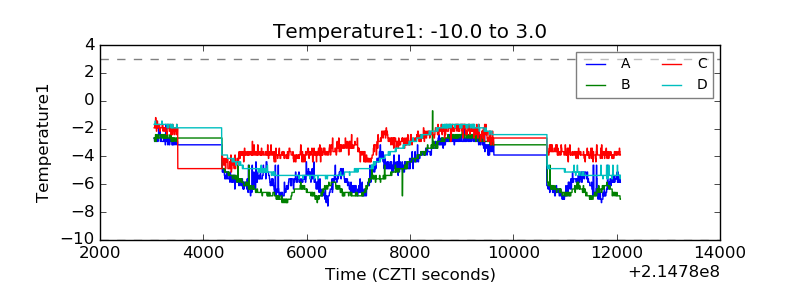

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

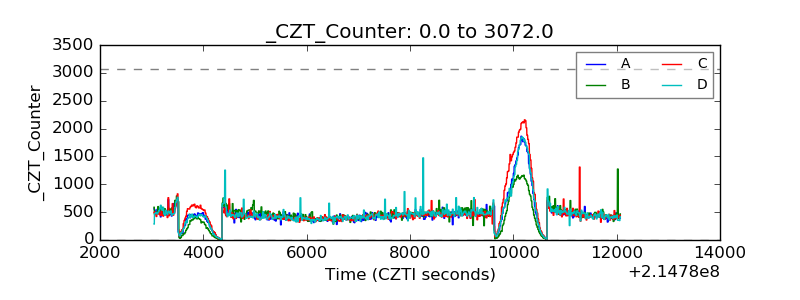

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
