| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_106T01_9000000744_05783cztM0_level2.evt | modeM0/AS1A02_106T01_9000000744_05783cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,020,168,000 | 172,327,680 |
| Size | 972.9 MB | 164.3 MB |
| Events in quadrant A | 7,189,837 | 1,028,095 |
| Events in quadrant B | 7,677,612 | 1,052,669 |
| Events in quadrant C | 7,065,000 | 1,039,658 |
| Events in quadrant D | 7,880,009 | 994,864 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32983 | 15 |
| B | 0 | 33520 | 20 |
| C | 0 | 32587 | 17 |
| D | 0 | 34454 | 11 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 326 | 0 |
| B | 0 | 326 | 0 |
| C | 0 | 326 | 0 |
| D | 0 | 326 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16000 | 111 | 0.693750% |
| B | 15998 | 100 | 0.625078% |
| C | 15998 | 67 | 0.418802% |
| D | 16001 | 113 | 0.706206% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

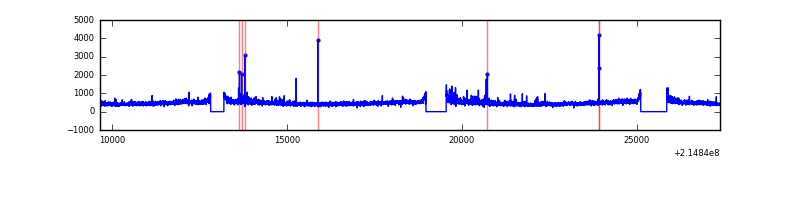

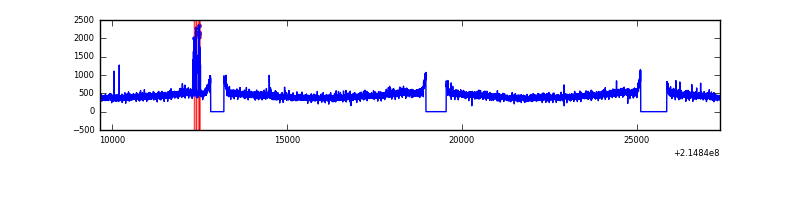

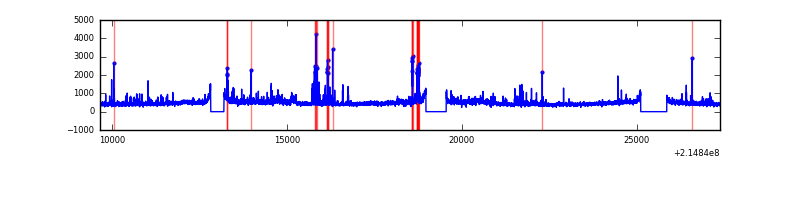

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17710 | 16008 | 13 | 13 | 0.07% | 0.08% |  |
| B | 17710 | 16008 | 7 | 7 | 0.04% | 0.04% |  |
| C | 17710 | 16008 | 0 | 0 | 0.00% | 0.00% |  |
| D | 17710 | 16008 | 42 | 42 | 0.24% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 79 | 114607 | 302.17 | 1834 | 1791 | 373.3 |
| A | 0 | 226 | 17689 | 42.58 | 1834 | 1791 | 373.3 |
| A | 12 | 194 | 17565 | 42.25 | 1834 | 1791 | 373.3 |
| B | 15 | 204 | 220659 | 613.49 | 1865 | 1817 | 356.7 |
| B | 4 | 81 | 126310 | 349.0 | 1865 | 1817 | 356.7 |
| B | 0 | 219 | 43151 | 115.87 | 1865 | 1817 | 356.7 |
| C | 1 | 16 | 32549 | 74.16 | 1798 | 1809 | 414.5 |
| C | 13 | 61 | 14288 | 30.1 | 1798 | 1809 | 414.5 |
| C | 8 | 128 | 10083 | 19.96 | 1798 | 1809 | 414.5 |
| D | 8 | 195 | 538541 | 1230.61 | 1787 | 1736 | 436.2 |
| D | 12 | 233 | 191808 | 435.73 | 1787 | 1736 | 436.2 |
| D | 12 | 110 | 142886 | 323.58 | 1787 | 1736 | 436.2 |

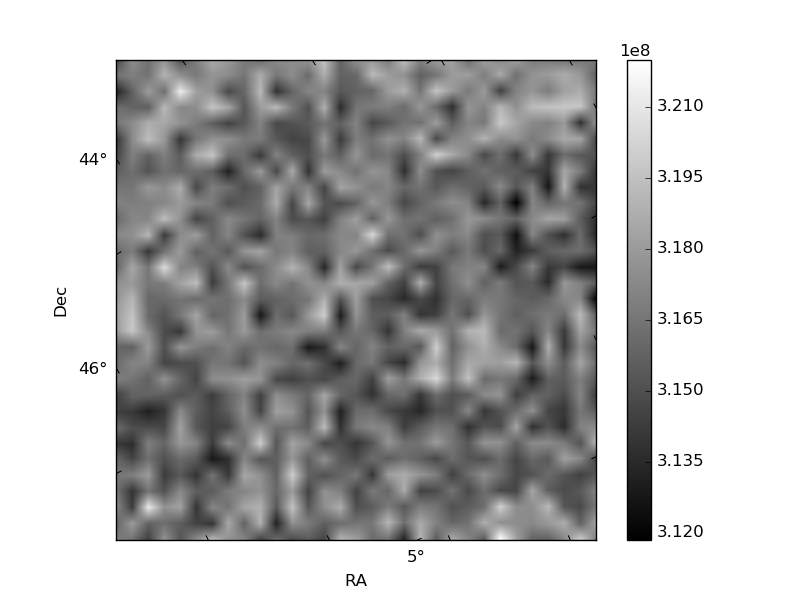

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

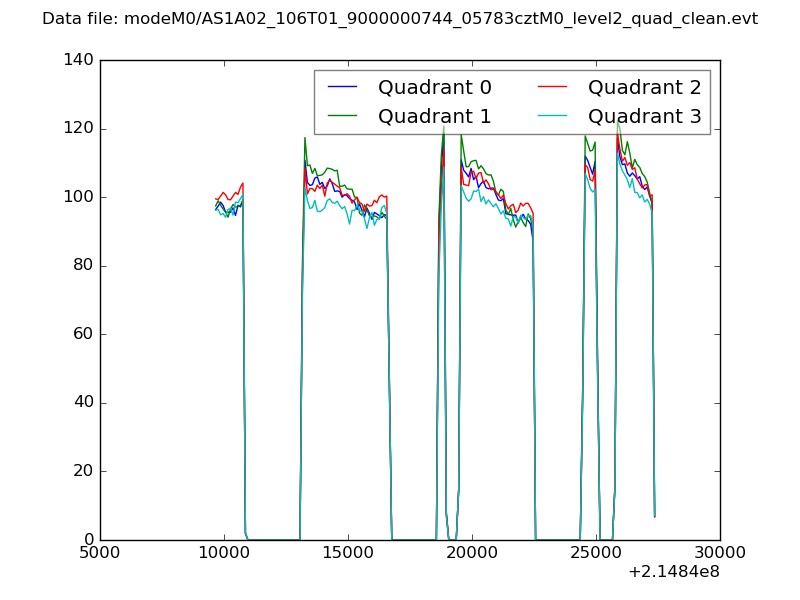

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

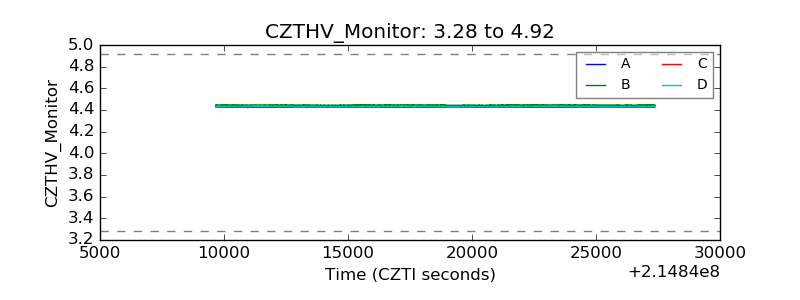

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

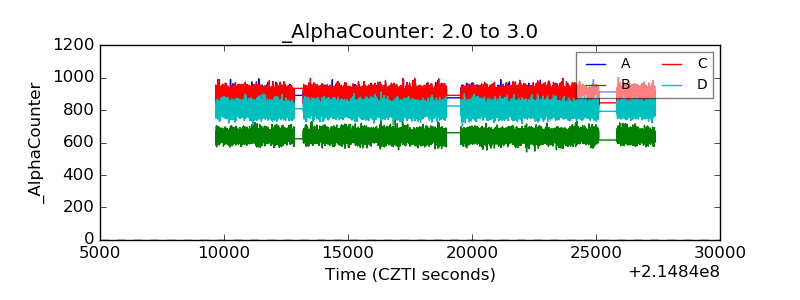

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

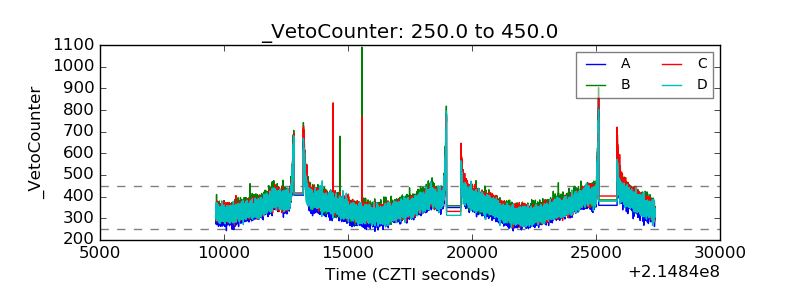

| Veto Counter |  |
