| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_106T01_9000000744_05789cztM0_level2.evt | modeM0/AS1A02_106T01_9000000744_05789cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,671,680 | 69,272,640 |
| Size | 411.7 MB | 66.1 MB |
| Events in quadrant A | 3,159,273 | 415,367 |
| Events in quadrant B | 3,318,864 | 426,913 |
| Events in quadrant C | 3,071,596 | 410,153 |
| Events in quadrant D | 3,078,632 | 388,767 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13450 | 3 |
| B | 0 | 13739 | 2 |
| C | 0 | 13413 | 2 |
| D | 0 | 13654 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6544 | 26 | 0.397311% |
| B | 6544 | 49 | 0.748778% |
| C | 6544 | 22 | 0.336186% |
| D | 6544 | 13 | 0.198655% |

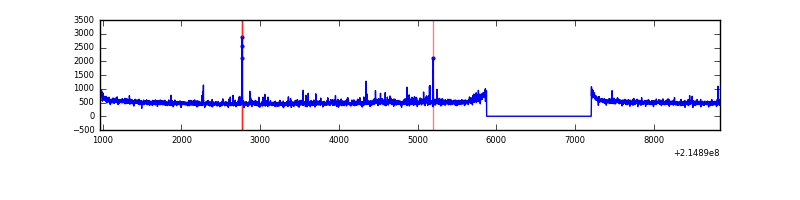

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7874 | 6545 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7874 | 6545 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7874 | 6545 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7874 | 6545 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 8025 | 43.79 | 817 | 801 | 165.0 |
| A | 0 | 226 | 7892 | 42.98 | 817 | 801 | 165.0 |
| A | 12 | 194 | 7815 | 42.52 | 817 | 801 | 165.0 |
| B | 4 | 81 | 81559 | 520.11 | 828 | 811 | 155.3 |
| B | 15 | 204 | 24630 | 153.42 | 828 | 811 | 155.3 |
| B | 12 | 111 | 14616 | 88.92 | 828 | 811 | 155.3 |
| C | 13 | 61 | 6248 | 30.21 | 785 | 790 | 180.6 |
| C | 1 | 16 | 4256 | 19.19 | 785 | 790 | 180.6 |
| C | 14 | 67 | 3593 | 15.52 | 785 | 790 | 180.6 |
| D | 12 | 233 | 48987 | 257.09 | 778 | 755 | 187.6 |
| D | 12 | 221 | 46805 | 245.46 | 778 | 755 | 187.6 |
| D | 1 | 20 | 22192 | 114.27 | 778 | 755 | 187.6 |

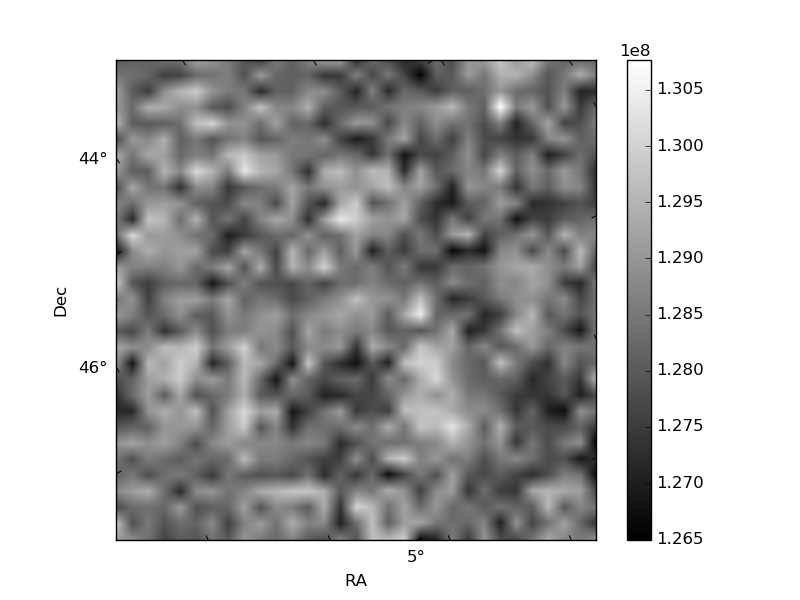

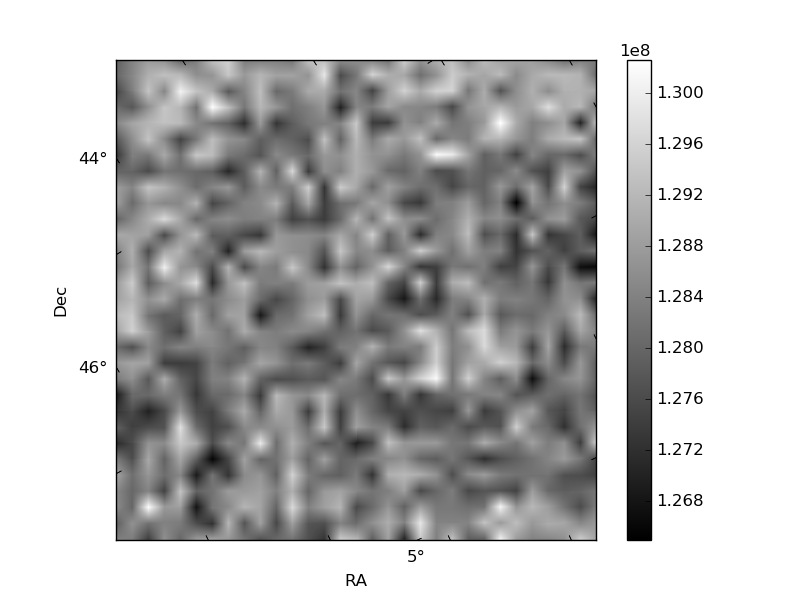

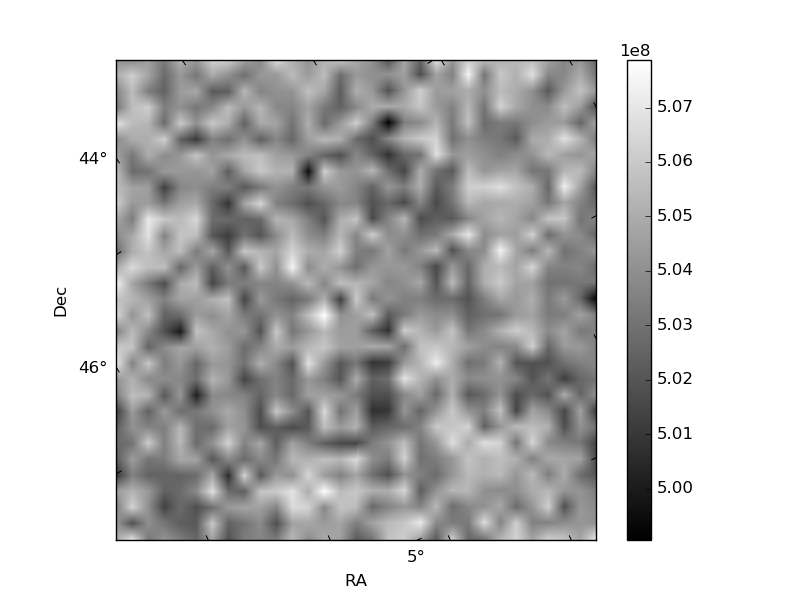

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

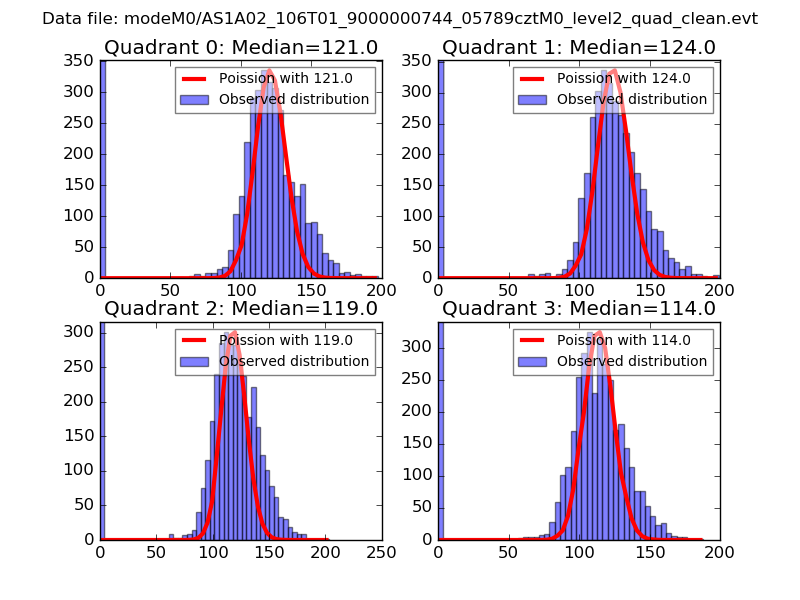

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

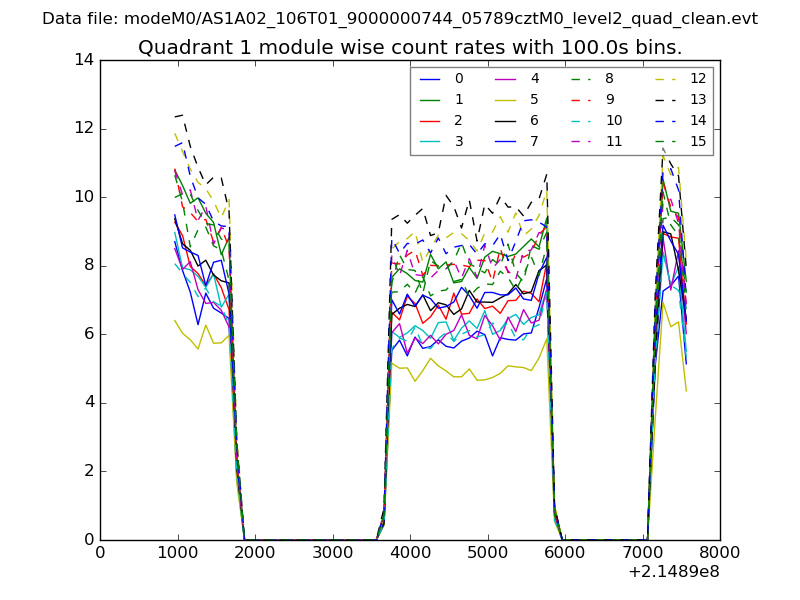

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

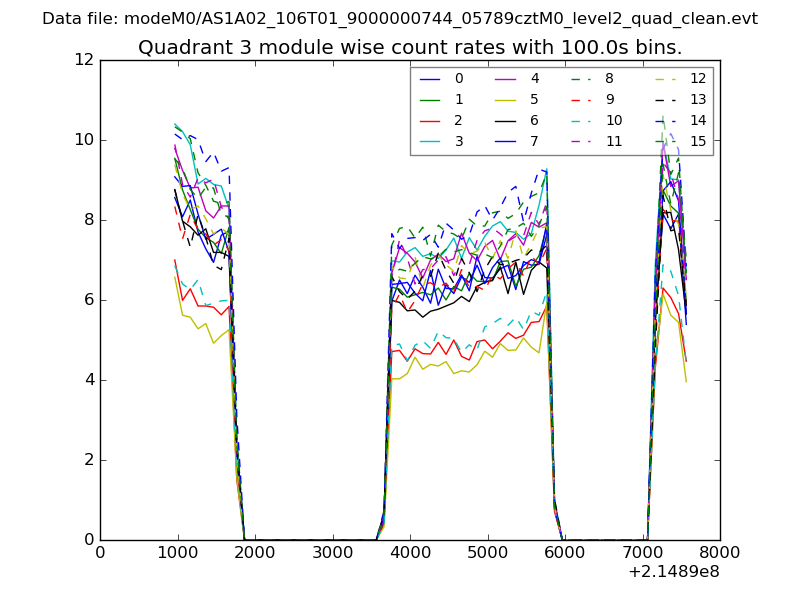

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

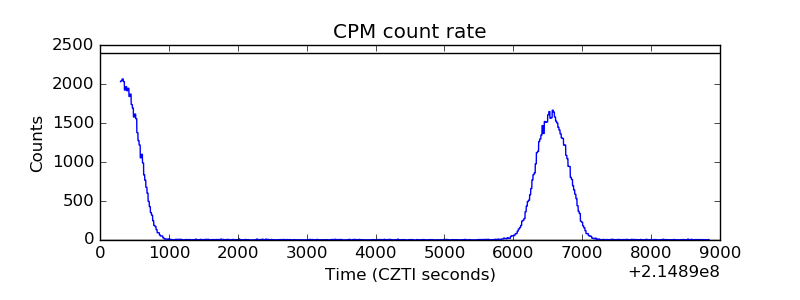

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
