| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_106T01_9000000744_05795cztM0_level2.evt | modeM0/AS1A02_106T01_9000000744_05795cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,272,000 | 92,684,160 |
| Size | 496.2 MB | 88.4 MB |
| Events in quadrant A | 3,817,651 | 563,950 |
| Events in quadrant B | 3,910,149 | 578,461 |
| Events in quadrant C | 3,760,011 | 560,413 |
| Events in quadrant D | 3,717,207 | 539,959 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17003 | 2 |
| B | 0 | 17156 | 1 |
| C | 0 | 16979 | 1 |
| D | 0 | 17076 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8114 | 223 | 2.748336% |
| B | 8114 | 212 | 2.612768% |
| C | 8114 | 119 | 1.466601% |
| D | 8113 | 129 | 1.590041% |

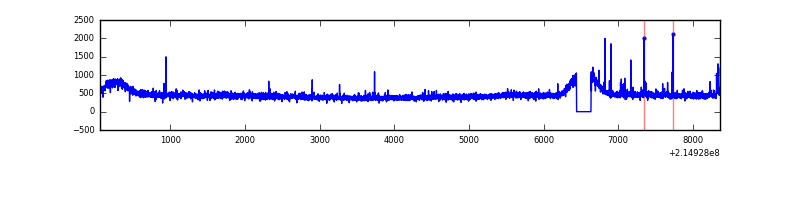

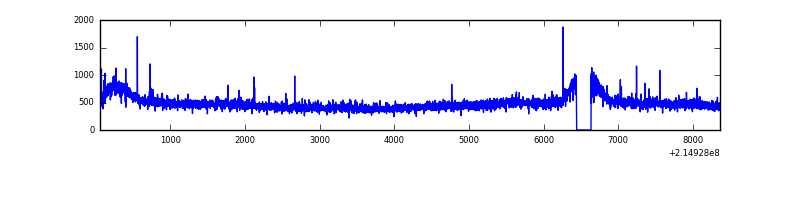

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8309 | 8115 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8309 | 8115 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8309 | 8115 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8309 | 8115 | 2 | 2 | 0.02% | 0.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 79 | 10315 | 46.27 | 984 | 959 | 202.2 |
| A | 0 | 226 | 9661 | 43.03 | 984 | 959 | 202.2 |
| A | 12 | 194 | 9526 | 42.36 | 984 | 959 | 202.2 |
| B | 4 | 81 | 39167 | 199.86 | 993 | 968 | 191.1 |
| B | 12 | 111 | 18838 | 93.5 | 993 | 968 | 191.1 |
| B | 15 | 204 | 15619 | 76.65 | 993 | 968 | 191.1 |
| C | 13 | 61 | 7672 | 30.16 | 962 | 964 | 222.4 |
| C | 1 | 16 | 2511 | 6.95 | 962 | 964 | 222.4 |
| C | 14 | 67 | 2392 | 6.42 | 962 | 964 | 222.4 |
| D | 8 | 195 | 28580 | 114.8 | 964 | 930 | 240.9 |
| D | 12 | 233 | 22526 | 89.66 | 964 | 930 | 240.9 |
| D | 8 | 230 | 14889 | 57.95 | 964 | 930 | 240.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

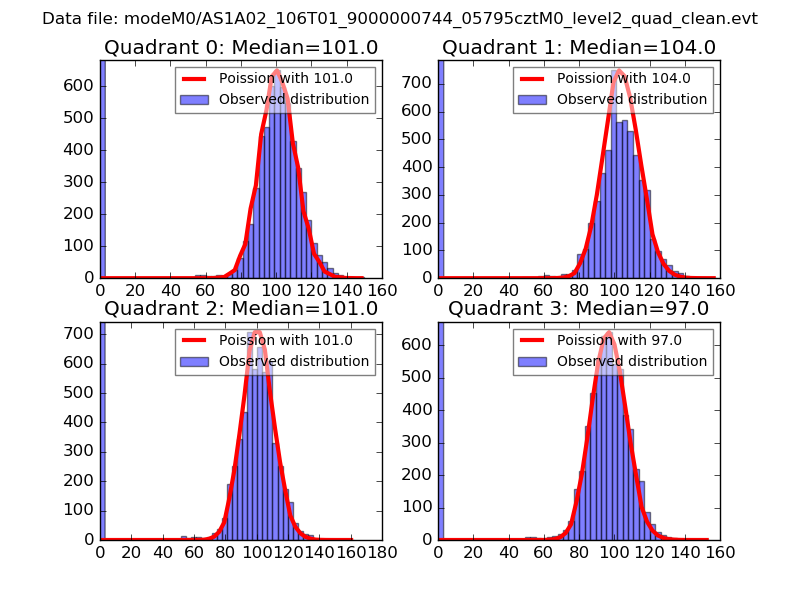

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

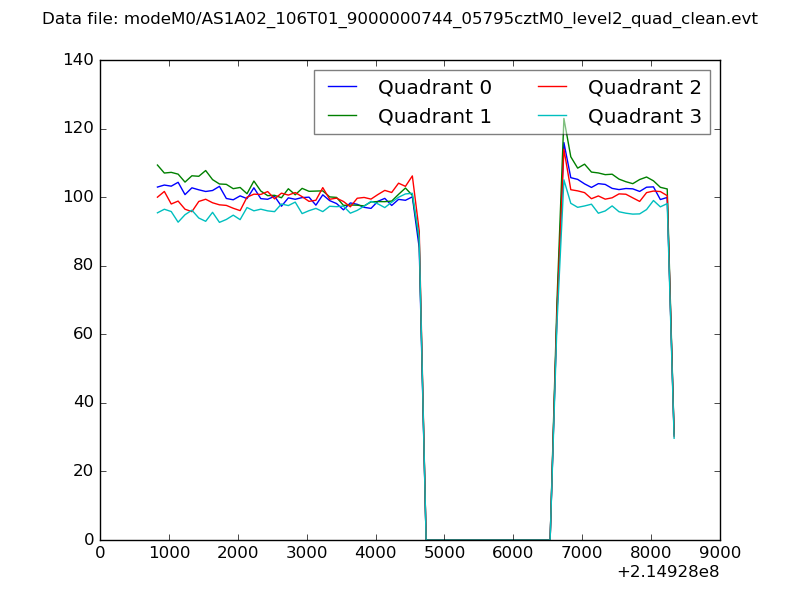

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

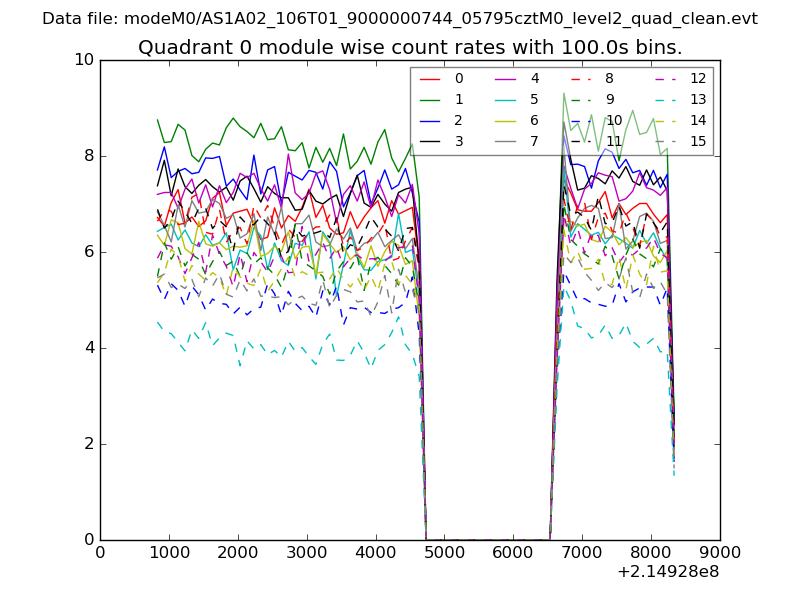

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

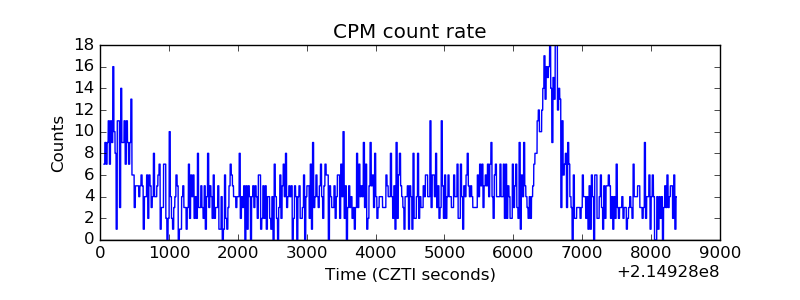

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

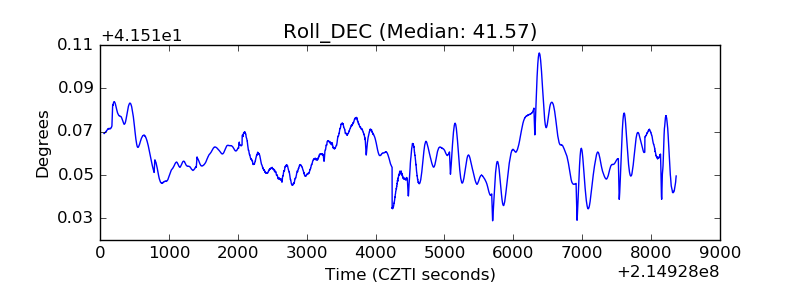

| _Roll_DEC |  |
| _Roll_RA |  |

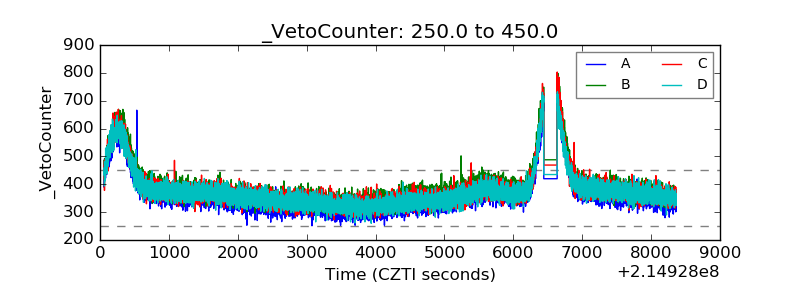

| Veto Counter |  |
