| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_089T01_9000000746_05808cztM0_level2.evt | modeM0/AS1G06_089T01_9000000746_05808cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,956,800 | 88,997,760 |
| Size | 472.0 MB | 84.9 MB |
| Events in quadrant A | 3,834,021 | 550,558 |
| Events in quadrant B | 3,677,344 | 556,932 |
| Events in quadrant C | 3,362,128 | 547,539 |
| Events in quadrant D | 3,611,477 | 523,099 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16366 | 4 |
| B | 0 | 15762 | 3 |
| C | 0 | 15397 | 1 |
| D | 0 | 16096 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7429 | 184 | 2.476780% |
| B | 7429 | 144 | 1.938350% |
| C | 7430 | 67 | 0.901750% |
| D | 7430 | 103 | 1.386272% |

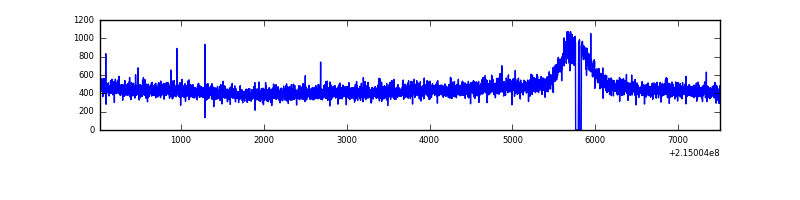

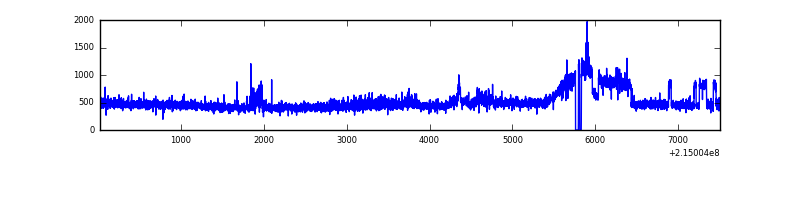

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7485 | 7432 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7485 | 7432 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7485 | 7432 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7485 | 7432 | 22 | 22 | 0.29% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 367754 | 1974.68 | 890 | 867 | 185.8 |
| A | 15 | 174 | 24578 | 127.62 | 890 | 867 | 185.8 |
| A | 15 | 223 | 17275 | 88.31 | 890 | 867 | 185.8 |
| B | 0 | 219 | 57166 | 321.26 | 894 | 870 | 175.2 |
| B | 4 | 81 | 42771 | 239.11 | 894 | 870 | 175.2 |
| B | 15 | 204 | 36820 | 205.15 | 894 | 870 | 175.2 |
| C | 13 | 61 | 6807 | 29.32 | 859 | 865 | 202.6 |
| C | 8 | 222 | 4603 | 18.45 | 859 | 865 | 202.6 |
| C | 1 | 16 | 2863 | 9.86 | 859 | 865 | 202.6 |
| D | 4 | 95 | 196829 | 918.39 | 863 | 834 | 213.4 |
| D | 13 | 238 | 43238 | 198.69 | 863 | 834 | 213.4 |
| D | 1 | 31 | 38636 | 177.13 | 863 | 834 | 213.4 |

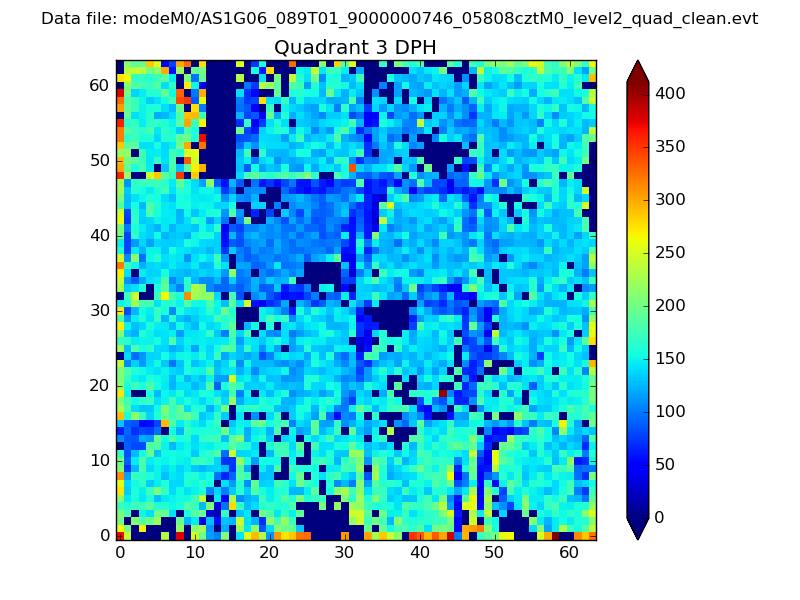

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

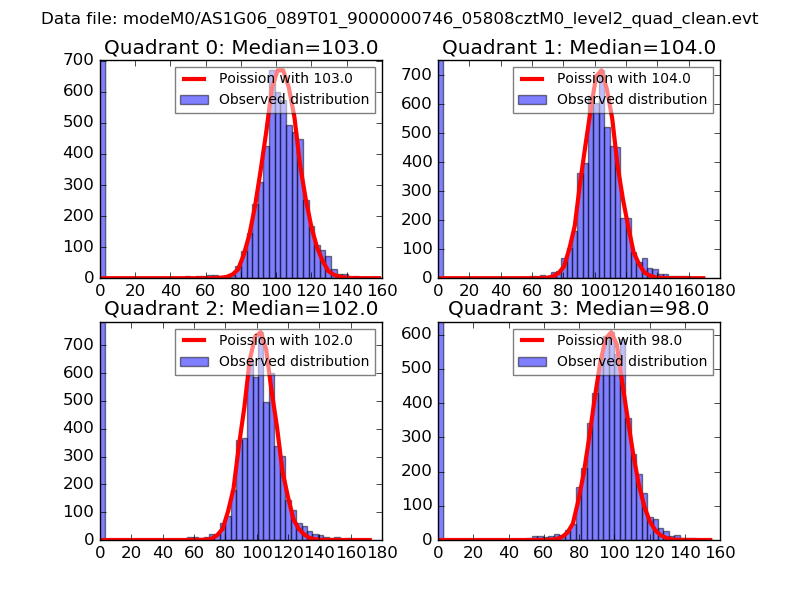

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

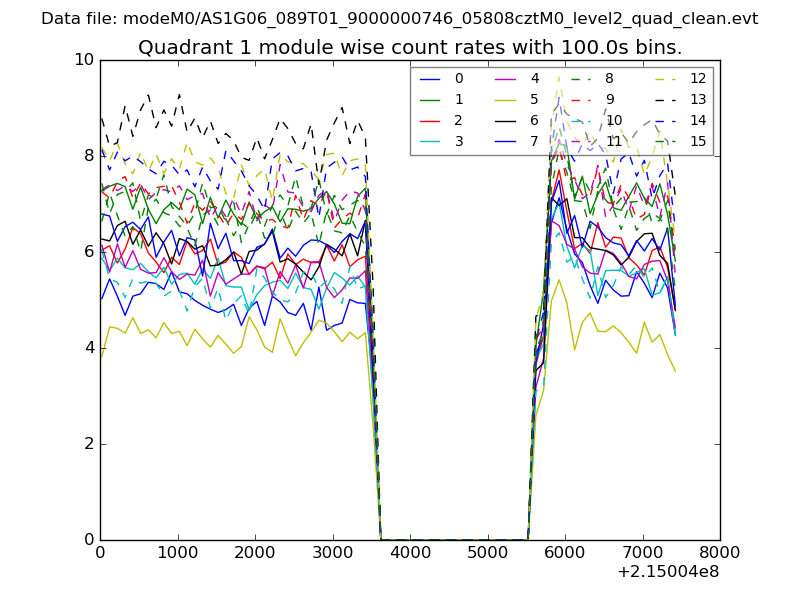

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

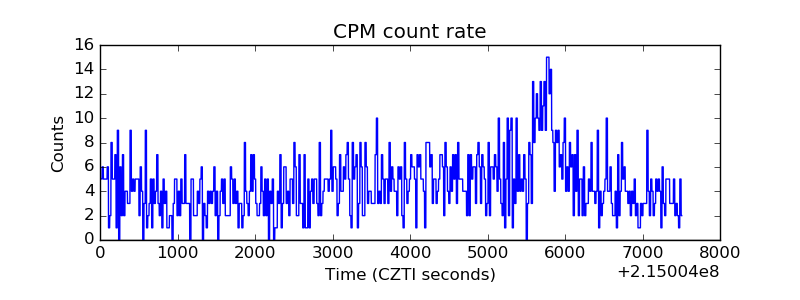

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

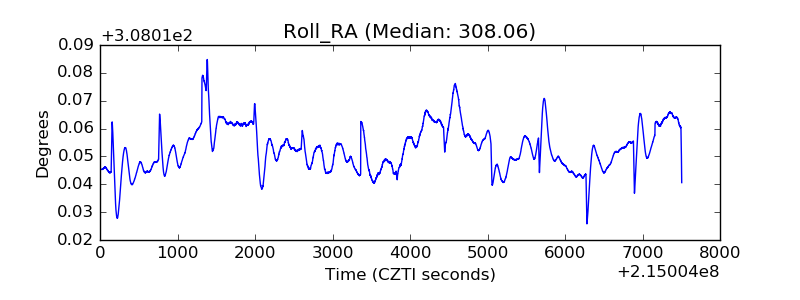

| _Roll_RA |  |

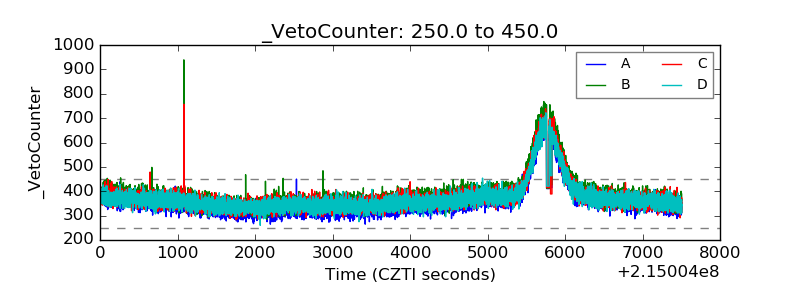

| Veto Counter |  |
