| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_197T01_9000000748_05816cztM0_level2.evt | modeM0/AS1A02_197T01_9000000748_05816cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,801,600 | 72,820,800 |
| Size | 389.9 MB | 69.4 MB |
| Events in quadrant A | 3,703,615 | 441,884 |
| Events in quadrant B | 2,796,616 | 456,022 |
| Events in quadrant C | 2,684,368 | 451,068 |
| Events in quadrant D | 2,780,290 | 429,230 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15253 | 2 |
| B | 0 | 12565 | 2 |
| C | 0 | 12405 | 2 |
| D | 0 | 12872 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6112 | 58 | 0.948953% |
| B | 6112 | 15 | 0.245419% |
| C | 6112 | 7 | 0.114529% |
| D | 6112 | 25 | 0.409031% |

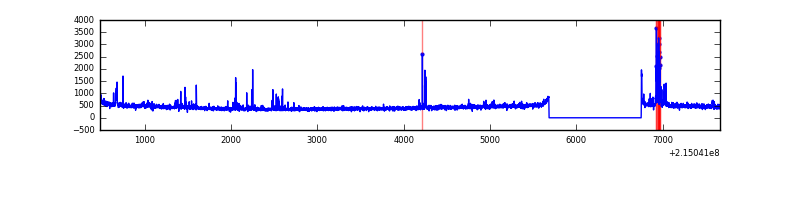

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7182 | 6113 | 16 | 16 | 0.22% | 0.26% |  |
| B | 7182 | 6113 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7182 | 6113 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7182 | 6113 | 14 | 14 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 655842 | 4620.05 | 693 | 679 | 141.8 |
| A | 15 | 79 | 343253 | 2415.75 | 693 | 679 | 141.8 |
| A | 15 | 223 | 28604 | 196.92 | 693 | 679 | 141.8 |
| B | 12 | 111 | 12938 | 89.65 | 710 | 691 | 136.6 |
| B | 0 | 245 | 12476 | 86.27 | 710 | 691 | 136.6 |
| B | 15 | 204 | 11628 | 80.06 | 710 | 691 | 136.6 |
| C | 13 | 61 | 5425 | 29.78 | 685 | 690 | 159.0 |
| C | 1 | 16 | 4098 | 21.43 | 685 | 690 | 159.0 |
| C | 14 | 67 | 3157 | 15.52 | 685 | 690 | 159.0 |
| D | 12 | 233 | 76356 | 455.89 | 677 | 656 | 166.1 |
| D | 8 | 230 | 55788 | 332.02 | 677 | 656 | 166.1 |
| D | 11 | 241 | 21661 | 126.5 | 677 | 656 | 166.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

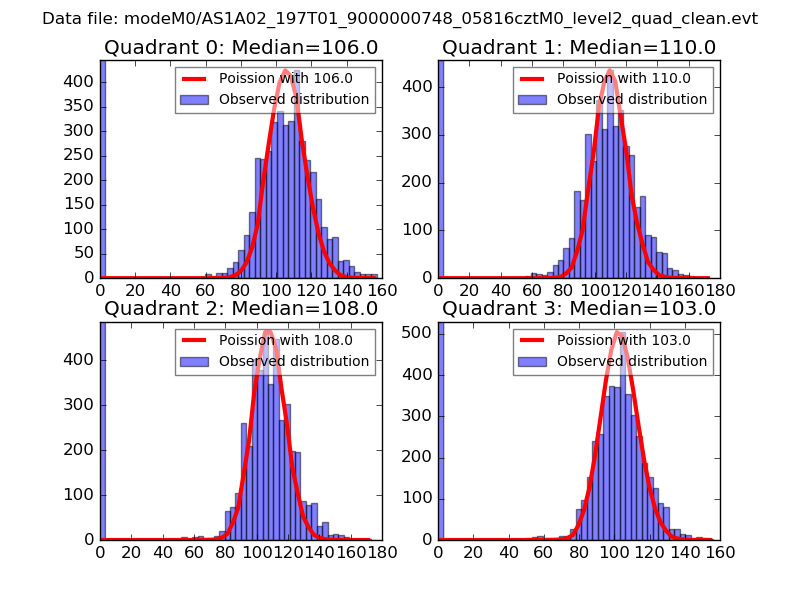

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

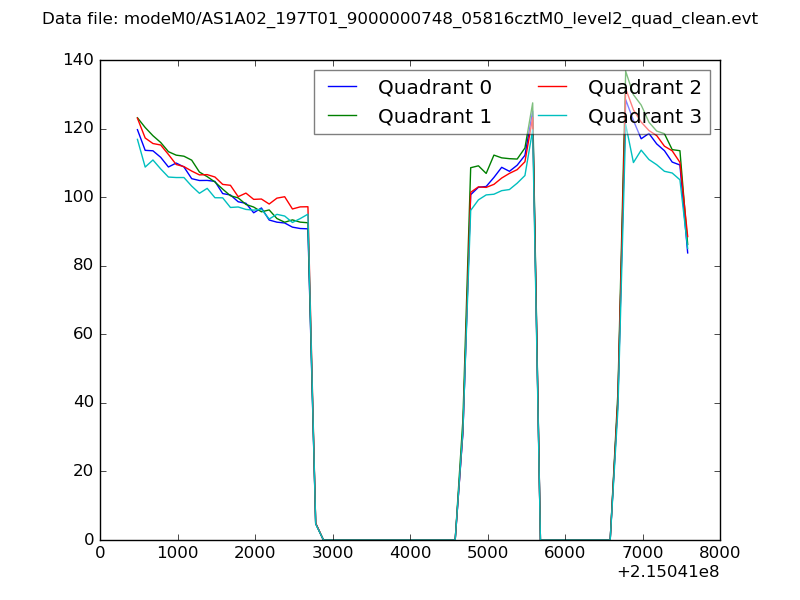

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

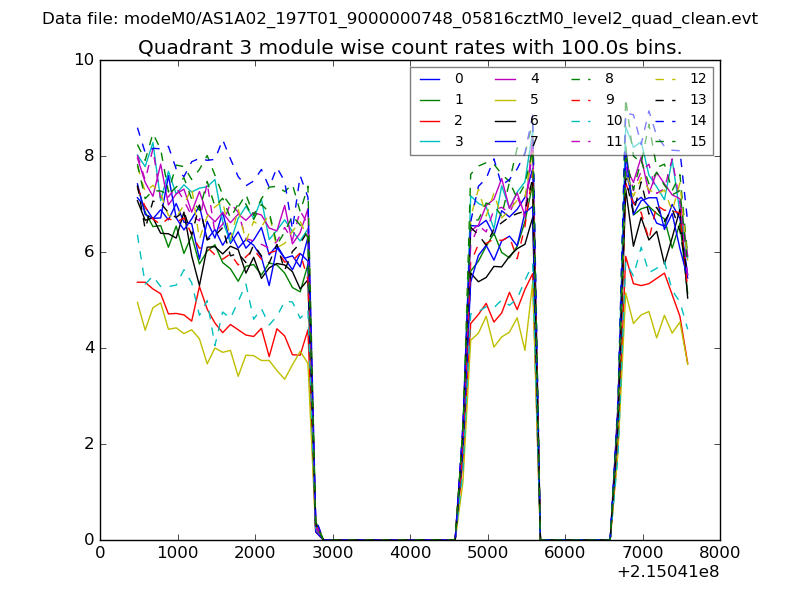

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

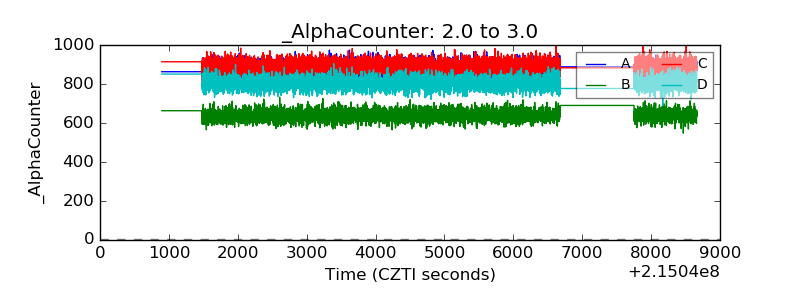

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

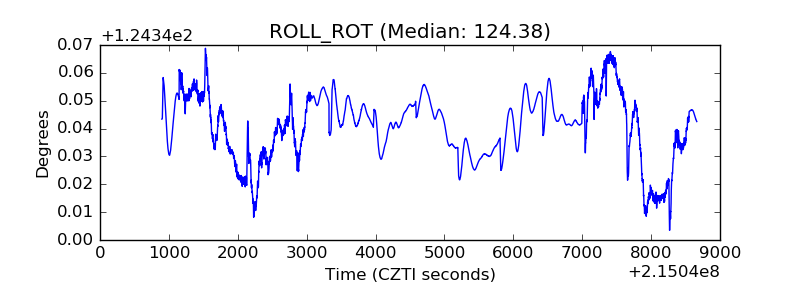

| _ROLL_ROT |  |
| _Roll_DEC |  |

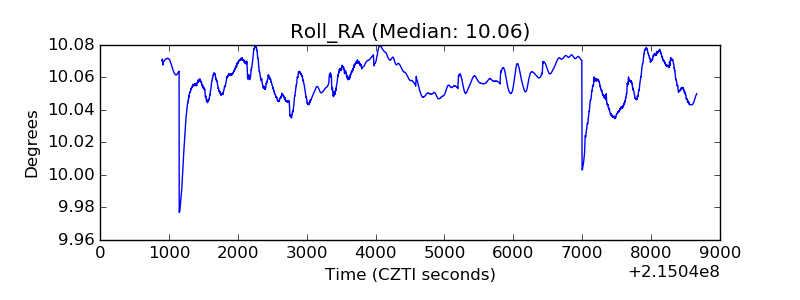

| _Roll_RA |  |
| Veto Counter |  |
