| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_197T05_9000000756_05838cztM0_level2.evt | modeM0/AS1A02_197T05_9000000756_05838cztM0_level2_quad_clean.evt |
| Size (bytes) | 214,151,040 | 25,971,840 |
| Size | 204.2 MB | 24.8 MB |
| Events in quadrant A | 1,552,243 | 141,832 |
| Events in quadrant B | 1,593,765 | 145,794 |
| Events in quadrant C | 1,538,532 | 138,664 |
| Events in quadrant D | 1,581,418 | 132,862 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7638 | 883 |
| B | 0 | 7652 | 837 |
| C | 0 | 7701 | 935 |
| D | 0 | 7809 | 947 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 71 | 11 |
| B | 0 | 72 | 6 |
| C | 0 | 71 | 4 |
| D | 0 | 72 | 18 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3203 | 142 | 4.433344% |
| B | 3228 | 126 | 3.903346% |
| C | 3184 | 82 | 2.575377% |
| D | 3181 | 89 | 2.797862% |

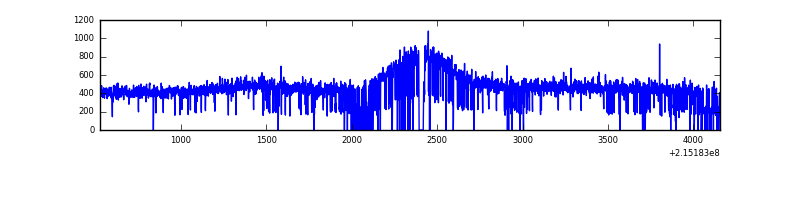

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3629 | 3508 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3629 | 3486 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3630 | 3493 | 2 | 2 | 0.06% | 0.06% |  |
| D | 3630 | 3479 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 5696 | 62.85 | 400 | 389 | 84.4 |
| A | 0 | 226 | 3986 | 42.59 | 400 | 389 | 84.4 |
| A | 12 | 194 | 3972 | 42.43 | 400 | 389 | 84.4 |
| B | 15 | 204 | 8238 | 95.79 | 407 | 396 | 81.9 |
| B | 12 | 111 | 7923 | 91.94 | 407 | 396 | 81.9 |
| B | 11 | 111 | 6242 | 71.41 | 407 | 396 | 81.9 |
| C | 1 | 16 | 27966 | 304.96 | 384 | 385 | 90.4 |
| C | 8 | 128 | 4414 | 44.55 | 384 | 385 | 90.4 |
| C | 13 | 61 | 3009 | 29.01 | 384 | 385 | 90.4 |
| D | 2 | 152 | 55685 | 565.21 | 385 | 370 | 97.9 |
| D | 10 | 15 | 53345 | 541.3 | 385 | 370 | 97.9 |
| D | 11 | 241 | 9403 | 92.3 | 385 | 370 | 97.9 |

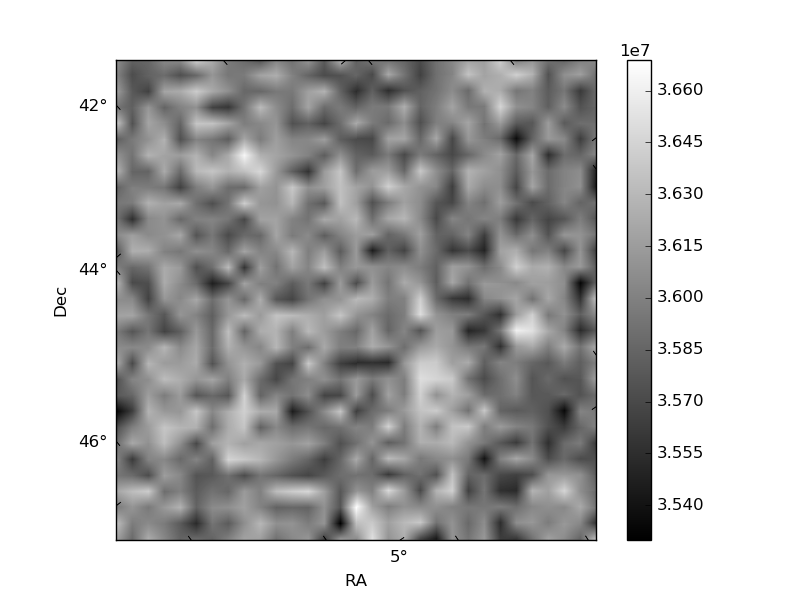

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

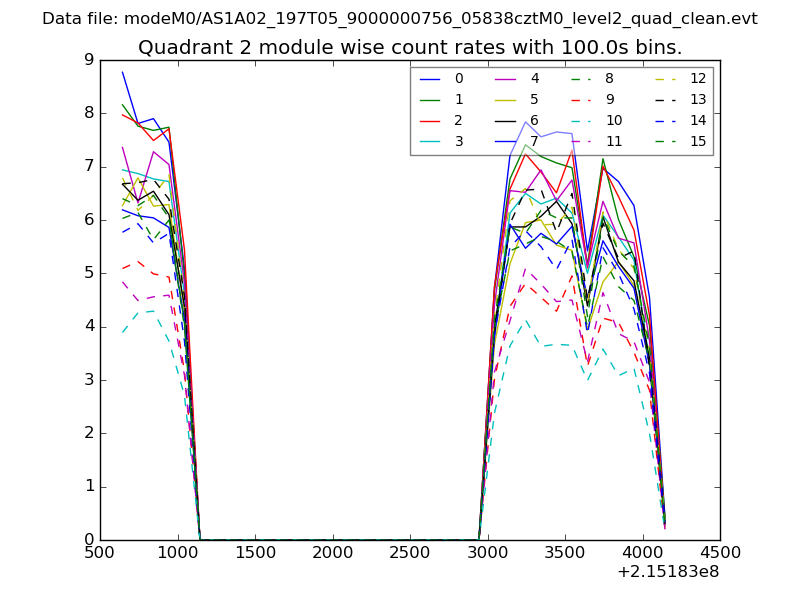

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

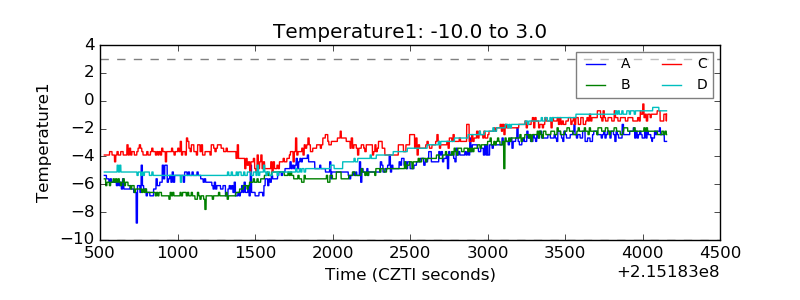

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

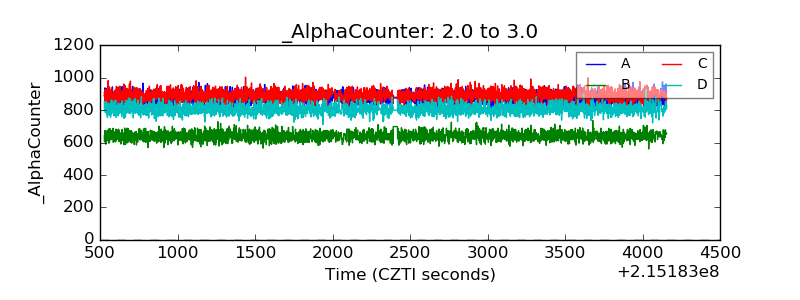

| Alpha Counter |  |

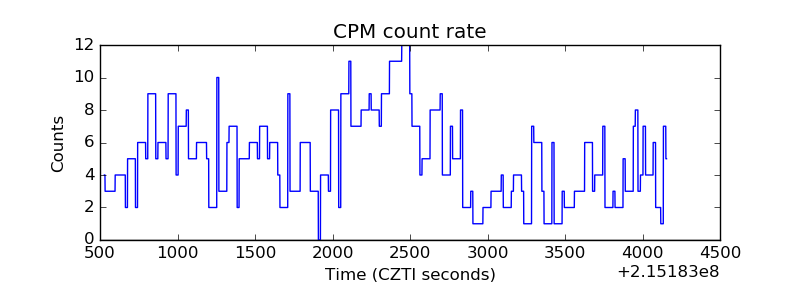

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

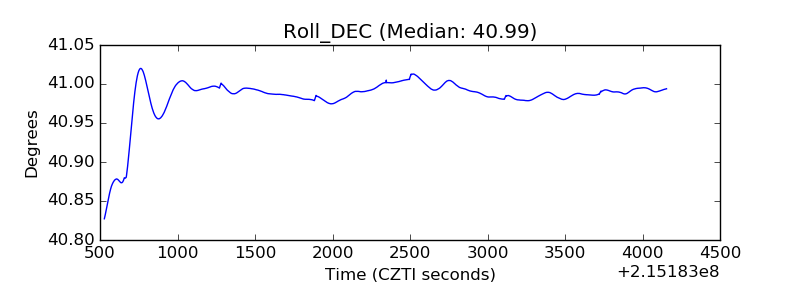

| _Roll_DEC |  |
| _Roll_RA |  |

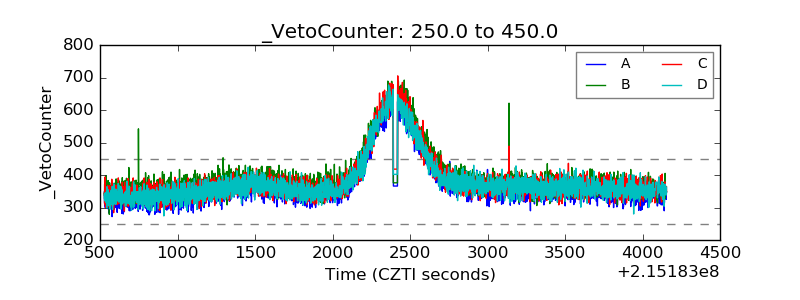

| Veto Counter |  |
