| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_039T01_9000000758_05845cztM0_level2.evt | modeM0/AS1G06_039T01_9000000758_05845cztM0_level2_quad_clean.evt |
| Size (bytes) | 395,530,560 | 103,098,240 |
| Size | 377.2 MB | 98.3 MB |
| Events in quadrant A | 2,763,063 | 680,710 |
| Events in quadrant B | 2,865,152 | 683,562 |
| Events in quadrant C | 2,716,254 | 681,831 |
| Events in quadrant D | 3,209,158 | 640,567 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12738 | 3 |
| B | 0 | 12958 | 2 |
| C | 0 | 12693 | 2 |
| D | 0 | 14060 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6240 | 15 | 0.240385% |
| B | 6240 | 19 | 0.304487% |
| C | 6240 | 10 | 0.160256% |
| D | 6240 | 81 | 1.298077% |

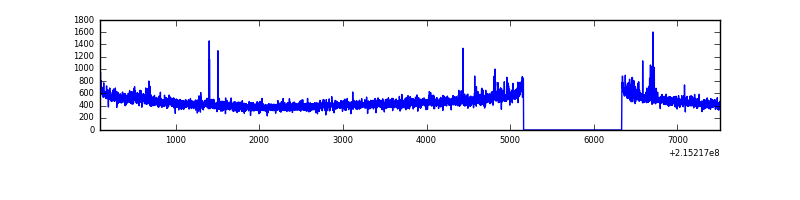

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7415 | 6241 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7415 | 6241 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7415 | 6241 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7415 | 6241 | 62 | 62 | 0.84% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 19770 | 131.47 | 706 | 692 | 145.1 |
| A | 0 | 31 | 15882 | 104.68 | 706 | 692 | 145.1 |
| A | 14 | 111 | 8094 | 51.01 | 706 | 692 | 145.1 |
| B | 0 | 214 | 25390 | 181.4 | 716 | 698 | 136.1 |
| B | 15 | 85 | 20509 | 145.54 | 716 | 698 | 136.1 |
| B | 4 | 48 | 17954 | 126.77 | 716 | 698 | 136.1 |
| C | 13 | 61 | 5821 | 32.2 | 693 | 695 | 159.2 |
| C | 12 | 4 | 5213 | 28.38 | 693 | 695 | 159.2 |
| C | 1 | 16 | 3166 | 15.52 | 693 | 695 | 159.2 |
| D | 1 | 239 | 435387 | 2634.61 | 679 | 657 | 165.0 |
| D | 2 | 16 | 51195 | 306.28 | 679 | 657 | 165.0 |
| D | 8 | 195 | 35542 | 211.41 | 679 | 657 | 165.0 |

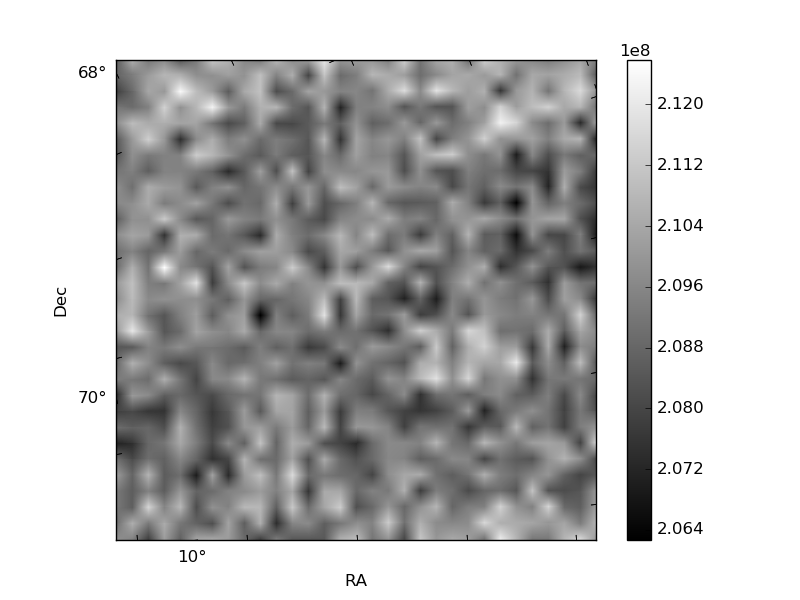

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

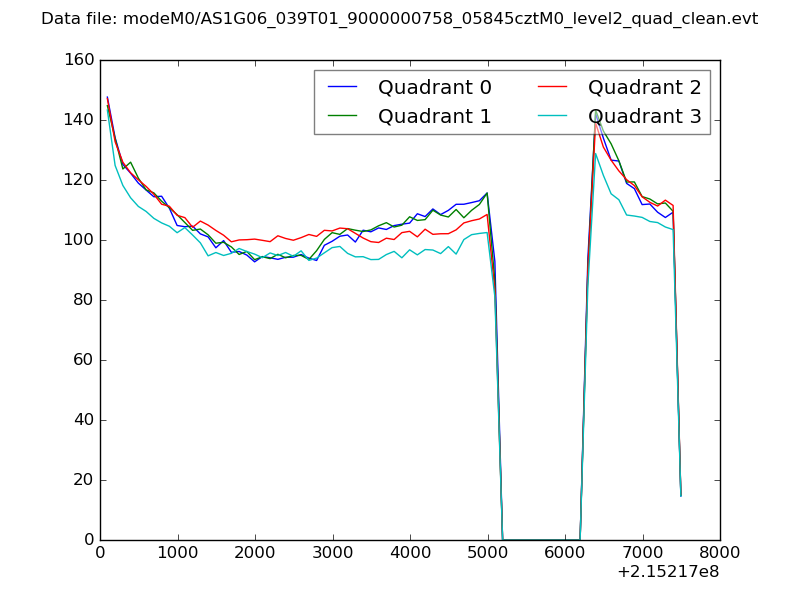

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

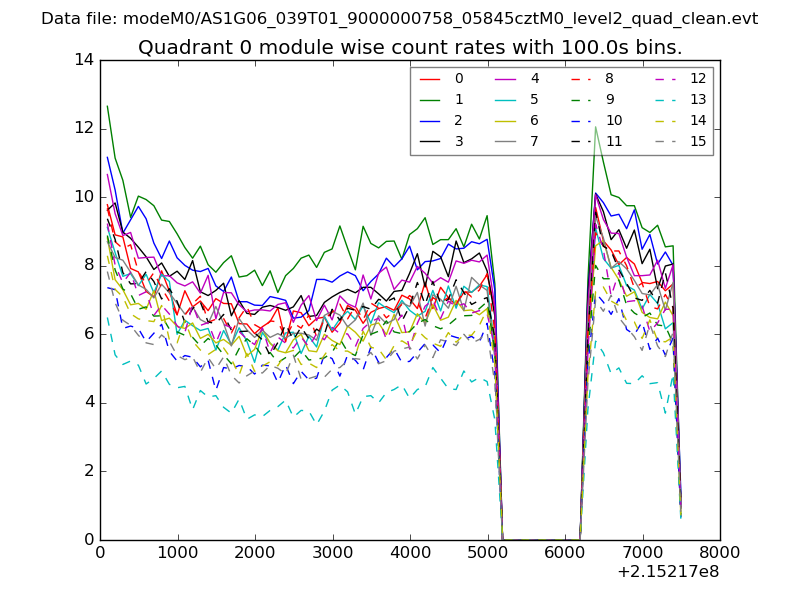

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

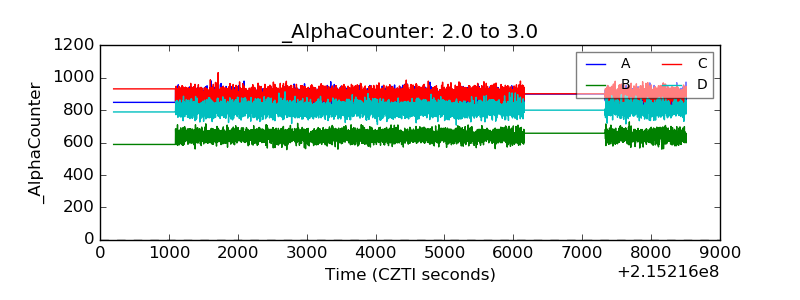

| Alpha Counter |  |
| _CPM_Rate |  |

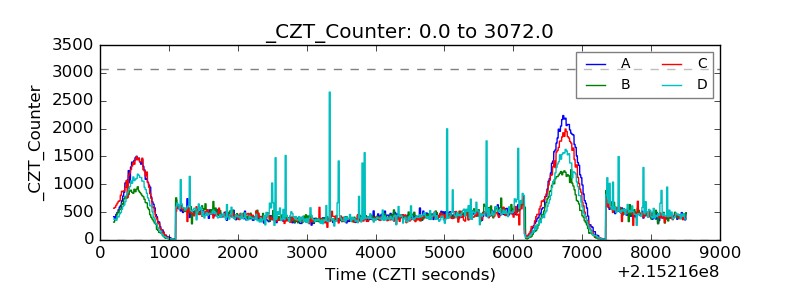

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

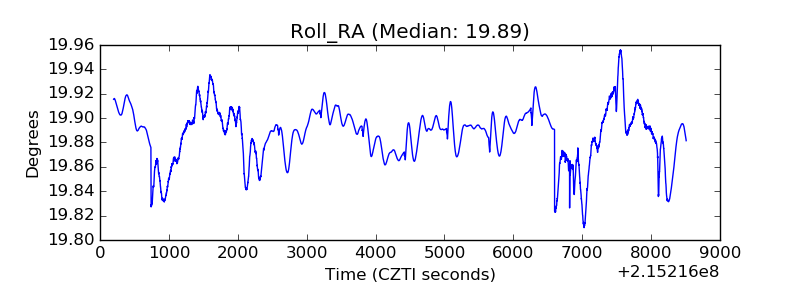

| _Roll_RA |  |

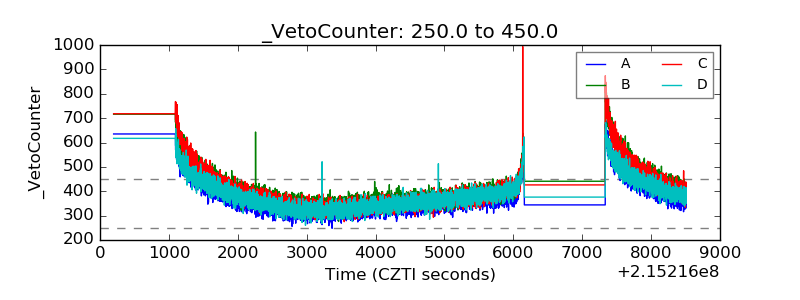

| Veto Counter |  |
