| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000760_05859cztM0_level2.evt | modeM0/AS1G06_033T01_9000000760_05859cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,615,040 | 68,670,720 |
| Size | 483.1 MB | 65.5 MB |
| Events in quadrant A | 3,124,645 | 410,931 |
| Events in quadrant B | 3,229,744 | 411,513 |
| Events in quadrant C | 3,185,303 | 406,249 |
| Events in quadrant D | 5,341,452 | 376,346 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13941 | 3 |
| B | 0 | 14044 | 2 |
| C | 0 | 14067 | 2 |
| D | 0 | 20544 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6802 | 12 | 0.176419% |
| B | 6802 | 11 | 0.161717% |
| C | 6802 | 9 | 0.132314% |
| D | 6802 | 440 | 6.468686% |

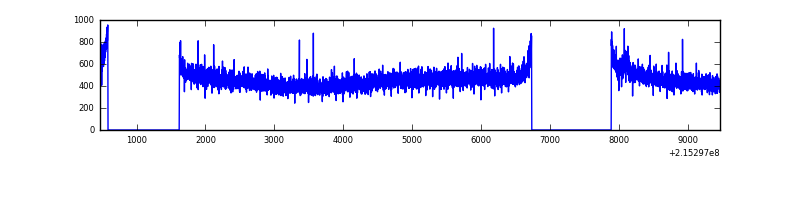

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8992 | 6804 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8992 | 6804 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8992 | 6804 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8992 | 6804 | 350 | 350 | 3.89% | 5.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 12451 | 71.46 | 805 | 789 | 163.2 |
| A | 15 | 234 | 10259 | 58.03 | 805 | 789 | 163.2 |
| A | 12 | 194 | 7911 | 43.64 | 805 | 789 | 163.2 |
| B | 15 | 204 | 19944 | 121.8 | 819 | 801 | 157.2 |
| B | 12 | 111 | 14756 | 88.79 | 819 | 801 | 157.2 |
| B | 15 | 85 | 11603 | 68.73 | 819 | 801 | 157.2 |
| C | 1 | 241 | 111419 | 604.56 | 786 | 792 | 183.0 |
| C | 13 | 61 | 6385 | 30.56 | 786 | 792 | 183.0 |
| C | 8 | 222 | 4253 | 18.91 | 786 | 792 | 183.0 |
| D | 2 | 152 | 1223701 | 6397.84 | 767 | 744 | 191.2 |
| D | 1 | 20 | 730632 | 3818.37 | 767 | 744 | 191.2 |
| D | 1 | 239 | 118667 | 616.91 | 767 | 744 | 191.2 |

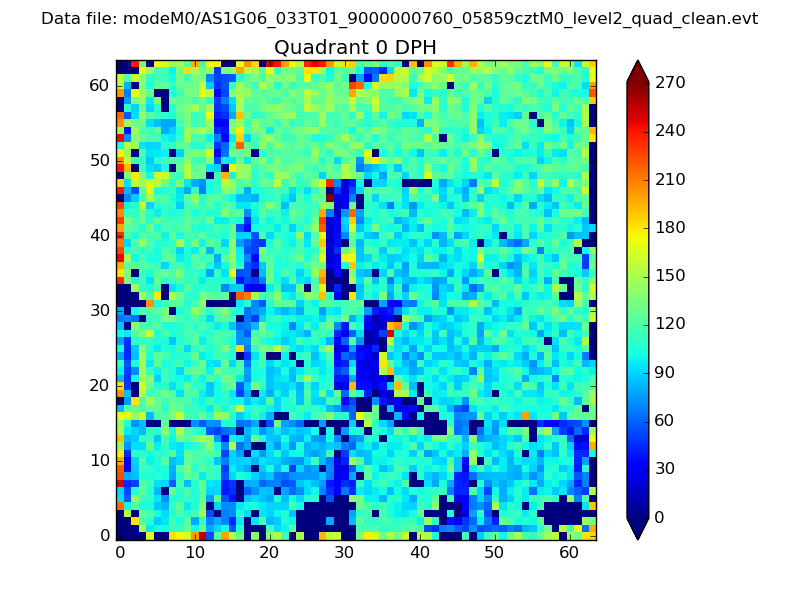

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

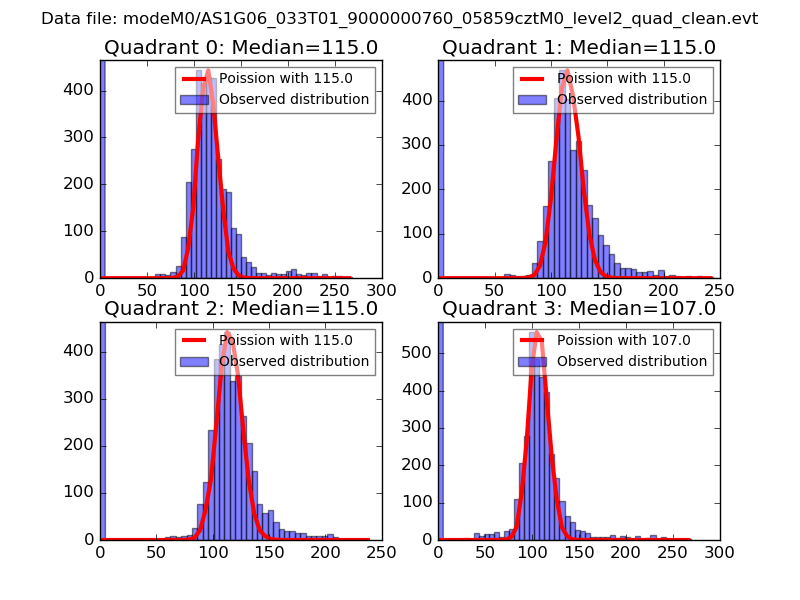

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

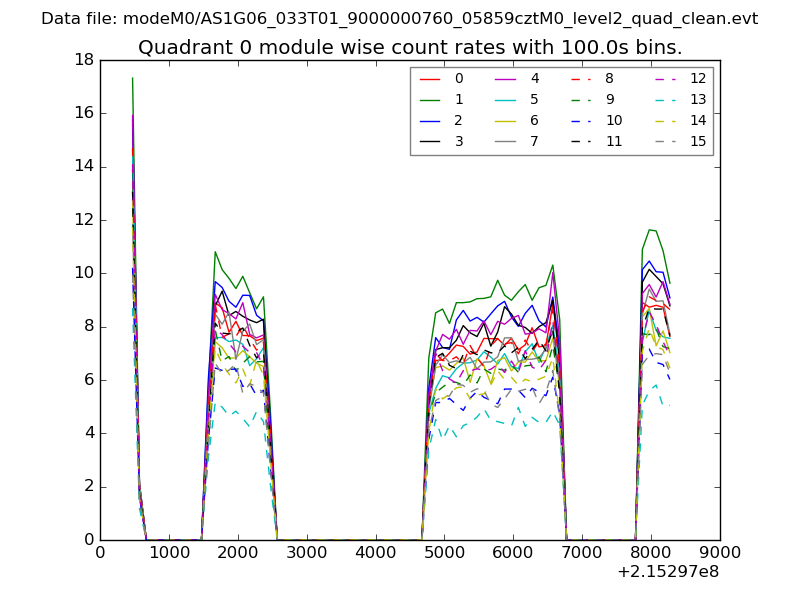

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

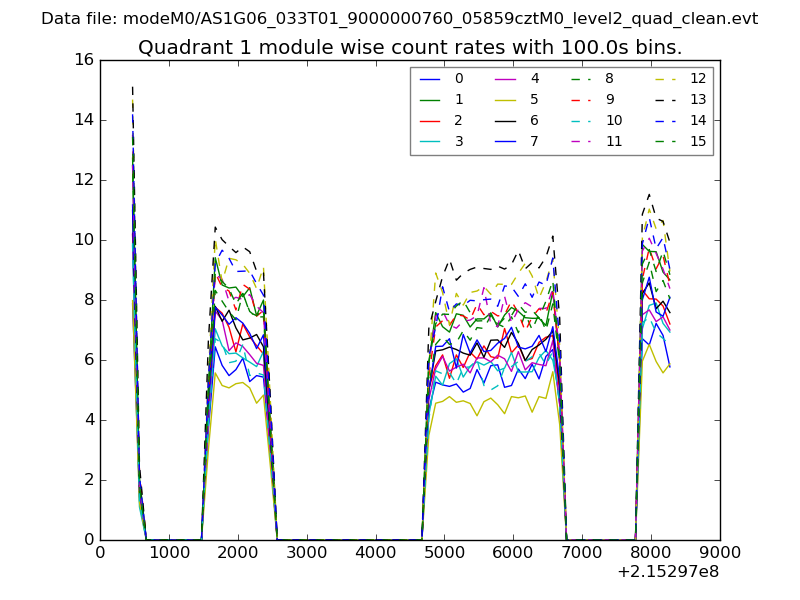

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

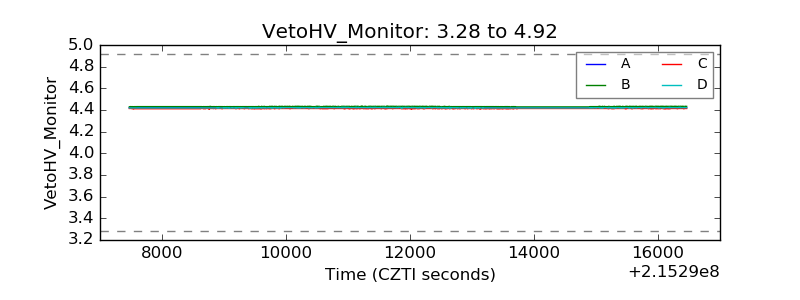

| Veto HV Monitor |  |
| Veto LLD |  |

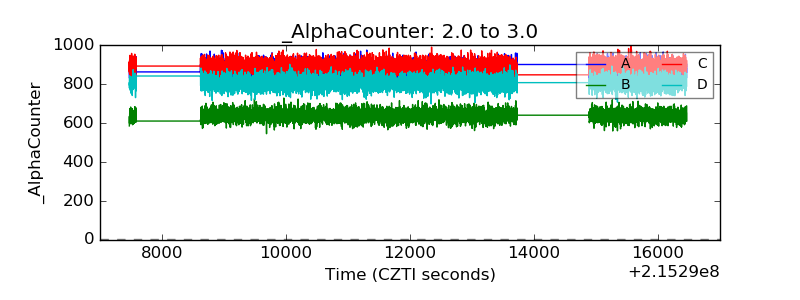

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

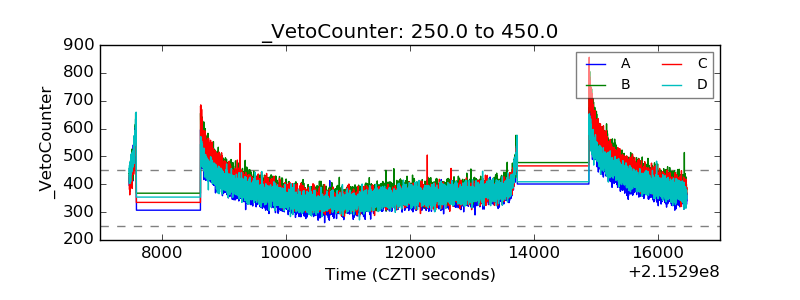

| Veto Counter |  |
