| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000760_05860cztM0_level2.evt | modeM0/AS1G06_033T01_9000000760_05860cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,293,120 | 57,942,720 |
| Size | 473.3 MB | 55.3 MB |
| Events in quadrant A | 3,091,864 | 329,745 |
| Events in quadrant B | 3,202,131 | 333,698 |
| Events in quadrant C | 3,049,528 | 331,272 |
| Events in quadrant D | 5,241,042 | 301,369 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13484 | 3 |
| B | 0 | 13620 | 2 |
| C | 0 | 13424 | 2 |
| D | 0 | 19879 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6564 | 28 | 0.426569% |
| B | 6564 | 30 | 0.457038% |
| C | 6564 | 24 | 0.365631% |
| D | 6564 | 408 | 6.215722% |

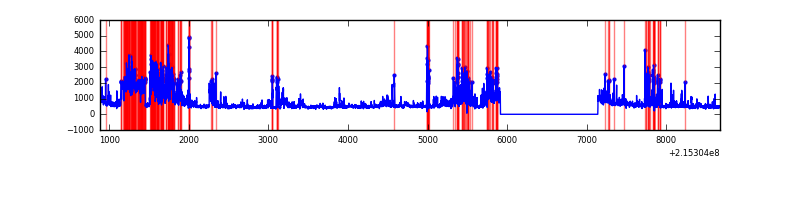

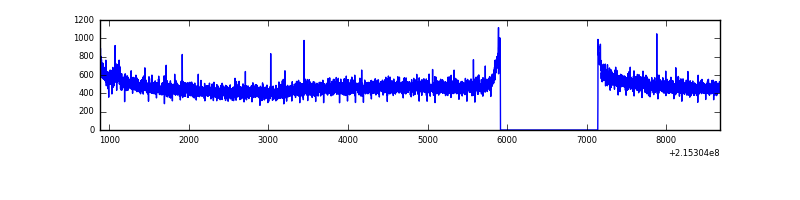

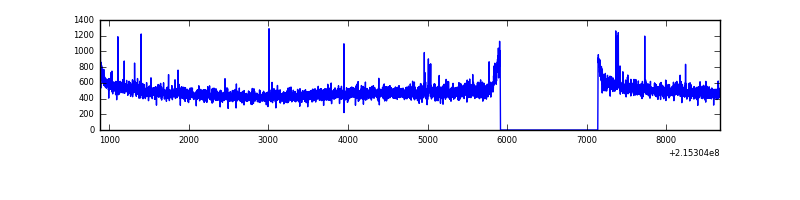

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7789 | 6565 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7789 | 6565 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7789 | 6565 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7789 | 6565 | 344 | 344 | 4.42% | 5.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 9558 | 53.92 | 801 | 785 | 162.7 |
| A | 0 | 226 | 7794 | 43.08 | 801 | 785 | 162.7 |
| A | 12 | 194 | 7535 | 41.49 | 801 | 785 | 162.7 |
| B | 15 | 204 | 22402 | 139.84 | 813 | 795 | 154.5 |
| B | 12 | 111 | 14294 | 87.36 | 813 | 795 | 154.5 |
| B | 15 | 85 | 11757 | 70.94 | 813 | 795 | 154.5 |
| C | 13 | 61 | 6508 | 31.49 | 780 | 789 | 181.6 |
| C | 1 | 241 | 2613 | 10.04 | 780 | 789 | 181.6 |
| C | 14 | 67 | 2301 | 8.32 | 780 | 789 | 181.6 |
| D | 2 | 152 | 1209170 | 6506.84 | 756 | 734 | 185.7 |
| D | 1 | 20 | 468284 | 2517.53 | 756 | 734 | 185.7 |
| D | 1 | 239 | 343141 | 1843.69 | 756 | 734 | 185.7 |

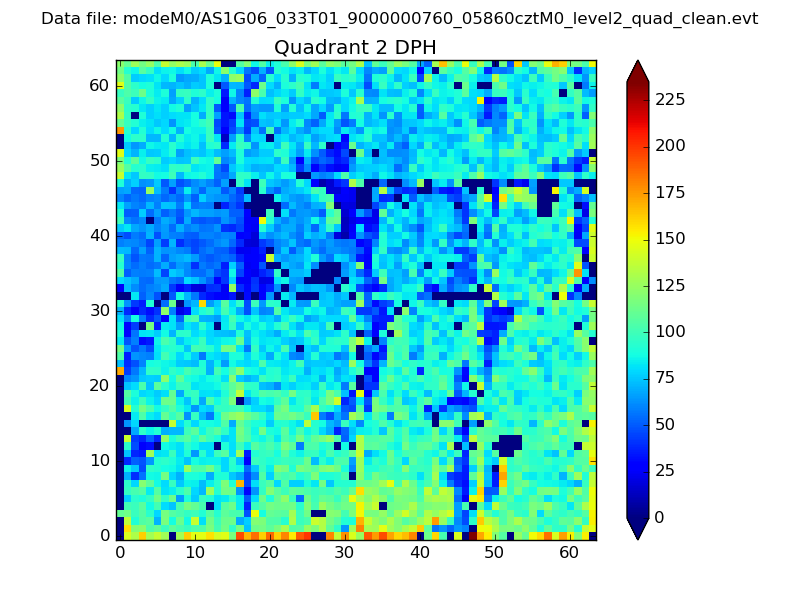

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

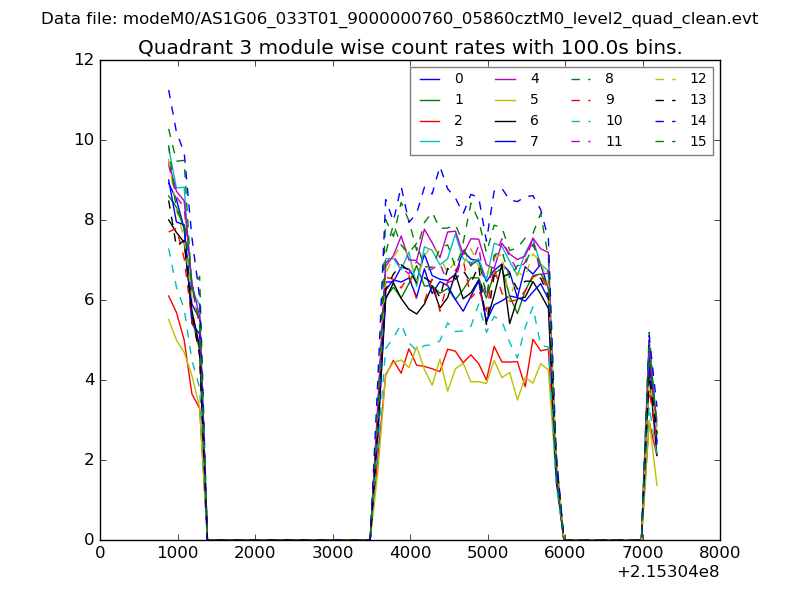

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

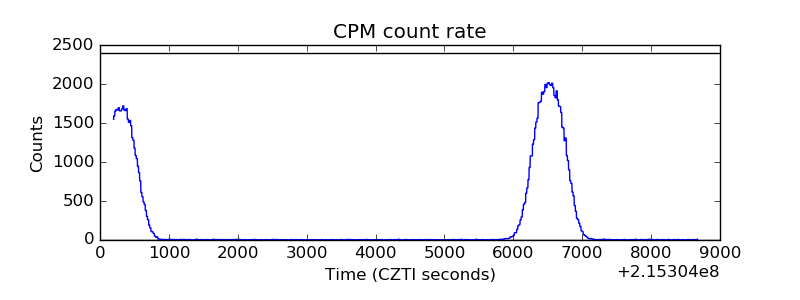

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

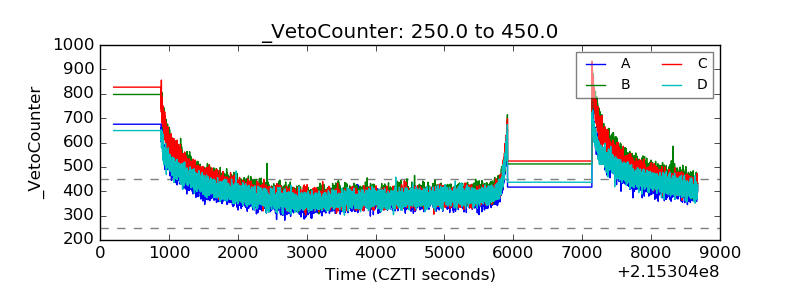

| Veto Counter |  |
