| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000760_05863cztM0_level2.evt | modeM0/AS1G06_033T01_9000000760_05863cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,979,520 | 70,516,800 |
| Size | 442.5 MB | 67.3 MB |
| Events in quadrant A | 3,210,286 | 426,289 |
| Events in quadrant B | 3,311,835 | 429,121 |
| Events in quadrant C | 3,118,603 | 426,942 |
| Events in quadrant D | 3,970,119 | 400,270 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13694 | 3 |
| B | 0 | 13832 | 4 |
| C | 0 | 13542 | 2 |
| D | 0 | 16011 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6484 | 163 | 2.513880% |
| B | 6483 | 184 | 2.838192% |
| C | 6484 | 130 | 2.004935% |
| D | 6484 | 230 | 3.547193% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6484 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7594 | 6485 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7594 | 6485 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7594 | 6485 | 89 | 89 | 1.17% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 43584 | 252.83 | 823 | 805 | 169.2 |
| A | 12 | 194 | 8026 | 42.68 | 823 | 805 | 169.2 |
| A | 0 | 226 | 7920 | 42.05 | 823 | 805 | 169.2 |
| B | 15 | 204 | 42850 | 258.72 | 834 | 815 | 162.5 |
| B | 0 | 214 | 25831 | 153.97 | 834 | 815 | 162.5 |
| B | 12 | 111 | 15055 | 87.64 | 834 | 815 | 162.5 |
| C | 13 | 61 | 6206 | 29.0 | 797 | 801 | 186.4 |
| C | 14 | 67 | 5153 | 23.35 | 797 | 801 | 186.4 |
| C | 1 | 16 | 3029 | 11.96 | 797 | 801 | 186.4 |
| D | 2 | 152 | 743686 | 3802.48 | 794 | 772 | 195.4 |
| D | 2 | 136 | 60367 | 305.03 | 794 | 772 | 195.4 |
| D | 12 | 79 | 39123 | 196.29 | 794 | 772 | 195.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

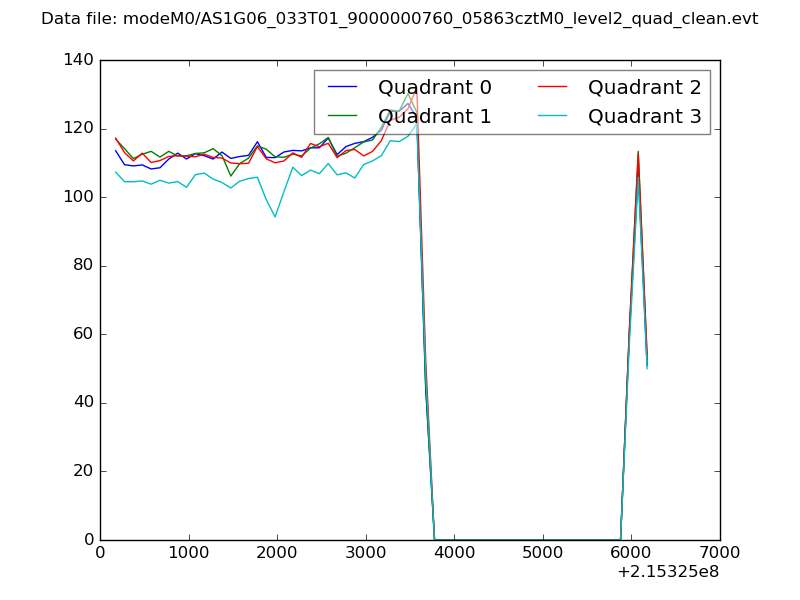

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

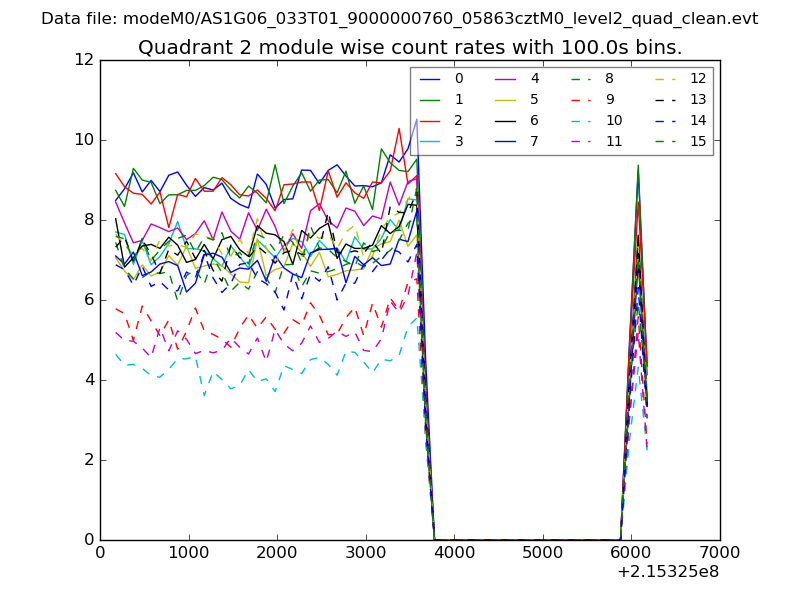

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

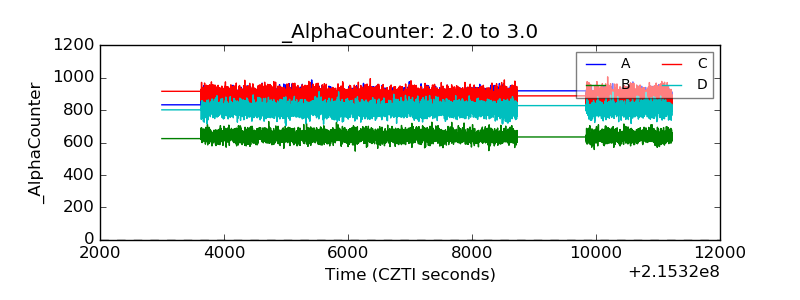

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
