| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000760_05873cztM0_level2.evt | modeM0/AS1G06_033T01_9000000760_05873cztM0_level2_quad_clean.evt |
| Size (bytes) | 439,758,720 | 63,947,520 |
| Size | 419.4 MB | 61.0 MB |
| Events in quadrant A | 2,764,637 | 383,125 |
| Events in quadrant B | 2,933,060 | 385,070 |
| Events in quadrant C | 2,737,373 | 382,892 |
| Events in quadrant D | 4,463,787 | 354,274 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12499 | 2 |
| B | 0 | 12802 | 1 |
| C | 0 | 12492 | 1 |
| D | 0 | 17641 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6168 | 9 | 0.145914% |
| B | 6168 | 27 | 0.437743% |
| C | 6168 | 6 | 0.097276% |
| D | 6167 | 169 | 2.740392% |

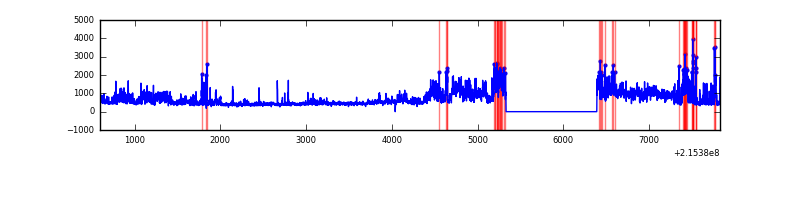

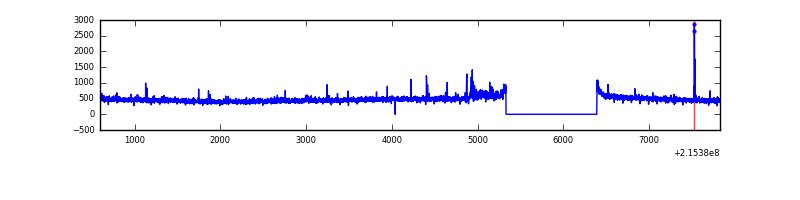

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7230 | 6170 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7230 | 6170 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7230 | 6170 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7229 | 6169 | 55 | 55 | 0.76% | 0.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6966 | 42.56 | 717 | 702 | 147.2 |
| A | 12 | 194 | 6879 | 41.97 | 717 | 702 | 147.2 |
| A | 13 | 254 | 3912 | 21.81 | 717 | 702 | 147.2 |
| B | 0 | 214 | 30947 | 215.28 | 728 | 712 | 140.4 |
| B | 0 | 219 | 25706 | 177.96 | 728 | 712 | 140.4 |
| B | 15 | 204 | 21482 | 147.89 | 728 | 712 | 140.4 |
| C | 13 | 61 | 5588 | 29.6 | 701 | 705 | 164.9 |
| C | 12 | 4 | 2010 | 7.91 | 701 | 705 | 164.9 |
| C | 8 | 222 | 1878 | 7.11 | 701 | 705 | 164.9 |
| D | 13 | 105 | 842160 | 4901.28 | 693 | 673 | 171.7 |
| D | 2 | 136 | 396834 | 2307.46 | 693 | 673 | 171.7 |
| D | 2 | 152 | 267423 | 1553.7 | 693 | 673 | 171.7 |

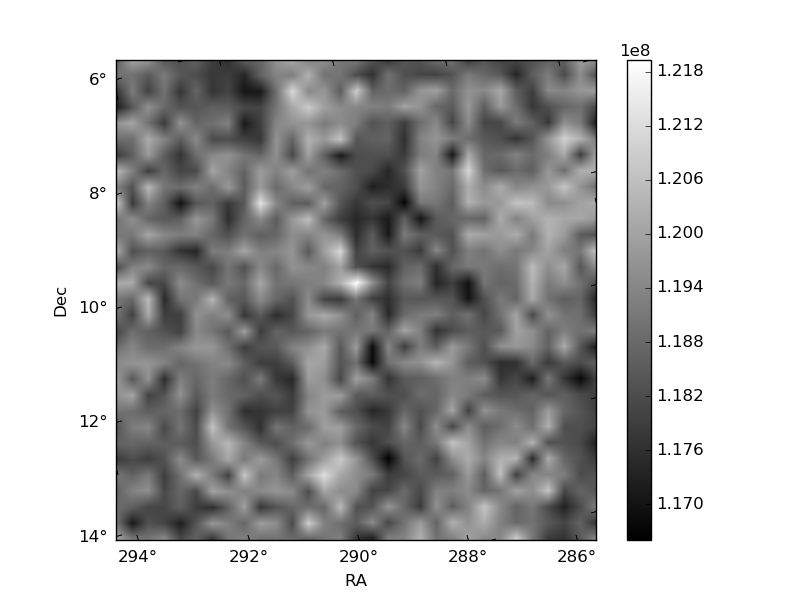

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

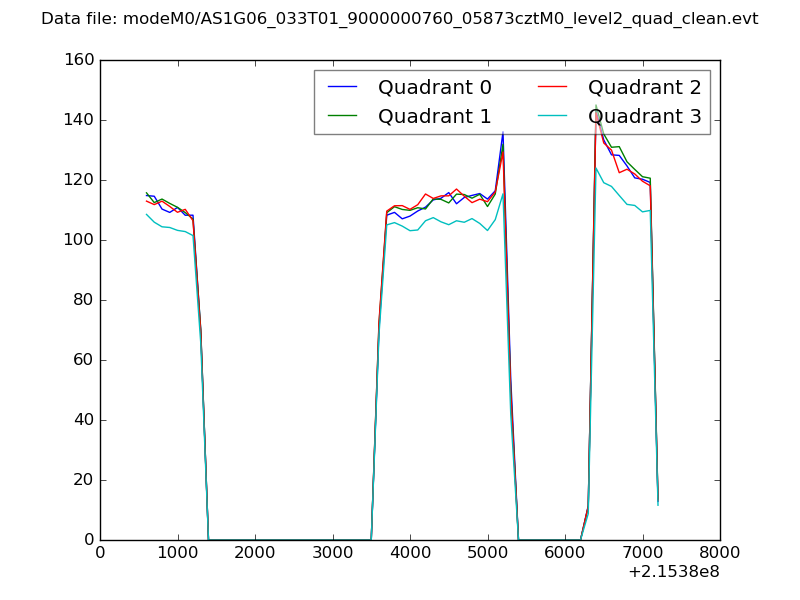

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

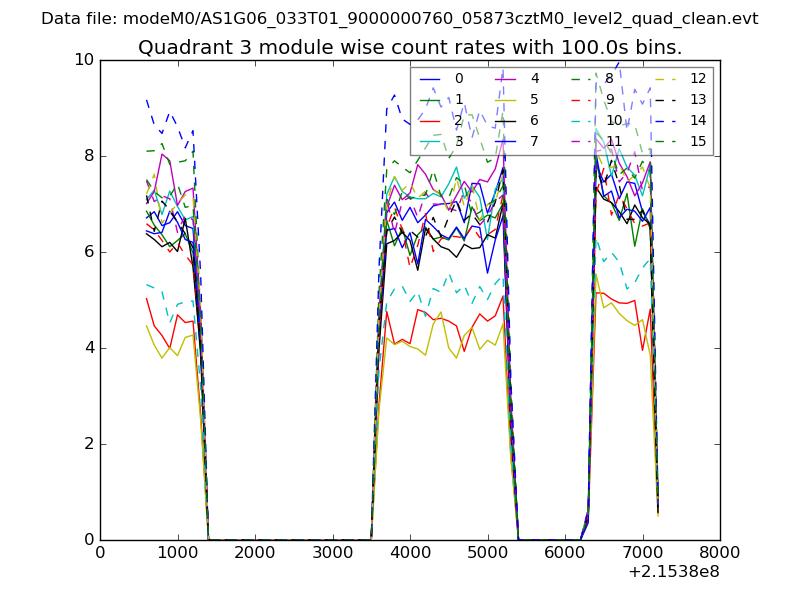

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

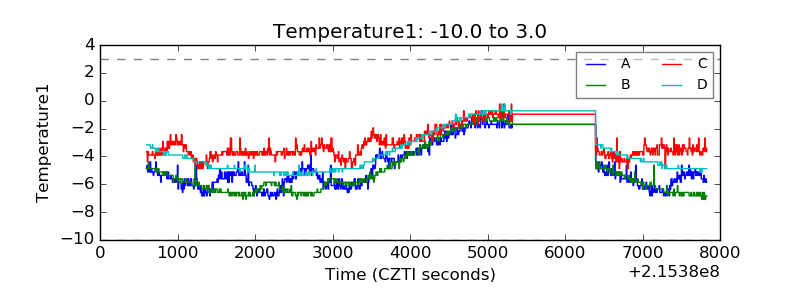

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

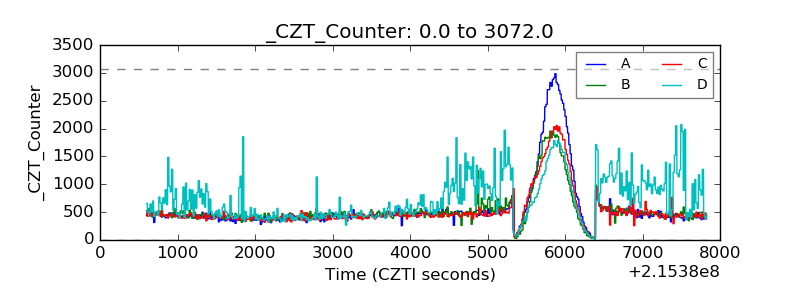

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

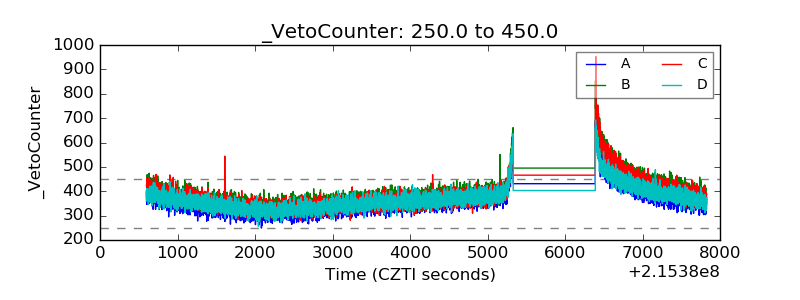

| Veto Counter |  |
