| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_033T01_9000000760_05874cztM0_level2.evt | modeM0/AS1G06_033T01_9000000760_05874cztM0_level2_quad_clean.evt |
| Size (bytes) | 292,224,960 | 37,500,480 |
| Size | 278.7 MB | 35.8 MB |
| Events in quadrant A | 1,829,350 | 213,843 |
| Events in quadrant B | 1,889,649 | 217,943 |
| Events in quadrant C | 1,822,214 | 216,968 |
| Events in quadrant D | 3,029,790 | 197,902 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 0 |
| B | 0 | 82 | 0 |
| C | 0 | 82 | 0 |
| D | 0 | 82 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8274 | 1 |
| B | 0 | 8360 | 1 |
| C | 0 | 8266 | 1 |
| D | 0 | 11937 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4087 | 5 | 0.122339% |
| B | 4087 | 12 | 0.293614% |
| C | 4087 | 2 | 0.048936% |
| D | 4087 | 106 | 2.593589% |

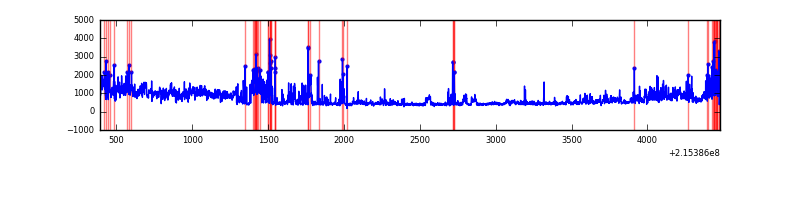

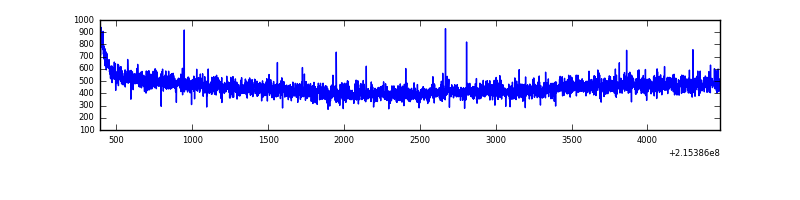

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4087 | 4087 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4087 | 4087 | 2 | 2 | 0.05% | 0.05% |  |
| C | 4087 | 4087 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4087 | 4087 | 57 | 57 | 1.39% | 1.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 4676 | 43.27 | 473 | 465 | 97.3 |
| A | 12 | 194 | 4438 | 40.82 | 473 | 465 | 97.3 |
| A | 10 | 1 | 3316 | 29.29 | 473 | 465 | 97.3 |
| B | 4 | 48 | 11727 | 120.26 | 482 | 471 | 93.6 |
| B | 12 | 111 | 8801 | 89.0 | 482 | 471 | 93.6 |
| B | 11 | 111 | 6898 | 68.67 | 482 | 471 | 93.6 |
| C | 13 | 61 | 3674 | 29.08 | 466 | 470 | 110.2 |
| C | 12 | 4 | 2131 | 15.08 | 466 | 470 | 110.2 |
| C | 8 | 222 | 1316 | 7.68 | 466 | 470 | 110.2 |
| D | 13 | 105 | 584845 | 5109.48 | 455 | 441 | 114.4 |
| D | 2 | 136 | 317902 | 2775.58 | 455 | 441 | 114.4 |
| D | 2 | 152 | 286826 | 2503.88 | 455 | 441 | 114.4 |

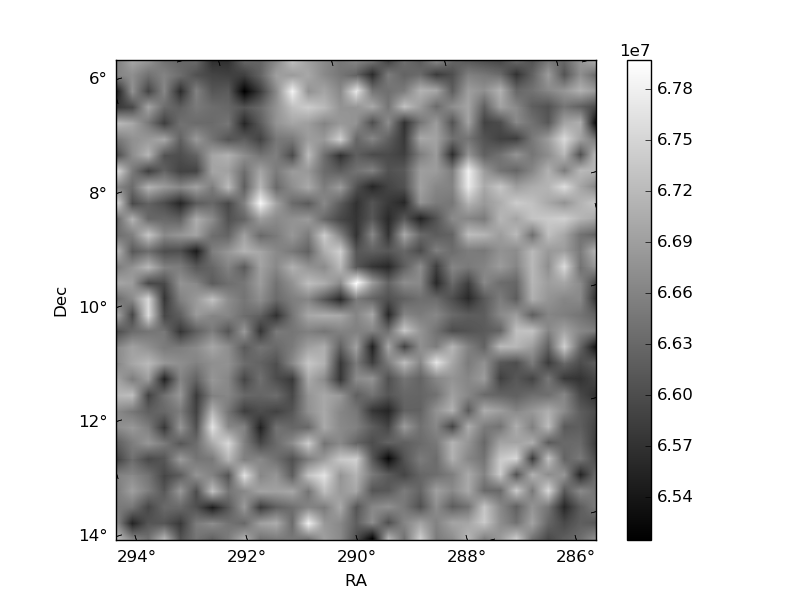

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

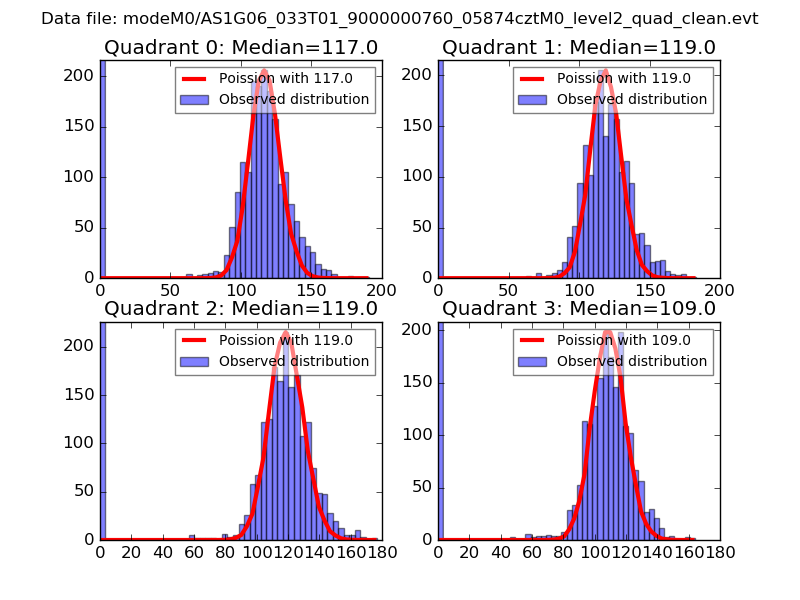

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

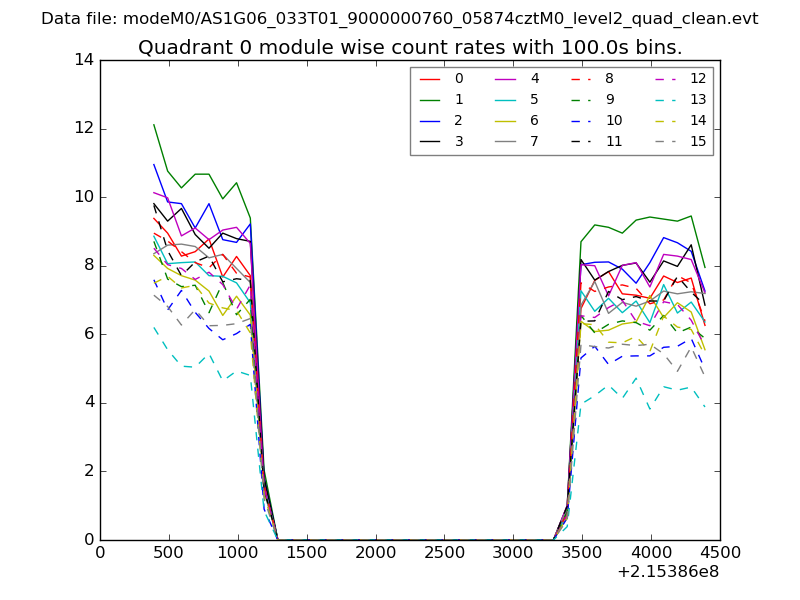

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

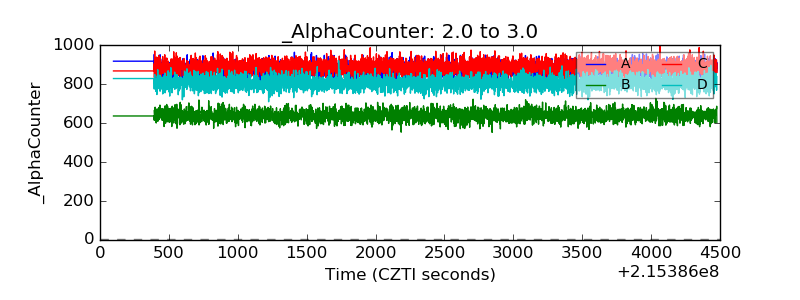

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

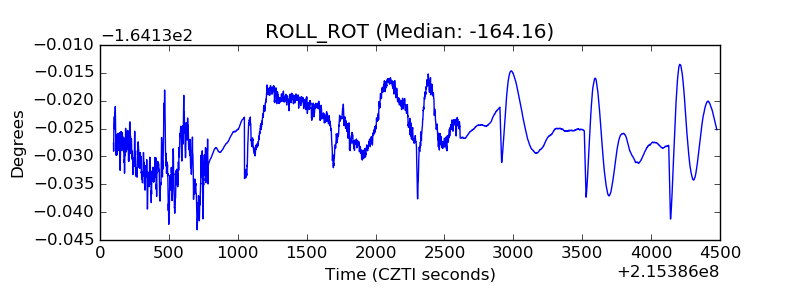

| _ROLL_ROT |  |

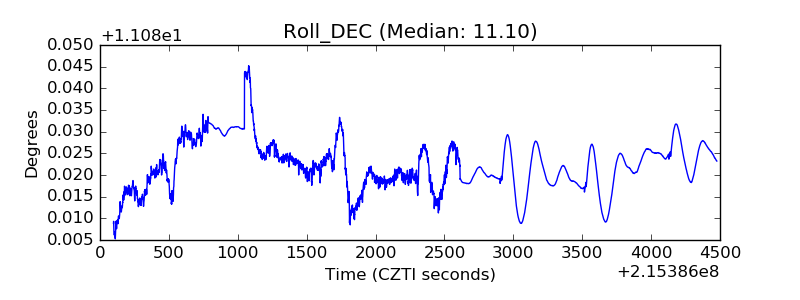

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
