| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_023T01_9000000762_05875cztM0_level2.evt | modeM0/AS1G06_023T01_9000000762_05875cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,373,760 | 90,322,560 |
| Size | 447.6 MB | 86.1 MB |
| Events in quadrant A | 2,987,572 | 586,673 |
| Events in quadrant B | 3,036,160 | 599,183 |
| Events in quadrant C | 2,809,430 | 580,177 |
| Events in quadrant D | 4,951,127 | 526,676 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13259 | 3 |
| B | 0 | 13322 | 2 |
| C | 0 | 12924 | 2 |
| D | 0 | 19407 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6344 | 23 | 0.362547% |
| B | 6344 | 29 | 0.457125% |
| C | 6344 | 10 | 0.157629% |
| D | 6344 | 278 | 4.382093% |

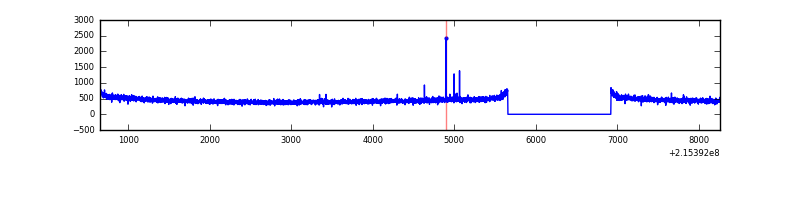

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 6345 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7609 | 6345 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7609 | 6345 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7609 | 6345 | 196 | 196 | 2.58% | 3.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 91730 | 614.13 | 729 | 714 | 148.2 |
| A | 8 | 6 | 45073 | 299.31 | 729 | 714 | 148.2 |
| A | 7 | 16 | 28597 | 188.14 | 729 | 714 | 148.2 |
| B | 15 | 204 | 70196 | 498.4 | 746 | 730 | 139.4 |
| B | 4 | 48 | 22974 | 159.59 | 746 | 730 | 139.4 |
| B | 4 | 81 | 16948 | 116.36 | 746 | 730 | 139.4 |
| C | 1 | 16 | 12820 | 73.35 | 715 | 719 | 165.0 |
| C | 13 | 61 | 5774 | 30.64 | 715 | 719 | 165.0 |
| C | 1 | 241 | 2567 | 11.2 | 715 | 719 | 165.0 |
| D | 13 | 105 | 842229 | 4997.26 | 693 | 671 | 168.4 |
| D | 2 | 136 | 606298 | 3596.28 | 693 | 671 | 168.4 |
| D | 2 | 152 | 504714 | 2993.06 | 693 | 671 | 168.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

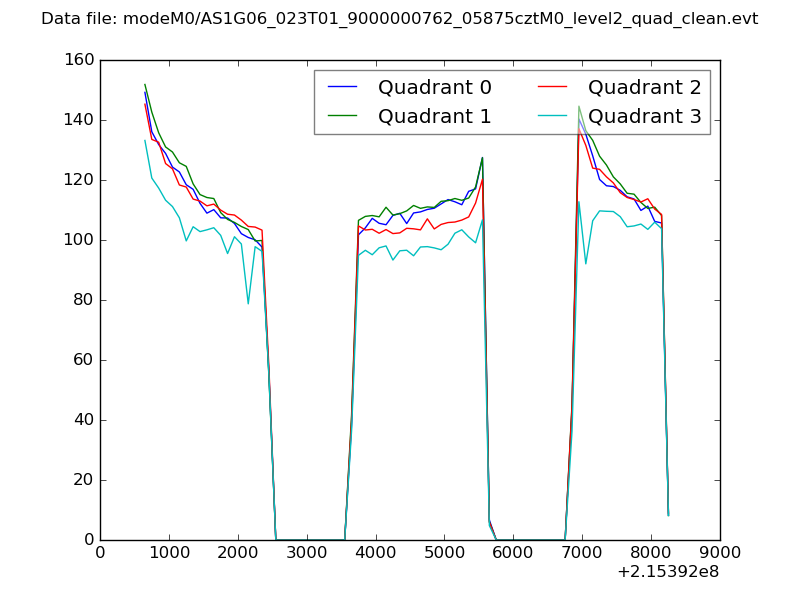

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

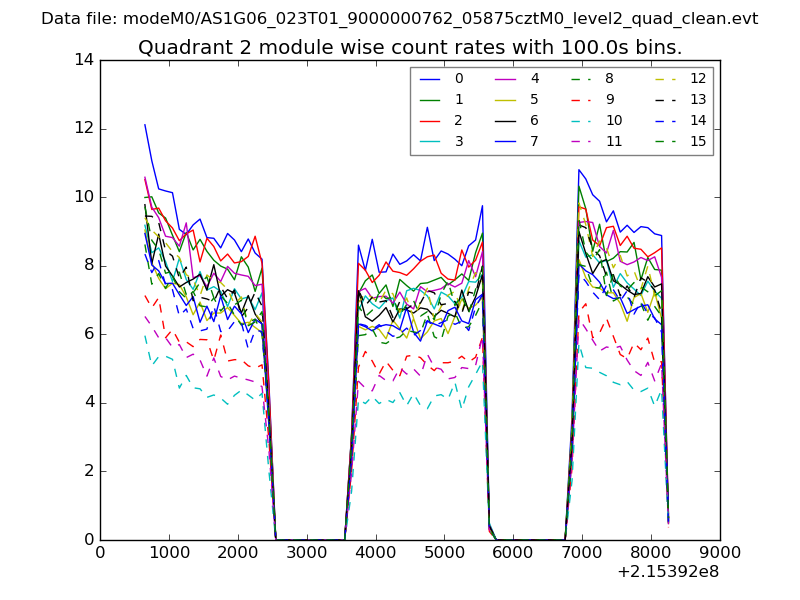

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

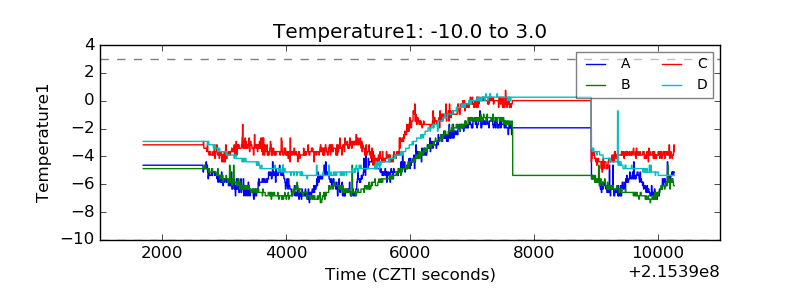

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

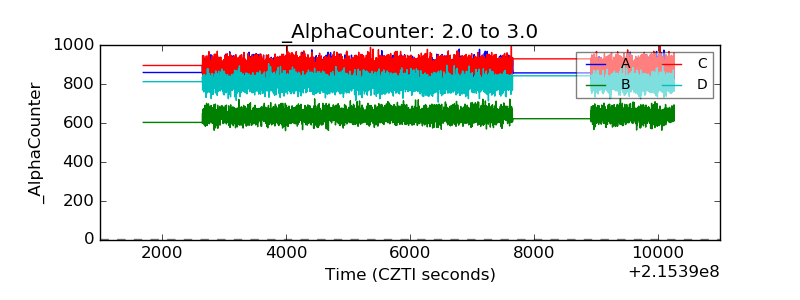

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

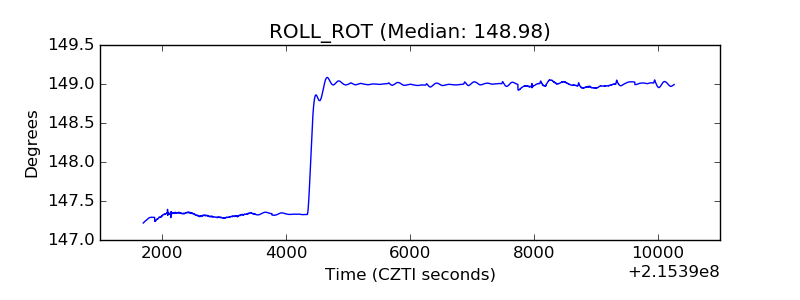

| _ROLL_ROT |  |
| _Roll_DEC |  |

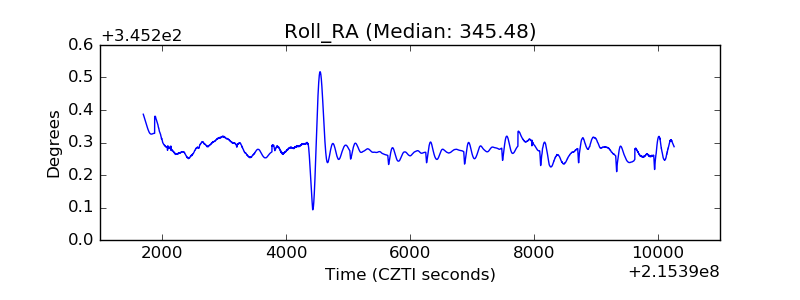

| _Roll_RA |  |

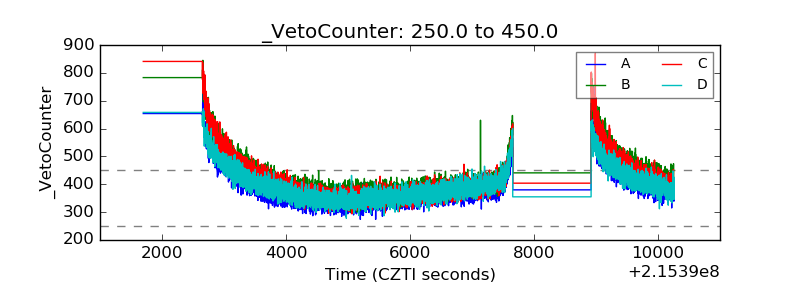

| Veto Counter |  |
