| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_023T01_9000000762_05878cztM0_level2.evt | modeM0/AS1G06_023T01_9000000762_05878cztM0_level2_quad_clean.evt |
| Size (bytes) | 411,785,280 | 73,039,680 |
| Size | 392.7 MB | 69.7 MB |
| Events in quadrant A | 2,890,357 | 449,618 |
| Events in quadrant B | 3,021,615 | 455,551 |
| Events in quadrant C | 2,864,248 | 436,819 |
| Events in quadrant D | 3,250,473 | 414,363 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13275 | 2 |
| B | 0 | 13442 | 1 |
| C | 0 | 13348 | 1 |
| D | 0 | 14481 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6530 | 36 | 0.551302% |
| B | 6530 | 37 | 0.566616% |
| C | 6530 | 25 | 0.382848% |
| D | 6530 | 38 | 0.581930% |

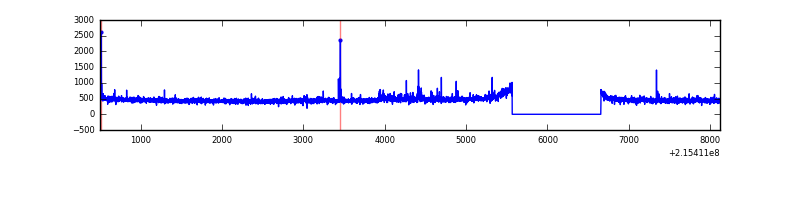

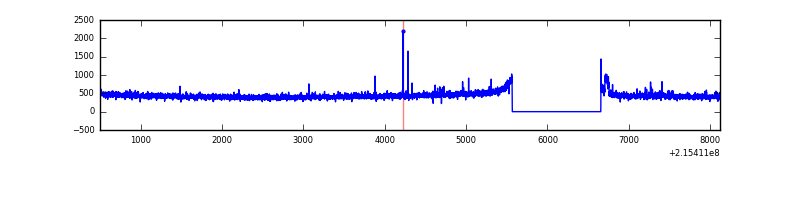

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7620 | 6531 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7620 | 6531 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7620 | 6531 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7620 | 6531 | 17 | 17 | 0.22% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 25487 | 165.02 | 742 | 725 | 150.1 |
| A | 0 | 226 | 7152 | 42.83 | 742 | 725 | 150.1 |
| A | 12 | 194 | 7036 | 42.06 | 742 | 725 | 150.1 |
| B | 0 | 214 | 28938 | 198.17 | 755 | 738 | 142.3 |
| B | 4 | 48 | 16294 | 109.31 | 755 | 738 | 142.3 |
| B | 4 | 81 | 15588 | 104.35 | 755 | 738 | 142.3 |
| C | 1 | 16 | 34156 | 203.14 | 718 | 720 | 164.6 |
| C | 1 | 241 | 19044 | 111.33 | 718 | 720 | 164.6 |
| C | 13 | 61 | 5750 | 30.56 | 718 | 720 | 164.6 |
| D | 2 | 152 | 361732 | 2074.94 | 711 | 687 | 174.0 |
| D | 2 | 136 | 84347 | 480.8 | 711 | 687 | 174.0 |
| D | 2 | 14 | 69806 | 397.23 | 711 | 687 | 174.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

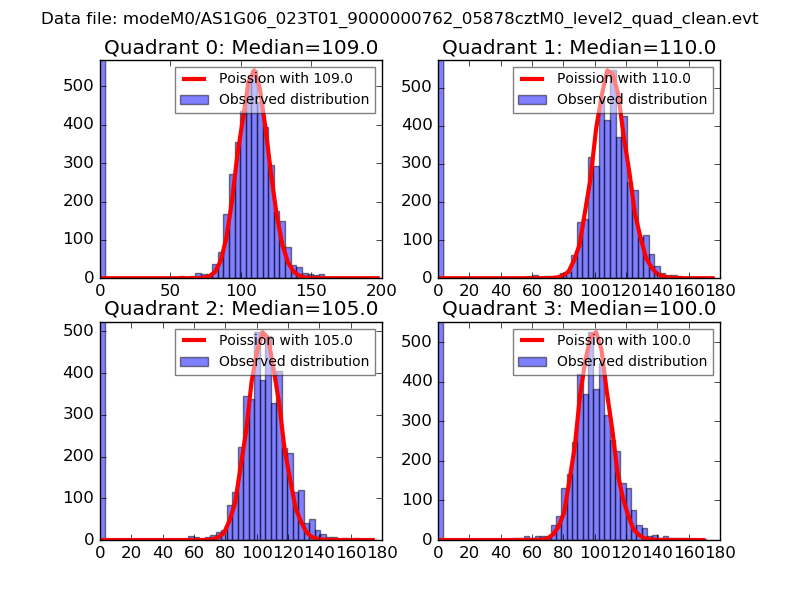

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

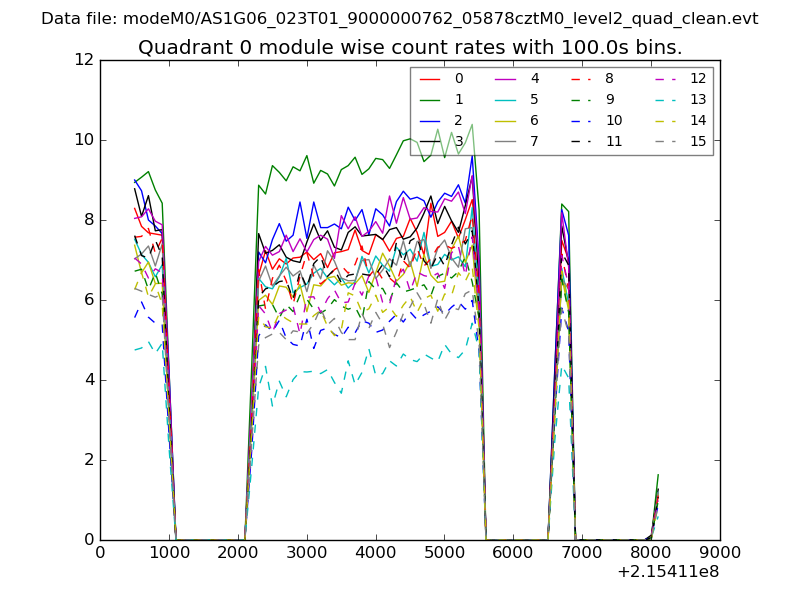

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

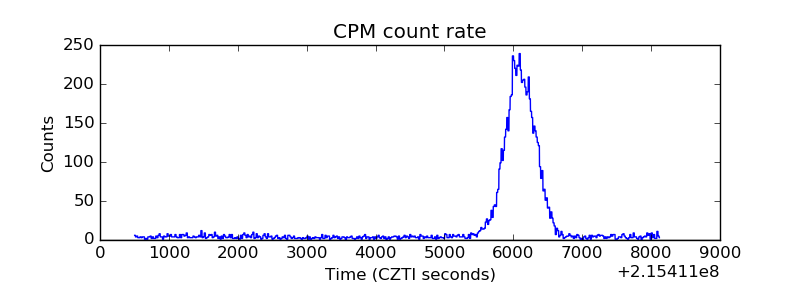

| _CPM_Rate |  |

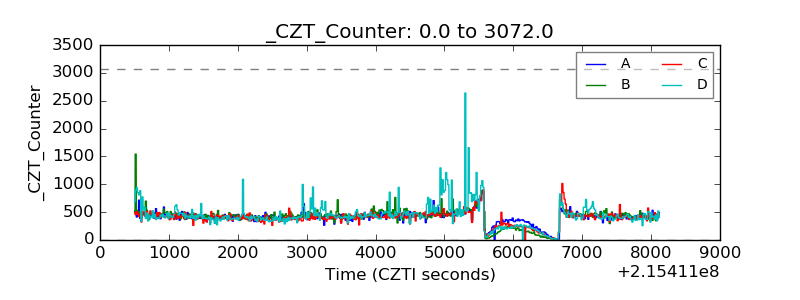

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

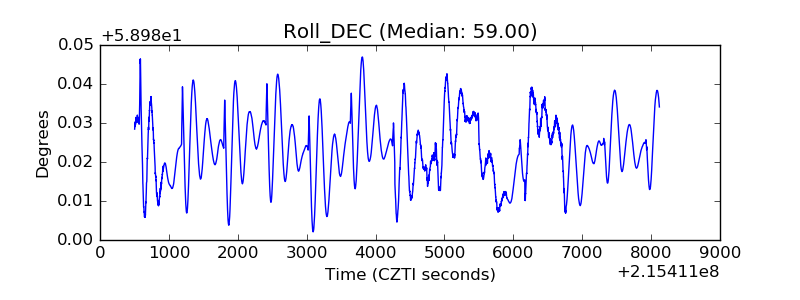

| _Roll_DEC |  |
| _Roll_RA |  |

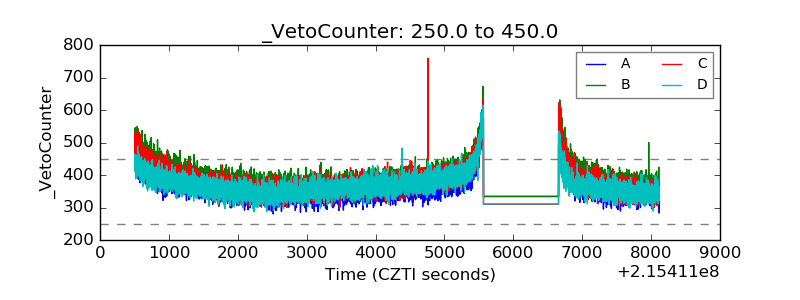

| Veto Counter |  |
