| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_114T01_9000000764_05900cztM0_level2.evt | modeM0/AS1A02_114T01_9000000764_05900cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,396,523,520 | 234,005,760 |
| Size | 1.3 GB | 223.2 MB |
| Events in quadrant A | 9,635,210 | 1,419,467 |
| Events in quadrant B | 10,011,880 | 1,420,380 |
| Events in quadrant C | 9,434,512 | 1,419,803 |
| Events in quadrant D | 11,777,150 | 1,367,748 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 432 | 2 |
| B | 0 | 432 | 0 |
| C | 0 | 432 | 0 |
| D | 0 | 432 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44005 | 30 |
| B | 0 | 44540 | 25 |
| C | 0 | 43954 | 16 |
| D | 0 | 49980 | 16 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21191 | 666 | 3.142844% |
| B | 21193 | 694 | 3.274666% |
| C | 21198 | 433 | 2.042646% |
| D | 21198 | 945 | 4.457968% |

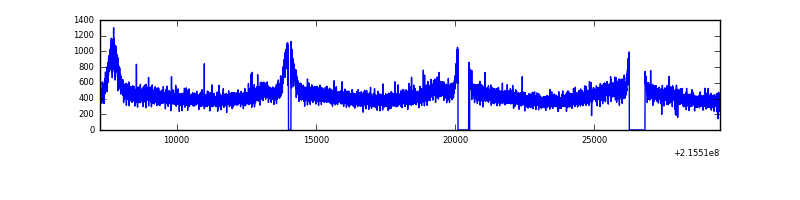

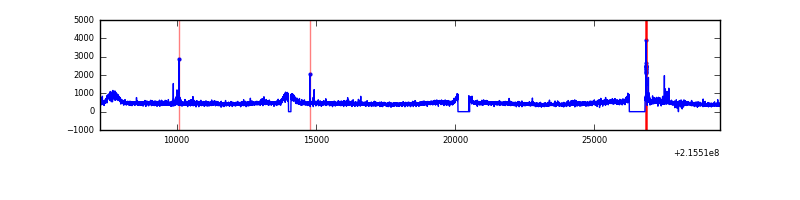

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

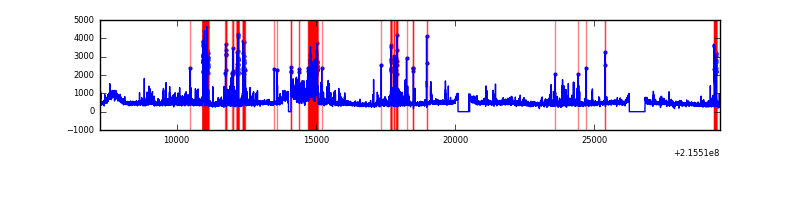

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 22259 | 21207 | 0 | 0 | 0.00% | 0.00% |  |
| B | 22259 | 21207 | 14 | 14 | 0.06% | 0.07% |  |
| C | 22259 | 21208 | 0 | 0 | 0.00% | 0.00% |  |
| D | 22259 | 21208 | 329 | 329 | 1.48% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 121600 | 238.12 | 2455 | 2393 | 500.6 |
| A | 15 | 234 | 37707 | 70.54 | 2455 | 2393 | 500.6 |
| A | 12 | 194 | 23602 | 42.37 | 2455 | 2393 | 500.6 |
| B | 15 | 204 | 310247 | 642.15 | 2479 | 2413 | 479.4 |
| B | 15 | 255 | 54048 | 107.71 | 2479 | 2413 | 479.4 |
| B | 12 | 111 | 48021 | 95.14 | 2479 | 2413 | 479.4 |
| C | 13 | 61 | 19258 | 30.18 | 2406 | 2413 | 558.2 |
| C | 8 | 128 | 18428 | 28.69 | 2406 | 2413 | 558.2 |
| C | 14 | 67 | 13122 | 19.19 | 2406 | 2413 | 558.2 |
| D | 12 | 233 | 1053361 | 1803.9 | 2396 | 2317 | 582.7 |
| D | 2 | 152 | 484293 | 827.21 | 2396 | 2317 | 582.7 |
| D | 1 | 239 | 444358 | 758.67 | 2396 | 2317 | 582.7 |

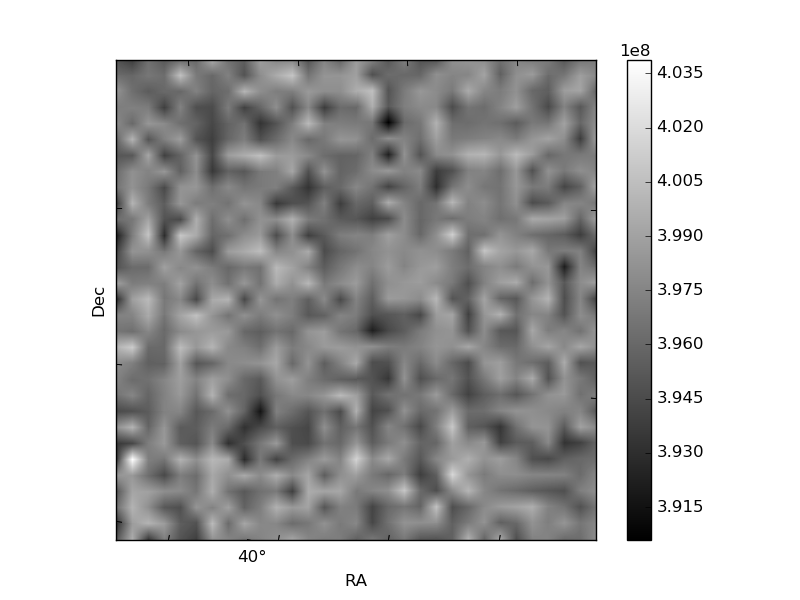

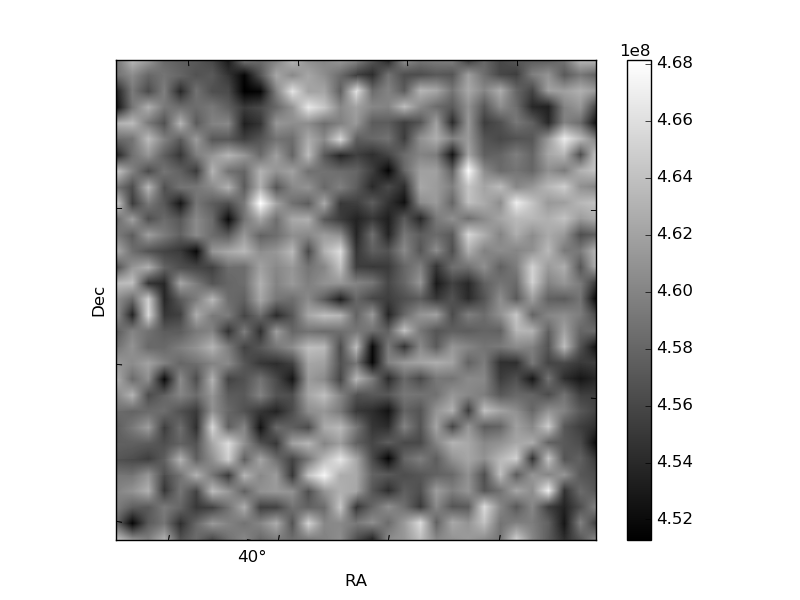

Histogram calculated using DETX and DETY for each event in the final _common_clean file

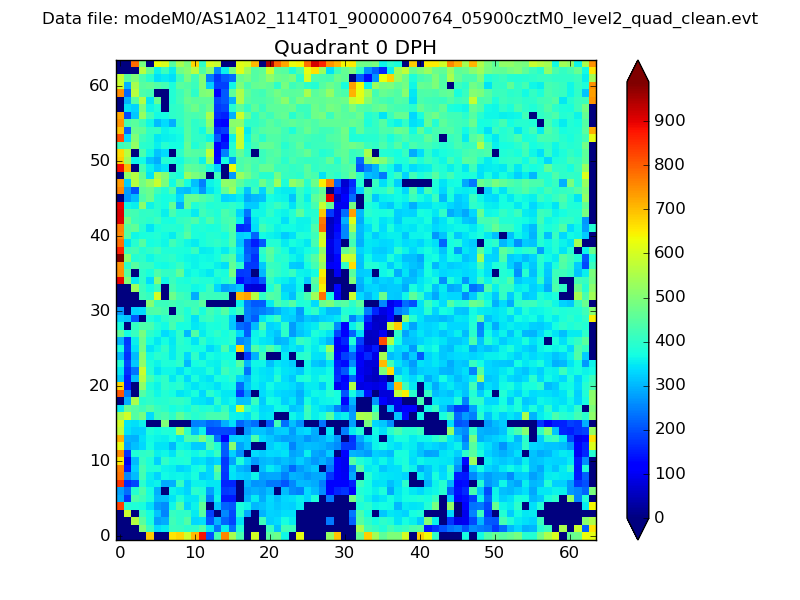

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

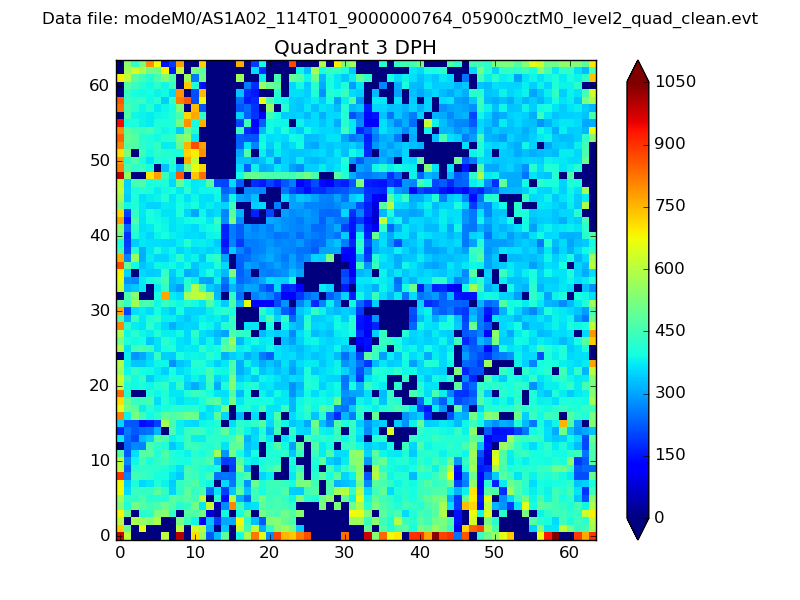

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

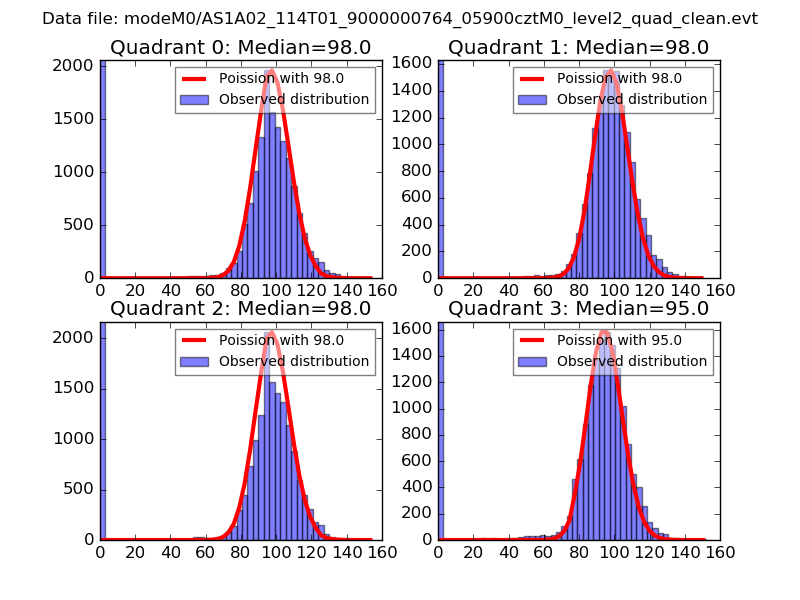

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

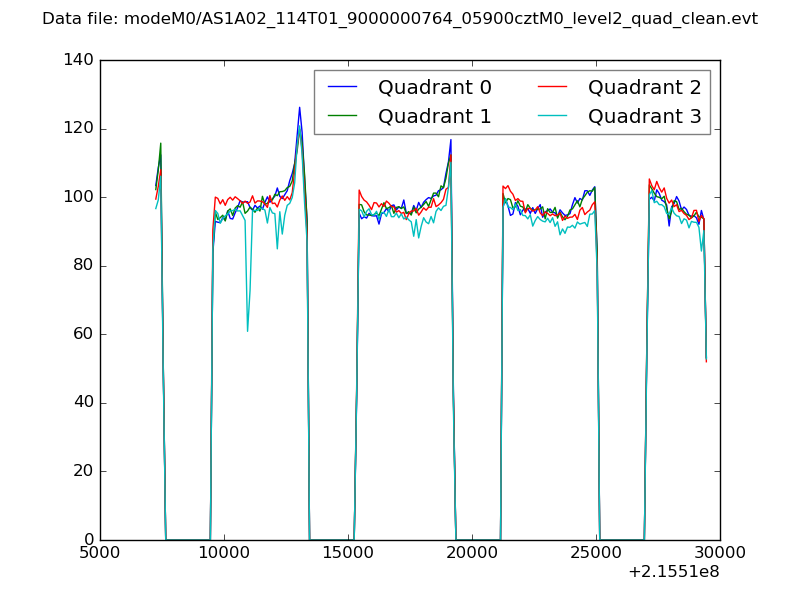

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

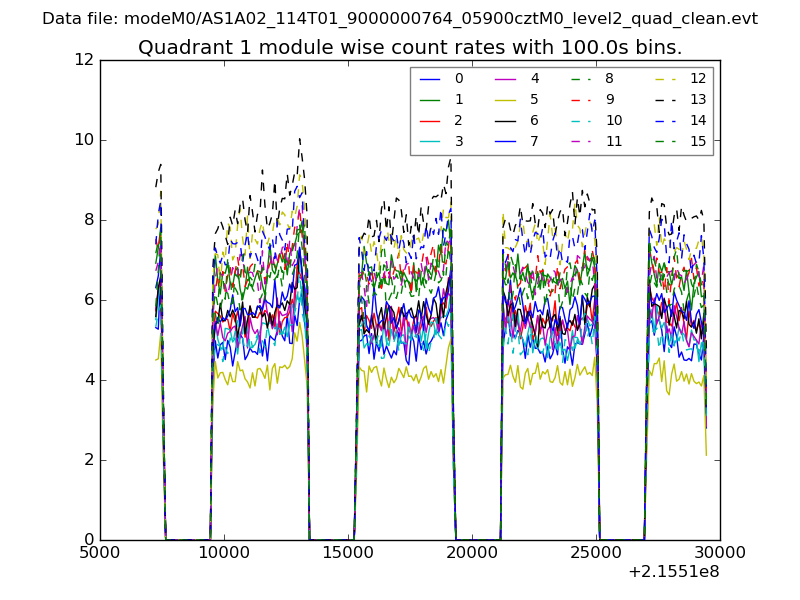

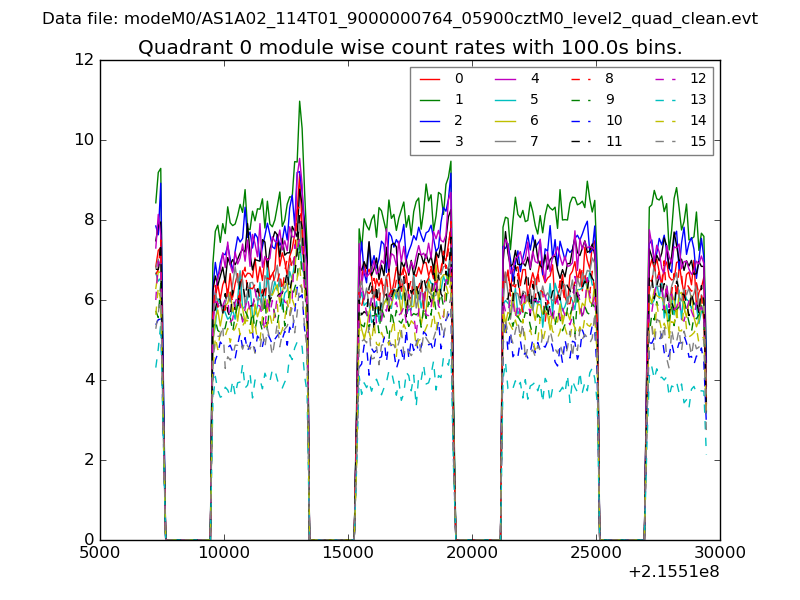

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

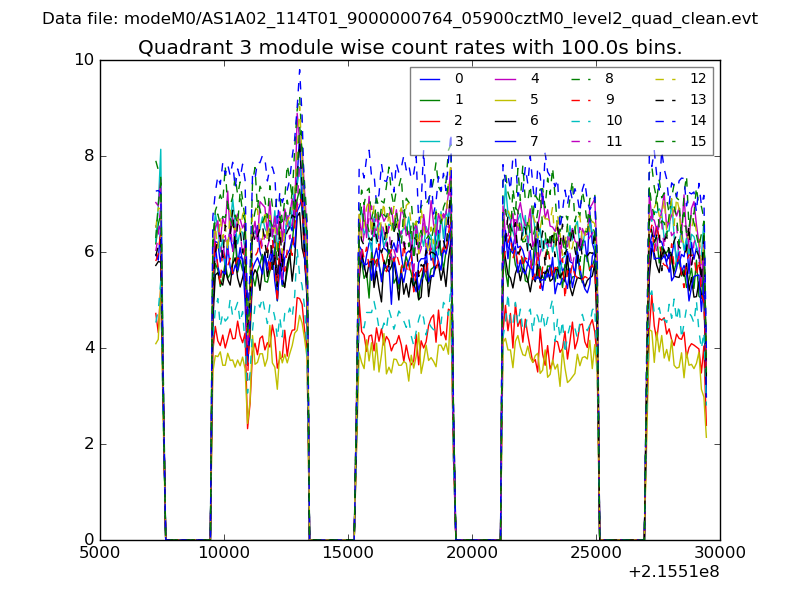

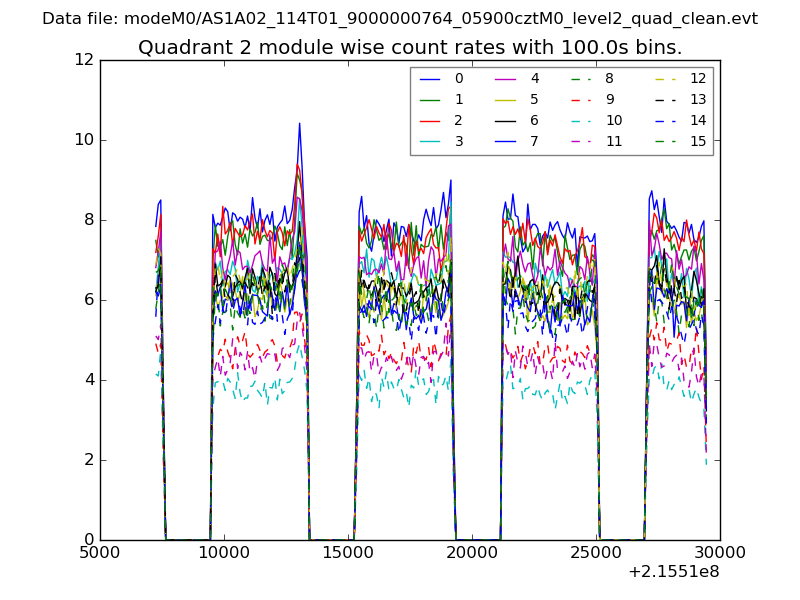

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

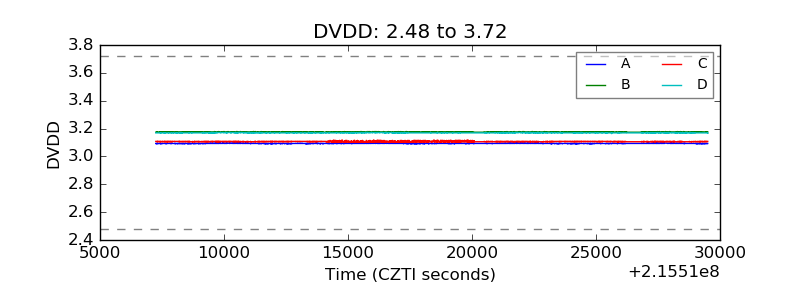

| D_VDD |  |

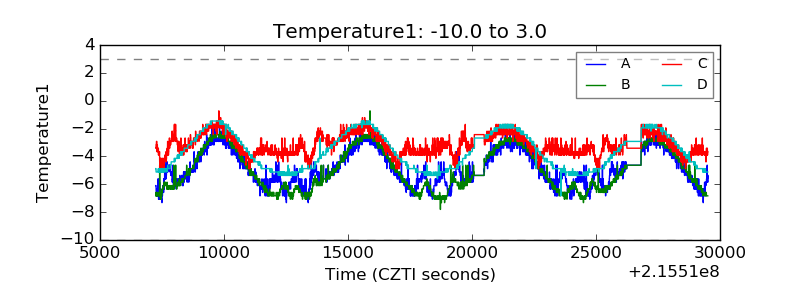

| Temperature 1 |  |

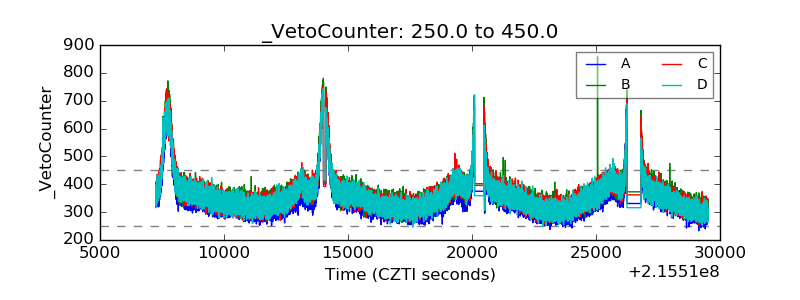

| Veto HV Monitor |  |
| Veto LLD |  |

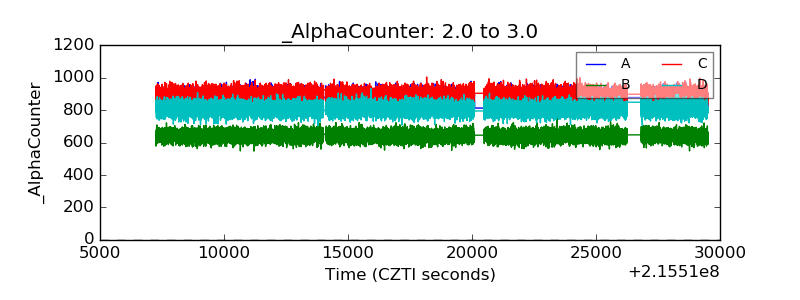

| Alpha Counter |  |

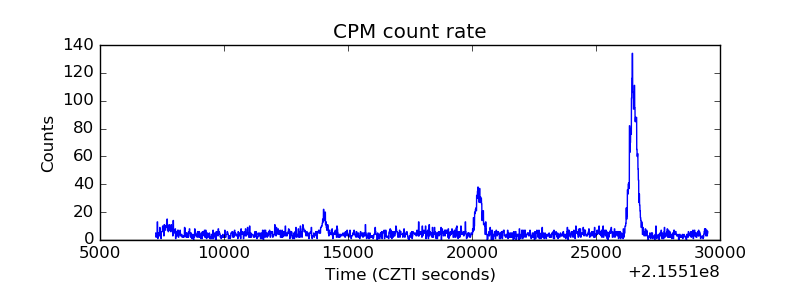

| _CPM_Rate |  |

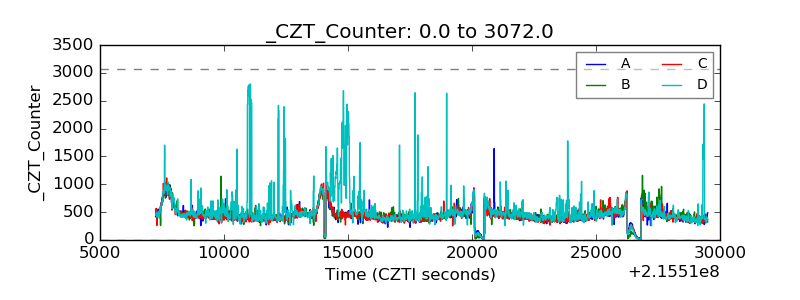

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

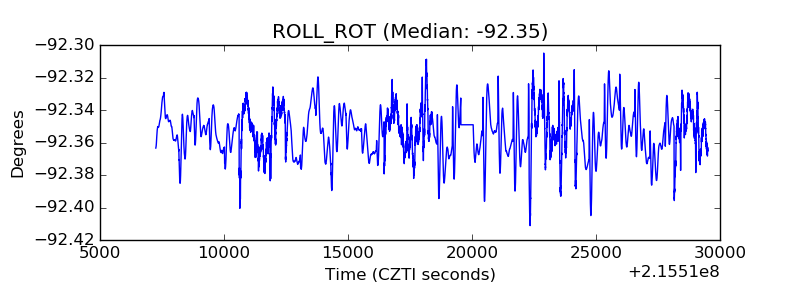

| _ROLL_ROT |  |

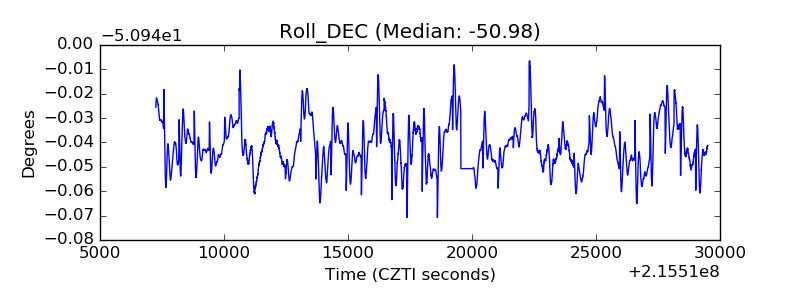

| _Roll_DEC |  |

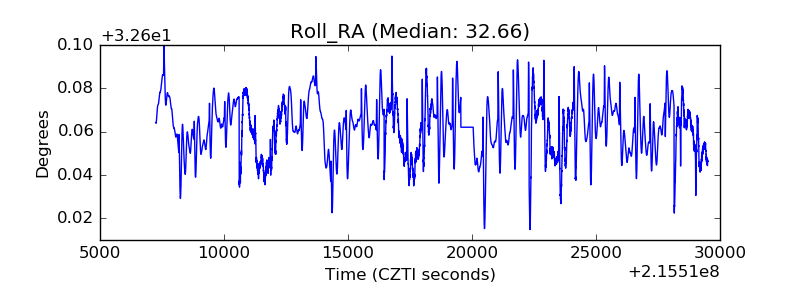

| _Roll_RA |  |
| Veto Counter |  |
