| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_174T01_9000000766_05921cztM0_level2.evt | modeM0/AS1A02_174T01_9000000766_05921cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,312,960 | 61,067,520 |
| Size | 460.9 MB | 58.2 MB |
| Events in quadrant A | 3,069,406 | 353,478 |
| Events in quadrant B | 3,451,229 | 357,244 |
| Events in quadrant C | 2,986,548 | 352,442 |
| Events in quadrant D | 4,678,428 | 321,851 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13727 | 3 |
| B | 0 | 14696 | 2 |
| C | 0 | 13599 | 2 |
| D | 0 | 18685 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6647 | 58 | 0.872574% |
| B | 6647 | 97 | 1.459305% |
| C | 6647 | 22 | 0.330976% |
| D | 6647 | 208 | 3.129231% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

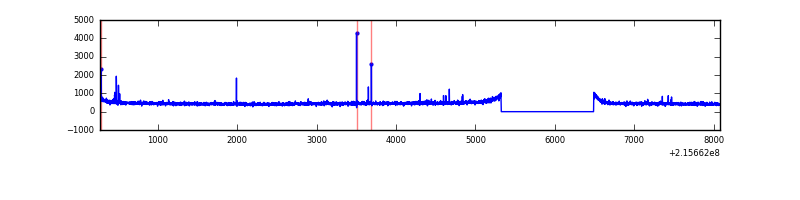

| A | 7812 | 6648 | 3 | 3 | 0.04% | 0.05% |  |

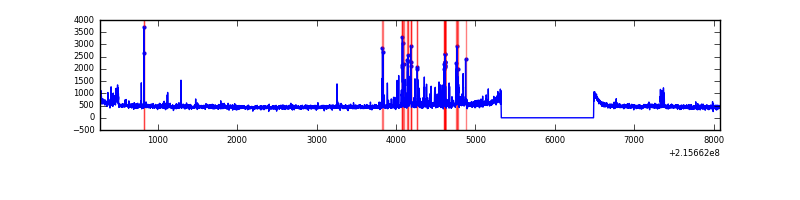

| B | 7812 | 6648 | 32 | 32 | 0.41% | 0.48% |  |
| C | 7812 | 6648 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7812 | 6648 | 148 | 148 | 1.89% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 40136 | 246.54 | 782 | 765 | 159.7 |
| A | 7 | 16 | 8839 | 50.56 | 782 | 765 | 159.7 |
| A | 0 | 226 | 7740 | 43.68 | 782 | 765 | 159.7 |
| B | 15 | 255 | 205906 | 1344.92 | 794 | 777 | 152.5 |
| B | 4 | 80 | 47867 | 308.74 | 794 | 777 | 152.5 |
| B | 0 | 214 | 33831 | 216.72 | 794 | 777 | 152.5 |
| C | 9 | 68 | 6521 | 32.7 | 762 | 768 | 176.0 |
| C | 13 | 61 | 6299 | 31.43 | 762 | 768 | 176.0 |
| C | 14 | 67 | 3284 | 14.3 | 762 | 768 | 176.0 |
| D | 1 | 20 | 792637 | 4284.13 | 746 | 721 | 184.8 |
| D | 2 | 152 | 575121 | 3107.4 | 746 | 721 | 184.8 |
| D | 2 | 63 | 367753 | 1985.58 | 746 | 721 | 184.8 |

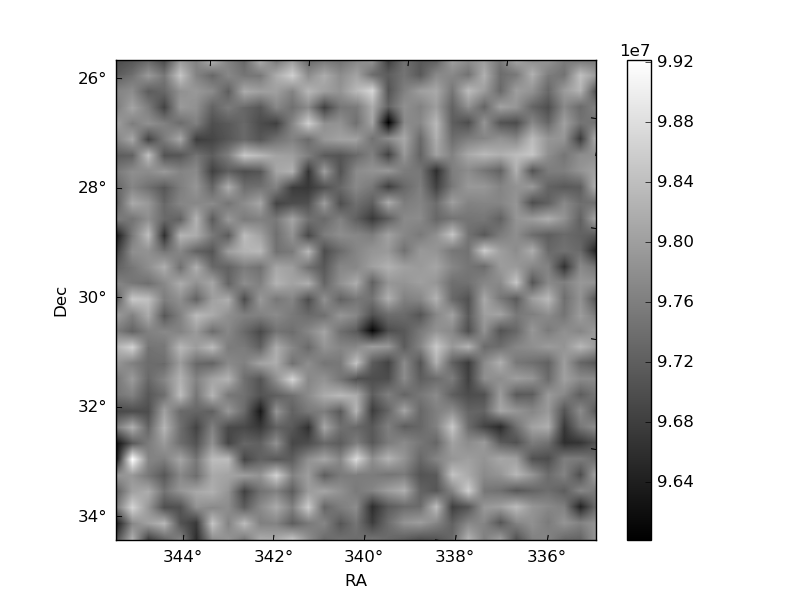

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

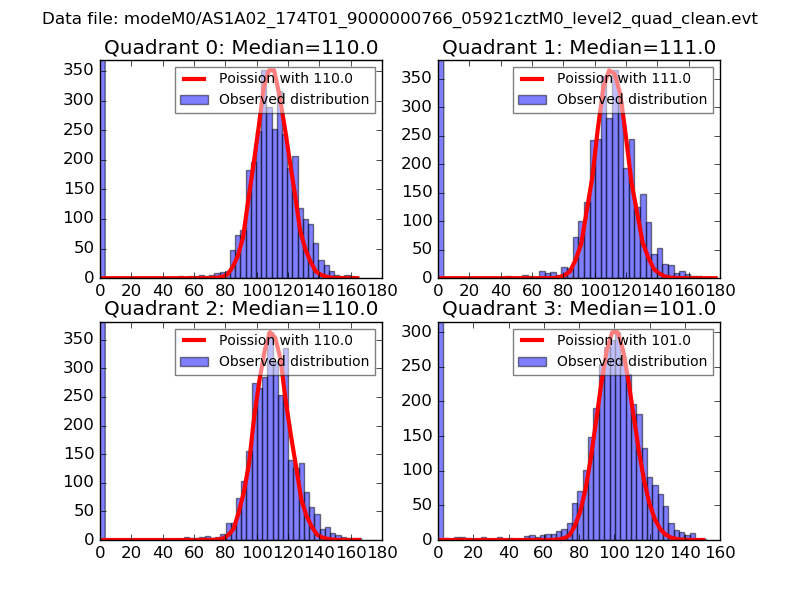

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

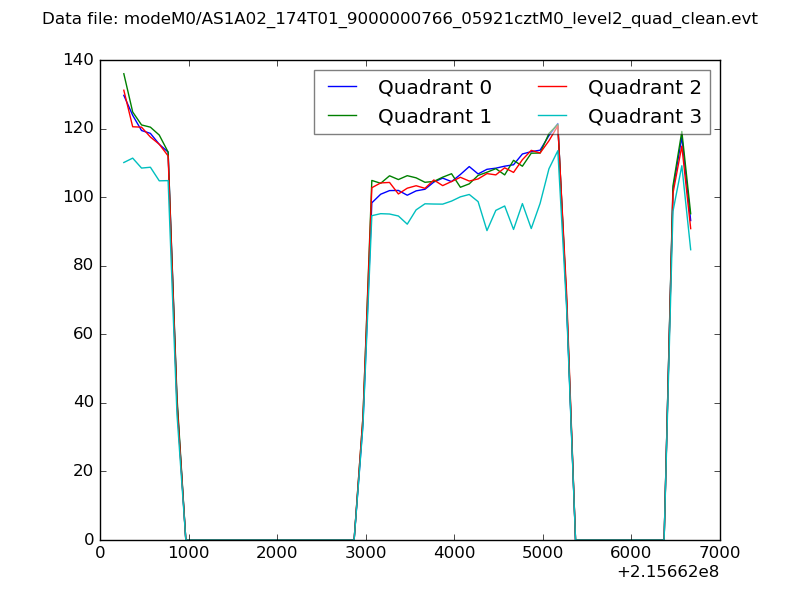

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

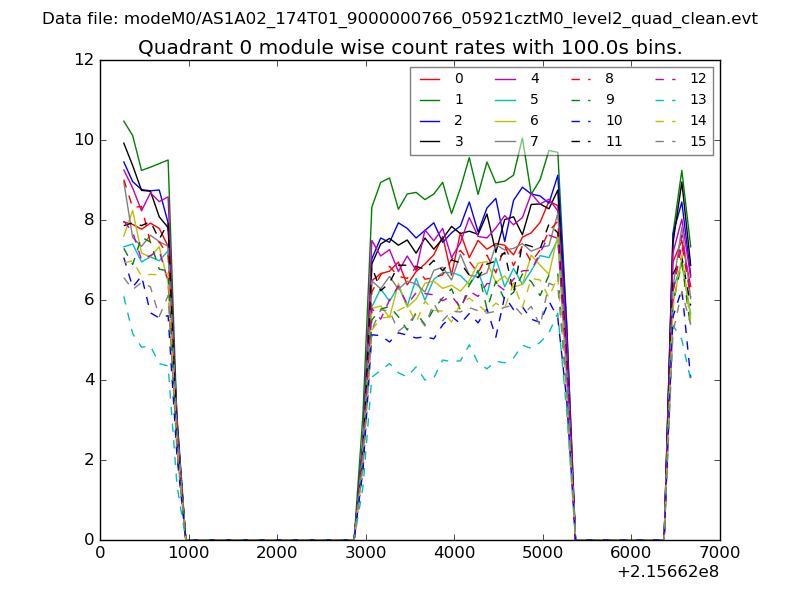

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

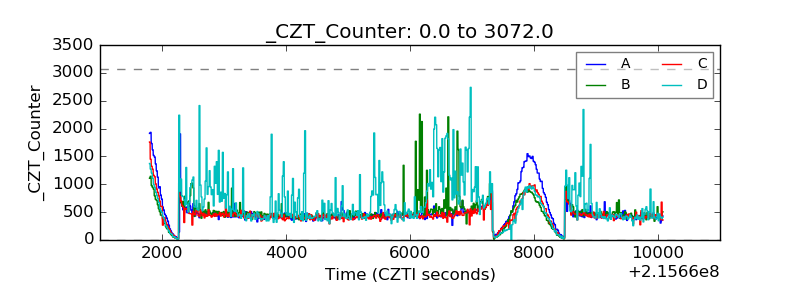

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

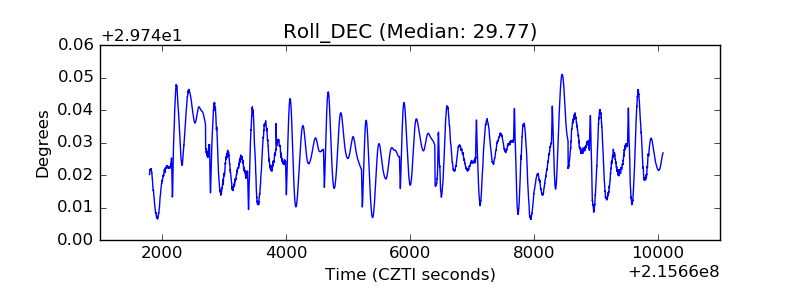

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
